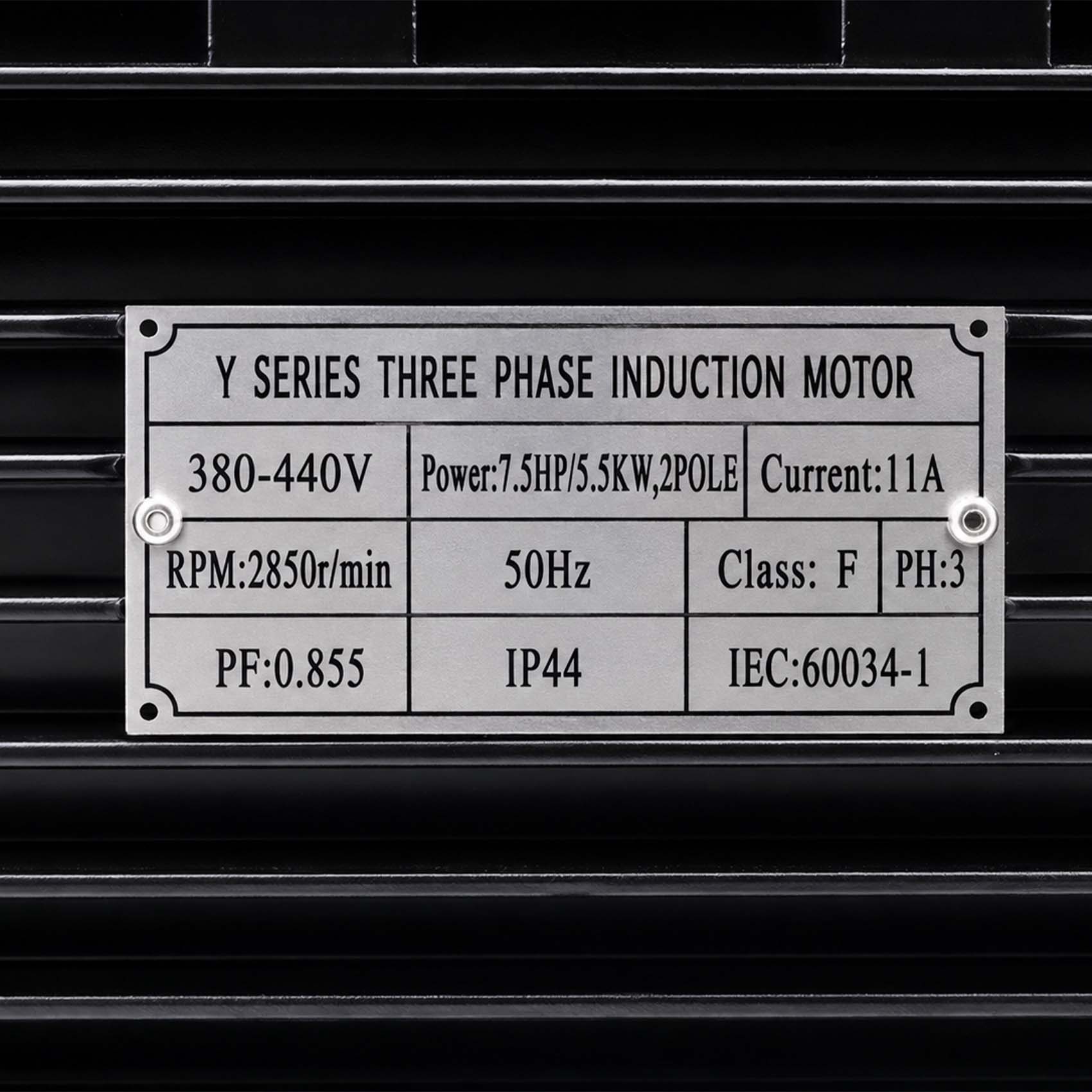

BRAND : VERKK
ITEM NO.: ACM7.5HP
ORIGIN : CHINA
VOLTAGE : 380-440V
HZ : 50
PHASE : 3
POWER : 7.5HP/5.5KW,2 POLE
CURRENT : 11A
RPM : 2850 R/MIN
CLASS : F
PH : 3
PF : 0.855
IEC : 60034-1
. IP44
| Item Code | CHIVERACM7.5HP |
|---|---|
| Barcode | 6295123320577 |
| Brand | FIAC |

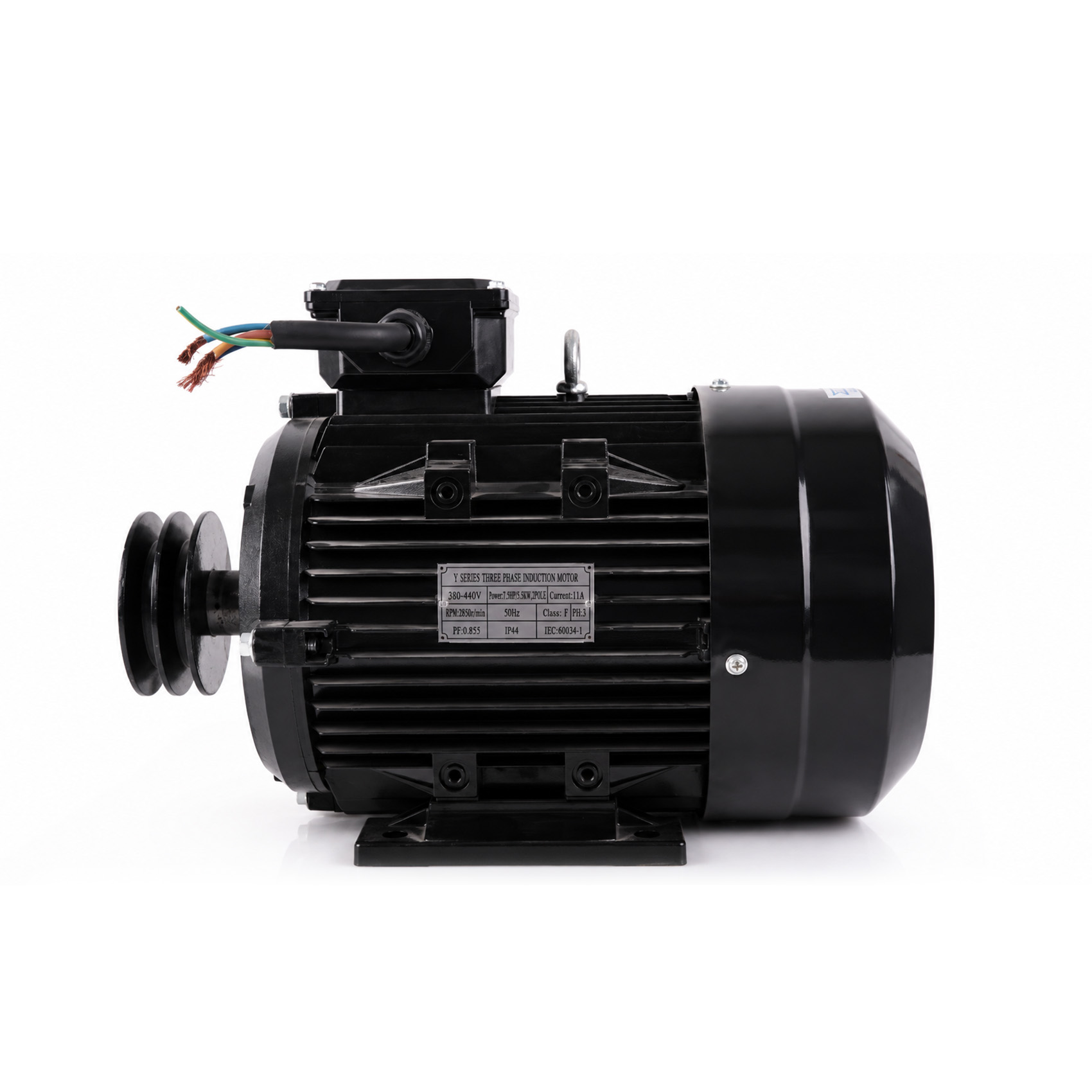

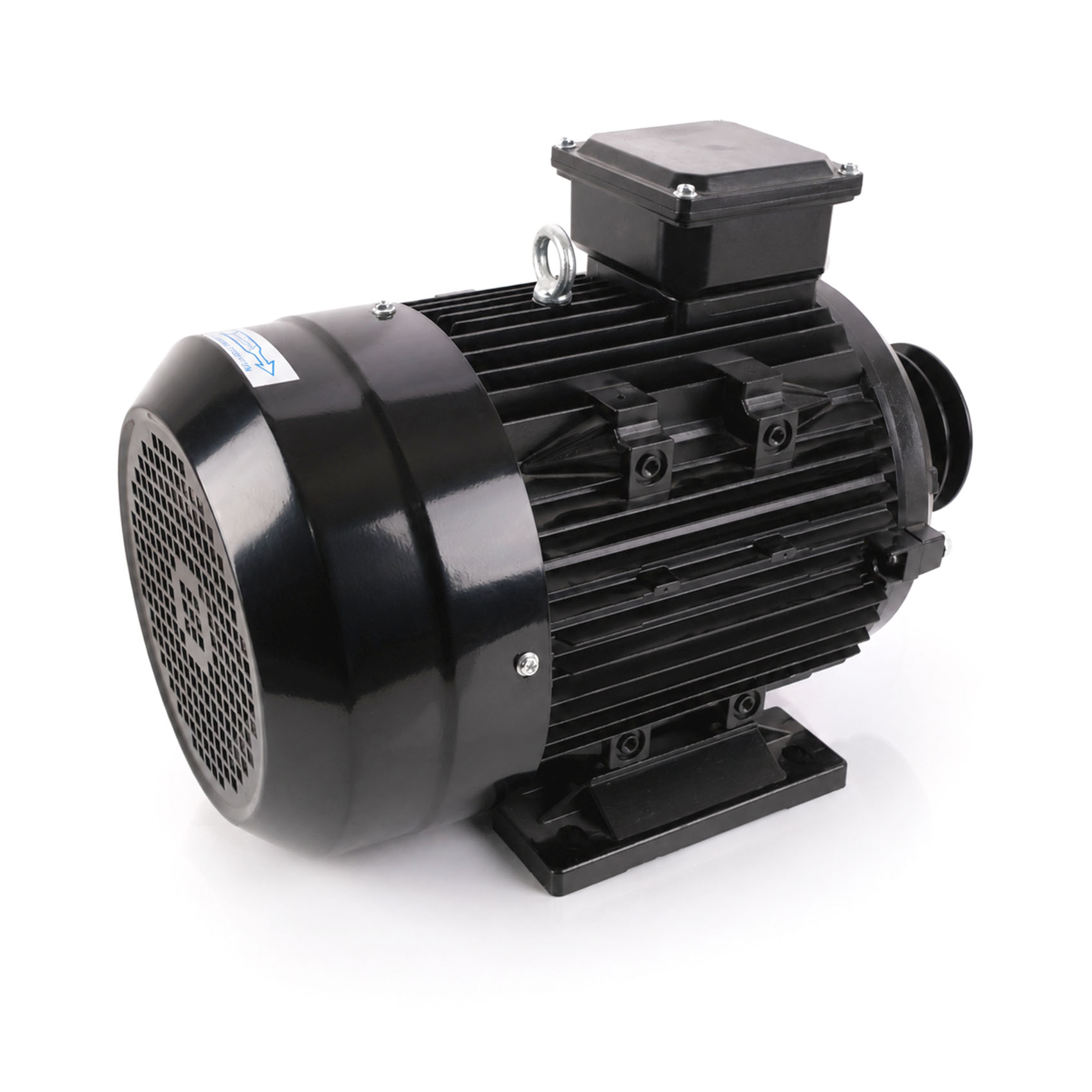

The VERKK Y Series ACM7.5HP is a three-phase induction motor designed to provide reliable mechanical power for industrial air compressors and other heavy-duty equipment. With a 7.5 HP motor rating, robust construction and a high operating speed of 2850 RPM, it is suitable for demanding workshop and industrial environments where continuous and dependable motor performance is required.
Install the motor securely on a suitable mounting base and connect it to a compatible three-phase electrical supply. The motor should be correctly coupled to the air compressor or other driven equipment, with proper alignment between the motor shaft and the driven component.
Before starting, ensure that the electrical connections, grounding, mounting bolts, belt or coupling arrangement and ventilation are properly installed. The motor should be operated within its rated voltage and current range and protected using an appropriately sized motor protection device.
For compressor applications, allow the motor to drive the compressor according to the compressor manufacturer's operating requirements. Regularly inspect the motor, connections, cooling openings and mechanical coupling to maintain reliable operation.
The primary purpose of the VERKK ACM7.5HP is to provide rotary mechanical power to air compressor systems. The motor converts three-phase electrical energy into mechanical rotation, which can then drive the compressor pump and generate compressed air.
It can also be suitable for other compatible industrial machinery requiring a 7.5 HP three-phase induction motor, provided the mechanical mounting, shaft arrangement, electrical requirements and operating conditions are compatible.
The VERKK Y Series ACM7.5HP is a practical choice when a powerful three-phase motor is required to drive an industrial air compressor or compatible machinery. Its 7.5 HP output provides the power needed for demanding pneumatic and workshop applications, while its three-phase induction design is well suited to industrial electrical systems.
The combination of high rotational speed, Class F insulation and IP44 protection makes this motor suitable for a variety of professional operating environments. It is particularly useful when replacing or installing a compatible compressor motor where the required electrical and mechanical characteristics match.
The VERKK ACM7.5HP motor is suitable for:
This motor is primarily suited to industrial air compressors, pneumatic equipment and workshop machinery. It can be used in automotive workshops, manufacturing facilities, maintenance departments, fabrication workshops and other industrial environments where compressed air and electrically driven machinery are required.
For painting and spraying applications, the motor can be used as the drive source for a suitably matched compressor system that supplies the required compressed air. The motor itself does not produce compressed air; it provides the mechanical power needed to operate the compressor pump.
The VERKK ACM7.5HP is rated at 7.5 HP, equivalent to approximately 5.5 kW.
The VERKK ACM7.5HP is a three-phase induction motor designed for 380–440 V three-phase electrical systems.
The motor operates at approximately 2850 RPM and uses a two-pole configuration.
Yes. The motor is designed for applications such as air compressors and can provide the mechanical drive required by a compatible compressor pump.
The motor is designed for a three-phase voltage range of 380–440 V at 50 Hz.
IP44 indicates that the motor enclosure provides protection against solid objects of the specified size and protection against water splashing from specified directions.
The VERKK ACM7.5HP uses Class F insulation, providing suitable thermal insulation performance for industrial motor applications.
Yes, it can be used as the drive motor for a compatible air compressor supplying compressed air for painting and spraying applications. The compressor system must be correctly matched to the motor.
Yes. Its 7.5 HP three-phase induction design makes it suitable for compatible industrial compressors, workshop equipment and machinery requiring this motor capacity.
The motor is specified according to IEC 60034-1, a standard covering rotating electrical machines.
