BRAND : VERKK
ITEM NO.: V-500-7.5 C50N 500-7.5HP
ORIGIN : ITALY
TYPE : C50N
MODEL : JOMBO
TANK : 500L
AIR DISPLACEMENT : 630 L/MIN - 22.2 CFM
POWER SUPPLY : 400/50 V/HZ - 3PH
NOMINAL POWER : 7.5 HP
REVOLUTIONS : 1480 RPM
MAX PRESSURE : 11 BAR - 160 PSI
NOISE LEVEL : 97 DB
DIMENSIONS : 2010X650X1330 MM
WEIGHT : 226 KG
VERKK BELT DRIVE TWO STAGE AIR COMPRESSORS ARE AVAILABLE 7.5 HP, WITH AIR TANK 500 LITRES AND WORKING PRESSURE UP TO 11 BAR. WHEN WORKING UNDER HIGH PRESSURE REQUIREMENTS, THE TWO STAGE TECHNOLOGY COMES INTO OPERATION WITH TWO DIFFERENT SIZE CYLINDERS AND WITH AN INTERMEDIATE COOLING SYSTEM. THIS ENABLES THE REDUCTION OF THE WORKLOAD AND MAINTAINS A HIGH VOLUME IN BOTH CYLINDERS. THIS RESULTS IN A HIGHLY EFFICIENT MACHINE ABLE TO ACCOMPANY THE USER IN THE MOST CHALLENGING CIRCUMSTANCES.
| Item Code | ITLKA-500-7.5 |
|---|---|
| Barcode | 8016738832693 |
| Brand | VERKK |

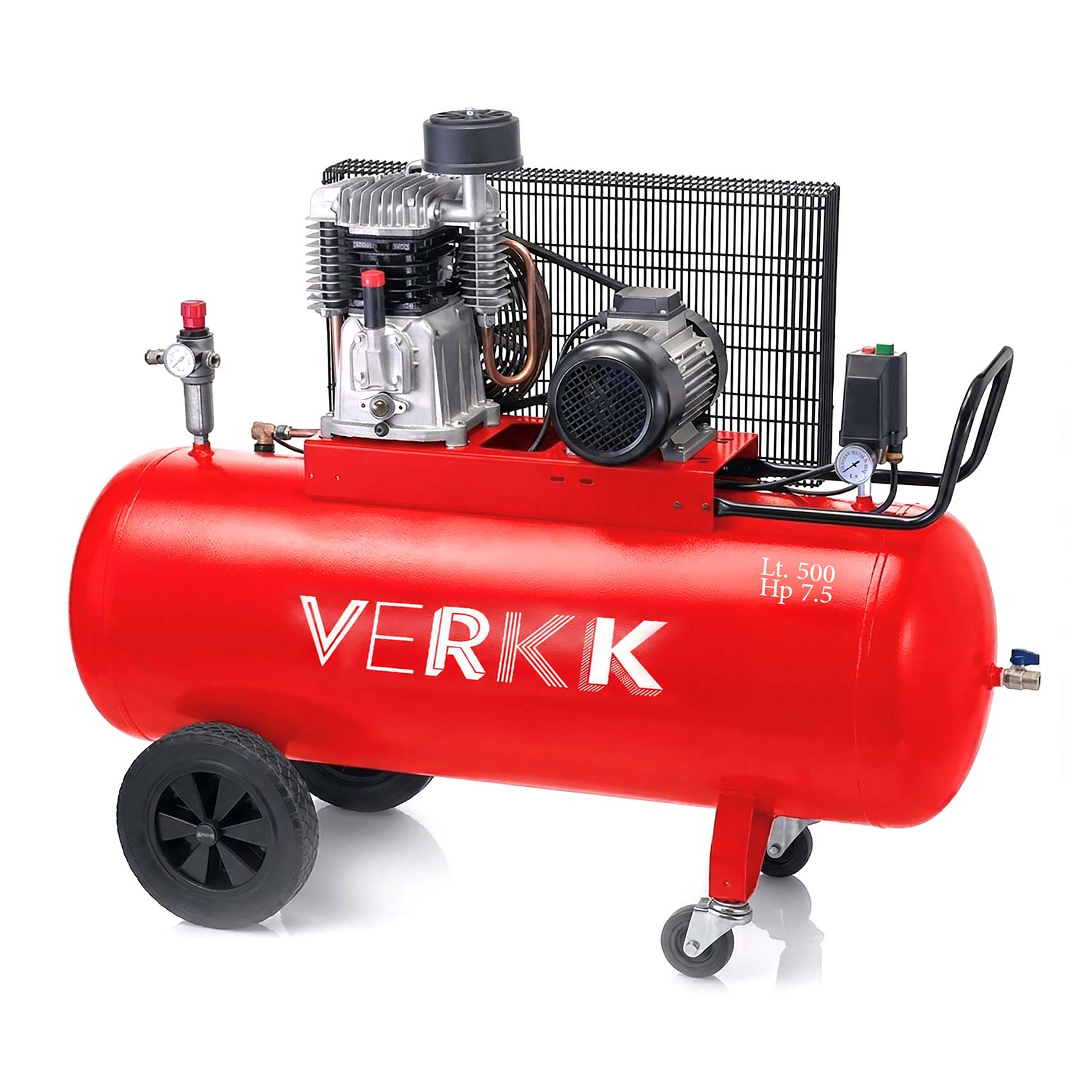

The VERKK 500L 7.5HP Belt Driven Two Stage Electric Air Compressor is a high-performance industrial compressed air solution engineered and manufactured in Italy for demanding professional applications. Designed with advanced two-stage compression technology and an intermediate cooling system, this compressor delivers superior efficiency, stable air output, and reliable high-pressure performance. It is ideal for continuous-duty industrial operations, automotive workshops, manufacturing facilities, fabrication plants, and service centers where uninterrupted compressed air is essential.
Install the compressor on a solid, level surface with adequate ventilation and connect it to a suitable three-phase electrical supply. Attach the air hose and pneumatic equipment to the outlet connection. Switch on the compressor and allow the receiver tank to build pressure automatically. Once the operating pressure is reached, begin using the connected pneumatic tools or machinery. After completing work, switch off the compressor, isolate the power supply, release pressure if necessary, and drain moisture from the air tank regularly to maintain optimum performance and extend service life.
This industrial air compressor is designed to generate a continuous supply of high-pressure compressed air for powering pneumatic tools, automated production equipment, spray painting systems, fabrication machinery, maintenance operations, and industrial processes that require reliable, efficient, and continuous airflow.
The VERKK Two Stage Belt Driven Air Compressor is engineered for businesses that demand maximum efficiency and dependable performance under heavy workloads. The two-stage compression system compresses air more efficiently while reducing heat generation through intermediate cooling, resulting in longer component life, lower operating stress, improved energy efficiency, and consistent high-pressure air delivery. Its robust Italian construction makes it an excellent long-term investment for industrial users.
A two-stage compressor compresses air in two steps with intermediate cooling, resulting in higher efficiency, improved cooling, greater durability, better energy savings, and higher pressure output for demanding industrial applications.
Yes. It is specifically designed for continuous-duty industrial environments where reliable compressed air is required throughout the working day.
It is suitable for powering pneumatic tools, automated machinery, spray painting equipment, industrial maintenance systems, fabrication equipment, production lines, and general industrial compressed air applications.
The intermediate cooling system lowers air temperature between compression stages, reducing workload, improving efficiency, increasing air density, and extending compressor lifespan.
Regularly inspect the belts, clean or replace air filters, drain tank moisture, check lubrication if applicable, inspect fittings, and follow the manufacturer's recommended maintenance schedule for reliable long-term operation.
