BRAND : VERKK
ITEM NO.: V-500-5.5 C45N 500-5.5HP
ORIGIN : ITALY
TYPE : C45N
TANK : 500L
AIR DISPLACEMENT : 470 L/MIN - 16.6 CFM
POWER SUPPLY : 400/50 V/HZ - 3PH
NOMINAL POWER : 5.5 HP - 4 KW
REVOLUTIONS : 1495 RPM
MAX PRESSURE : 11 BAR - 160 PSI
NOISE LEVEL : 97 DB
DIMENSIONS : 2010X650X1330 MM
WEIGHT : 221 KG
VERKK BELT DRIVE TWO STAGE AIR COMPRESSORS ARE AVAILABLE FROM 5.5 HP, WITH AIR TANK 500 AND WORKING PRESSURE UP TO 11 BAR. WHEN WORKING UNDER HIGH PRESSURE REQUIREMENTS, THE TWO STAGE TECHNOLOGY COMES INTO OPERATION WITH TWO DIFFERENT SIZE CYLINDERS AND WITH AN INTERMEDIATE COOLING SYSTEM. THIS ENABLES THE REDUCTION OF THE WORKLOAD AND MAINTAINS A HIGH VOLUME IN BOTH CYLINDERS. THIS RESULTS IN A HIGHLY EFFICIENT MACHINE ABLE TO ACCOMPANY THE USER IN THE MOST CHALLENGING CIRCUMSTANCES.
| Item Code | ITLKA-500-5.5 |
|---|---|
| Barcode | 8016738832686 |
| Brand | VERKK |

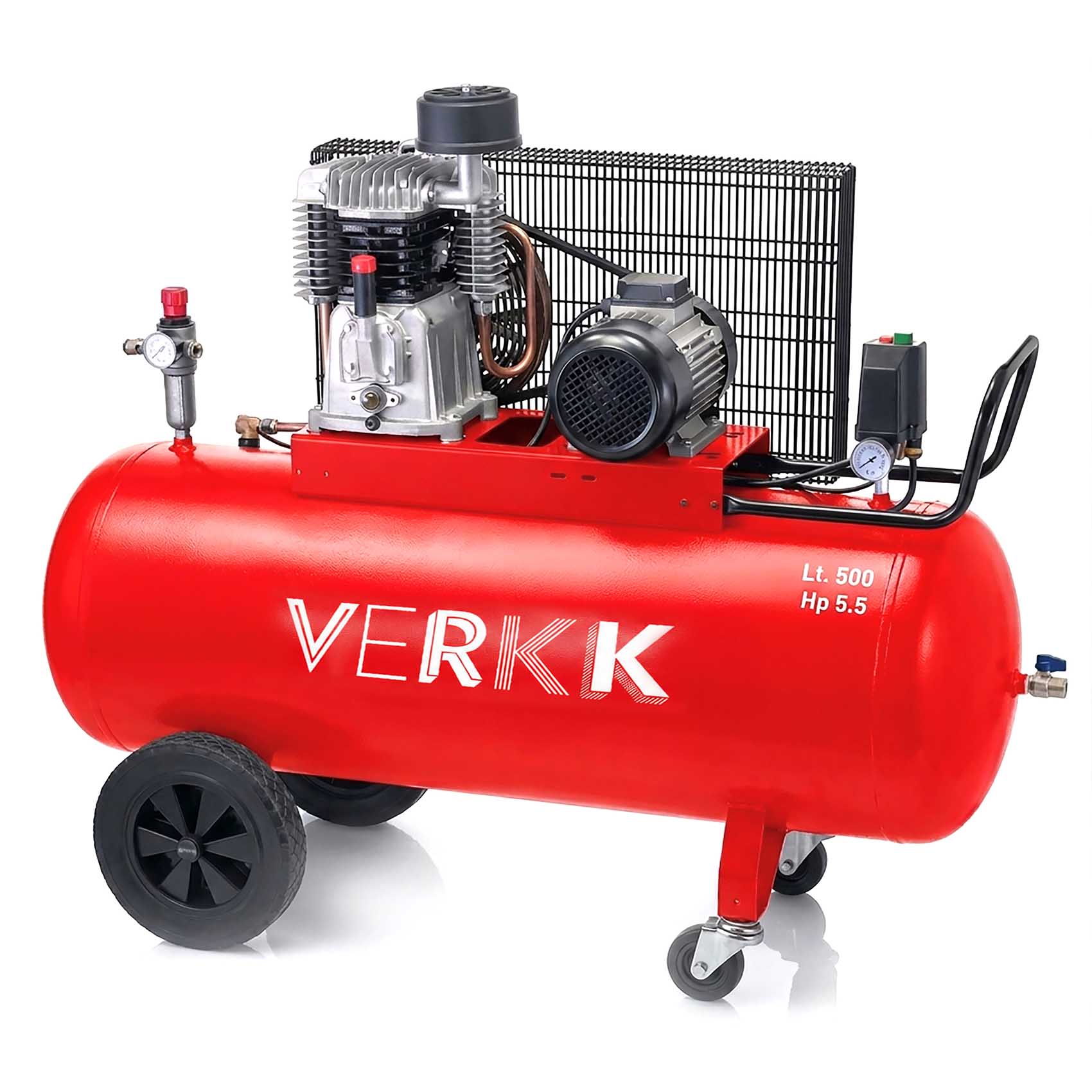

The VERKK 500L 5.5HP Belt Driven Two Stage Electric Air Compressor is a premium industrial compressed air solution manufactured in Italy for continuous-duty professional applications. Designed with advanced two-stage compression technology and an intermediate cooling system, this compressor delivers efficient, stable, and reliable compressed air while reducing operating temperatures and mechanical stress. Built for demanding industrial environments, it is ideal for powering pneumatic tools, production equipment, spray painting systems, and heavy workshop operations.
Install the compressor on a solid, level surface in a well-ventilated area and connect it to a compatible three-phase power supply. Securely attach the appropriate air hose and pneumatic equipment to the air outlet. Turn on the compressor and allow the receiver tank to build pressure automatically. Once the desired pressure is reached, begin operating your pneumatic tools or machinery. After use, switch off the compressor, disconnect the electrical supply, release remaining air pressure if necessary, and drain moisture from the air tank regularly to maintain maximum efficiency and prolong service life.
This industrial air compressor is designed to provide a continuous and dependable source of compressed air for professional pneumatic equipment, automated production systems, spray painting, vehicle maintenance, fabrication work, manufacturing processes, and industrial maintenance applications where consistent high-pressure air is essential.
The VERKK Two Stage Belt Driven Air Compressor is engineered for professionals who require maximum reliability, efficiency, and long-term performance. Its advanced two-stage compression with intercooling provides higher air efficiency while reducing heat buildup and mechanical load. Combined with Italian manufacturing quality and robust construction, this compressor delivers dependable compressed air for the most demanding industrial environments.
A two-stage compressor compresses air in two separate stages with intermediate cooling, resulting in improved efficiency, lower operating temperatures, higher pressure capability, and longer equipment life.
Yes. It is specifically designed for continuous-duty industrial and commercial applications that require reliable compressed air throughout the workday.
It is suitable for operating impact wrenches, spray guns, grinders, sanders, air ratchets, production machinery, pneumatic lifting equipment, and many other industrial air-powered tools.
The intermediate cooling system lowers compressed air temperature between stages, reducing workload on the compressor, improving efficiency, and extending component lifespan.
Regularly inspect belts, clean the air filter, drain moisture from the receiver tank, check lubrication where applicable, inspect all fittings, and follow the manufacturer's recommended maintenance schedule.
