BRAND : VERIBOR (BOHLE)
ITEM NO.: 603.021
ORIGIN : GERMAN
LOAD CAPACITY : 100 KG
DIAMETER SUCTION PAD : 4.7" (120 MM)
ALLOWABLE SURFACE CURVATURE : FLAT
LIFTING DIRECTION : PARALLEL
MATERIAL : ALUMINIUM
MATERIAL SUCTION PAD : RUBBER
NUMBER OF SUCTION PADS : 3
TYPE OF VACUUM GENERATION : LEVER
MATERIAL SURFACE : SUITABLE FOR USE ON MATERIALS WITH FLAT, SMOOTH, AIRTIGHT SURFACES SUCH AS GLASS, PLASTIC, COATED WOOD, METAL, MARBLE, PORCELAIN TILES, AND MORE
USAGE : GLASS SHOP, GLAZIER, TILER, OR SERVICE TECHNICIAN
. HIGH SAFETY AND ERGONOMICS
. MADE FROM LEAD-FREE ALUMINIUM
. WIDE CONTACT SURFACE OF THE ROCKER ARMS
. SUITABLE FOR MANY DIVERSE APPLICATIONS
. OPTIMUM TEMPERATURE RESISTANCE OF THE RUBBER PAD FROM 0° TO 40°C
. FREE FROM CARCINOGENIC HYDROCARBON COMPOUNDS (PAH)
THE QUALITY SUCTION LIFTER OF THE VERIBOR® BRAND IS THE OPTIMAL HELPER FOR LIFTING AND TRANSPORTING GAS-TIGHT SHEET MATERIALS. REGARDLESS OF THE MATERIAL, THE SUCTION LIFTER CAN CARRY A WEIGHT OF UP TO 100 KG.
| Item Code | GER3ASLA |
|---|---|
| Barcode | 4010122603009 |
| Brand | VERIBOR |

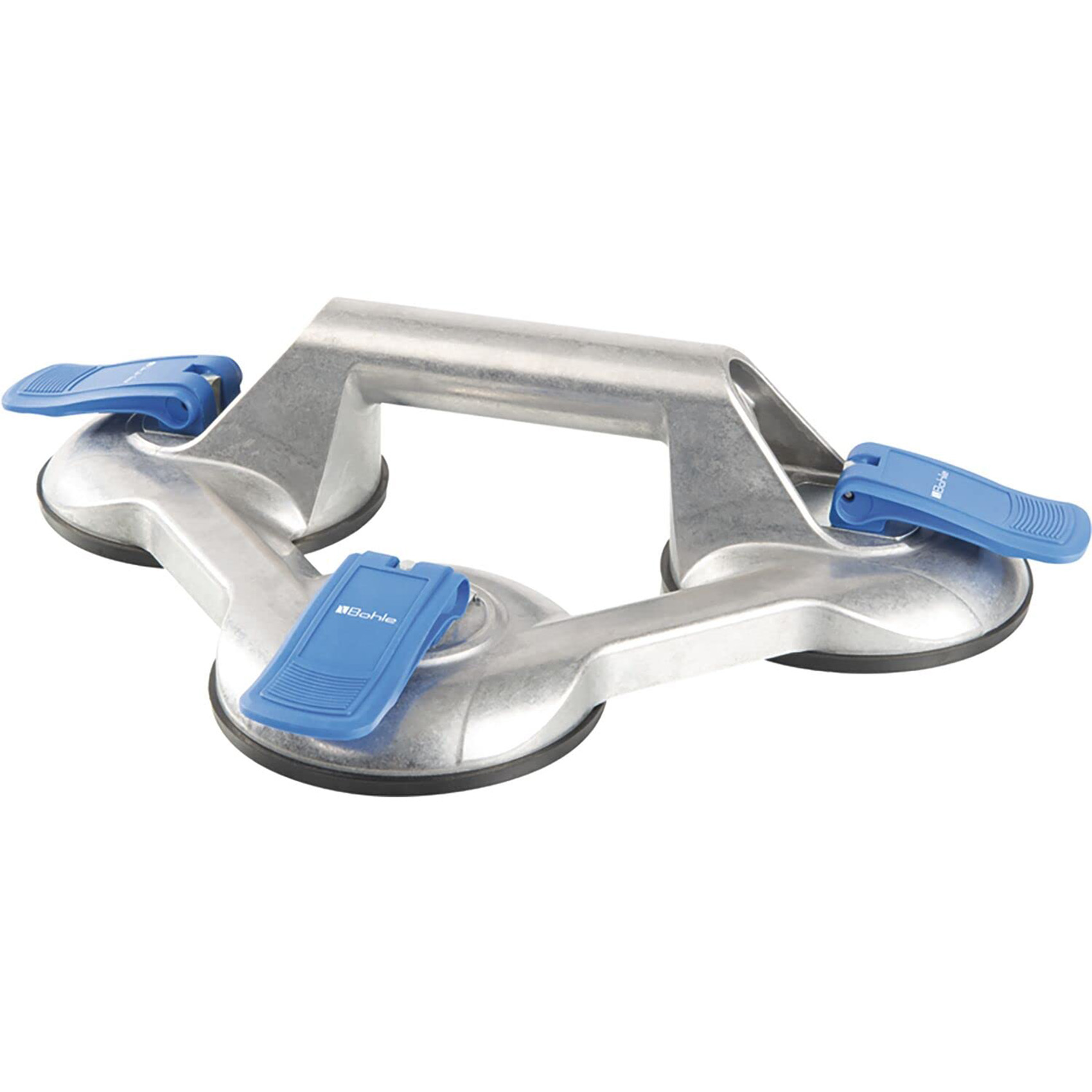

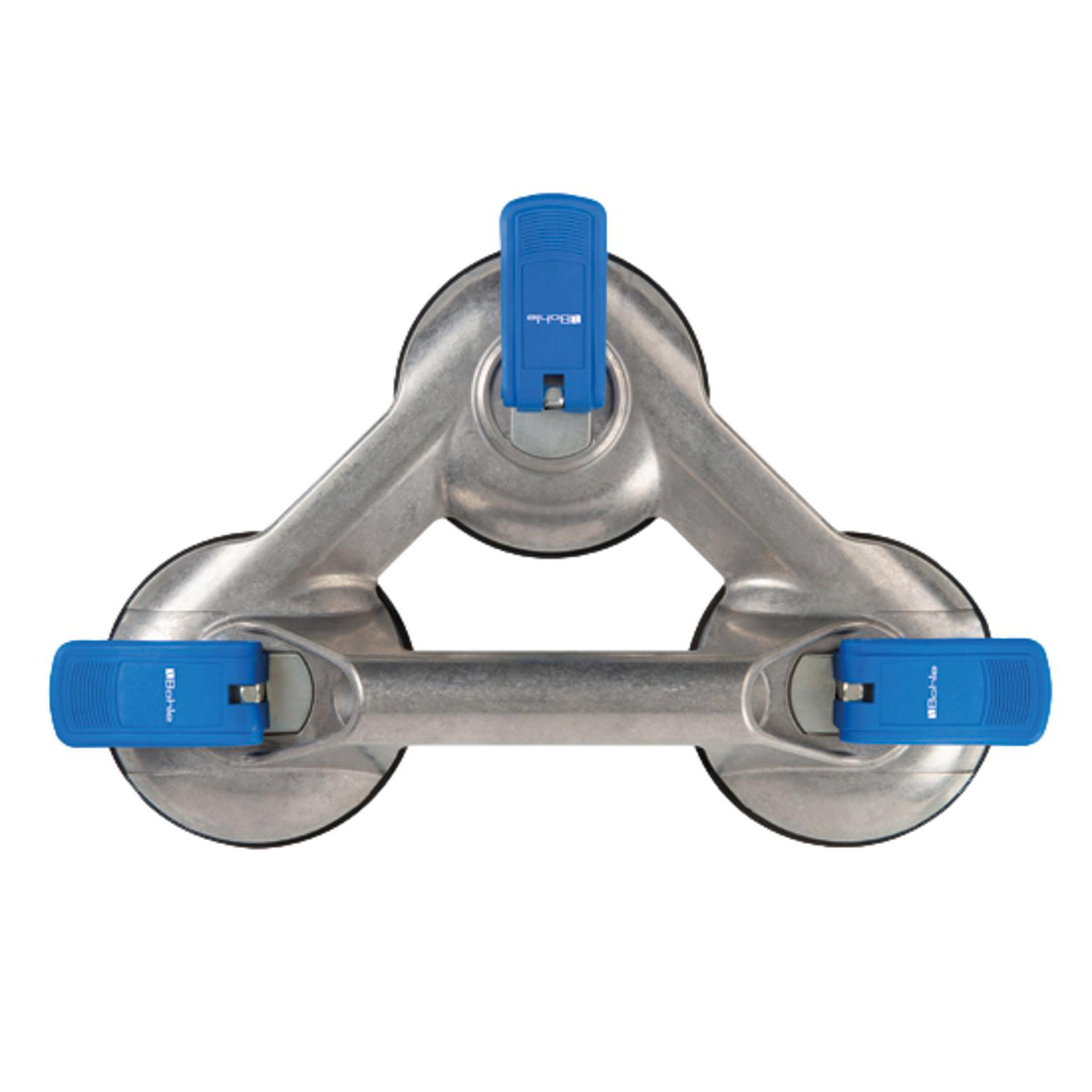

The VERIBOR BOHLE BO 603.021 Triple Suction Glass Lifter is a premium German-engineered vacuum lifting tool designed for the safe handling, lifting, positioning, and transportation of glass and other smooth, airtight materials. Featuring three high-quality 120 mm rubber suction pads, a durable lead-free aluminum body, and a lever-activated vacuum system, this professional-grade lifter provides exceptional grip, safety, and reliability for glaziers, tile installers, glass shops, and service technicians. With a lifting capacity of up to 100 kg, it is ideal for demanding installation and material handling applications.
Ensure the surface of the material is clean, dry, and free from dust or debris. Position the three suction pads evenly on the flat surface of the material. Press the lifter firmly against the surface and activate each lever to create a secure vacuum seal. Verify that all suction pads are firmly attached before lifting. Use the ergonomic handle to safely lift, transport, position, or install the material. Once the task is complete, release the vacuum levers to remove the lifter.
The VERIBOR BO 603.021 is designed to provide a secure and efficient method for handling heavy, smooth, and airtight materials. It reduces the risk of material damage, improves workplace safety, and minimizes physical strain during lifting, transportation, installation, and alignment tasks.
VERIBOR by BOHLE is recognized worldwide for manufacturing premium glass handling equipment trusted by professionals. The BO 603.021 combines German precision engineering, superior safety, ergonomic design, and long-lasting durability. Its triple-pad configuration offers increased stability and load distribution compared to single-pad lifters, making it an excellent choice for professionals handling valuable glass panels, tiles, stone slabs, and other delicate materials.
The suction lifter is suitable for flat, smooth, airtight surfaces such as glass, marble, porcelain tiles, metal, plastic, coated wood, and similar materials.
The VERIBOR BO 603.021 can safely lift and handle materials weighing up to 100 kg when used correctly on suitable surfaces.
No. This model is specifically designed for flat, smooth surfaces to ensure maximum vacuum holding performance.
The vacuum is generated using a manual lever mechanism that securely locks each suction pad onto the material surface.
Three suction pads provide greater stability, improved load distribution, and enhanced safety when lifting larger or heavier materials.
