BRAND : UNI-T
ITEM NO.: UT361
ORIGIN : CHINA
INTERFACE : 1/4β SAE
VACUUM UNIT : MICRONS, MBAR, PA, KPA, HPA, MTORR, TORR, MMHG, INHG, INH2O, PSIA,
TEMPERATURE UNIT : β, β
VACUUM RANGE : 1-19000 MICRON
AMBIENT TEMPERATURE RANGE : -20 ~ 60β
OVERLOAD PRESSURE : 27.5 BAR
UNIT MEMORY : β
AUTO POWER OFF : β
BATTERY STATE : β
MOBILE APP : β
OTA UPGRADE : β
WATER SATURATION TEMPERATURE : β
ΞT(THβO-TAMB) : β
DATA STORAGE : 8000
BATTERY TYPE : AA 1.5V * 3
WORKING ENVIRONMENT : -10ο½50β, οΌ90%RH(NON-CONDENSING )
STORAGE ENVIRONMENT : -20ο½60β, οΌ80%RH(NON-CONDENSING )
BATTERY : AA 1.5V X 3
BATTERY LIFE : ABOUT 100H(BACKLIGHT OFF)
ACCESSORIES : WIRELESS VACUUM GAUGE X1, USER MANUAL X1, SAFETY GUIDE X1, GENERAL DOWNLOAD OPERATION GUIDE X1, AA BATTERY X3, HANGING HOOK X1, CLOTH BAG (HARD) X1
SIZE : 145Γ68Γ39MM
WEIGHT : ABOUT 245G(BATTERY NOT INCLUDED)
RESOLUTION :
1 -400 MICRON - 1 MICRON
400 β 3000 MICRON - 10 MICRON
3000 β 10000 MICRON - 100 MICRON
10000 β 19000 MICRON - 250 MICRON
AMBIENT TEMPERATURE : 0.1Β°C
ACCURACY :
1 β 10000 MICRON - Β±10%RDG+10 MICRON
10000 β 19000 MICRON - Β±20%
AMBIENT TEMPERATURE : Β±0.5Β°C
THE UT336V IS A COMPACT, HIGH-PRECISION DIGITAL VACUUM GAUGE WITH INTEGRATED BLUETOOTH, DESIGNED FOR CRITICAL MEASUREMENT TASKS IN REFRIGERATION AND HEAT PUMP SYSTEMS. IT ACCURATELY MONITORS VACUUM LEVELS TO VERIFY SYSTEM DEHYDRATION AND CLEANLINESS, MAKING IT AN ESSENTIAL TOOL FOR INSTALLATION, COMMISSIONING, AND MAINTENANCE PROFESSIONALS WHO REQUIRE RELIABLE PERFORMANCE AND WIRELESS CONVENIENCE IN A PORTABLE DEVICE.
. COMPATIBLE WITH A1 / A2L / A2 / A3 AND PART OF B1 REFRIGERANTS.
. THE DEVICE CANNOT BE USED WITH AMMONIA REFRIGERANTS (NH3 / R717).
. CERTIFICATIONS: CE, ROHS
. LANGUAGE:EN, FR, DE, IT, ES, SV, PL, CZ
. AMBIENT TEMPERATURE MEASUREMENT
. WATER SATURATION TEMPERATURE DISPLAY
. MOBILE APP CONNECTION
. 8000 DATA STORAGE
. IP54 RATING
. HOOK DESIGN
| Item Code | UNITUT336V |
|---|---|
| Barcode | 6935750534298 |
| Brand | UNI-T |

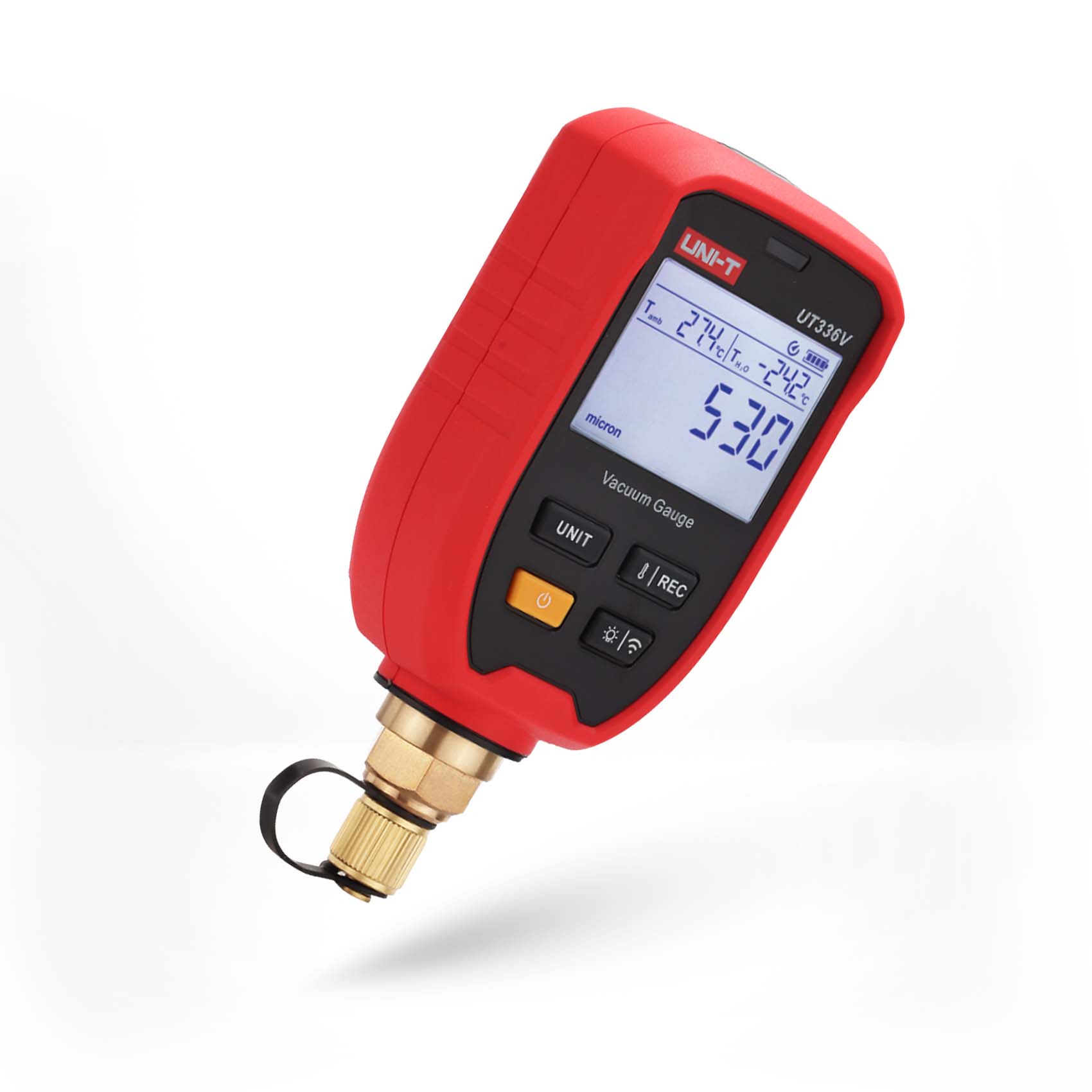

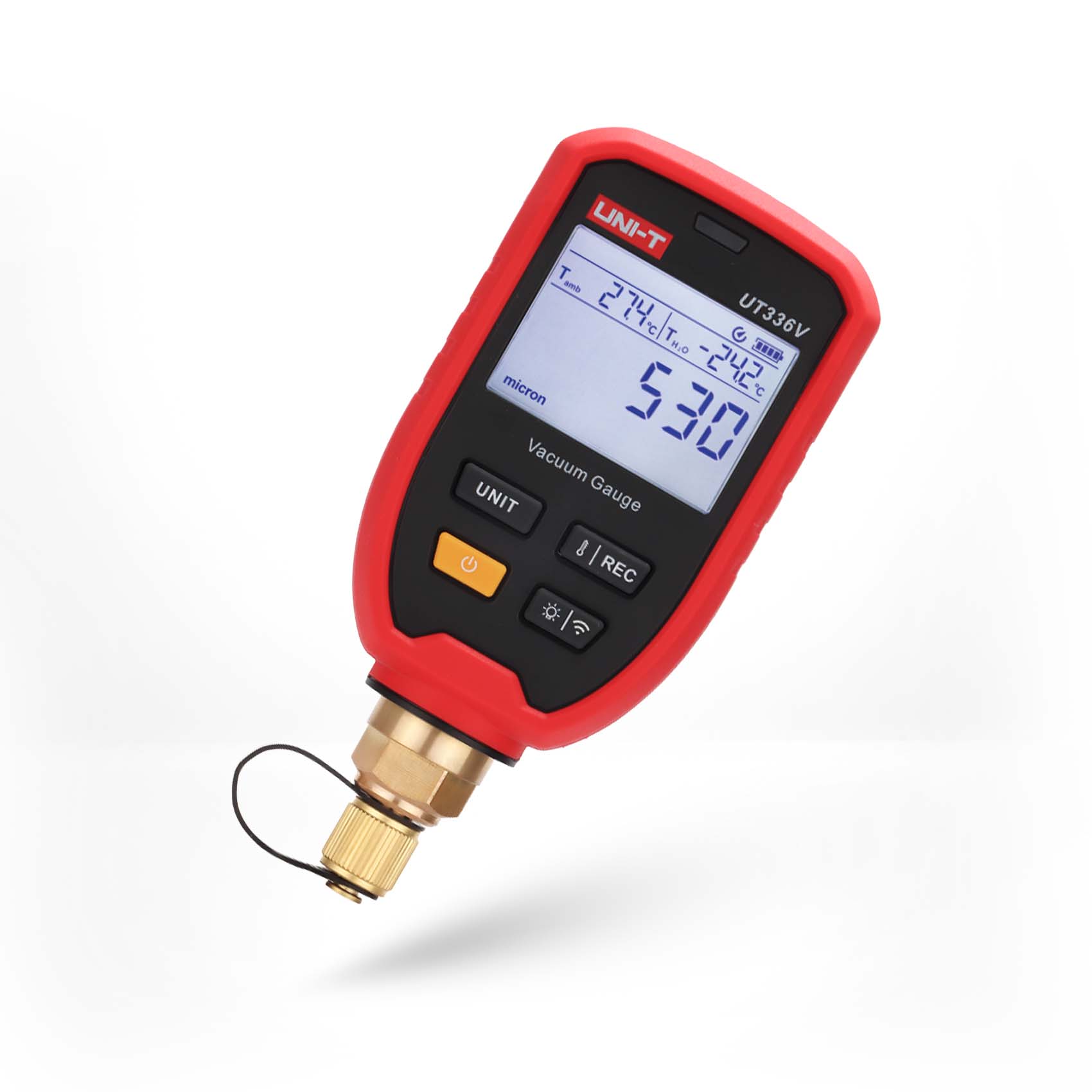

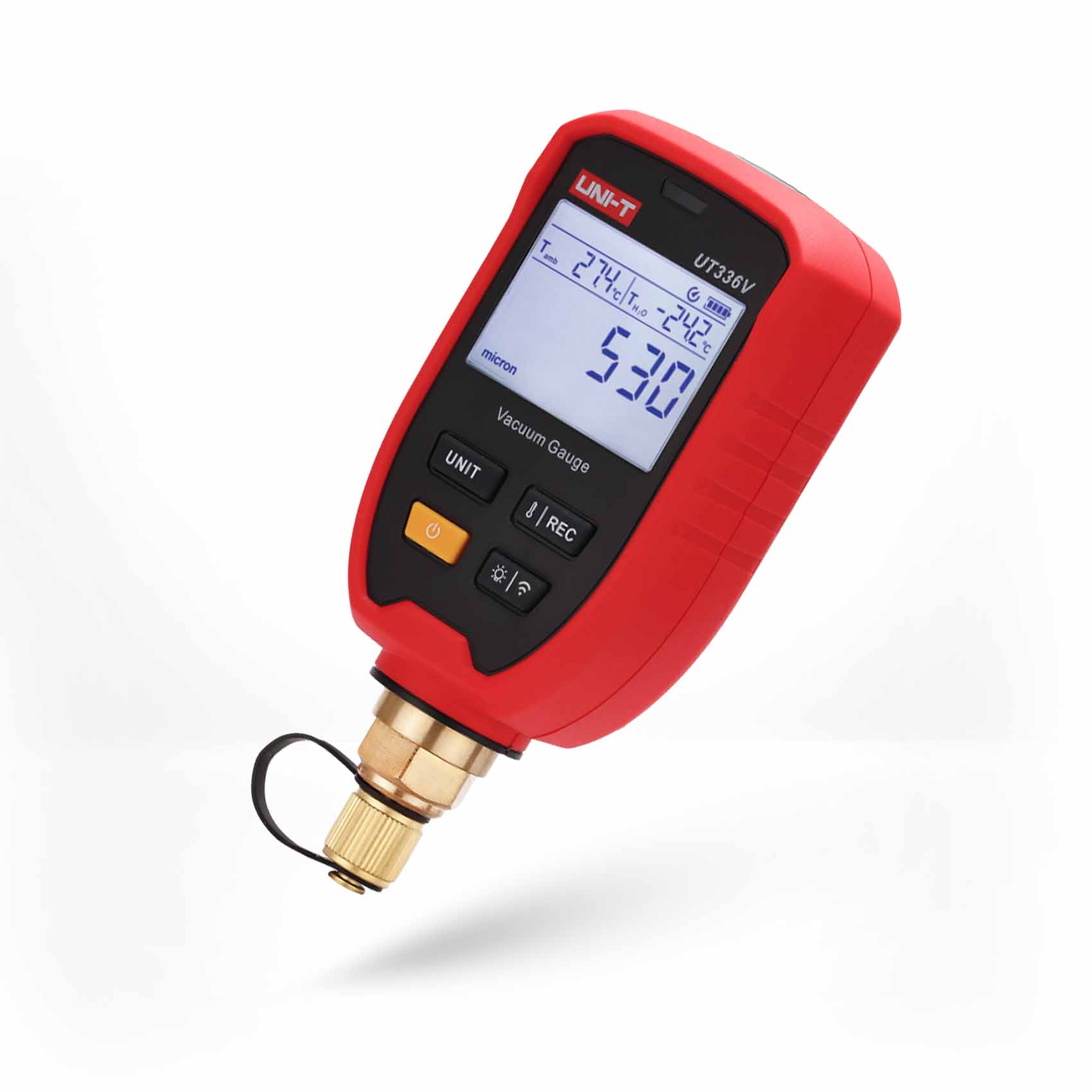

The UNI-T UT336V Wireless Vacuum Gauge is a compact, high-precision digital vacuum measuring instrument designed for critical service, installation, commissioning, and maintenance tasks in refrigeration and heat pump systems. With integrated Bluetooth connectivity, mobile app support, multiple vacuum measurement units, ambient temperature measurement, water saturation temperature display, and extensive data storage, it provides technicians with a convenient way to monitor and document vacuum conditions.
Designed with a 1/4" SAE interface, the UT336V is suitable for professional HVAC and refrigeration applications where accurate vacuum measurement is essential for verifying system dehydration and cleanliness before charging refrigerant.
The primary purpose of the UNI-T UT336V digital vacuum gauge is to measure and monitor the vacuum level inside refrigeration, air-conditioning, and heat pump systems during evacuation and servicing.
Proper evacuation helps remove unwanted air, moisture and non-condensable gases from a refrigeration system before refrigerant charging. Monitoring the vacuum level with a dedicated vacuum gauge allows HVAC technicians to determine whether the system has reached an appropriate vacuum condition and whether the evacuation process is progressing correctly.
The UT336V is particularly useful when reliable vacuum measurements are required during installation, commissioning, servicing, troubleshooting and preventive maintenance.
Important: Always follow the refrigeration equipment manufacturer's service instructions and use appropriate personal protective equipment. The UT336V should not be used with ammonia refrigerant (NH3 / R717).
The UNI-T UT336V combines precise vacuum measurement with wireless connectivity and refrigeration-focused functions in a compact professional instrument. Instead of relying on a basic vacuum indicator, technicians can obtain detailed digital measurements and use stored data for service documentation and analysis.
Its Bluetooth mobile app connection is especially useful when technicians need to monitor vacuum conditions without constantly handling the gauge. The large internal memory also makes the instrument suitable for recording measurements across multiple service jobs.
The ability to display water saturation temperature, ambient temperature and ΞT provides additional information that can assist HVAC professionals during system evacuation and dehydration checks.
The UNI-T UT336V vacuum gauge is designed for professionals who work with refrigeration, air-conditioning and heat pump systems, including:
The UT336V can be used in a wide variety of refrigeration and HVAC service environments where accurate vacuum measurement is required.
A reliable vacuum measurement is an important part of refrigeration and air-conditioning system servicing. Moisture and unwanted gases inside a refrigeration circuit can negatively affect system operation, so technicians need an accurate method of monitoring the evacuation process.
The UT336V digital vacuum gauge provides precise vacuum monitoring together with temperature information, wireless connectivity and data storage. This helps make service work more convenient and provides technicians with measurable information that can be recorded and reviewed.
Its compact construction and hanging hook also make it practical for technicians working around HVAC equipment, refrigeration units and heat pump installations.
The UNI-T UT336V is compatible with a range of refrigerants classified as A1, A2L, A2 and A3, as well as part of the B1 refrigerant category according to the manufacturer's stated compatibility. However, the device must not be used with ammonia refrigerants (NH3 / R717).
Always verify refrigerant compatibility, connection requirements and safety procedures before using the instrument on a refrigeration system.
The UNI-T UT336V Wireless Vacuum Gauge is a practical professional tool for technicians who require accurate vacuum monitoring during refrigeration and heat pump service. Its precise micron measurement, Bluetooth connectivity, mobile app support, temperature functions, water saturation temperature display, extensive data storage, IP54 protection and compact hook-equipped design make it well suited for modern HVAC and refrigeration maintenance.
The UNI-T UT336V is a digital wireless vacuum gauge designed to measure and monitor vacuum levels in refrigeration, air-conditioning and heat pump systems during installation, commissioning and maintenance.
The UT336V measures vacuum from 1 to 19,000 microns, making it suitable for deep-vacuum measurement during refrigeration system evacuation.
Yes. The UT336V features integrated Bluetooth connectivity and supports connection with a compatible mobile application for wireless monitoring and data management.
The UT336V supports multiple vacuum units including microns, mbar, Pa, kPa, hPa, mTorr, Torr, mmHg, inHg, inH2O and psia.
Yes. The UT336V provides ambient temperature measurement and can display water saturation temperature and the difference between water saturation temperature and ambient temperature.
The UT336V can store up to 8000 sets of measurement data, allowing technicians to retain measurement records for service documentation and later review.
Yes. The UT336V includes an automatic power-off function designed to help conserve battery power during use.

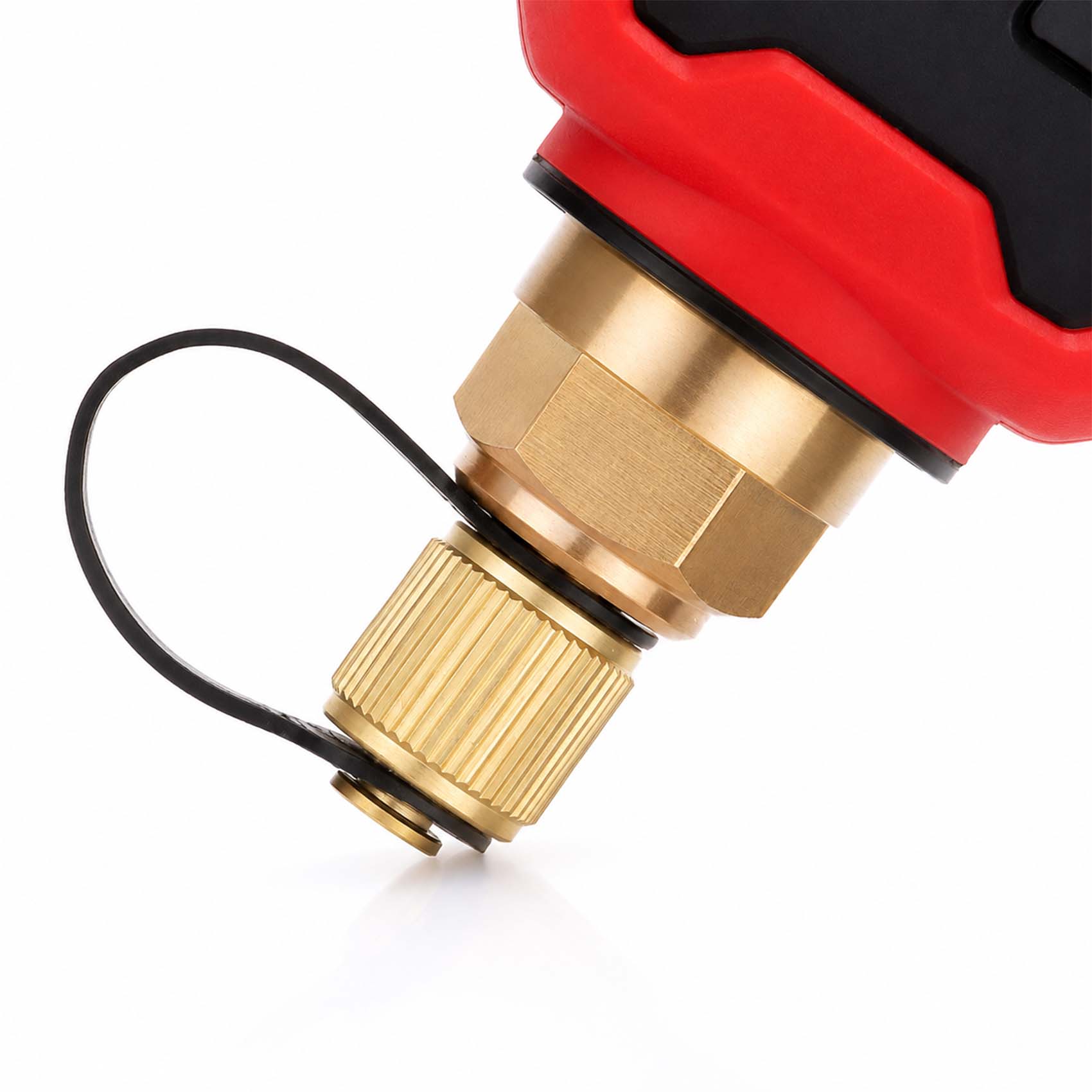

The UT336V uses a 1/4-inch SAE interface, making it suitable for compatible HVAC and refrigeration service connections.
No. The UT336V must not be used with ammonia refrigerants such as NH3 or R717. Users should verify refrigerant compatibility before connecting the gauge.
The UT336V is suitable for HVAC technicians, refrigeration engineers, air-conditioning installers, heat pump technicians, commissioning professionals and maintenance teams who require accurate vacuum measurements.
