BRAND : UNI-T
ITEM NO.: UTI740MS
ORIGIN : CHINA
TEMPERATURE RANGE : -20 °C - 550 °C
ACCURACY : ±2 °C OR ±2% (WHICHEVER IS GREATER)
FOCAL LENGTH : 9.5 MM
IR RESOLUTION : 400 X 300 (120000 PIXELS)
FRAME RATE : ≤25 HZ
FOV : 29° X 21.5°
EMISSIVITY : 0.01 ~ 1.00 ADJUSTABLE (DEFAULT 0.98)
DISPLAY : EXTERNAL
COLOUR PALETTES : WHITE/BLACK/RED HOT, RAINBOW, IRONBOW
CONNECTIVITY : USB-C
DIMENSIONS : 58 × 27 × 28.6 MM
WEIGHT : 46 G
INCLUDES :
1X TYPE-C EXTENSION CABLE
1X HAND STRAP
1X CLEANING CLOTH
1X CLOTH BAG

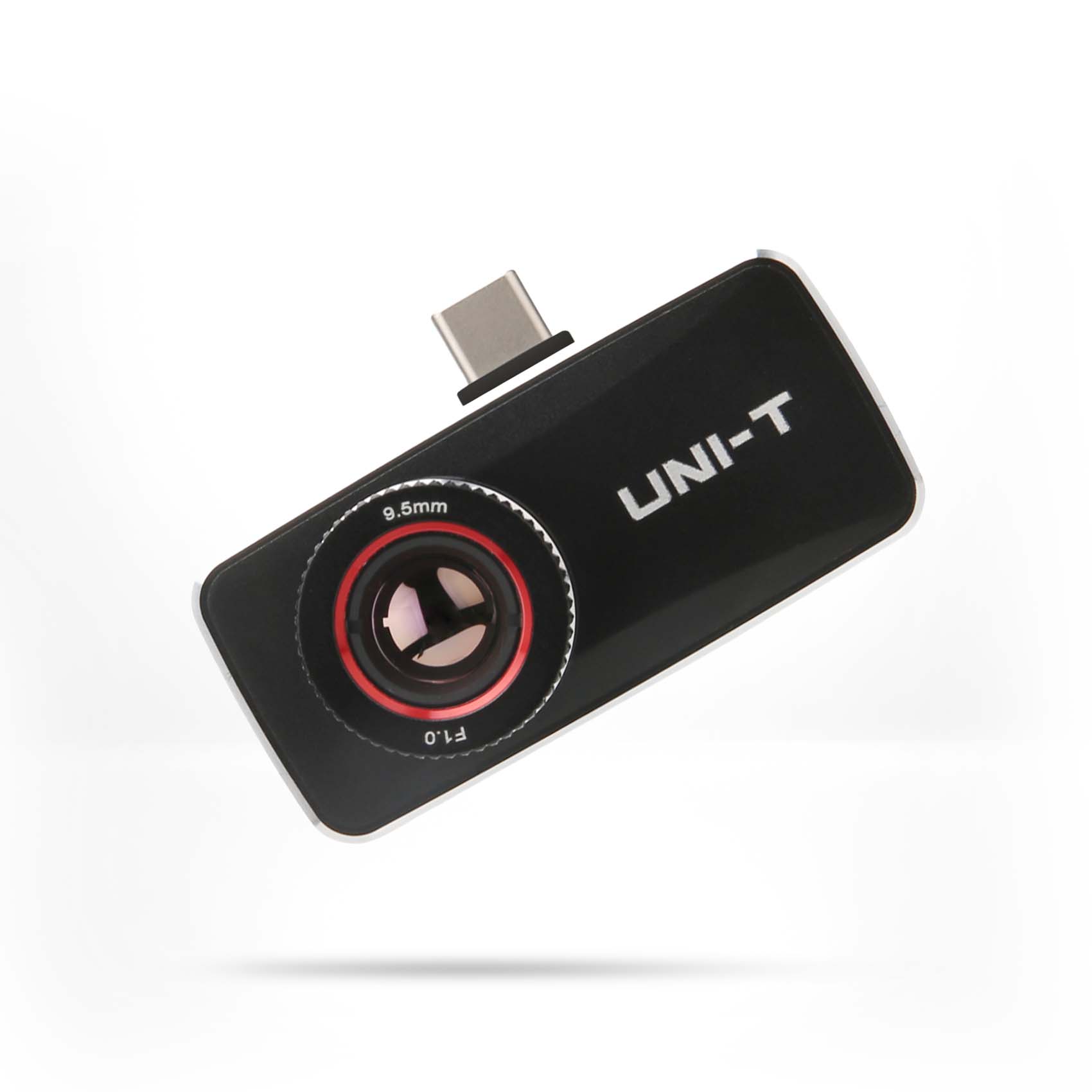

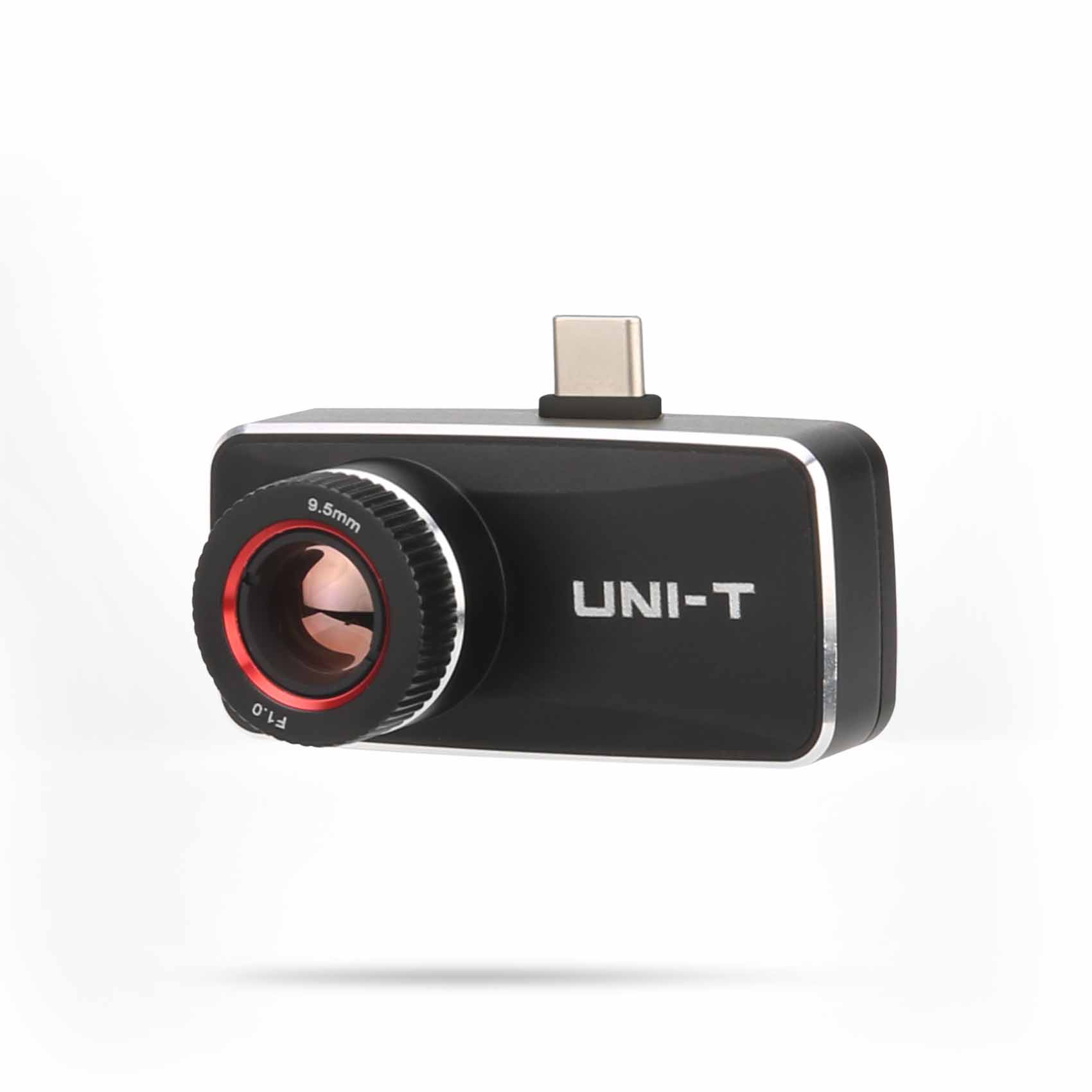

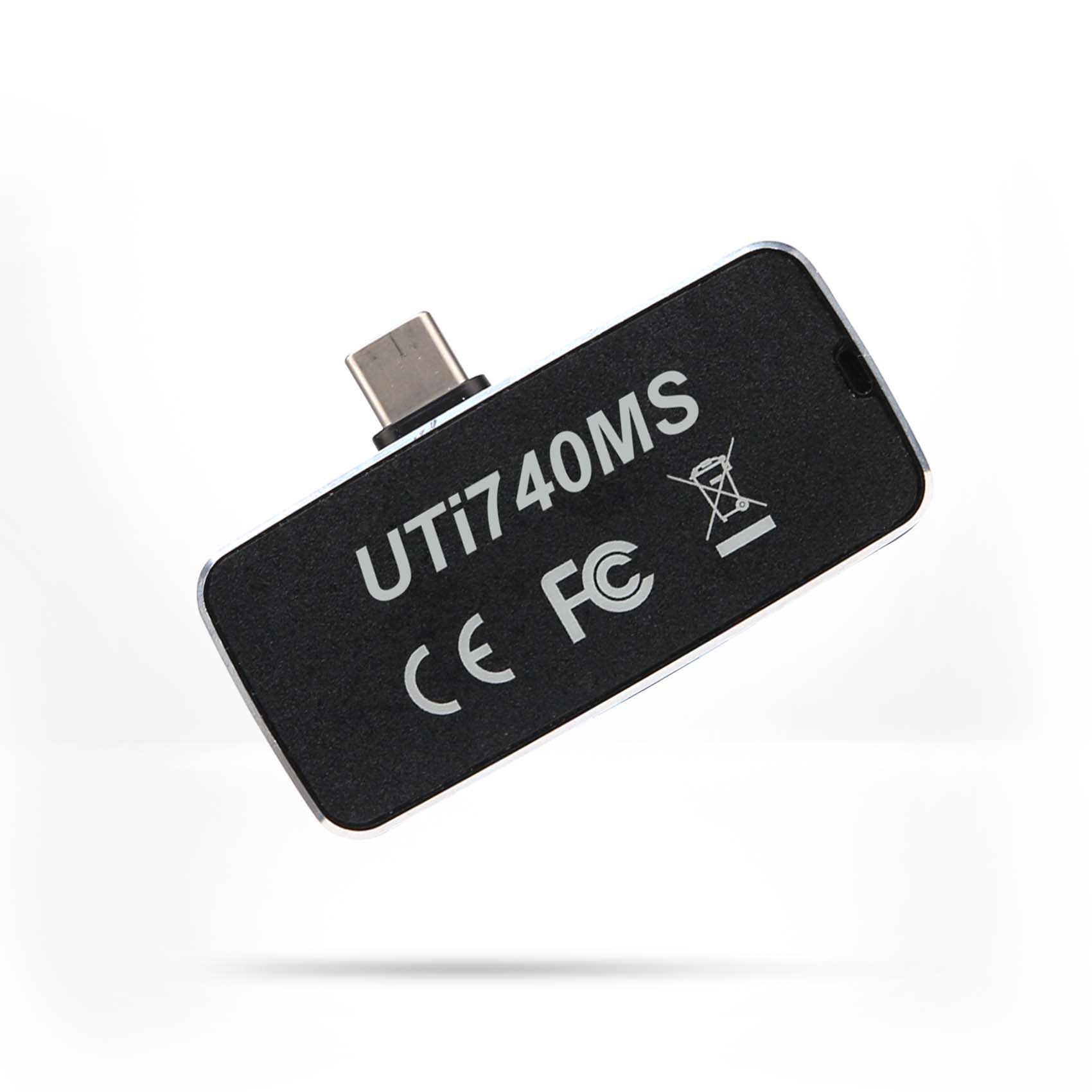

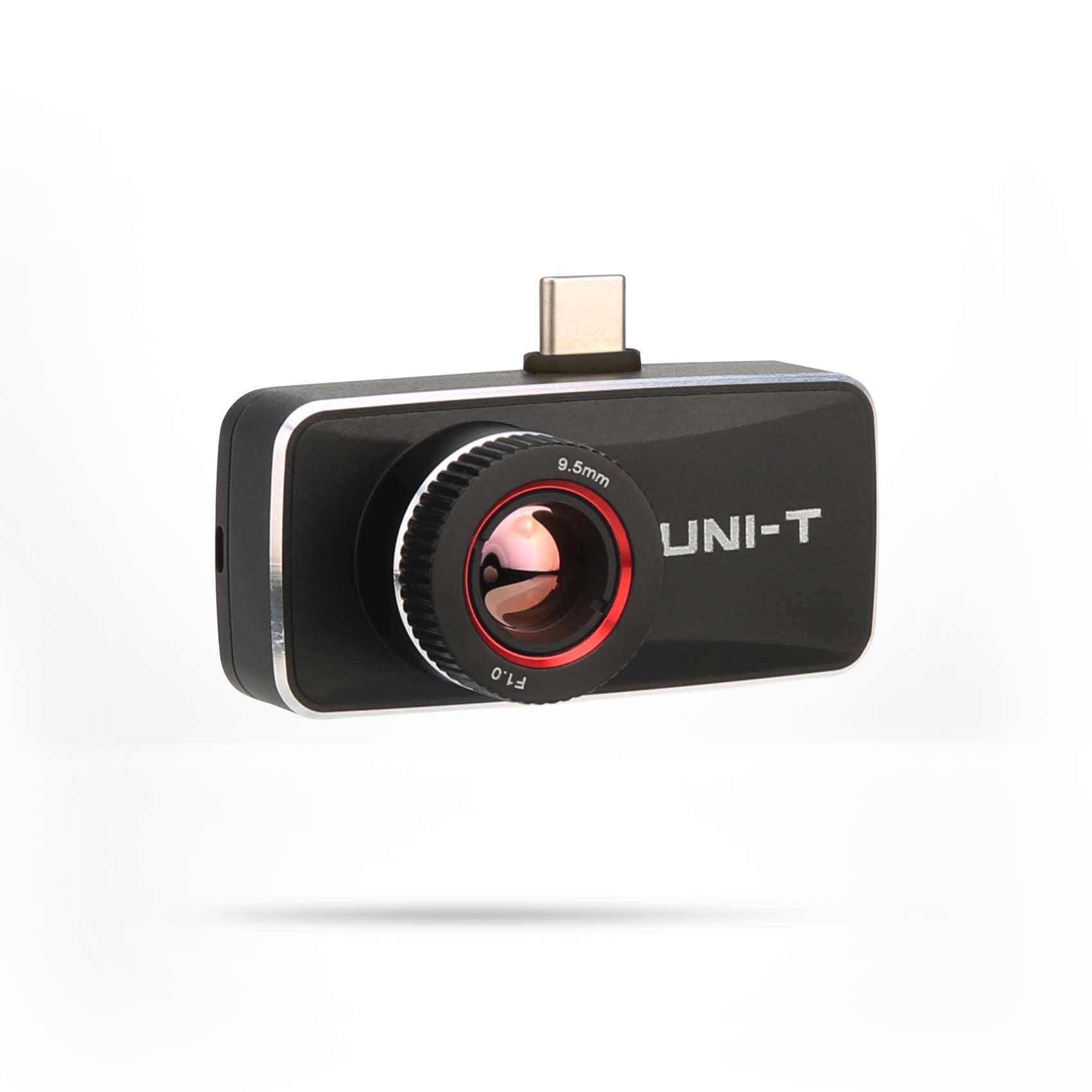

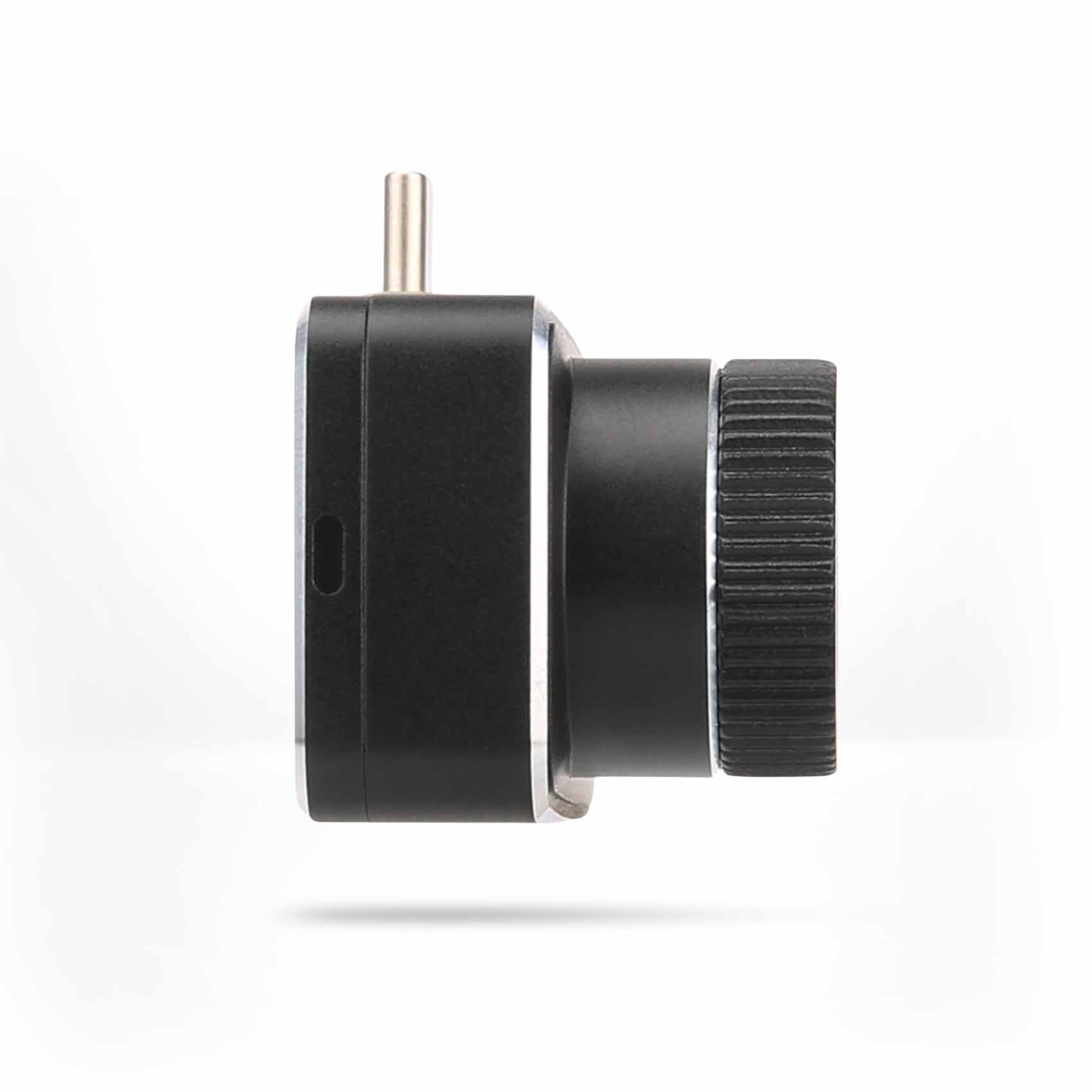

THE UNI-T UTI740MS IS A PROFESSIONAL THERMAL IMAGING MODULE FOR ANDROID AND IOS, WHICH TRANSFORMS YOUR SMARTPHONE INTO A THERMAL IMAGING CAMERA. THE CAMERA HAS A TEMPERATURE RANGE OF -20 TO 550°C, AND A BASE RESOLUTION OF 400X300 PIXELS, WHICH INCREASES TO 800X600 PIXELS IN SUPER RESOLUTION MODE. WITH A MANUAL-FOCUS 9.5MM LENS, IT ENSURES THAT THE RECORDED IMAGES REMAIN SHARP AND IN FOCUS FOR MORE ACCURATE MEASUREMENTS. LASTLY, THE APP FOR THE UTI740MS IS EASY TO USE AND HAS A NUMBER OF USEFUL FEATURES SUCH AS DIFFERENT COLOUR PALETTES, PICTURE-IN-PICTURE MODE, FUSION MODE, AND THE ABILITY TO DISPLAY UP TO 5 DIFFERENT TEMPERATURE POINTS. THIS MAKES IT AN EXCELLENT CHOICE FOR PROFESSIONALS WHO REQUIRE A LARGE TEMPERATURE RANGE AND A HIGH RESOLUTION IN A SMALL FORM FACTOR FOR FIELDWORK AND COMPLEX IMAGING REQUIREMENTS.
| Item Code | UNITUTI740MS |
|---|---|
| Barcode | 6935750574010 |
| Brand | UNI-T |
The UNI-T UTI740MS Thermal Imaging Camera is a compact and professional thermal imaging module designed for Android and iOS smartphones. It transforms a compatible mobile device into a powerful thermal imaging camera, allowing users to visualize heat patterns and identify temperature differences quickly and conveniently.
With high-resolution infrared imaging, a wide temperature measurement capability, manual focus, adjustable emissivity, multiple colour palettes, and support for displaying up to five temperature points, the UTI740MS is an excellent solution for HVAC inspection, electrical troubleshooting, building inspection, industrial maintenance, automotive diagnostics, and professional fieldwork.
The main purpose of the UNI-T UTI740MS thermal camera is to detect and visualize temperature variations on surfaces and objects. Instead of relying only on visible light, thermal imaging allows users to see heat patterns that may not be visible to the naked eye.
The UTI740MS connects to a compatible Android or iOS smartphone through USB-C and works together with its dedicated mobile application. This provides technicians and inspectors with a convenient way to capture thermal images, analyze temperature differences, and identify potential abnormal heat conditions directly from their mobile device.
It is particularly useful when inspecting electrical connections, HVAC systems, machinery, buildings, electronic equipment, vehicles, and other applications where temperature differences can indicate potential problems.
The UNI-T UTI740MS is an excellent choice for professionals who need thermal imaging capability without carrying a large standalone thermal camera. Its compact module design allows a compatible smartphone to become a convenient thermal inspection tool.
The combination of high-resolution infrared imaging, manual focus, adjustable emissivity, multiple colour palettes, multi-point temperature measurement, and advanced mobile application features makes it suitable for detailed inspection work.
The ability to view up to five temperature points at the same time is particularly useful when comparing different areas of a component or identifying temperature differences across an inspected surface. Its small size and low weight also make it practical for technicians who frequently move between inspection locations.
The UTI740MS is suitable for professionals who require portable thermal imaging for inspection, maintenance, diagnostics, and troubleshooting, including:
The UNI-T UTI740MS thermal imaging module can be used in a wide variety of professional inspection and maintenance environments where identifying temperature differences can help reveal potential problems.
The UTI740MS offers the convenience of smartphone-based thermal imaging. Instead of carrying a bulky thermal camera, technicians can use a compact module together with a compatible mobile device for field inspections.
The mobile application provides access to useful imaging and measurement functions, making it easier to analyze thermal images, compare temperature points, select different colour palettes, and document inspection results.
Its compact design is particularly useful for service engineers, inspectors, and technicians who need to carry diagnostic equipment between multiple locations throughout the working day.
The UNI-T UTI740MS combines professional thermal imaging capability with the convenience of modern smartphones. Its high-resolution infrared sensor, manual-focus lens, multi-point temperature measurement, and flexible imaging modes provide useful tools for identifying heat patterns and potential temperature-related issues.
Whether used for HVAC servicing, electrical maintenance, industrial inspection, building diagnostics, or equipment troubleshooting, the UTI740MS provides a practical and portable approach to thermal imaging.
The UNI-T UTI740MS is used for thermal imaging and temperature inspection. It can help professionals identify heat patterns and temperature differences in HVAC systems, electrical equipment, machinery, buildings, vehicles, electronics, and other suitable applications.
Yes. The UTI740MS is designed as a thermal imaging module for compatible Android and iOS smartphones, allowing the phone to function as a portable thermal imaging camera.
Connect the UTI740MS to a compatible smartphone, open the thermal imaging application, point the camera toward the inspection area, adjust the focus if required, and use the application to view and analyze the thermal image.
The UTI740MS application can display up to five different temperature measurement points, allowing users to compare temperatures across different areas of the thermal image.
Yes. The UTI740MS supports adjustable emissivity, allowing users to select a suitable emissivity setting for different surfaces and inspection conditions.
Yes. The UTI740MS features a manual-focus lens that allows users to adjust image focus for clearer thermal imaging at different distances.
The UTI740MS supports several thermal colour palettes, including White Hot, Black Hot, Red Hot, Rainbow, and Ironbow.
Yes. The UTI740MS is well suited for HVAC inspection and can help technicians identify temperature differences in air conditioning systems, refrigeration equipment, pipes, ducts, and related components.
Yes. It can be used for suitable electrical inspection applications to help identify abnormal heat patterns around electrical connections, panels, cables, terminals, and components.
Yes. Its compact and lightweight design makes it convenient for technicians, inspectors, and engineers who need portable thermal imaging during field service and maintenance work.
A smartphone thermal camera provides a compact and convenient way to perform thermal inspections using a compatible mobile device. It can reduce the need to carry a larger standalone thermal imaging camera for many inspection tasks.
