BRAND : UNI-T
ITEM NO.: UT673PV
ORIGIN : CHINA
MAX POWER MEASUREMENT : 5～800W, ±(1.0%＋10)
MAX POWER CURRENT(DC) : 0～35A, ±(1.5%＋5)
MAX POWER VOLTAGE(DC) : 12～60V, ±(1.5%＋5)
OPEN CIRCUIT CURRENT(DC) : 12～60V, ±(1.5%＋5)
SHORT CIRCUIT CURRENT(DC) : 0～35A, ±(1.5%＋5)
DISPLAY : LARGE LCD (52 x 66MM)
REVERSE POLARITY
CONNECT PROTECTION : ✔
OVER VOLTAGE PROTECTION : ✔
OVER CURRENT PROTECTION : ✔
OVER TEMPERATURE PROTECTION : ✔
OVER POWER PROTECTION : ✔
MANUAL/AUTO MPPT TEST : ✔
DATA HOLD : ✔
POWER SUPPLY : NO BATTERY NEEDED, POWERED BY SOLAR PANEL
OVECATEGORY : CAT 0 60V

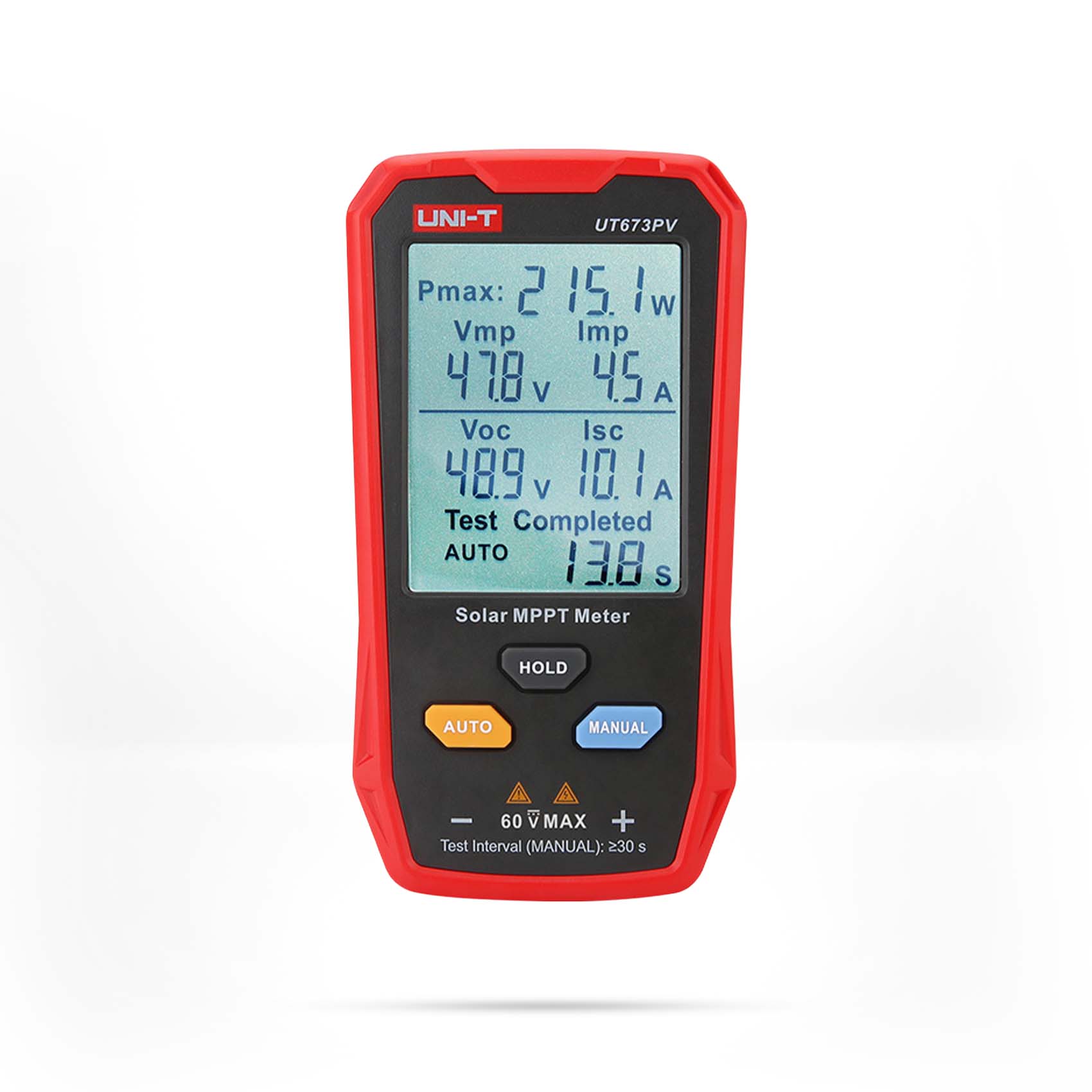

LARGE LCD WITH MULTIPLE READINGS:
A SINGLE MEASUREMENT THAT DISPLAYS ALL ESSENTIAL TEST VALUES CAN SIGNIFICANTLY ENHANCE WORK EFFICIENCY.
PORTABLE AND LIGHTWEIGHT DESIGN:WITH ITS PORTABLE AND LIGHTWEIGHT DESIGN, THIS METER PROVIDES OPERATORS WITH CONVENIENCE AND EASE OF USE, MAKING IT AN INCREDIBLY VERSATILE AND INDISPENSABLE TOOL FOR A WIDE RANGE OF TASKS.

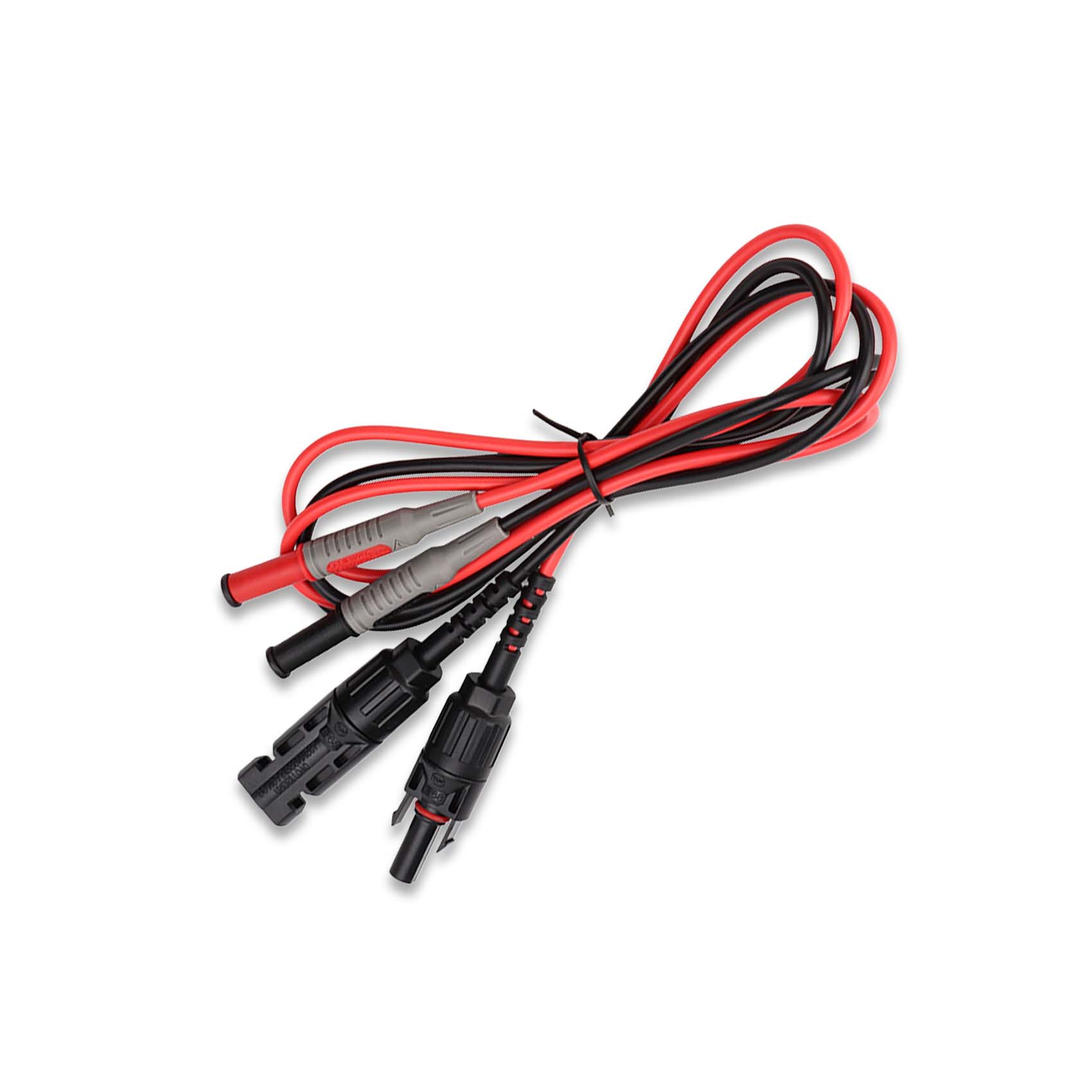

EQUIPPED WITH MC4 SOLAR PANEL CONNECTOR:WITH THE MC4 CONNECTOR ALREADY INCLUDED, THERE IS NO NEED FOR ADDITIONAL SOLAR PANEL CONNECTORS. THIS ENABLES QUICK AND EFFICIENT MEASUREMENTS TO BE PERFORMED EFFORTLESSLY.
POWER SUPPLY:THERE IS NO REQUIREMENT FOR BATTERIES AS THE MEASUREMENT CAN BE EFFORTLESSLY PERFORMED FOR EXTENDED PERIODS.
. CERTIFICATIONS (UT673PV SERIES ONLY): CE, CETLUS, ROHS
. MAXIMUM POWER TEST (PMAX) 5～800W
. PEAK POWER VOLTAGE (VMP) 12～60V
. PEAK POWER CURRENT (IMP) 0～35A
. OPEN CIRCUIT VOLTAGE (VOC) 12～60V
. SHORT CIRCUIT CURRENT (ISC) 0～35A
. LARGE SCREEN AND MULTIPLE RESULT DISPLAY
. NO BATTERIES NEEDED, POWERED BY THE SOLAR PANEL
. EQUIPPED WITH MC4 TEST LEAD
. PORTABLE AND CONVENIENT

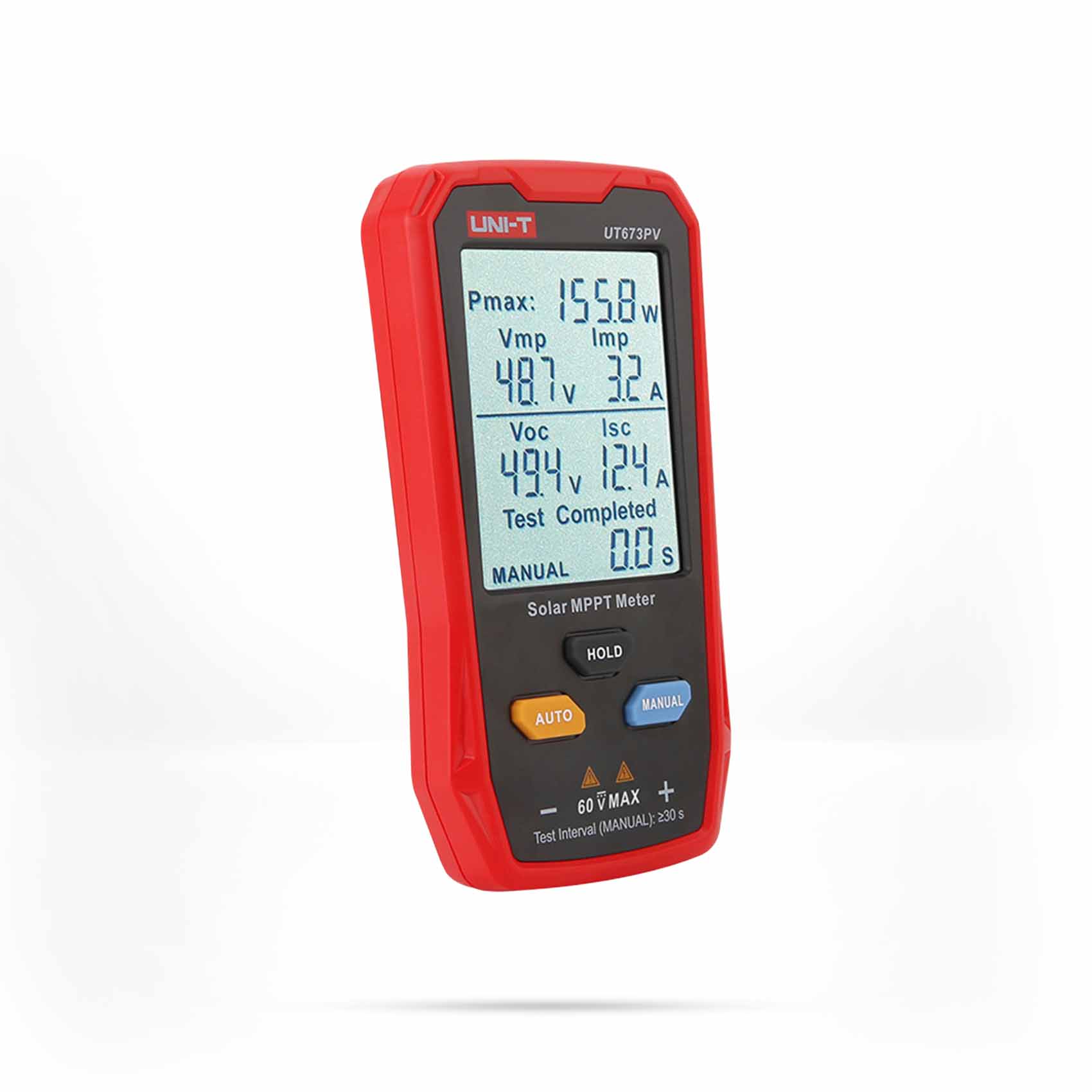

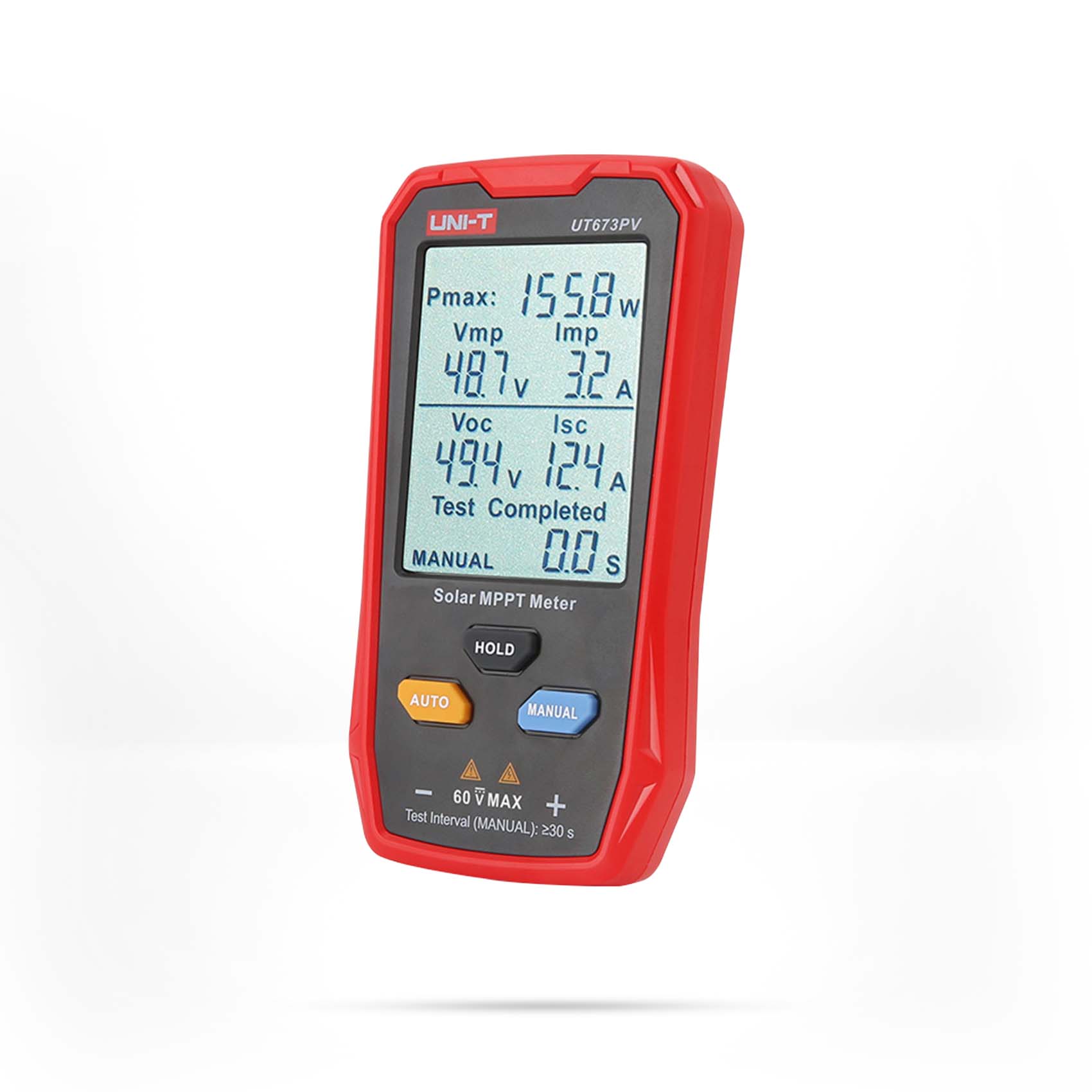

UT673PV SOLAR MPPT METER CAN EFFECTIVELY IDENTIFY ANY ABNORMALITIES IN SOLAR PANELS BY TESTING THEIR MAXIMUM POWER, PEAK POWER VOLTAGE, PEAK POWER CURRENT, OPEN CIRCUIT VOLTAGE, AND SHORT CIRCUIT CURRENT.
FEATURING A SPACIOUS SCREEN AND AUTOMATIC MEASUREMENT CAPABILITIES, THIS DEVICE CONVENIENTLY DISPLAYS ALL MEASUREMENT RESULTS SIMULTANEOUSLY. ITS PORTABLE DESIGN ENABLES EASY CARRYING, GREATLY ENHANCING THE OPERATIONAL AND MAINTENANCE EFFICIENCY FOR PHOTOVOLTAIC MANUFACTURERS, INSTALLERS, AND END USERS.
| Item Code | UNITUT673PV |
|---|---|
| Barcode | 6935750567333 |
| Brand | UNI-T |
The UNI-T UT673PV Solar MPPT Meter is a professional photovoltaic testing instrument designed to evaluate the performance and condition of solar panels quickly and efficiently. It measures essential solar panel parameters including maximum power, peak power voltage, peak power current, open circuit voltage, and short circuit current, helping users identify abnormal performance and potential problems in photovoltaic systems.
With its large LCD screen, automatic measurement capability, built-in MC4 solar panel test lead, and lightweight portable design, the UT673PV solar panel tester is an ideal tool for solar installers, photovoltaic technicians, maintenance professionals, manufacturers, and solar system users.
The UNI-T UT673PV is used to test and evaluate the electrical performance of photovoltaic solar panels. It helps determine whether a solar panel is producing the expected electrical output and can identify abnormalities that may affect solar system efficiency.
The meter performs maximum power testing (Pmax) using MPPT technology and measures important operating values such as Vmp, Imp, Voc, and Isc. These measurements allow technicians to assess the condition and performance of individual solar panels during installation, commissioning, troubleshooting, and maintenance.
Because the meter is powered directly by the solar panel, there is no need for batteries, making it convenient for extended outdoor testing and photovoltaic maintenance work.
Important: Always follow appropriate electrical safety procedures and the solar panel manufacturer's connection instructions when performing photovoltaic measurements.
The UNI-T UT673PV combines multiple photovoltaic testing functions into one compact instrument, reducing the need for separate testing equipment during solar panel inspection. Its MPPT testing capability allows users to determine the maximum power point of a solar panel, while simultaneous display of essential readings makes performance evaluation faster and easier.
The included MC4 test lead provides convenient connectivity for compatible solar panels, while the battery-free design eliminates the need to regularly replace or recharge batteries. Its portable construction makes it particularly useful for technicians who frequently work at different photovoltaic installation and maintenance locations.
The UT673PV solar MPPT meter is suitable for professionals and users involved in photovoltaic systems, including:
The UNI-T UT673PV can be used in a wide range of photovoltaic applications where solar panel electrical performance needs to be checked and verified.
Solar panel performance can vary due to environmental conditions, aging, installation issues, damaged cells, wiring problems, shading, and other factors. A dedicated solar MPPT tester provides technicians with useful electrical measurements that can help determine whether a panel is operating normally.
The UT673PV makes this process more convenient by combining maximum power testing and essential photovoltaic measurements in a portable instrument. The large display helps improve readability in field environments, while automatic MPPT measurement reduces the effort required to determine the panel's maximum power point.
The UNI-T UT673PV Solar MPPT Meter is a practical solution for photovoltaic professionals who need a convenient way to assess solar panel performance. With maximum power testing, MPPT measurement, multiple electrical readings, MC4 connectivity, large LCD display, protective functions, and battery-free operation, it is designed to improve the efficiency of solar panel inspection and maintenance.
The UNI-T UT673PV is used to test solar panel electrical performance, including maximum power, peak power voltage, peak power current, open circuit voltage, and short circuit current.
MPPT testing identifies the maximum power point of a photovoltaic panel, helping technicians determine the voltage and current combination at which the panel produces its highest available power under the current test conditions.
No. The UT673PV is designed to be powered directly by the connected solar panel, so batteries are not required for normal solar panel measurements.
Yes. The UT673PV is equipped with an MC4 solar panel test lead, allowing convenient connection to compatible photovoltaic solar panels.
Yes. The meter is designed for maximum power testing and can measure photovoltaic panel power output within its specified measurement range.
Yes. The UT673PV can measure the open circuit voltage (Voc) of compatible photovoltaic solar panels.
Yes. The instrument provides short circuit current (Isc) measurement for compatible solar panels within its specified measurement limits.
It is suitable for solar installers, PV technicians, electrical professionals, solar panel manufacturers, maintenance teams, commissioning engineers, and other users involved in photovoltaic testing.
Yes. By measuring important photovoltaic electrical parameters, the UT673PV can help technicians identify panels or systems showing abnormal performance and support troubleshooting activities.
Yes. The UT673PV supports both manual and automatic MPPT testing, providing flexibility for different photovoltaic testing applications.
