BRAND : UNI-T
ITEM NO.: UT171B
ORIGIN : CHINA
DISPLAY COUNT : 60000
POWER : 7.4V 2000MAH LI-ION BATTERY
DISPLAY : 70.6MM X 35.3MM
PRODUCT COLOR : RED AND GREY
STANDARD ACCESSORIES : BATTERIES, TEST LEADS, POINT CONTACT TEMPERATURE PROBE,

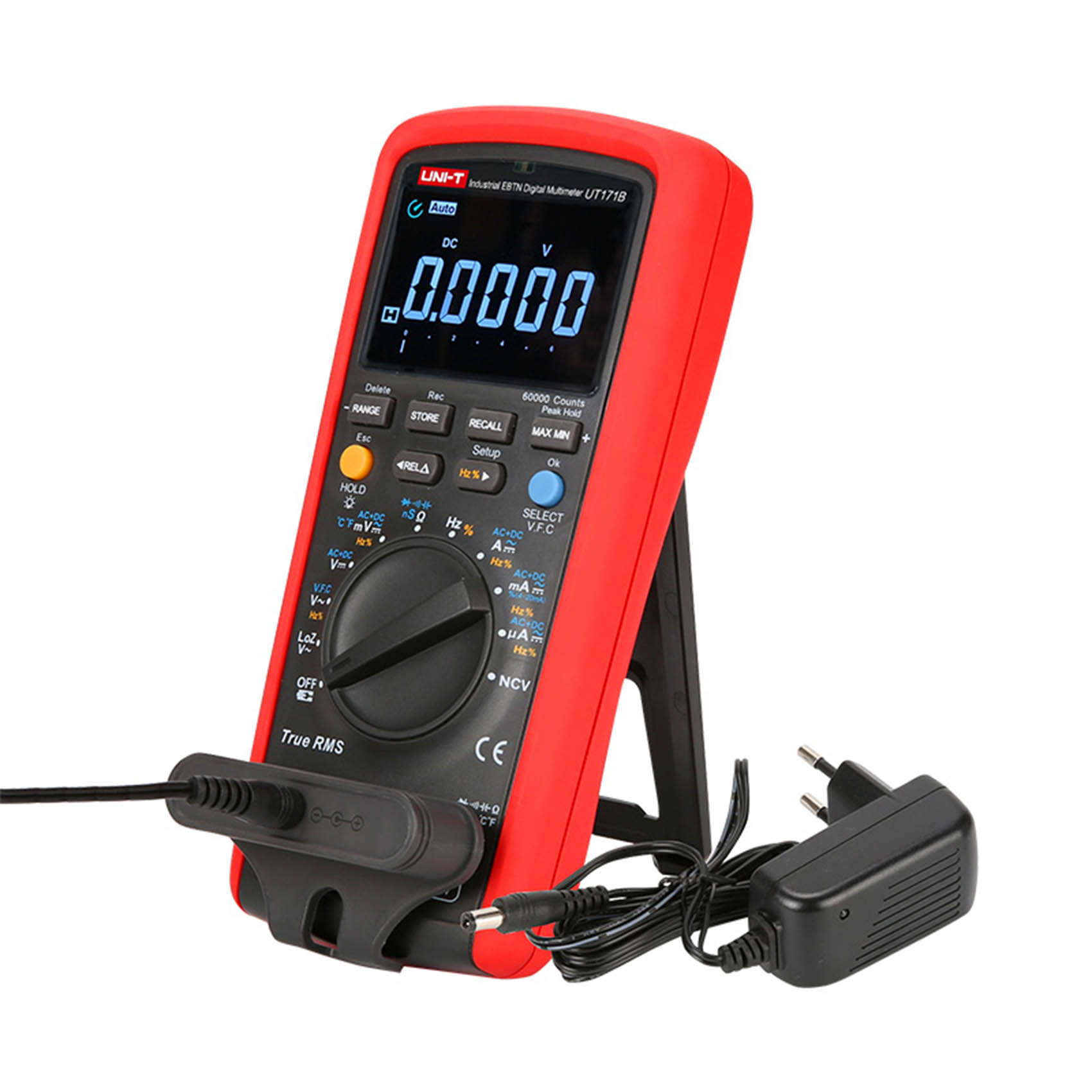

USB INTERFACE CABLE, POWER ADAPTOR (UT171B/C), PC SOFTWARE CD
DC VOLTAGE (V) : RANGE 1000V - Β±(0.025%+5)
AC VOLTAGE (V) : RANGE 1000V - Β±(0.4%+40)
DC CURRENT (A) : RANGE 10A - Β±(0.15%οΌ2)
AC CURRENT (A) : RANGE 10A - Β±(0.75%οΌ5)
RESISTANCE (Ξ©) : RANGE 60MΞ© - Β±(0.05%οΌ2)
ADMITTANCE (NS) : RANGE 60NS - Β±(1%οΌ10)
CAPACITANCE (F) : RANGE 60MF - Β±(2.5%+40)
FREQUENCY (HZ) : RANGE 10HZ~10MHZ - Β±(0.01%+5)
TEMPERATURE (Β°C) : RANGE -40Β°C~1000Β°C - Β±(1%+30)
TEMPERATURE (Β°F) : RANGE -40Β°F~1832Β°F - Β±(1.5%+50)
AUTO/MANUAL RANGE : β
TRUE RMS : β
BANDWIDTH (HZ) : RANGE 100KHZ - β
4~20MA LOOP : RANGE 0~100% - β
LOZ (ACV) : RANGE AROUND 3KΞ© - β
DIODE : RANGE AROUND 3V - β
CONTINUITY BUZZER : β
DUTY CYCLE : RANGE 0.1%~99.9% - β
NCV/DATA HOLD/MAX/MIN : β
RELATIVE MODE : β
DATA STORAGE : 9999
DISPLAY TYPE : EBTN
ANALOG BAR GRAPH : 31
LCD BACKLIGHT : β
MIS-PLUG ALARM : β
LOW BATTERY INDICATION : β
AUTO POWER OFF : β
INPUT PROTECTION : β
INPUT IMPEDANCE FOR DCV : β
INPUT IMPEDANCE FOR DCV : RANGE AROUND 1GΞ© - β
STANDARD INDIVIDUAL PACKING : GIFT BOX, CARRYING BAG, ENGLISH MANUAL
PRODUCT NET WEIGHT : 384G
PRODUCT SIZE : 206MM X 95MM X 55MM
. AC+DC MEASUREMENT
. PEAK HOLD
. RECHARGEABLE BATTERY
. VFC LOW-PASS FILTERING

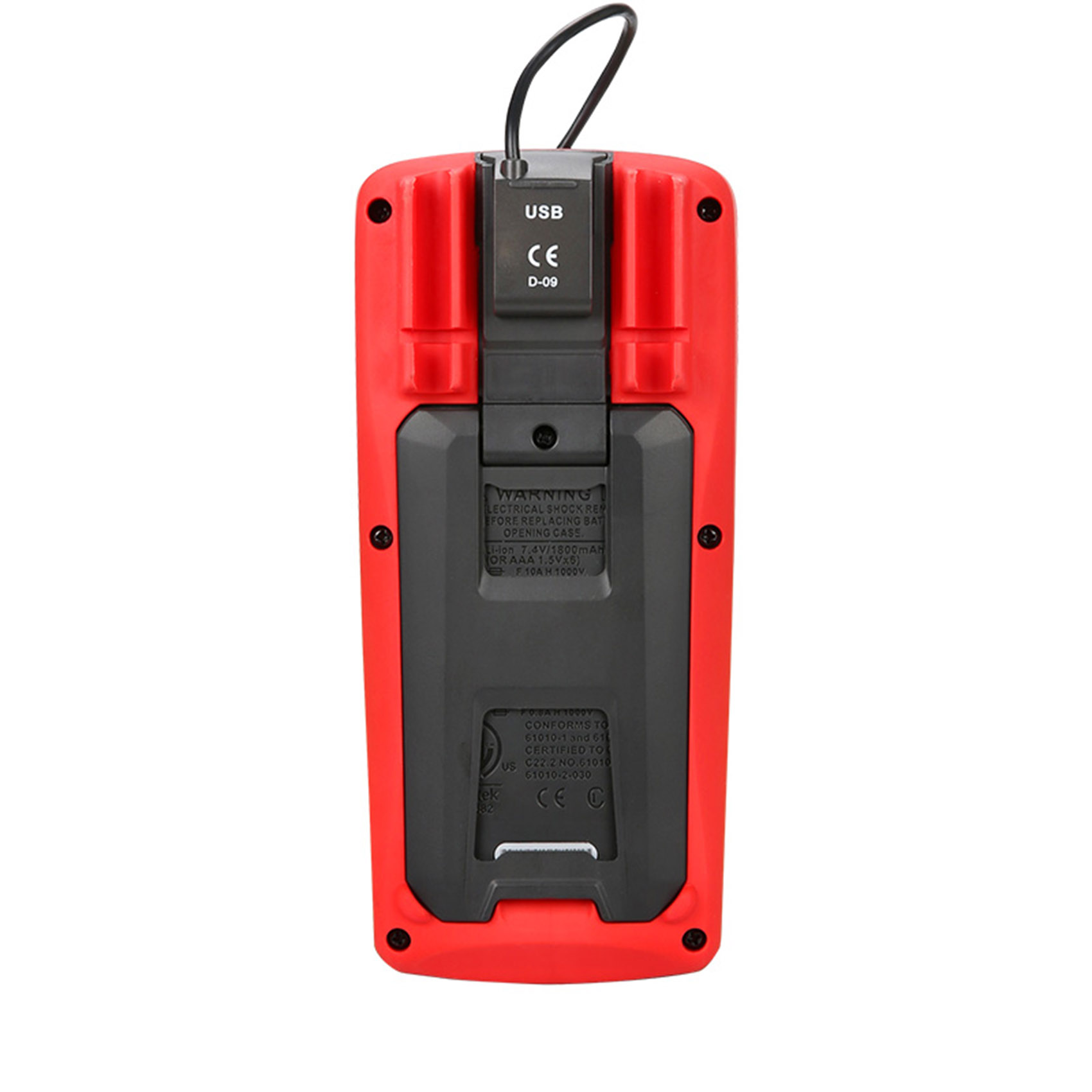

. USB/BLUETOOTH COMMUNICATION

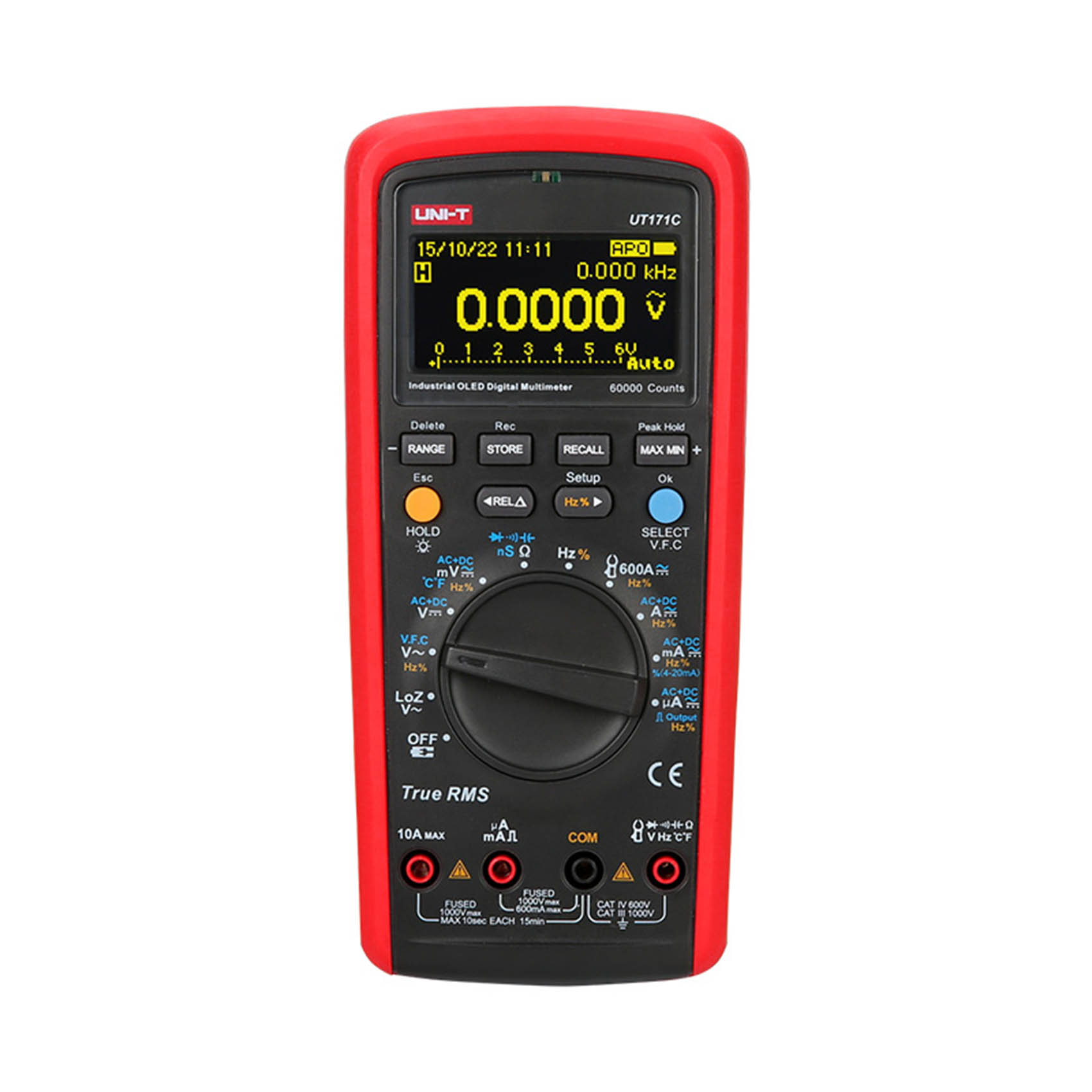

UT171 SERIES ARE INDUSTRIAL GRADE MULTIMETERS USED BY PROFESSIONALS. ITS BUILT-IN SQUARE WAVE OUTPUT IS USEFUL FOR TROUBLESHOOTING INDUSTRIAL CONTROL SIGNALS. ITS LOZ (ACV) FEATURE CAN BE USED TO IDENTIFY RESIDUAL (GHOST) VOLTAGE IN LARGE CAPACITORS. UT171CβS OLED DISPLAY IS PERFECT FOR WORKING IN LOW TEMPERATURES DOWN TO -30Β°C.
MASTERBOX DETAILS :
STANDARD QUANTITY PER CARTON : 5PCS
STANDARD CARTON MEASUREMENT : 390MM X 310MM X 205MM (0.55CBM PER STANDARD CARTON)
STANDARD CARTON GROSS WEIGHT : 5.6KG
| Item Code | UNITUT171B |
|---|---|
| Barcode | 6935750517154 |
| Brand | UNI-T |
Turn on the UNI-T UT171B and select the desired measurement function using the rotary switch. Connect the supplied test leads to the appropriate input terminals and touch the probes to the circuit or component being tested. Read the measurement values on the large EBTN display. Use specialized functions such as True RMS, Peak Hold, Data Hold, NCV, LoZ, and temperature measurement as required. Transfer stored data to a computer via USB or Bluetooth communication for analysis and reporting.
The UNI-T UT171B is an industrial-grade True RMS digital multimeter designed for accurate electrical testing, troubleshooting, maintenance, and diagnostics. It measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, continuity, diode testing, and industrial control signals, making it ideal for professional electrical and industrial applications.
The UNI-T UT171B combines laboratory-level accuracy with industrial durability. Designed for professionals, it offers advanced diagnostic features such as True RMS, Peak Hold, LoZ testing, data logging, and USB/Bluetooth connectivity. Its rechargeable battery, high-resolution display, and extensive measurement capabilities make it a reliable solution for demanding electrical and industrial environments.
True RMS technology provides accurate measurements of both sinusoidal and non-sinusoidal waveforms, making it essential for testing modern industrial and electronic equipment.
Yes. Using the included temperature probe, it can measure temperatures from -40Β°C to 1000Β°C.
LoZ mode helps eliminate false or ghost voltage readings commonly found in industrial electrical systems and long cable runs.
Yes. The UT171B supports USB communication and data logging functions for transferring and analyzing measurement data.
Yes. It is specifically designed for industrial applications, offering advanced diagnostic features, high accuracy, and durable construction.
