BRAND : UNI-T
ITEM NO.: UT345C
ORIGIN : CHINA
APPLICABLE GAS TANKS/BOTTLES : STEEL AND ALUMINUM STANDARD PROPANE OR BUTANE LPG (LIQUEFIED PETROLEUM GAS) STORAGE TANKS WITH 8-14 INCHES (APPROX. 200-350MM) IN DIAMETER
LED COLOR :
GREEN: THERE IS LIQUEFIED GAS AT THIS LEVEL
RED: NO LIQUEFIED GAS AT THIS LEVEL
GREEN/RED FLASHING: MEASURING
MEASUREMENT METHOD : PRESS THE PROBE 90 DEGREES VERTICALLY AT DIFFERENT POSITIONS OF THE BOTTLE TO MEASURE, AND THEN CHECK THE LED COLOR
SOUND : ✔
OPERATING TEMPERATURE/HUMIDITY : -15~40°C ≤85%RH
STORAGE TEMPERATURE : -10~60°C ≤75%RH
DROP TEST : 0.5M
PRODUCT COLOR : RED AND GREY
PRODUCT WEIGHT : TBD
BATTERY TYPE : AAA (LR03) 1.5V×2
STANDARD ACCESSORIES : USER MANUAL, SAFETY INSTRUCTION
PRODUCT SIZE : 28×32×143MM
. PEN-LIKE DESIGN
. COMPACT AND PORTABLE
. SIMPLE DETERMINATION WITHOUT ADDITIONAL ACCESSORIES REQUIRED
. RED AND GREEN LED INDICATION
. EASY TO MEASURE WITHOUT MOVING THE GAS BOTTLES
. FLASHLIGHT DESIGN
UT345C IS A PORTABLE ULTRASONIC MEASURING DEVICE. IT CAN QUICKLY DETERMINE THE FILLING LEVEL OF LIQUEFIED GAS BOTTLES BY LED INDICATION. IT CAN BE USED IN FOOD PROCESSING PLACES, CAMPS OR BARBECUES, GAS BOTTLE SALES, CATERING SERVICES AND OTHER PLACES WHERE GAS BOTTLES ARE USED.
| Item Code | UNITUT345C |
|---|---|
| Barcode | 6935750534533 |
| Brand | UNI-T |

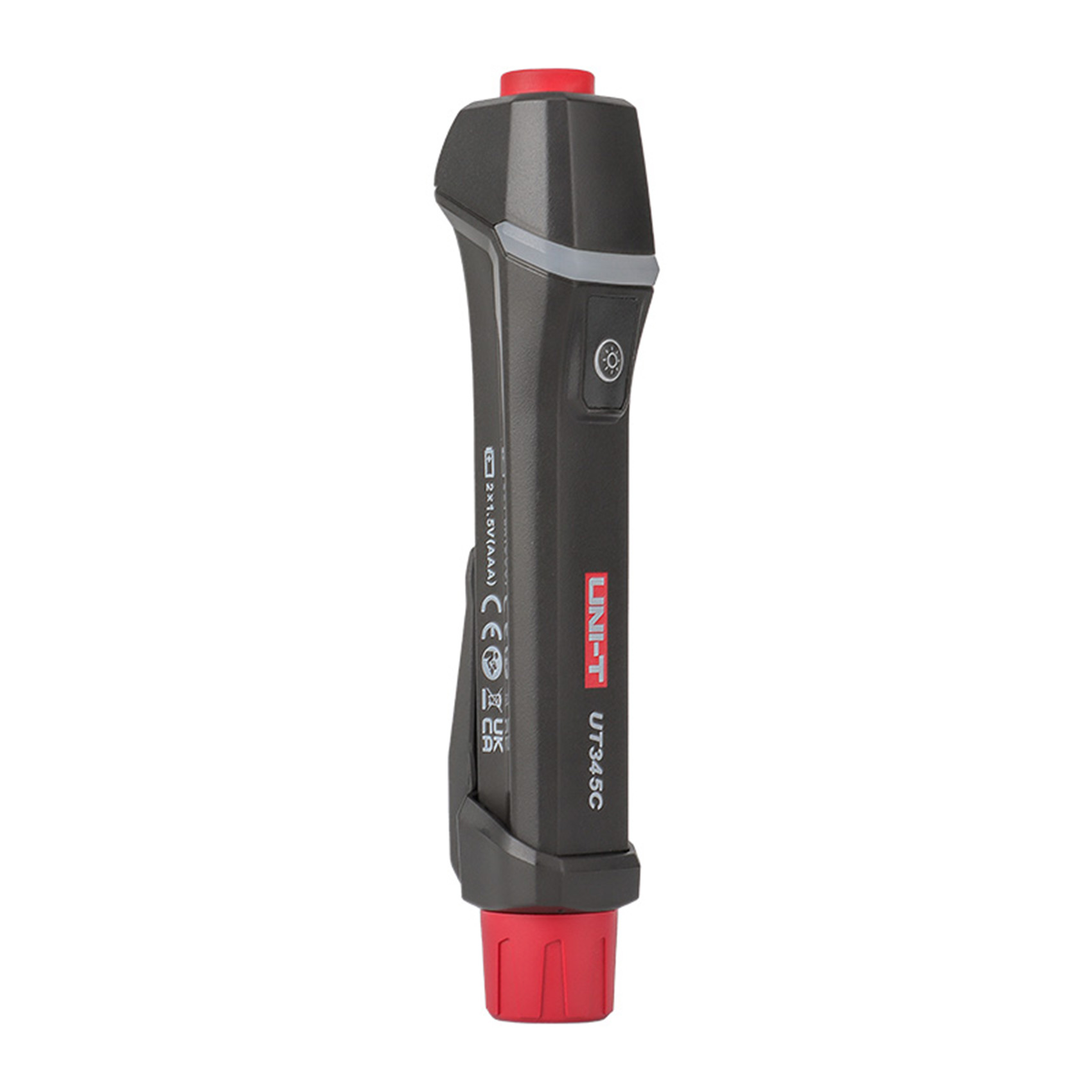

The UNI-T UT345C Gas Tank Level Checker is a compact ultrasonic measuring device designed to quickly check the filling level of standard propane or butane LPG gas cylinders. Its pen-like design, simple probe operation, and clear red and green LED indication make it easy to identify whether liquefied gas is present at a particular level without moving or opening the gas bottle.
The UNI-T UT345C is used to check the approximate liquid gas level inside compatible LPG cylinders. It works by using ultrasonic measurement through the cylinder wall and provides a simple visual indication through its LED.
A green light indicates that liquefied gas is present at the measured level, while a red light indicates that liquefied gas is not detected at that level. A flashing red and green indication shows that the device is measuring.
The UNI-T UT345C provides a quick and convenient way to check the liquid gas level of compatible LPG cylinders without opening the cylinder or moving it from its position. Its compact pen-style body is easy to carry, while the simple LED indication makes the result easy to understand.
It is particularly useful where gas cylinders are regularly used and a quick level check is needed before replacing or refilling a cylinder. The ultrasonic measurement method allows the user to check the cylinder from the outside.
The UT345C is suitable for catering businesses, food-processing facilities, barbecue users, camping users, LPG cylinder dealers, gas service personnel, restaurants, kitchens, maintenance technicians, and commercial users who regularly work with compatible propane or butane LPG cylinders.
The UNI-T UT345C is a compact ultrasonic device designed to check the approximate liquid gas level in compatible propane or butane LPG cylinders.
What type of gas cylinders can the UT345C check?The UT345C is designed for standard steel and aluminum propane or butane LPG storage tanks with approximately 8–14 inch or 200–350 mm diameters.
How does the UT345C check the LPG level?The device uses ultrasonic measurement through the cylinder wall. The probe is pressed vertically against different positions of the cylinder and the LED indication is checked.
What does the green LED mean on the UT345C?A green LED indicates that liquefied gas is detected at the measured level.
What does the red LED mean on the UT345C?A red LED indicates that liquefied gas is not detected at the measured level.
What does the flashing red and green LED mean?Flashing red and green indicates that the UT345C is currently measuring.
Do I need to move the gas cylinder to use the UT345C?No. The UT345C is designed to measure from the outside of the cylinder, allowing the gas bottle to remain in its existing position during checking.
Does the UT345C require additional accessories?No additional accessories are required for basic gas level checking. Standard accessories include the user manual and safety instructions.
Is the UNI-T UT345C portable?Yes. Its compact pen-like design makes it lightweight and convenient to carry, store, and use in different locations.
Where can the UNI-T UT345C be used?It can be used in catering services, food processing, restaurants, commercial kitchens, camping, barbecues, LPG cylinder sales, and other locations where compatible LPG cylinders are used.
