BRAND : UNI-T
ITEM NO.: UT25CL
ORIGIN : CHINA

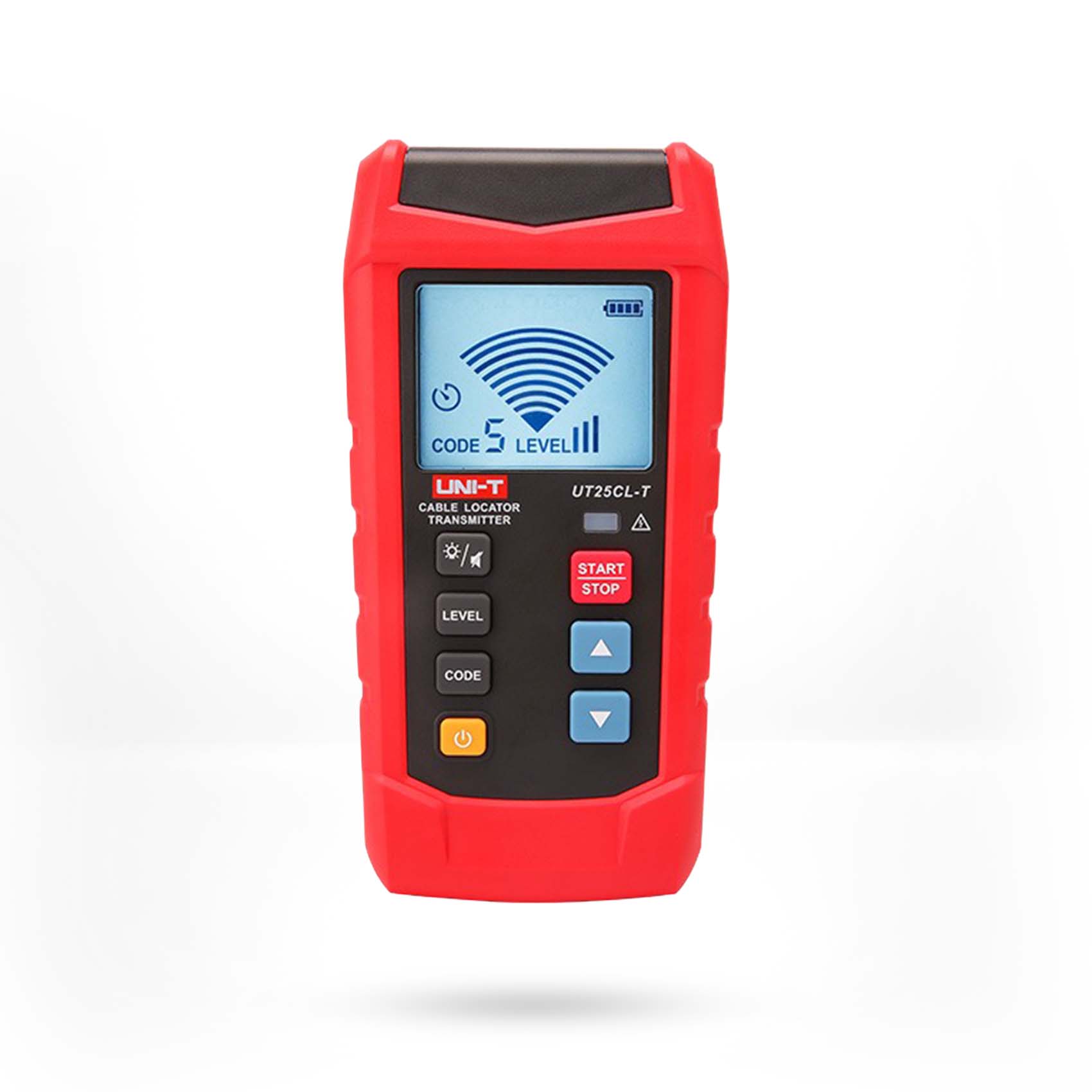

OUTPUT SIGNAL : 33KHZ
ENERGIZED WIRE VOLTAGE RAGNE : AC/DC 8~480V; AC: 50/60HZ/ 2.5% ±3DEG
SCREEN : SEGMENT CODE LCD (TN; TRANSLUCENT )
BACKLIGHT : YES
CODE VALUE : 0,1,2,3,4,5,6,7
SIGNAL STRENGTH THREE LEVEL : 1, 2, 3
UNIPOLAR TEST : YES (ENERGIZED WIRE TEST, MAX VOLTAGE 480V)
BIPOLAR TEST : YES (ENERGIZED WIRE TEST, MAX VOLTAGE 480V)
ELV LED INDICATOR :
1. IF THE INPUT VOLTAGE EXCEEDS 25V, THE ELV LED TURNS ON
2. AS THE VOLTAGE RISES, THE BRIGHTNESS OF THE ELV LED INCREASES.
3. IN ANY OTHER CASE, THE ELV LED WILL BE DIM OR NOT ILLUMINATED.

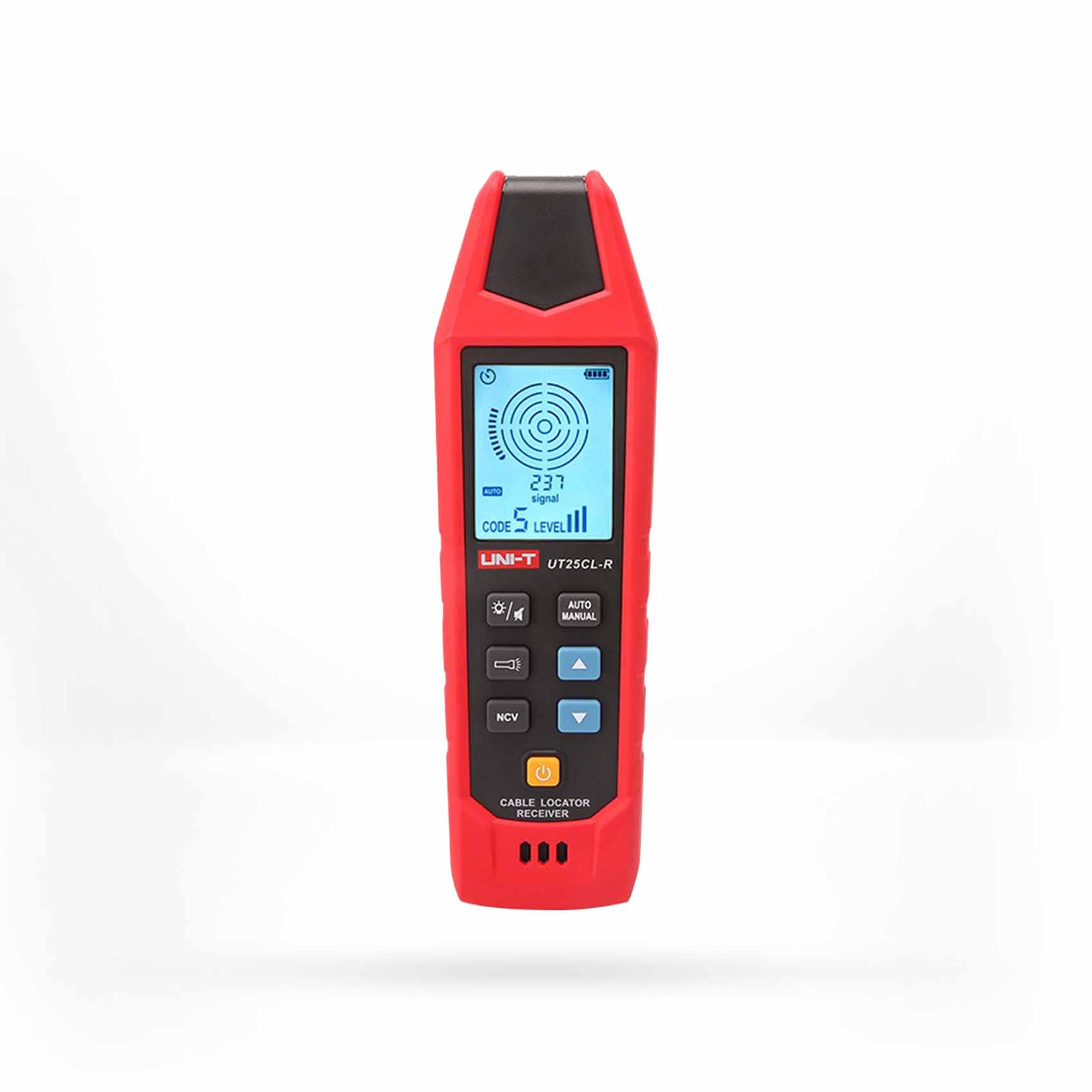

RECEIVER :
RECEIVING FREQUENCY : 33KHZ
TRACING DEPTH :
AROUND 0~2.5M (UNIPOLAR MODE; SINGLE-CIRCUIT: 2.5M)
AROUND 0~0.5M (BIPOLAR MODE)
NCV VOLTAGE RANGE : 80V ~ 1000V, 50HZ/60HZ
VOLTAGE DETECTION DEPTH : AROUND 0~0.4 METERS
CODE VALUE : 0,1,2,3,4,5,6,7
SIGNAL STRENGTH THREE LEVEL : 1, 2, 3
MULTI-TRANSMITORS COMPATIBLE : UP TO 8PCS
SCREEN : SEGMENT CODE LCD (TN; TRANSLUCENT )
OTHERS :
FLASH LIGHT : √
BACKLIGHT : √
MANUAL SENSITIVITY ADJUSTMENT : √
OVER VOLTAGE CATEGORY : CAT III 480V
POLLUTION RATING : 2
IP RATING : IP54
CERTIFICATES : CE , ROHS
FEATURES :
1, FIND CONDUCTORS INSIDE THE WALL, DETECT CONDUCTOR INTERRUPTIONS OR SHORT CIRCUITS.
2, TRACE THE UNDERGROUND CABLE PATHS.
3, LOCATE FUSES AND DEVICES ASSOCIATED WITH THE FUSES.
4, IDENTIFY SHORT CIRCUITS AND OPEN CIRCUITS IN THE UNDERFLOOR METAL HEATING.
5, TRACE METAL WATER PIPES AND METAL HEATING PIPELINES.
6, ADJUSTABLE SENSITIVITY (RECEIVER: 3 LEVELS; TRANSMITTER: 9 LEVELS)
. FIND CONDUCTORS INSIDE THE WALL, AND DETECT CONDUCTOR INTERRUPTIONS OR SHORT CIRCUITS
. TRACE THE UNDERGROUND CABLE PATHS
. LOCATE FUSES AND DEVICES ASSOCIATED WITH THE FUSES
. IDENTIFY SHORT CIRCUITS AND OPEN CIRCUITS IN THE UNDERFLOOR HEATING(METAL)
. TRACE METAL WATER PIPES AND METAL HEATING PIPELINES
. ADJUST THE SENSITIVITY OF THE RECEIVER AUTOMATICALLY OR MANUALLY (3 ADJUSTABLE LEVELS)
. FLASHLIGHT AND BACKLIGHT FUNCTIONS
. AUTOMATIC SHUTDOWN FUNCTION
. ONE RECEIVER CAN SUPPORT UP TO 8 TRANSMITTERS
. ENERGIZED WIRE DETECTION: UP TO 480V(AC/DC)
. LED AND BUZZER INDICATIONS
. CE, ROHS

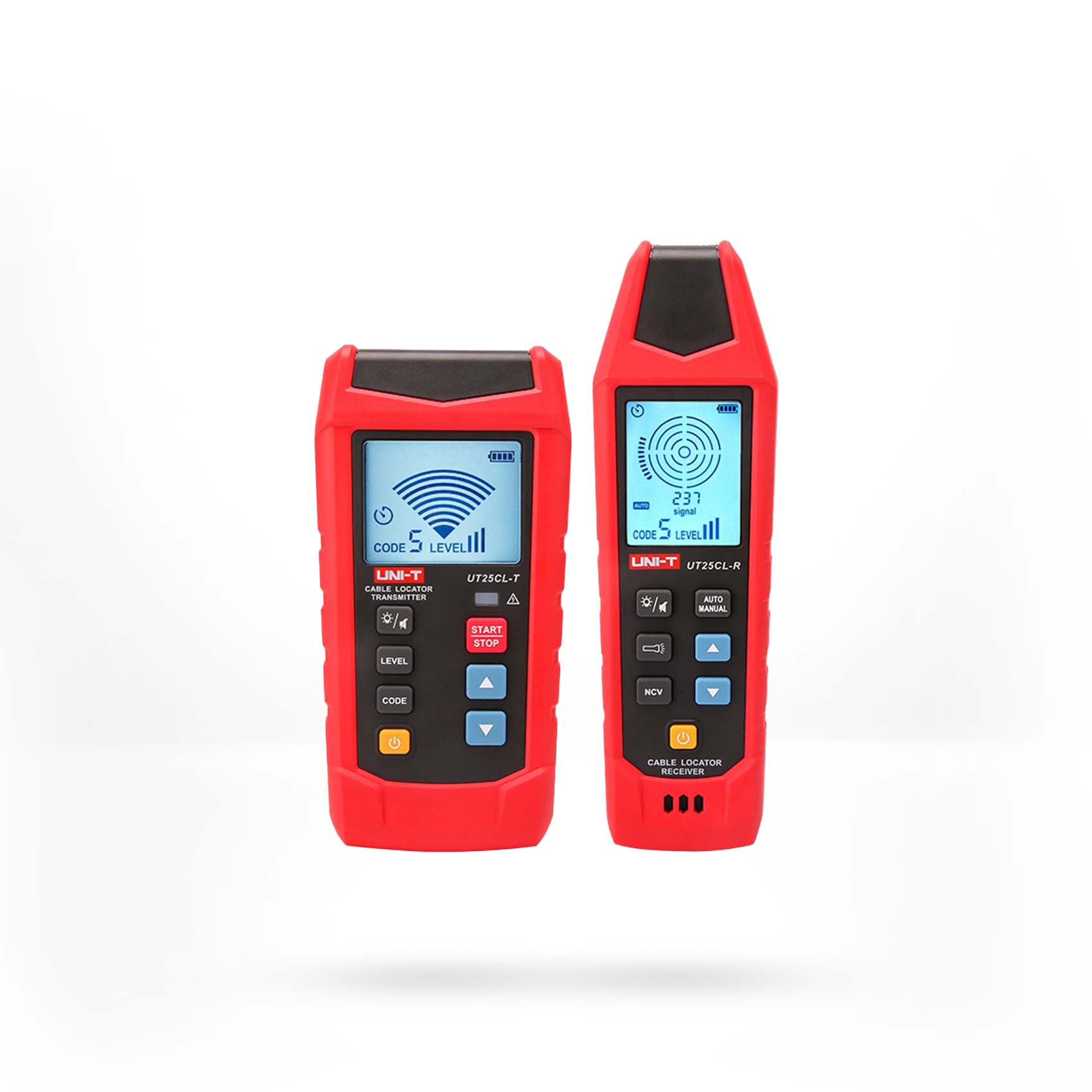

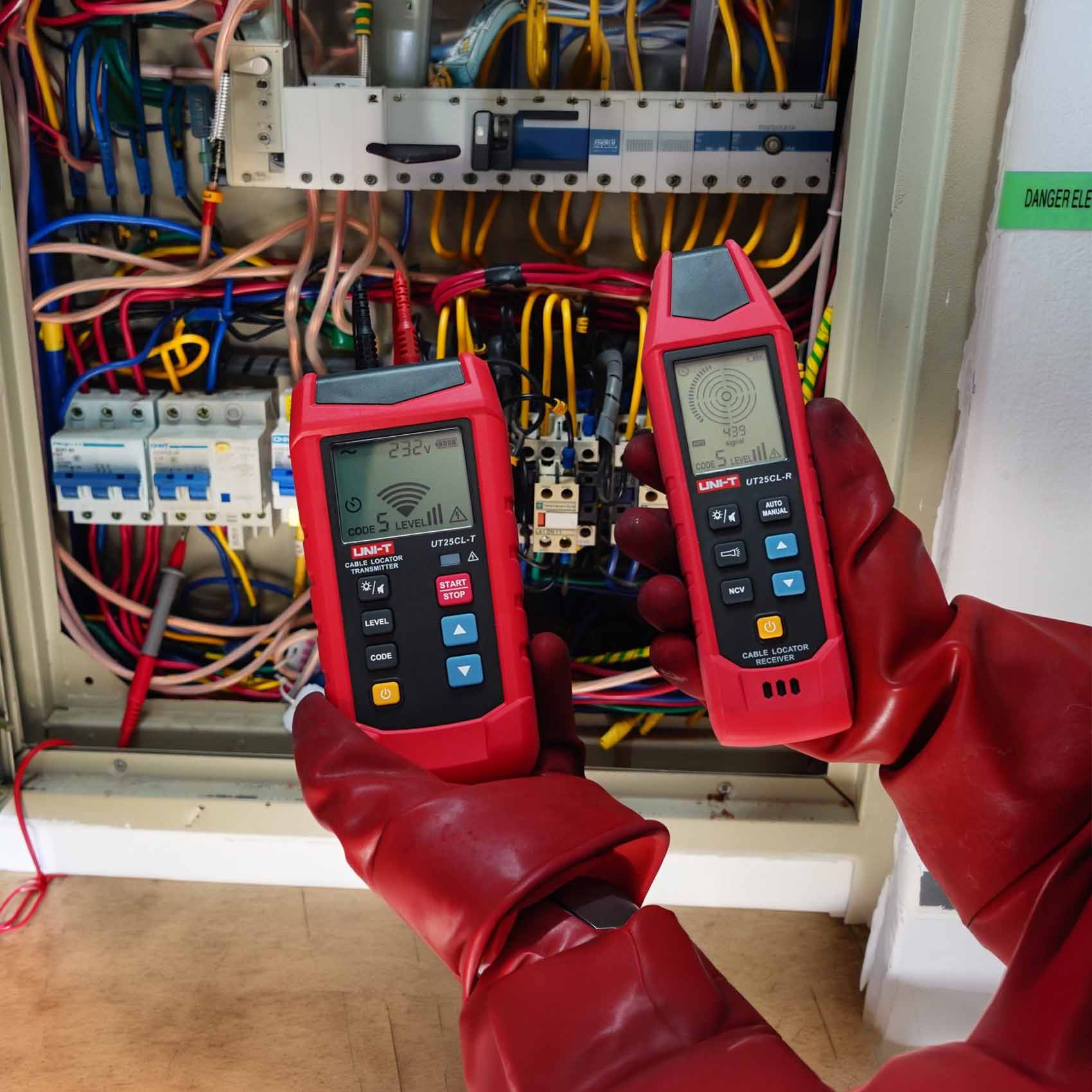

THE UT25CL CABLE LOCATOR IS A POWERFUL DEVICE CONSISTING OF A TRANSMITTER AND RECEIVER. WITH STATE-OF-THE-ART SENSORS, IT EFFORTLESSLY TRACKS CABLES AND WIRES, SAVING YOU TIME AND PREVENTING ACCIDENTAL DAMAGE DURING INSTALLATIONS OR REPAIRS.
THIS TOOL DETECTS CONDUCTORS, IDENTIFIES INTERRUPTIONS OR SHORT CIRCUITS, TRACES UNDERGROUND CABLES, AND LOCATES FUSES AND ASSOCIATED DEVICES. IT ALSO DETECTS SHORT CIRCUITS AND OPEN CIRCUITS IN UNDERFLOOR HEATING, TRACES METAL WATER PIPES AND HEATING PIPELINES, AND SUPPORTS UP TO 8 TRANSMITTERS.
IT IS PERFECT FOR RESIDENTIAL OR COMMERCIAL PROJECTS.
| Item Code | 6935750525081 |
|---|---|
| Barcode | UNITUT25CL |
| Brand | UNI-T |

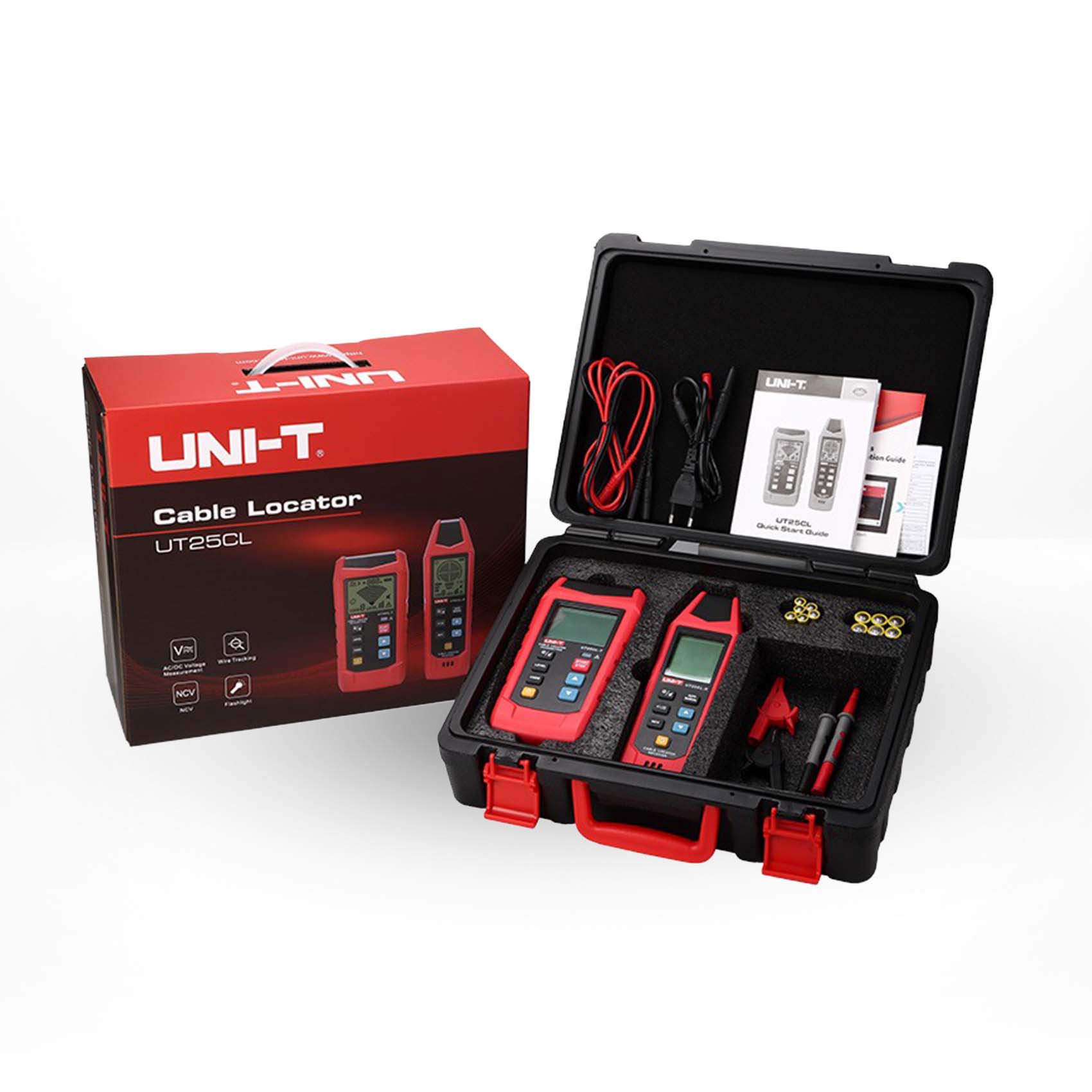

The UNI-T UT25CL Cable Locator is a professional cable and wire tracing tool designed to help electricians and technicians locate conductors, identify cable interruptions or short circuits, trace underground cables, and find fuses and associated electrical devices. The system consists of a transmitter and receiver that work together to make cable identification faster and easier.
With 33kHz signal transmission, three receiver signal-strength levels, adjustable sensitivity, energized wire detection up to 480V AC/DC, NCV detection, flashlight, and backlight functions, the UT25CL is a versatile solution for residential, commercial, electrical installation, and maintenance work.
Safety Note: Electrical cable tracing can involve hazardous voltages. Always follow the manufacturer's instructions, observe the applicable CAT rating, and use appropriate electrical safety procedures before working on energized circuits.
A cable locator is used to identify and trace the location or route of electrical wires, cables, and compatible conductive pipes. It helps technicians find concealed conductors without unnecessarily opening walls, floors, or other structures.
The UNI-T UT25CL can also assist with locating underground cable paths, identifying interruptions or short circuits, finding fuses and associated devices, and tracing metal water or heating pipelines.
The UNI-T UT25CL combines cable tracing, energized wire detection, fault identification, and non-contact voltage detection in one practical system. Its transmitter and receiver design allows technicians to follow cable routes and identify conductors more efficiently than relying solely on visual inspection.
The adjustable sensitivity and signal-strength indication make it easier to distinguish the required conductor, while the flashlight and backlight improve usability in dark work areas. Support for multiple transmitters also makes the system useful for more complex cable identification tasks.
For electricians, maintenance technicians, installers, and contractors, the UT25CL can help reduce unnecessary wall or floor access and make electrical troubleshooting and cable identification more efficient.
The UNI-T UT25CL is suitable for residential buildings, commercial properties, electrical workshops, construction sites, maintenance facilities, industrial environments, and utility installation projects. It can be used for tracing concealed wires, underground cables, electrical circuits, compatible metal pipes, and underfloor metal heating circuits.
The UNI-T UT25CL is a cable locator used to trace wires and conductors, locate underground cables, identify cable interruptions and short circuits, and locate fuses and associated electrical devices.
Yes. The UT25CL supports energized wire detection for compatible AC/DC applications up to 480V within its specified operating conditions.
The UNI-T UT25CL uses a 33kHz output and receiving frequency for cable tracing.
Yes. The cable locator is designed to help find conductors concealed inside walls and identify their approximate route.
Yes. The UT25CL can be used to trace underground cable paths within the applicable tracing conditions and range.
Yes. The system is designed to help identify conductor interruptions, open circuits, and short circuits in compatible applications.
Yes. The receiver provides three adjustable sensitivity levels to help users improve signal identification in different environments.
Yes. The cable locator can help locate fuses and electrical devices associated with the traced circuit.
Yes. One receiver can support up to eight compatible transmitters, making it useful for tracing multiple circuits.
Yes. The receiver includes flashlight and backlight functions to improve visibility when working in dark or poorly illuminated areas.
Yes. Its cable tracing, energized wire detection, signal-strength indication, sensitivity adjustment, and fault-location capabilities make it suitable for professional electrical installation and maintenance work.
