UNI-T AC DIGITAL POWER CLAMP METER UT219P | TROUBLESHOOTING SOLAR POWER SYSTEMS CURRENT LOAD, ELECTRICAL CARS, ETC

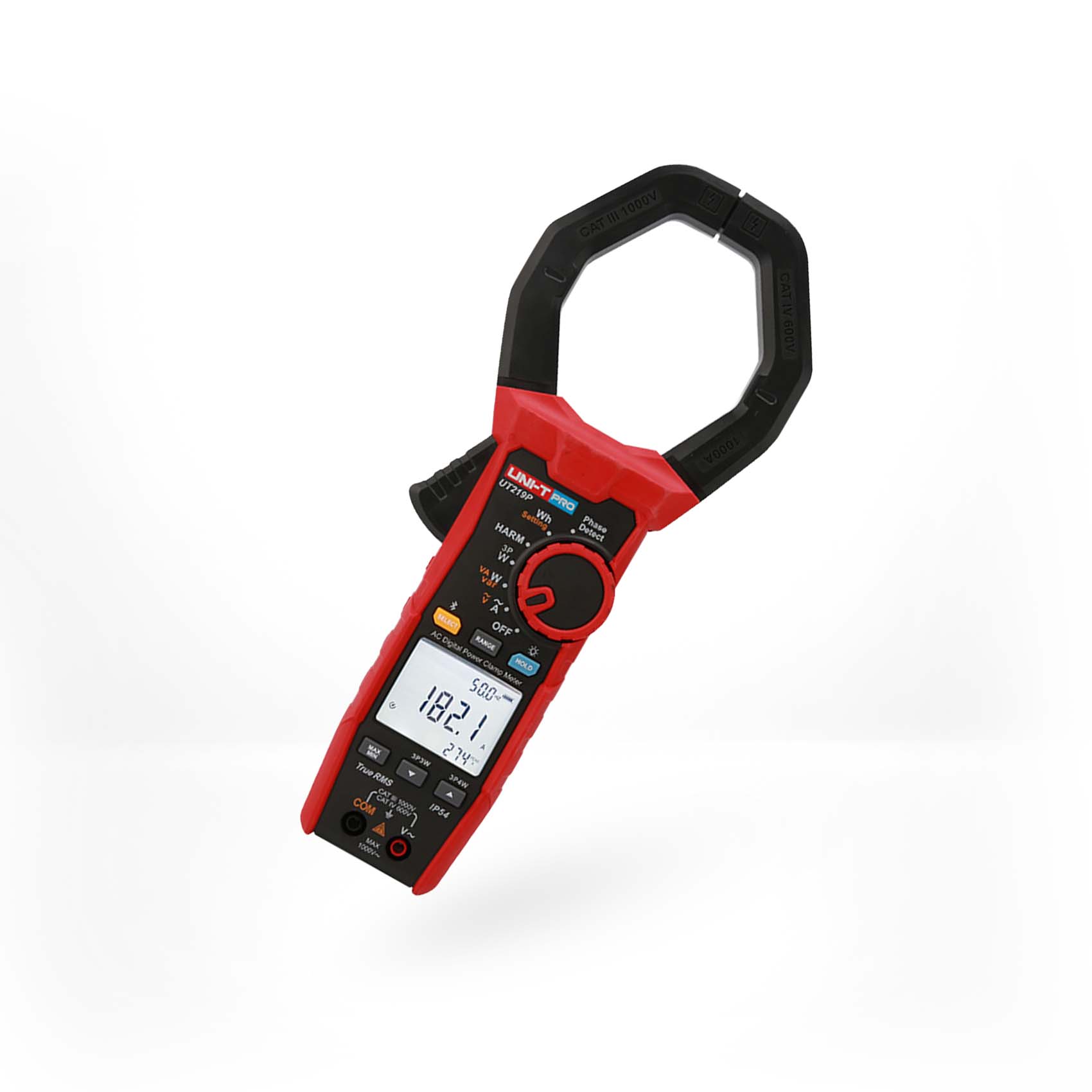

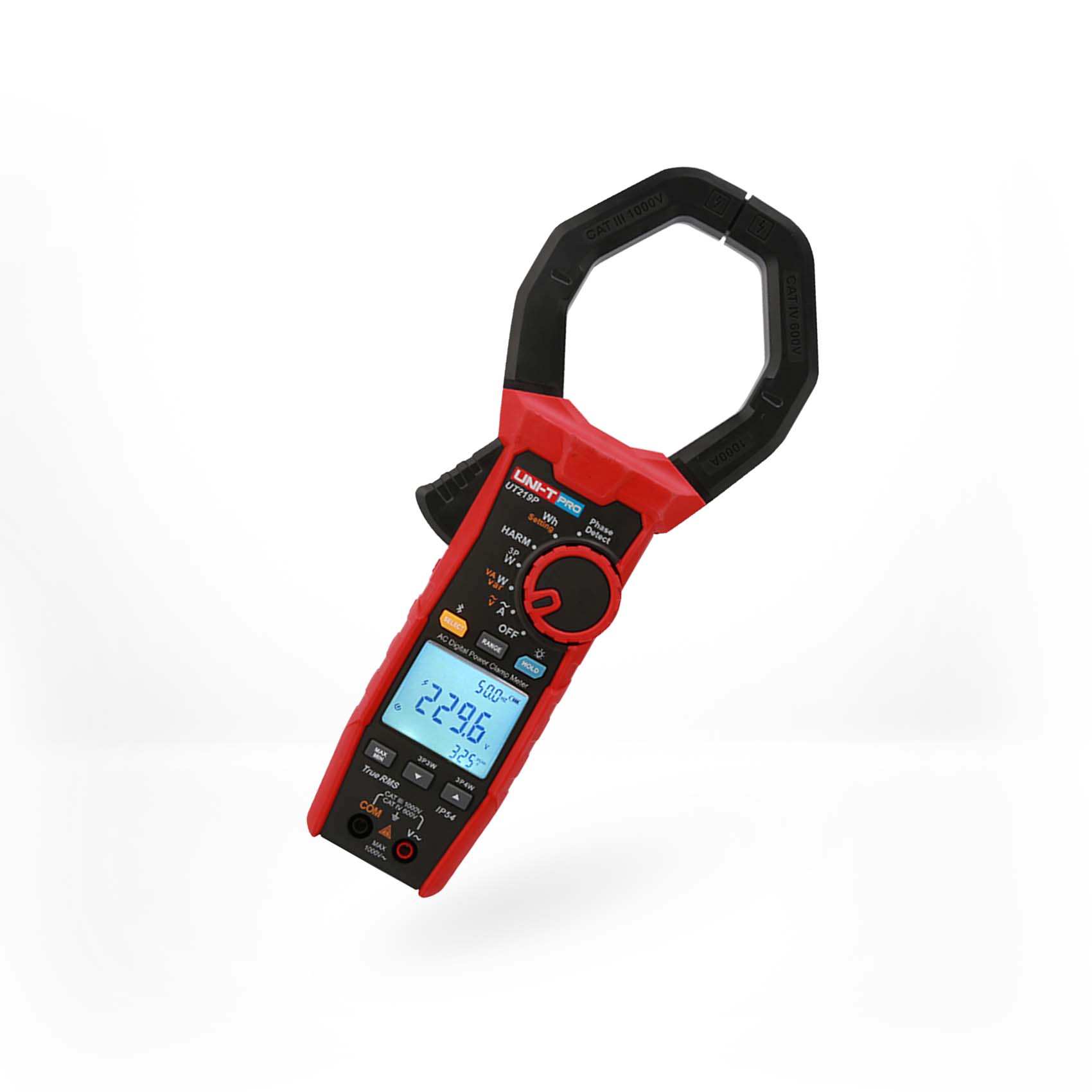

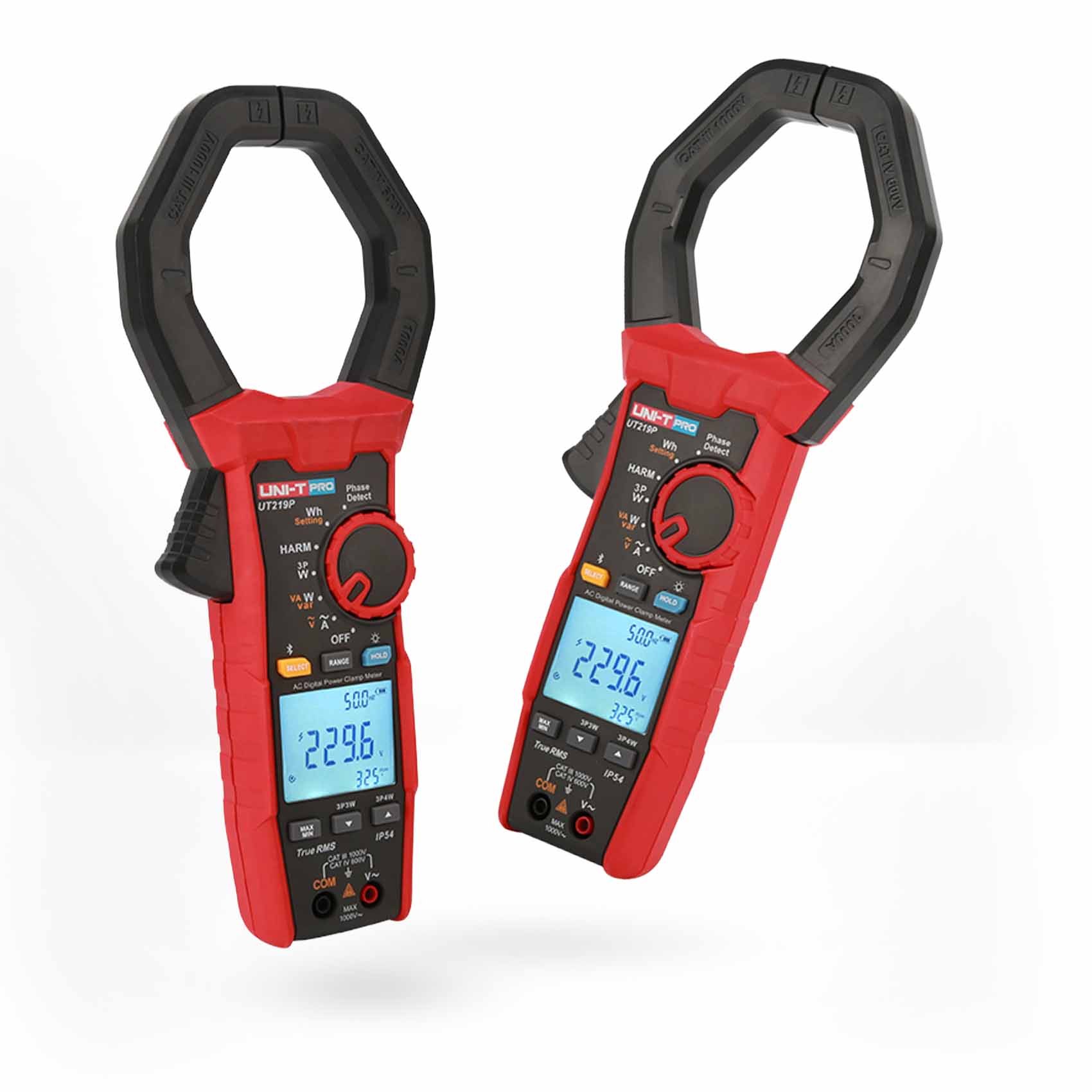

UNI-T UT219P AC Digital Power Clamp Meter

The UNI-T UT219P AC Digital Power Clamp Meter is a professional electrical testing instrument designed for measuring AC current, AC voltage, electrical power, power factor, harmonics, phase angle, and other important electrical parameters. Combining the functions of a digital clamp meter and power meter, it provides a convenient solution for electrical troubleshooting, power analysis, and maintenance.

With a large clamp jaw, True RMS measurement, Bluetooth connectivity, three-phase power measurement, harmonic analysis, peak measurement, and high-voltage safety features, the UT219P is designed for demanding electrical applications including solar power systems, electrical vehicle systems, motors, distribution cabinets, and industrial equipment.

What Is the UNI-T UT219P Used For?

The UNI-T UT219P is used to measure and analyze electrical power and current in AC electrical systems. It allows technicians to perform measurements without needing to disconnect the conductor, making clamp-based testing practical for many electrical troubleshooting and maintenance tasks.

It can measure AC current, AC voltage, electrical power, frequency, phase angle, power factor, harmonics, and peak values. Its advanced measurement functions make it useful for identifying electrical load conditions, power quality issues, phase-related problems, and abnormal operating conditions.

How to Use the UNI-T UT219P Power Clamp Meter?

1. Inspect the meter: Check the clamp, display, leads, and instrument condition before beginning the measurement.
2. Select the required function: Choose the appropriate measurement mode for current, voltage, power, harmonics, frequency, or other required parameters.
3. Clamp around the conductor: Open the large clamp jaw and place it around the appropriate conductor for current measurement. Do not clamp around multiple conductors unless the measurement method specifically requires it.
4. Read the measurement: Observe the measured electrical value on the LCD display.
5. Check power parameters: Use the appropriate power measurement function to evaluate electrical power, power factor, phase angle, or related parameters.
6. Analyze harmonics: Use the harmonic measurement function when investigating power-quality or harmonic-related issues.
7. Use peak or MAX/MIN functions: Activate the appropriate function when monitoring changing or peak electrical conditions.
8. Use Bluetooth when required: Connect the meter to the compatible mobile application for supported remote data viewing and analysis.
9. Complete the inspection safely: After measurement, remove the clamp and switch off the instrument according to the operating procedure.

Important: Electrical measurements can involve dangerous voltages and currents. Only qualified personnel should operate the instrument on energized systems. Always select the correct measurement function and follow the meter's operating instructions and applicable electrical safety procedures.

What Are the Key Features of the UNI-T UT219P?

• 1000A AC current measurement for high-current electrical applications.
• 1000V AC voltage measurement for professional electrical testing.

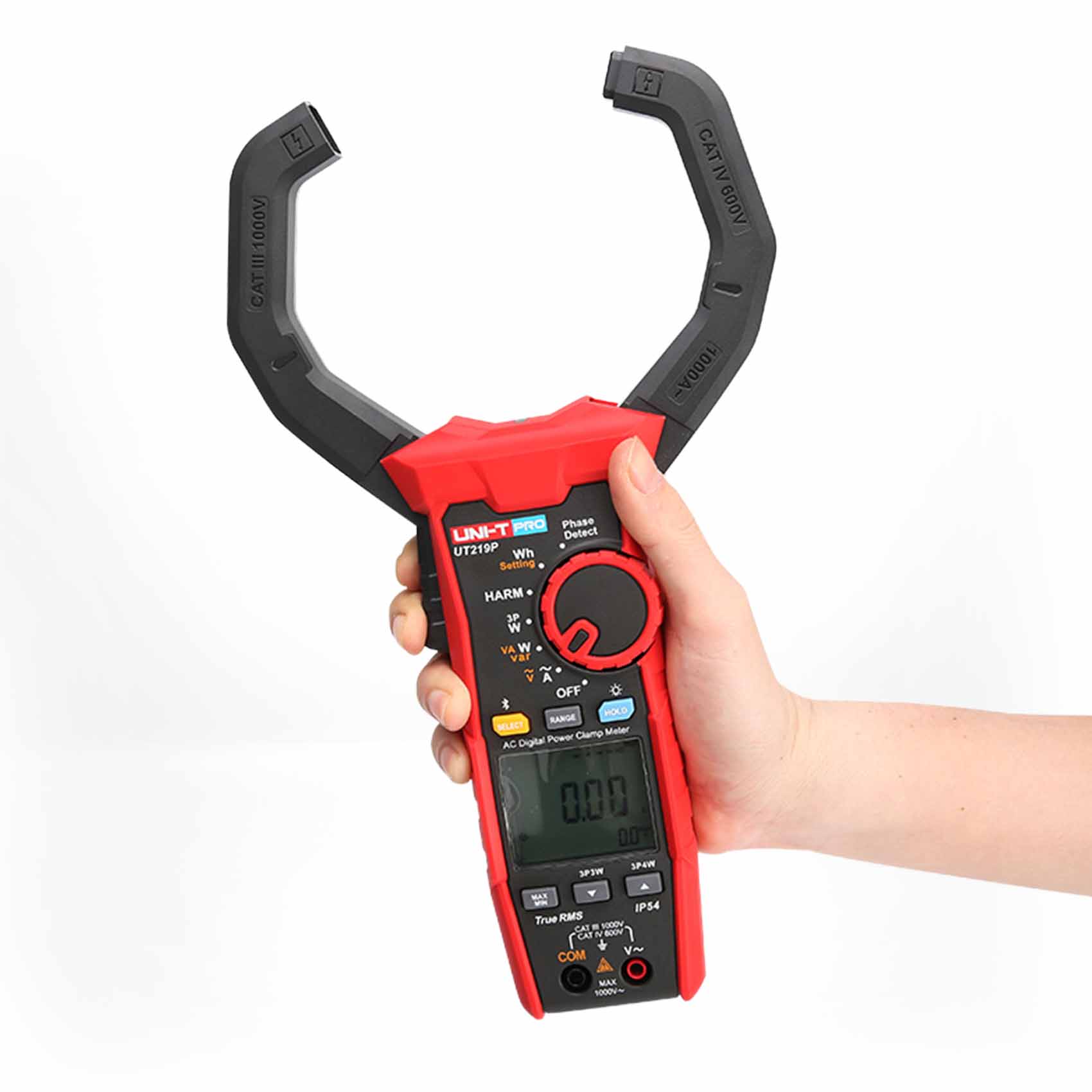

• Large 75mm clamp jaw opening for working with larger conductors and cables.
• AC and DC peak measurement for identifying peak electrical conditions.
• Single-phase power measurement for electrical load analysis.
• Three-phase power measurement for industrial and commercial electrical systems.
• Harmonic measurement for investigating harmonic-related electrical conditions.
• THD and power factor measurement for broader power-quality analysis.
• Phase sequence and phase-related measurement functions for three-phase electrical troubleshooting.
• True RMS measurement for reliable measurement of AC signals.
• Bluetooth 5.0 connectivity for supported mobile app functions.
• Large LCD display capable of showing multiple measurement results at the same time.
• High-voltage indication and overload warning for additional measurement awareness.
• Data hold and MAX/MIN functions for convenient measurement review.
• Professional safety category suitable for demanding electrical measurement environments.
• IP54 protection for added protection in suitable field and workshop environments.

Why Choose the UNI-T UT219P?

The UNI-T UT219P is a strong choice for professionals who need more than a standard current clamp meter. It combines current and voltage measurement with advanced power-analysis functions, allowing technicians to investigate electrical systems using a single handheld instrument.

Its large 75mm clamp jaw makes it practical for larger cables and conductors, while True RMS measurement helps provide useful readings for modern electrical loads. The combination of harmonic analysis, power factor, phase measurement, and three-phase power measurement makes it especially useful for troubleshooting complex electrical systems.

Bluetooth connectivity also provides additional convenience when supported mobile-app functions are required for reviewing or managing measurements.

Who Should Buy the UNI-T UT219P?

The UNI-T UT219P is suitable for professionals involved in electrical testing, power analysis, maintenance, and troubleshooting.

• Electrical engineers
• Electrical technicians
• Industrial maintenance technicians
• Solar PV technicians
• Solar power system installers
• Electric vehicle service technicians
• Motor maintenance professionals
• Power quality technicians
• Electrical contractors
• Facility maintenance teams
• Industrial service engineers
• Distribution and electrical panel technicians

Where Is the UNI-T UT219P Used?

The UNI-T UT219P Power Clamp Meter is suitable for professional electrical environments where current, voltage, power, harmonics, and related parameters need to be measured or analyzed.

• Solar power systems: Troubleshoot electrical loads and analyze power-related parameters in photovoltaic installations.
• Electrical vehicle systems: Assist qualified technicians with electrical measurements during suitable EV system diagnostics.
• Motor manufacturing and maintenance: Check electrical operating conditions of motors and related equipment.
• Distribution cabinets: Measure electrical parameters in suitable distribution and control equipment.
• Industrial facilities: Support electrical maintenance and troubleshooting activities.
• Commercial buildings: Check electrical loads and power conditions within suitable electrical systems.
• Residential electrical systems: Assist qualified professionals with electrical load and power measurements.
• Power-quality troubleshooting: Investigate harmonics, power factor, phase-related conditions, and other electrical parameters.

Advanced Electrical Power and Harmonic Measurement

Modern electrical systems can contain complex loads that make basic current measurement insufficient for troubleshooting. The UNI-T UT219P combines clamp-based current measurement with power, harmonic, phase, and power-factor functions to provide a broader view of electrical system performance.

Its large clamp opening, True RMS technology, multiple measurement functions, Bluetooth connectivity, and professional safety features make the UT219P a versatile instrument for electrical maintenance and power analysis.

UNI-T UT219P Power Clamp Meter FAQ

Buy UNI-T UT219P AC Digital Power Clamp Meter

Choose the UNI-T UT219P AC Digital Power Clamp Meter for professional electrical troubleshooting, power measurement, harmonic analysis, and maintenance applications. With its large clamp jaw, True RMS measurement, three-phase power capabilities, Bluetooth connectivity, and advanced electrical analysis functions, it is a versatile choice for qualified electrical professionals.
