Brand: PROXXON
Origin : GERMANY

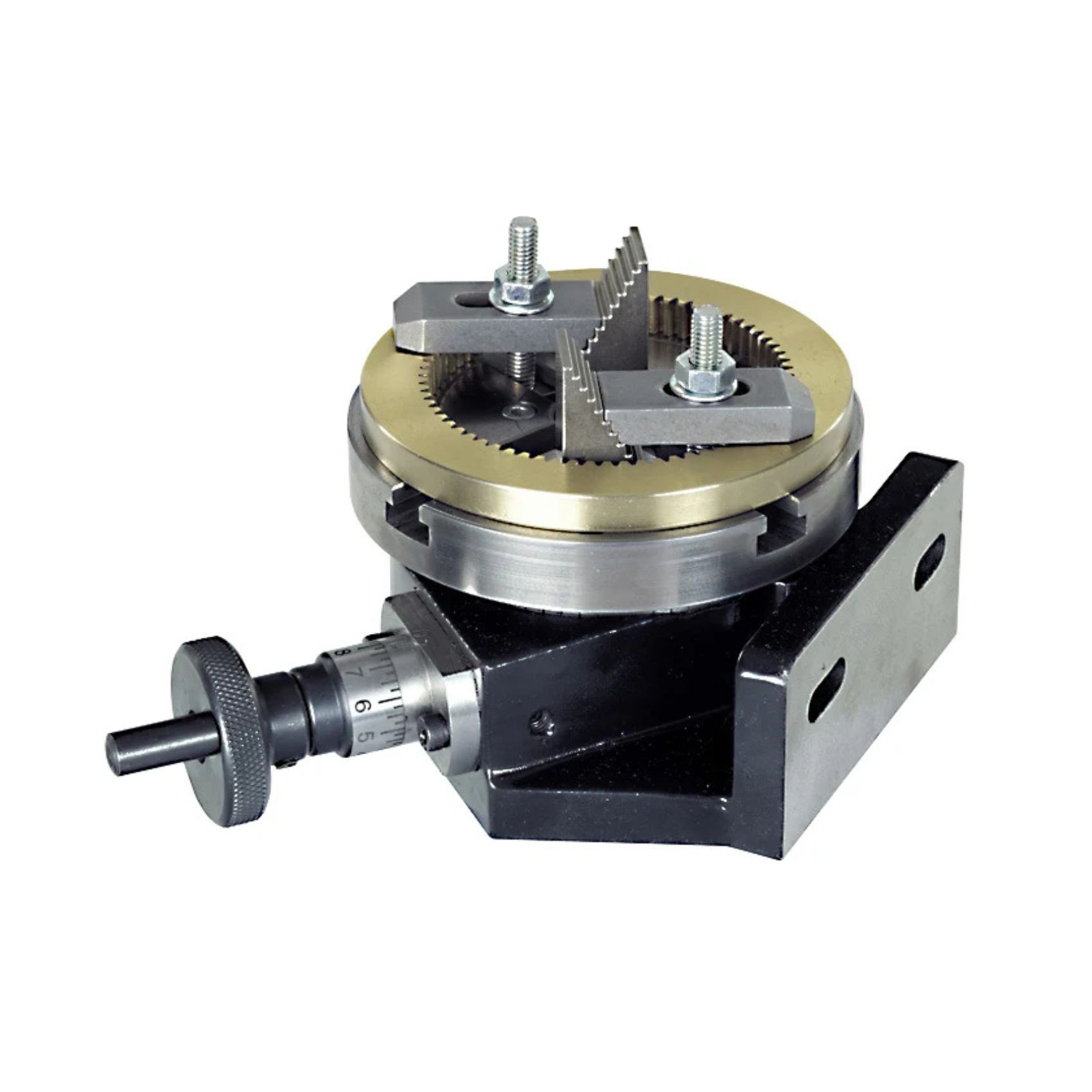

Product: Universal Dividing Attachment
Model: UT 250
Article Number: 24046 / NO 24 046
Type: Universal Dividing Attachment
Dividing Range: 360°
Dial Adjustment: 10° per revolution
Mounting: Horizontal or Vertical
T-Slot Spacing: 45–60 mm
Faceplate Diameter: Ø100 mm
Compatible Lathe: PROXXON PD 250/E
Included: Faceplate, step clamp set, slot nuts, threaded rods and nuts
The PROXXON Universal Dividing Attachment UT 250 is a precision dividing accessory designed for accurate rotary positioning through 360°. It features a worm-drive mechanism for controlled division and a handwheel feed adjustment with a graduated, zero-adjustable dial, providing 10° movement per revolution.
The dividing attachment can be mounted in either horizontal or vertical positions, making it suitable for a wide range of milling and machining applications. It is designed for compound tables with 45–60 mm spacing between T-slots.
The flange matches the main spindle size of the PROXXON PD 250/E lathe, allowing compatible 3-jaw and 4-jaw chucks to be mounted. The unit is supplied with a Ø100 mm faceplate and a complete steel step clamp set, including step blocks, clamps, slot nuts, threaded rods and nuts. It is supplied packed in a durable wooden box for convenient storage and protection.
| Item Code | PRX24046 |
|---|---|
| Barcode | 111100004749 |
| Brand | PROXXON |
The PROXXON Universal Dividing Attachment UT 250 24046 is a precision rotary dividing accessory designed for accurate angular positioning through 360°. Featuring a worm-drive mechanism and a handwheel with a graduated, zero-adjustable dial, it provides controlled and repeatable division for milling and machining applications.
Mount the PROXXON UT 250 securely on a suitable compound table with 45–60 mm T-slot spacing. The attachment can be positioned horizontally or vertically depending on the machining operation. Use the handwheel to rotate the workpiece to the required angle. The graduated dial provides 10° movement per revolution, allowing controlled rotary positioning and accurate indexing.
Compatible 3-jaw and 4-jaw chucks can be mounted because the dividing attachment uses a flange matching the main spindle size of the PROXXON PD 250/E lathe. The supplied Ø100 mm faceplate can also be used for suitable workholding applications.
The main purpose of the PROXXON Universal Dividing Attachment is to accurately rotate and position a workpiece at selected angles during machining. It is useful for dividing a workpiece through 360° for operations such as milling, drilling, indexing, machining flats and other precision rotary work.
The worm-drive system provides controlled movement, making the UT 250 suitable when consistent angular positioning is required.
The PROXXON UT 250 combines controlled rotary movement with practical workholding options for precision machining. Its 360° dividing capability, worm-drive mechanism and graduated handwheel make it easier to position a workpiece accurately during machining operations.
Its ability to work in both horizontal and vertical positions provides additional flexibility, while compatibility with the PROXXON PD 250/E lathe makes it a useful accessory for suitable PROXXON machining setups.
The PROXXON Universal Dividing Attachment UT 250 is suitable for machinists, metalworking professionals, engineering workshops, model makers, technical hobbyists, educational workshops and precision machining users who require controlled rotary positioning.
The dividing attachment can be used in machine shops, engineering workshops, metalworking applications, model-making workshops, maintenance workshops and educational machining environments. It is particularly useful for milling, drilling, indexing and other operations requiring accurate angular positioning of a workpiece.
The PROXXON UT 250 is used for accurately dividing and rotating a workpiece through 360° during milling, drilling and other precision machining operations.
Yes. The UT 250 can be installed in either horizontal or vertical positions depending on the machining requirement.
The graduated handwheel dial provides 10° of movement per revolution and can be zero-adjusted for convenient positioning.
Yes. The flange of the dividing attachment matches the main spindle size of the PROXXON PD 250/E lathe, allowing compatible chucks to be mounted.
Yes. A compatible PROXXON 3-jaw chuck can be mounted using the matching spindle flange.
Yes. A compatible PROXXON 4-jaw chuck can also be mounted.
The unit includes a Ø100 mm faceplate and a steel step clamp set with step blocks, clamps, matching slot nuts, threaded rods and nuts. It is supplied in a wooden box.
The attachment is designed for compound tables with a T-slot spacing of approximately 45–60 mm.
