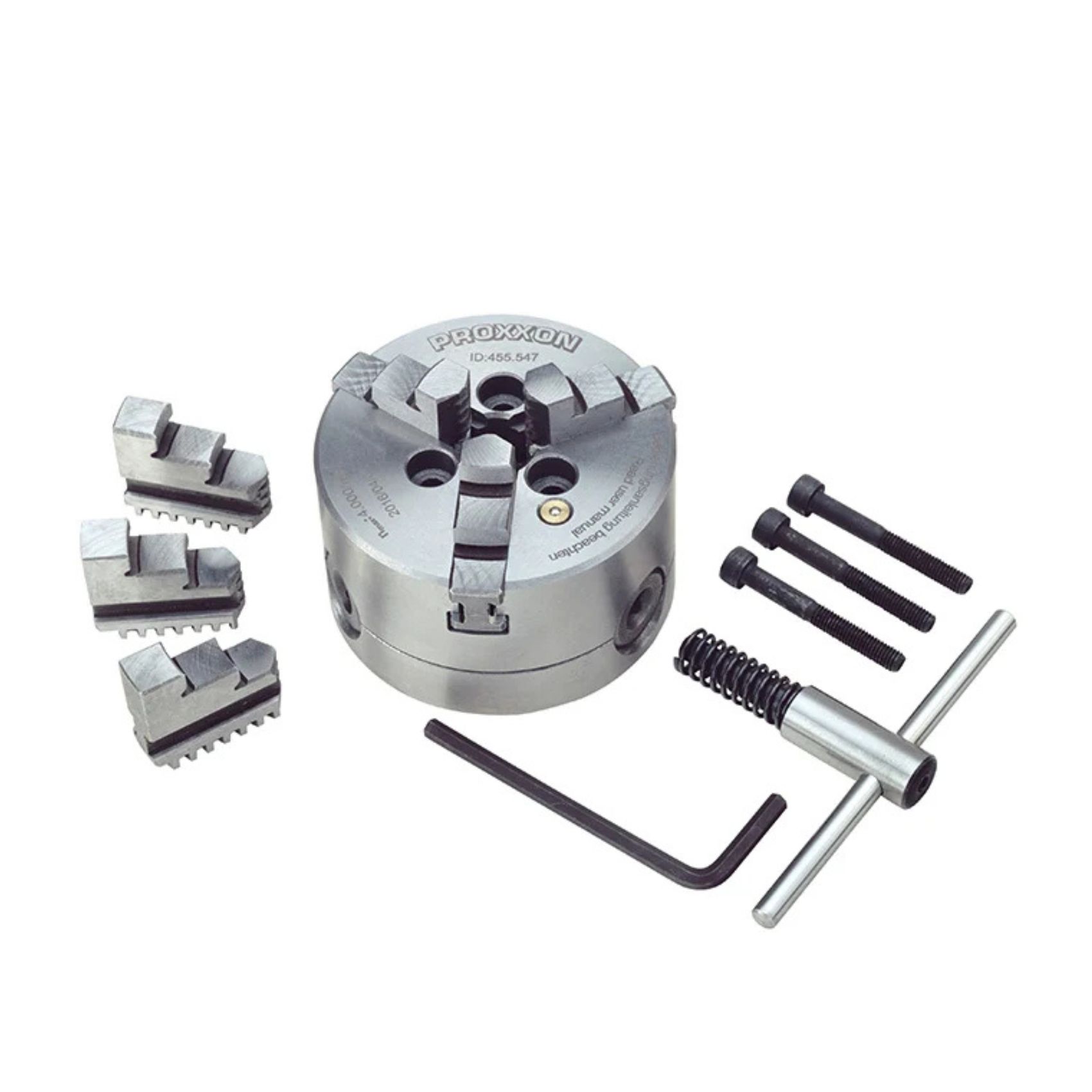

PROXXON 3-JAW SELF-CENTERING CHUCK FOR PD 250/E 24034 | DIN 8386 CLASS 1 | 2-75MM CAPACITY | 0.04MM CONCENTRICITY ACCURACY | MADE IN GERMANY

Brand: PROXXON

Origin : Germany

Item Code: PRX24034

Model: 24034

Article Number: NO 24 034

Product Type: Self-Centering 3-Jaw Chuck

Origin: Germany

Suitable For: PROXXON PD 250/E Lathe

Compatibility: PROXXON Dividing Attachment NO 24 044

Jaw Type: Reversible / Reversing Jaws

Clamping Capacity: 2–75 mm

Concentricity Accuracy: 0.04 mm

Standard: DIN 8386, Class 1

The PROXXON 3-Jaw Self-Centering Chuck 24034 is designed for reliable and accurate workpiece clamping on the PROXXON PD 250/E precision lathe. Manufactured as a high-quality clamping fixture according to DIN 8386, Class 1, the chuck provides a concentricity accuracy of 0.04 mm.

Its self-centering three-jaw mechanism allows the workpiece to be positioned centrally during clamping, helping to achieve consistent machining results. The reversing jaws provide a practical clamping range from 2 mm to 75 mm, making the chuck suitable for holding workpieces of different sizes.

The PROXXON 24034 is suitable for use with the PD 250/E lathe and can also be used with the PROXXON dividing attachment NO 24 044. It is a practical accessory for turning, facing, drilling and other precision machining operations where secure and accurately centered workholding is required.

Key Features

Self-centering 3-jaw chuck

High-quality precision clamping fixture

Manufactured according to DIN 8386, Class 1

Concentricity accuracy of 0.04 mm

Reversible/reversing jaws

Clamping capacity from 2–75 mm

Suitable for PROXXON PD 250/E lathe

Compatible with PROXXON dividing attachment NO 24 044

Designed for secure and centered workpiece holding

Suitable for precision machining applications
