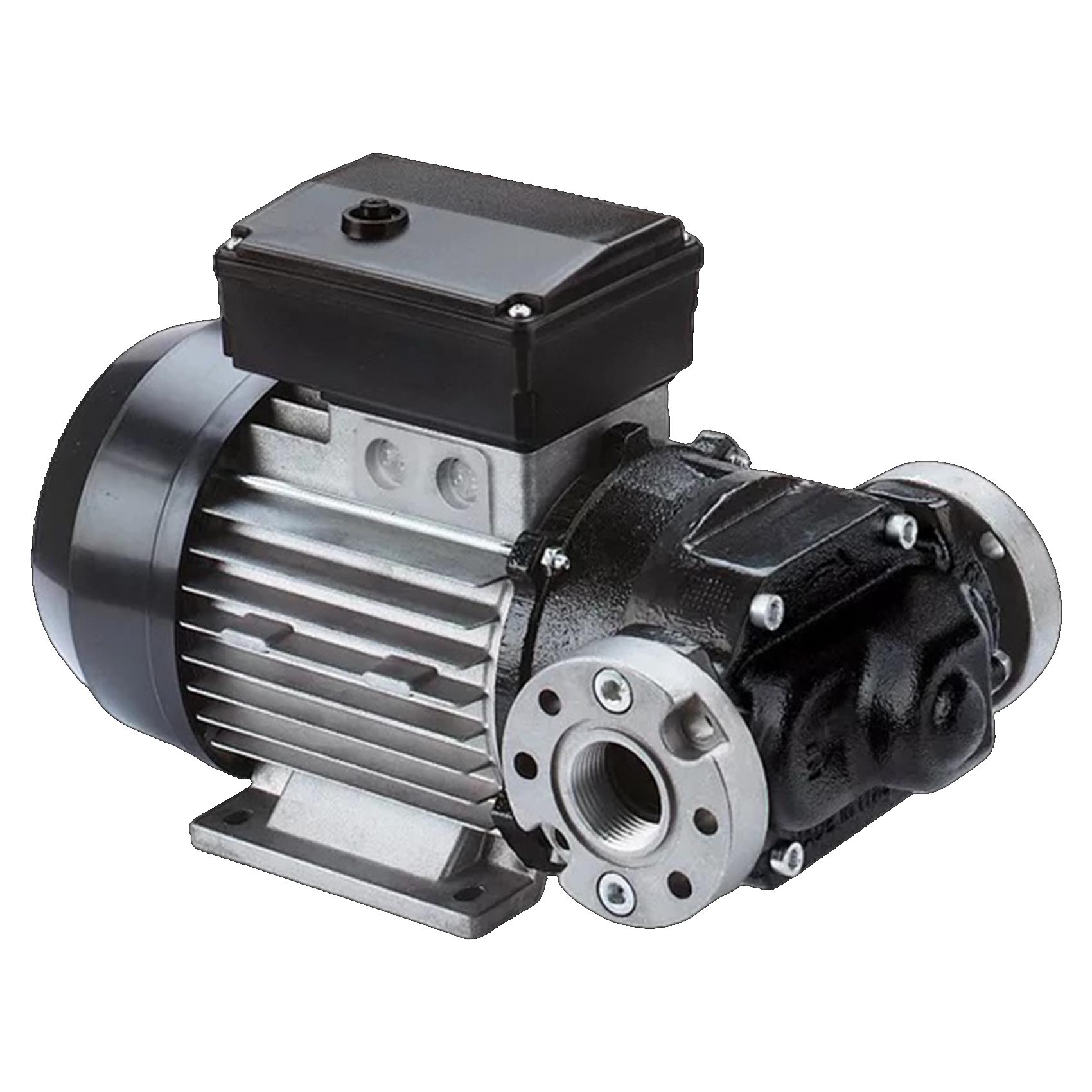

PIUSI E120T ELECTRIC DIESEL TRANSFER PUMP 400V/50HZ-2A-2.8 BAR 000312000 | 110 L/MIN | 750W | DIESEL/HVO/XTL | AGRICULTURE, LOGISTIC, MINING & CONSTRUCTION | MADE IN ITALY

BRAND : PIUSI

ITEM NO.: 000312000

ORIGIN : ITALY

VOLTAGE/FREQUENCY : 400V/50HZ

ABSORPTION : 2A

POWER : 750W

SPEED : 1450 RPM

NOMINAL FLOW RATE : 110 L/MIN

MAX PRESSURE : 2.8 BAR

TYPE OF SERVICE : S1: CONTINUOU

RELATIVE HUMIDITY : MAX. 90%

FLUID : DIESEL/HVO/XTL

APPLICATION : AGRICULTURE, LOGISTIC, MINING & CONSTRUCTION

PACKAGING DIMENSION(MM) : 355 X 185 X 285 MM

WEIGHT : 15.6 KG

. VERSATILITY

. STURDY STRUCTURE

. LONG LASTING

. REASY TO USE

. THERMAL PROTECTION

IN THE RANGE OF DIESEL TRANSFER PUMPS, THE E120 ELECTRIC DIESEL TRANSFER PUMP CONSISTS OF A BY-PASS VALVE FOR PRECISE ADJUSTMENT OF THE QUANTITY OF FLOW TRANSFERRED, WHILE DISPENSING, WITH A FLOW RATE OF UP TO 100 L/MIN.

THE VANE PUMP WITH SINTERED STEEL ROTOR AND ACETAL RESIN VANES, AND THE INDUCTION MOTOR WITH ALUMINUM CASING MAKE THIS DIESEL ELECTRIC PUMP SUITABLE FOR CONTINUOUS CYCLE APPLICATIONS, REQUIRING A RELIABLE AND QUALITY PRODUCT. THE THERMAL PROTECTION PROTECTS IT IN CASE OF MOTOR OVERLOADS.

THESE COMPONENTS ARE ALSO INCLUDED IN THE E120 ELECTRIC DIESEL TRANSFER PUMP:

FLANGES

IF YOU ARE LOOKING FOR AN ELECTRIC DIESEL TRANSFER PUMP WITH HIGH PERFORMANCE, RELY ON PRODUCTS 100% MADE IN PIUSI.

PIUSI E120 IS AN ELECTRIC DIESEL TRANSFER PUMP, SUITABLE TO ANSWER ALL THOSE APPLICATIONS REQUIRING LONG LASTING PRODUCT AND A HIGH PERFORMANCE.

THE PIUSI E120 IS AN AC SELF-PRIMING ELECTRIC VANE PUMP DELIVERING UP TO 100 L/MIN FOR DIESEL TRANSFER, AVAILABLE IN SINGLE-PHASE (230V) AND THREE-PHASE (400V) VERSIONS. COMPACT, EASY TO INSTALL AND SUITABLE FOR CONTINUOUS OPERATION, IT ALSO COMES IN THE E120 BIO VARIANT FOR ANY BIODIESEL UP TO B100.

THE PIUSI E120 ELECTRIC PUMP FOR DIESEL TRANSFER IS VERSATILE AND SUITABLE FOR DIFFERENT INDUSTRIES INCLUDING AGRICULTURE, TRANSPORT, AUTOMOTIVE, GARAGE AND CONSTRUCTION. THE E120 VOLUMETRIC, SELF-PRIMING VANE PUMP FOR DIESEL TRANSFER HAS A HIGH SEAL AND IS RELIABLE IN CONDITIONS OF USE AT LOW TEMPERATURES. THE PIUSI E120 IS AN EASY-TO-INSTALL DIESEL TRANSFER PUMP, SUITABLE FOR USE IN DIESEL DISPENSERS AND FIXED FUEL TRANSFER SYSTEMS, AS WELL AS OTHER INDUSTRIAL APPLICATIONS.

WITH ITS SOLID AND RESISTANT BODY AND THE COMPACT CAST IRON STRUCTURE MAKES THE E120 ELECTRIC PUMP THE PERFECT SYSTEM FOR PERFORMANCE AND RELIABILITY.
