BRAND : PIUSI
ITEM NO.: F0037501A F/4M
ORIGIN : ITALY
FLUID : DIESEL/HVO/XTL, GASOLINE, KEROSENE
INLET : 1" BSP
HOSE : Ø3/4” X L 4 M
FLOW RATE : 50 L/MIN
VOLTAGE : 12 AC V./HZ, DC VOLT
POWER : 250 W
AMP. MAX.: 21
METER TYPE : K33
NOZZLE TYPE : A60
FILTER : YES
APPLICATION : INDUSTRIAL, NAVAL, MINING & CONSTRUCTION
CONNECTOR : 2"
TEMPERATURE : 20/23°C
PACKAGING DIMENSIONS : 600X400X290 MM
WEIGHT : 12 KG
INCLUDES :
1X EX50 PUMP
1X TELESCOPIC SUCTION PIPE
1X DELIVERY HOSE
1X GASOLINE FILTER
1X A60 ATEX NOZZLE
1X 2” CONNECTOR
1X K33 ATEX METER (ON SELECTED VERSION)
1X INSTRUCTION MANUAL
. STURDY STRUCTURE
. FLANGED COMPONENTS
. ANTI-NOISE FILTER
. THERMAL PROTECTION
. BUILT-IN BYPASS VALVE
. SUCTION PIPE WITH INTEGRATED FILTER
. UL LISTED MOTOR AVAILABLE
. INTEGRATED FILTER
. BENDING PROTECTION

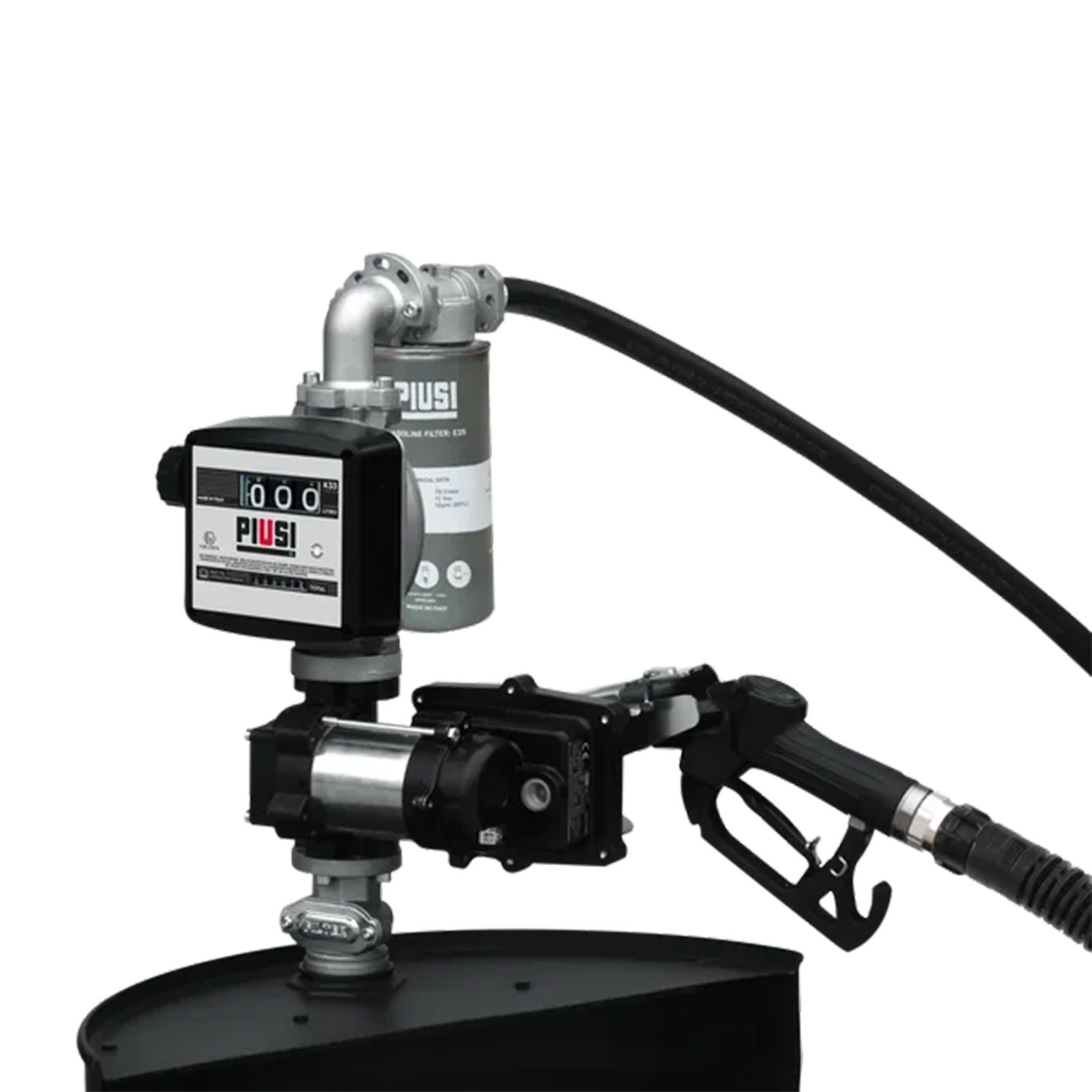

PIUSI EX50 IS A COMPLETE PUMP TRANSFER KIT EXPRESSLY
ENGINEERED FOR ATEX/IECEX AREAS, AND NON-COMMERCIAL USE. IT IS THEREFORE
SUITABLE FOR THE TRANSFER OF GASOLINE, KEROSENE AND DIESEL. IT IS PERFECT IF
YOU'RE LOOKING FOR A SOLUTION FOR TRANSFERRING FLAMMABLE LIQUIDS FROM A DRUM.
PIUSI EX50 IS ATEX CERTIFIED
THE TRANSFER UNIT COMPLIES WITH THE EUROPEAN ATEX DIRECTIVES
TO ENSURE MAXIMUM SAFETY IN ITS USE WITH FLAMMABLE LIQUIDS.
SIMPLICITY AND VERSATILITY
PIUSI EX50 CONNECTS EASILY TO DRUMS WITH THE 2"
CONNECTOR. THE CAST IRON BODY MAKES THE OVERALL CONSTRUCTION STURDY AND COMPACT
AND THE INSTALLED MOTOR IS ABLE TO DISPENSE UP TO 50 L/MIN WITH REDUCED
ABSORPTION TO GUARANTEE A DURABLE PRODUCT.
THE TRANSFER UNIT IS A COMPLETE SOLUTION THAT INCLUDES: A
TELESCOPIC SUCTION HOSE FOR DIRECT CONNECTION TO THE DRUM AND HOUSING FOR THE
NOZZLE LOCATED NEAR THE PUMP, WHICH IS LOCATED ABOVE THE DRUM FOR A CLEAN AND
EFFICIENT USE OF THE FUEL DISPENSER.
THE ANTI-NOISE FILTER (EMC ELECTROMAGNETIC COMPATIBILITY)
AND THE THERMAL PROTECTION MAKE PIUSI EX50 A SAFE AND RELIABLE FUEL DISPENSER.
THE CONNECTIONS ARE QUICK AND SAFE BECAUSE THE PUMP, FLOW METER AND FILTERS
WHICH CAN BE MOUNTED OR REPLACED ARE FLANGED AND DO NOT REQUIRE SEALANT.
PIUSI DRUM EX50 FEATURES A BUILT-IN BYPASS VALVE, A
NON-RETURN VALVE AND AN OVERPRESSURE RELIEF VALVE.
THE ENTIRE SUCTION UNIT IS INTEGRATED WITH AN ADDITIONAL
FILTER.
| Item Code | ITLPIUF0037501A |
|---|---|
| Barcode | 8050031027813 |
| Brand | PIUSI |
The PIUSI EX Drum EX50+K30 Transfer Kit is a professional ATEX-certified fuel transfer system designed for safely dispensing gasoline, diesel, HVO, XTL, and kerosene from standard fuel drums in hazardous environments. Built in Italy, this complete transfer kit combines a high-performance EX50 pump, mechanical K33 flow meter, ATEX A60 automatic nozzle, delivery hose, telescopic suction pipe, and integrated filtration into one reliable solution for industrial fuel handling.
Engineered for explosive atmospheres, the PIUSI EX50 ensures safe, efficient, and accurate fuel dispensing while meeting strict ATEX and IECEx safety standards. Its rugged cast iron construction, thermal protection, built-in bypass valve, and integrated filtration make it an excellent choice for demanding industrial applications.
The PIUSI EX50 Drum Transfer Kit is specifically designed to transfer flammable fuels safely from drums to vehicles, machinery, storage tanks, generators, boats, and industrial equipment. It minimizes manual handling, reduces fuel contamination, improves dispensing accuracy, and enhances workplace safety in hazardous locations.
Choosing the PIUSI EX50 means investing in a premium fuel transfer solution that prioritizes operator safety, dispensing accuracy, and equipment durability. Unlike ordinary fuel pumps, this ATEX-certified system is specifically engineered for explosive environments where flammable liquids are handled. Its integrated filtration, reliable flow measurement, rugged construction, and easy drum installation reduce maintenance costs while improving operational efficiency.
