BRAND : PIONEER
ITEM NO.: U-Z30Y
ORIGIN : CHINA
CAPACITY : 3.0 T

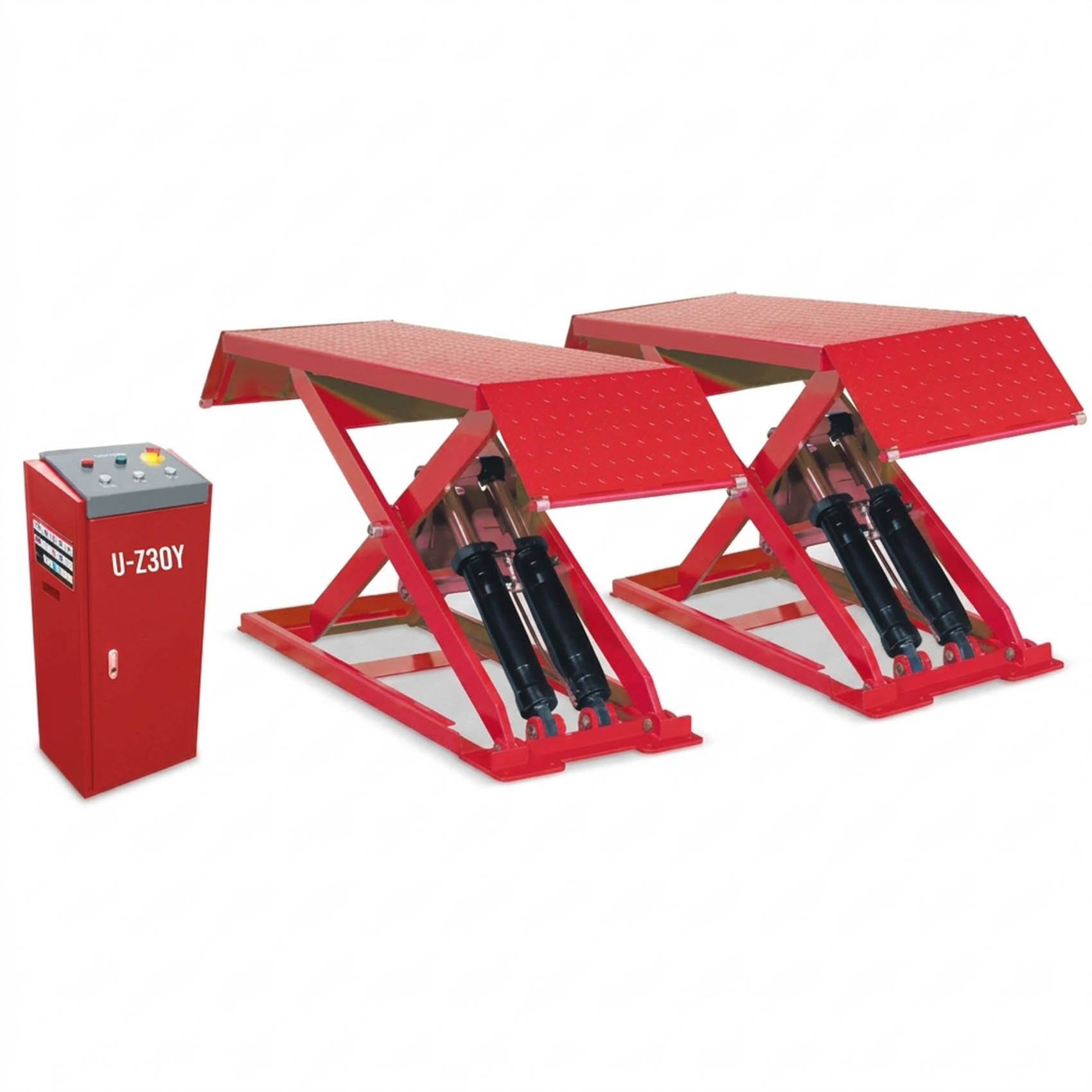

PRODUCT : MID-RISE SCISSOR LIFT
POWER SUPPLY : 220V 1PH 50/60HZ 2.2KW
LIFTING HEIGHT : 960 MM (37.8")
MIN HEIGHT : 105 MM (4.1")
PLATFORM LENGTH : 2020 MM (79.5")
RELEASE : PNEUMATIC LOCK RELEASE
SAFETY FEATURES:
1. PRECISION MACHINED SAFETY LOCK
2. SYNCHRONIZED HYDRAULIC CYLINDERS SYSTEM
3. SAFETY DESCENDING STOP & ALARM
4. SAFETY VALVE FOR ANTI-EXPLOSION OF HYDRAULIC SYSTEM
5. HEIGHT LIMIT SWITCH
THE U-Z30Y IS A PORTABLE 6,600 LB. HYDRAULIC MID-RISE SCISSOR FRAME LIFT, EQUIPPED WITH TWIN HYDRAULIC CYLINDERS, PNEUMATIC LOCK RELEASE SYSTEM DESIGNED TO LIFT CARS & LIGHT TRUCKS TO A COMFORTABLE WORKING HEIGHT OF 38". IT IS THE PERFECT LIFT FOR BODY SHOPS AND WHEEL SERVICE SPECIALISTS THAT NEED EXTRA LIFTING HEIGHT. THIS PORTABLE LIFT EASILY RAISES A CAR OR SUV TO A COMFORTABLE WORKING HEIGHT. THE LIFT COMES STANDARD WITH LOAD-BEARING FLIP-UP RUNWAY EXTENSIONS, RUBBER SPACER BLOCKS, ALONG WITH A POWER UNIT DOLLY, LIFT WHEEL KIT & TOW BAR FOR CONVENIENT PORTABILITY FEATURE.
| Item Code | CHIPPLU-Z30Y |
|---|---|
| Barcode | 6295123350291 |
| Brand | PIONEER |
The PIONEER U-Z30Y Mid-Rise Scissor Lift is a professional hydraulic vehicle lifting solution designed for automotive workshops, tire service centers, body shops, and maintenance garages. With a lifting capacity of 3 tons and a maximum lifting height of 960 mm, this portable scissor lift provides safe and convenient access to vehicle underbodies, wheels, brakes, suspension systems, and other service areas. Powered by a 220V single-phase motor and equipped with synchronized hydraulic cylinders, pneumatic lock release, and multiple safety systems, the U-Z30Y delivers reliable performance for professional vehicle servicing.
Position the lift on a level surface and ensure the vehicle is correctly aligned on the lifting platforms. Place the rubber spacer blocks under the manufacturer-recommended lifting points. Activate the hydraulic power unit to raise the vehicle to the desired working height. Once elevated, the safety lock system automatically engages. Perform maintenance, inspection, or repair work safely. When finished, release the pneumatic lock system and lower the vehicle in a controlled manner using the lift controls.
The PIONEER U-Z30Y is designed to lift passenger vehicles, SUVs, and light trucks to a comfortable working height, allowing technicians to perform maintenance, wheel service, brake repairs, suspension work, inspections, detailing, and body repairs more efficiently and safely.
The PIONEER U-Z30Y combines portability, lifting performance, and advanced safety features in one compact design. Its low-profile structure accommodates a wide range of vehicles, while the synchronized hydraulic system ensures stable lifting. The portable wheel kit and tow bar make it easy to reposition within the workshop, making it a versatile and cost-effective lifting solution.
The lift has a maximum lifting capacity of 3 tons, making it suitable for most passenger vehicles, SUVs, and light trucks.
The U-Z30Y can raise vehicles to a maximum height of 960 mm (37.8 inches).
Yes. The lift features precision-machined safety locks, pneumatic lock release, safety descent control, anti-explosion hydraulic protection, and a height limit switch.
Yes. The lift includes a wheel kit, tow bar, and power unit dolly that allow convenient movement and repositioning.
The lift is suitable for passenger cars, sedans, hatchbacks, SUVs, crossovers, and many light-duty trucks within the rated capacity.
