BRAND : PIONEER
ITEM NO.: MM1510A
ORIGIN : CHINA
TYPE : BELT & DISC SANDER
VOLTAGE : 110V/230V
MOTOR : POWERFUL 350W/3.5A
SIZE OF BELT : 100X914MM
TABLE SIZE : 190X125MM
TABLE ANGLE : 0-45°
DIA. OF SANDING DISC : 150MM
SPEED : 1450/MIN(DISC); 282/MIN(BELT)
ITEM DIMENSIONS : L 51 X W 36 X H 33 CM
PACKAGE SIZE : 50X26.50X30.50CM
PACKAGE GROSS WEIGHT : 13.000KG
TILTABLE TABLE : CAST ALUMINUM WORKBENCH, TILTABLE 0-60°, SUITABLE FOR MULTI-ANGLE POLISHING
MULTI-PURPOSE WORKBENCH : IT CAN BE INSTALLED ON THE SAND BELT, AND CAN ALSO BE INSTALLED ON THE SAND DISC, THE ANGLE CAN BE ADJUSTED
MULTI USES/MATERIAL : WOOD POLISHING, METAL CLEANING. ARC POLISHING, CAST IRON BODY

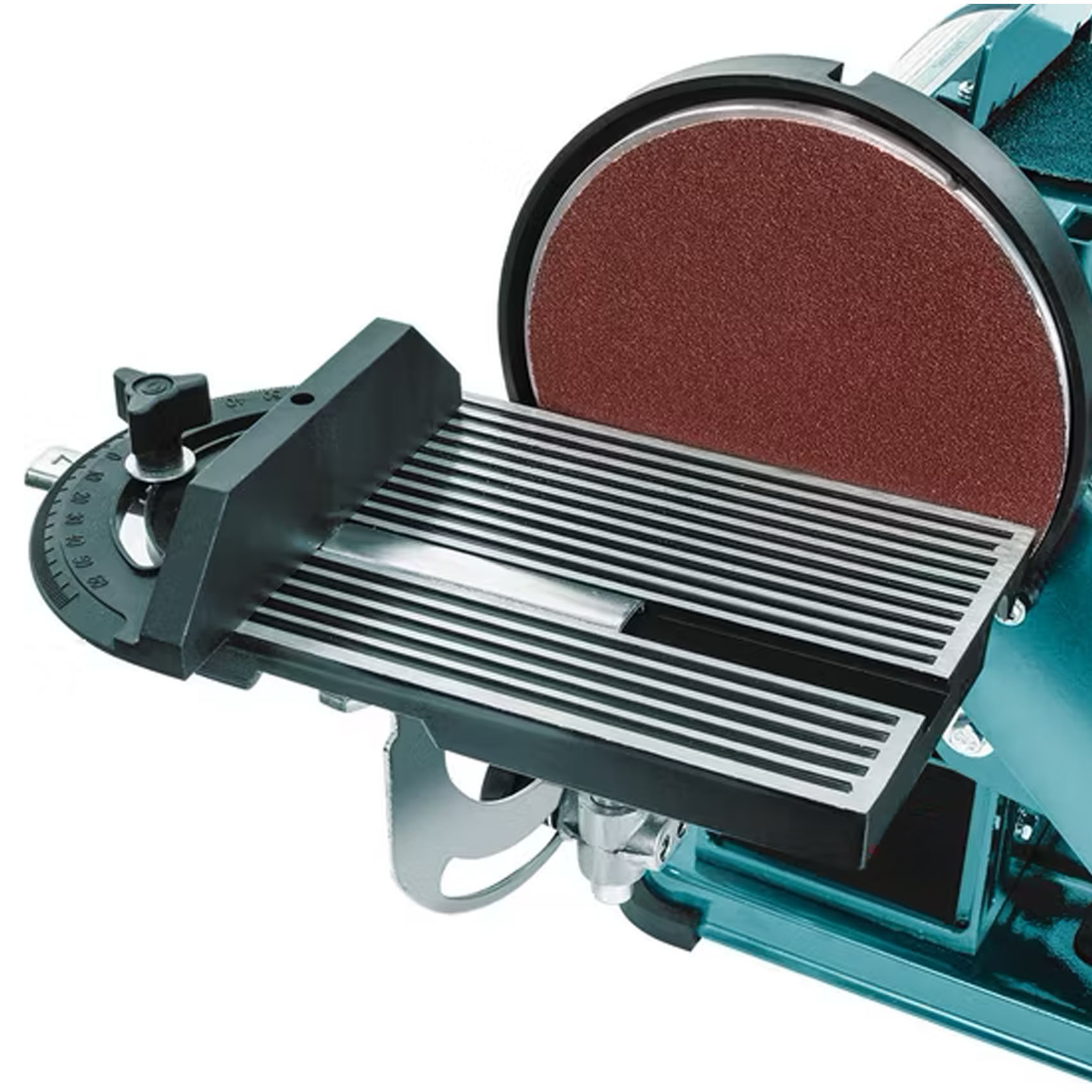

. CAST ALUMINUM TABLE TILTS TO 60° FOR USE WITH BELT OR DISC
. 6" DISC FOR FAST STOCK REMOVAL
. MITER GAUGE FOR SANDING ANGLES ON WORKPIECE
. ADJUSTABLE BELT SANDS INSIDE AND OUTSIDE CURVES
. REINFORCED STEEL MOTOR HOUSING
SUITABLE FOR A VARIETY OF SANDING PROJECTS. WIDE SANDING BELT CAN BE USED IN BOTH HORIZONTAL AND VERTICAL SANDING MODES, WHILST THE DISC SANDER WITH TILTING TABLE AND MITRE GUIDE FENCE PROVIDES ADDITIONAL VERSATILITY. SANDING TABLE ADJUSTMENT OF 0-45°.
| Item Code | CHIPSHMMM1510A |
|---|---|
| Barcode | 6295123350178 |
| Brand | PIONEER |
The PIONEER MM1510A 6" Belt & Disc Sander is a versatile sanding machine designed for wood polishing, metal cleaning, rust removal, stock removal, surface finishing and arc sanding. Combining a sanding belt with a 6-inch sanding disc, this machine provides flexibility for different sanding and polishing applications.
Its powerful 350W motor, adjustable sanding table and tilting workbench make it suitable for workshops, woodworking projects, metalworking and general fabrication tasks. The belt can be used in both horizontal and vertical sanding positions, while the disc table and mitre gauge help achieve accurate sanding angles.
Place the sander securely on a stable work surface and select either the sanding belt or sanding disc according to the job. Make sure the workpiece is firmly held and wear appropriate eye and dust protection before starting the machine.
For belt sanding, position the belt according to the required application and gently bring the workpiece into contact with the moving abrasive surface. The belt can be used for straight edges as well as inside and outside curves.
For disc sanding, adjust the work table to the required angle and use the mitre gauge when an accurate sanding angle is required. Move the workpiece slowly and evenly across the sanding surface without applying excessive pressure.
Always switch off the machine and allow the sanding surface to stop completely before making adjustments, changing abrasive materials or cleaning the machine.
The main purpose of the PIONEER MM1510A is to provide efficient sanding, shaping, smoothing, polishing and surface preparation for different materials. The combination of belt and disc sanding allows users to handle both detailed and general sanding work with one machine.
It is particularly useful for removing unwanted material, smoothing rough edges, preparing metal surfaces, cleaning rust and creating curved or angled finishes on suitable workpieces.
The PIONEER MM1510A is a practical choice for users who need more than a conventional sanding machine. Its combination of belt and disc sanding provides greater flexibility for shaping, smoothing, polishing and surface preparation.
The adjustable workbench and mitre gauge allow greater control when working with angled surfaces, while the belt can be positioned for different sanding requirements. Its compact workshop-friendly design makes it suitable for a wide range of DIY, woodworking and metalworking projects.
The PIONEER MM1510A can be used in woodworking workshops, metalworking shops, fabrication workshops, maintenance facilities, furniture workshops, garages and DIY workspaces.
It is suitable for sanding wooden components, smoothing metal surfaces, removing rust, preparing surfaces for finishing, polishing curved sections and removing excess material from suitable workpieces.
A belt and disc sander is a versatile sanding machine that combines a continuous sanding belt and a rotating sanding disc. It allows users to perform different sanding, shaping, smoothing and finishing tasks with one machine.
The PIONEER MM1510A is used for sanding, polishing, shaping, rust removal, metal cleaning, wood finishing, edge smoothing and general surface preparation.
The machine uses a 100 x 914 mm sanding belt.
The PIONEER MM1510A uses a 150 mm, or 6-inch, sanding disc.
Yes. The sanding belt can be used in both horizontal and vertical sanding modes, providing greater flexibility for different workpieces and applications.
Yes. The sanding workbench can be tilted to support multi-angle sanding applications. The supplied product information specifies adjustable table positioning, with the workbench capable of tilting for angled sanding.
Yes. The PIONEER MM1510A includes a mitre gauge to help guide workpieces when sanding at controlled angles.
Yes. With the appropriate abrasive material, it can be used for applications such as metal cleaning, rust removal and surface preparation.
Yes. It is suitable for woodworking applications including smoothing edges, shaping components, polishing wood surfaces and sanding curved sections.
The machine is equipped with a 350W motor designed to provide dependable power for general sanding and finishing applications.
Yes. Its belt and disc configuration, adjustable workbench and compact design make it suitable for woodworking, metalworking, maintenance and general-purpose workshops.
