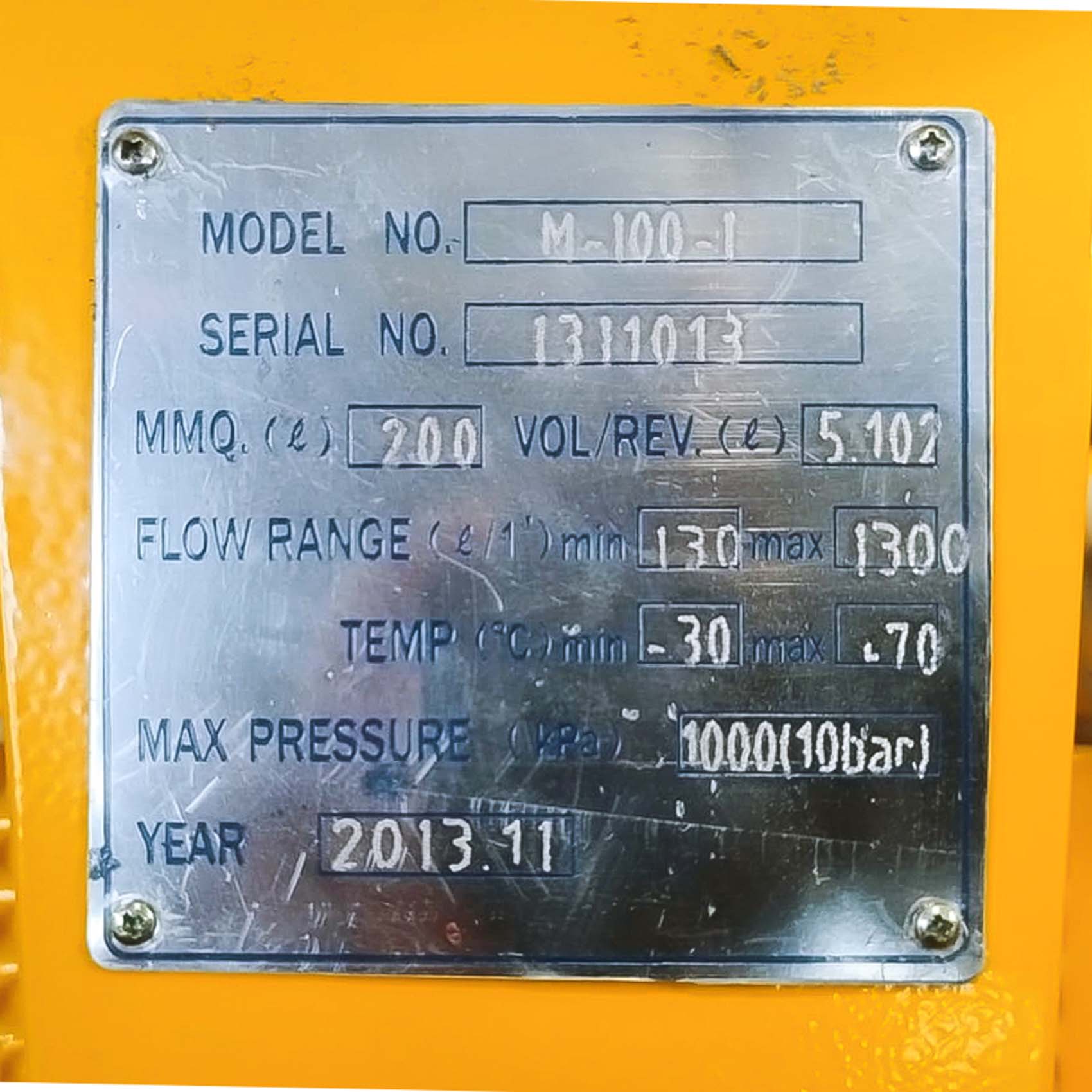

PIONEER SERIES M METER DISPLACEMENT 4" HIGH FLOW METER 10 BAR M-100-1 | 5.102L VOLUME PER REVOLUTION | GEAR METER - MECHANICAL | ALUMINIUM BODY | ACCURATE FUEL MEASUREMENT

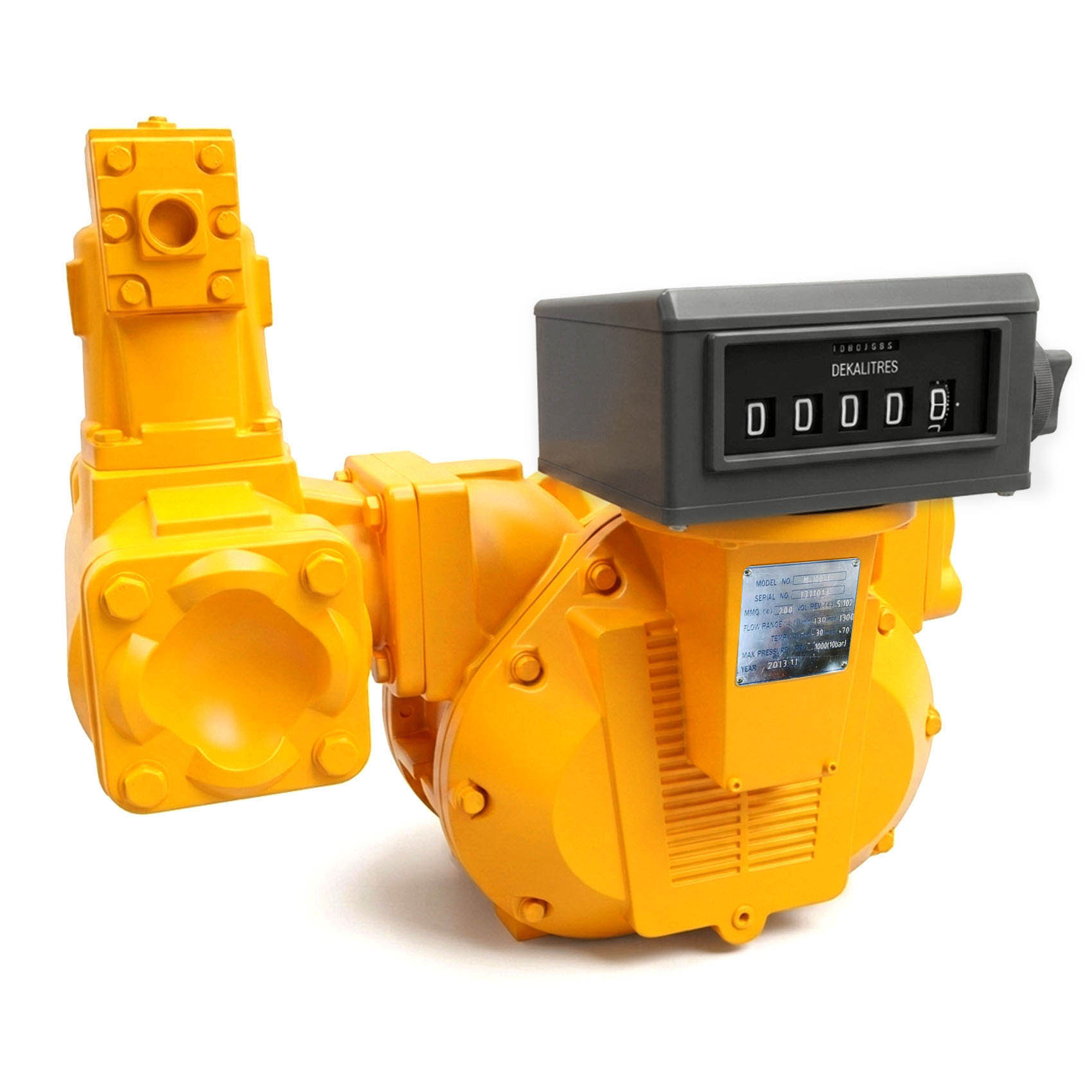

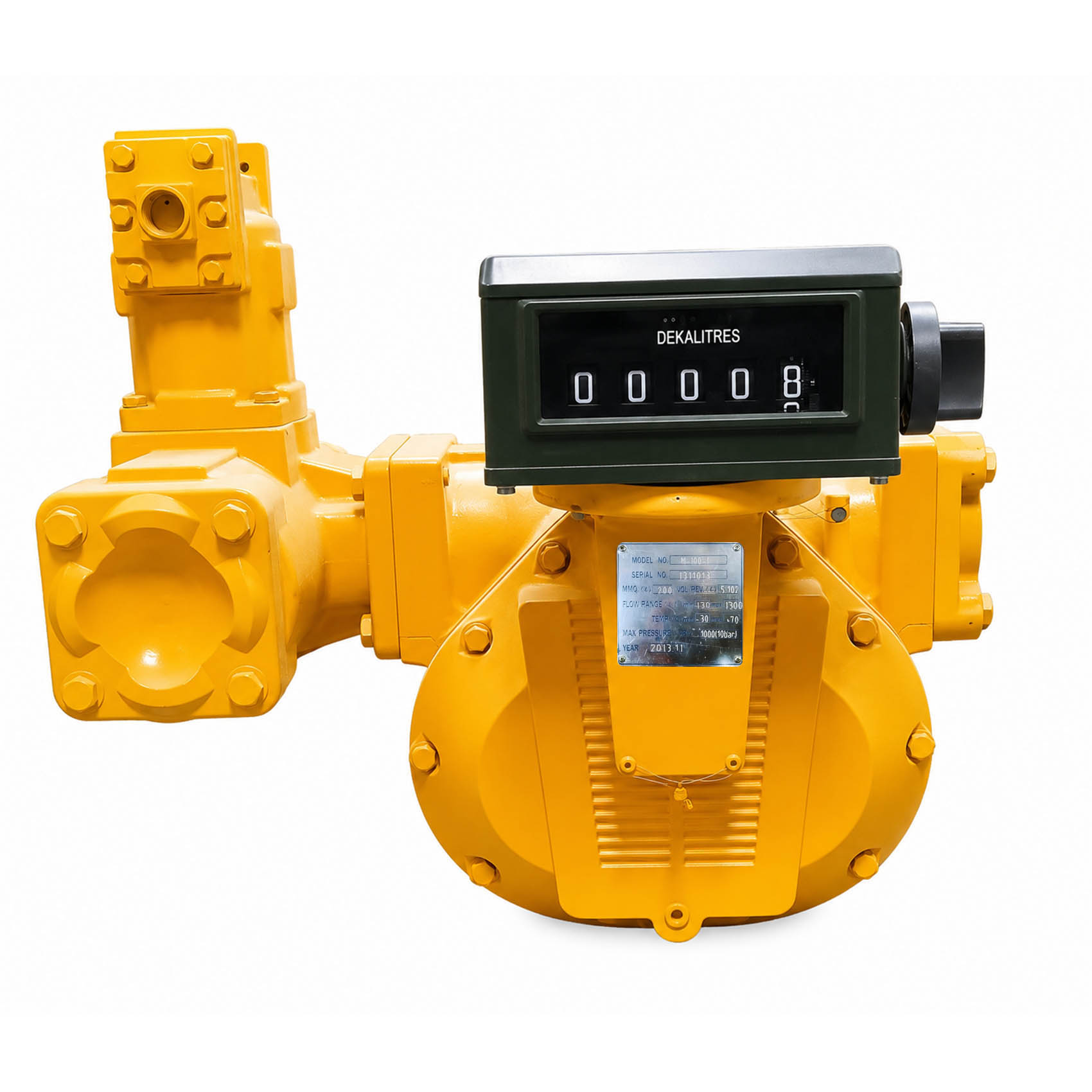

PIONEER Series M Meter Displacement 4" High Flow Meter M-100-1 – Precision Mechanical Flow Meter for Fuel & Industrial Liquids

The PIONEER Series M Meter Displacement M-100-1 is a high-capacity mechanical positive displacement flow meter designed to deliver highly accurate liquid measurement in demanding industrial applications. Featuring a durable aluminum body, gear-driven measuring mechanism, and a 4-inch connection, this meter provides dependable performance for high-flow fuel transfer systems, bulk liquid handling, and industrial dispensing operations.

Designed for accuracy and long service life, the M-100-1 measures flow rates from 130 to 1300 L/min with an impressive accuracy of ±0.2% and repeatability of ≤0.05%. Its precision gear measuring chamber minimizes pressure loss while maintaining reliable readings across varying temperatures, viscosities, and operating pressures.

How to Use the PIONEER M-100-1 Flow Meter

1. Install the flow meter correctly in the liquid transfer pipeline according to the flow direction.
2. Ensure the inlet strainer is installed and clean before operation.
3. Prime the pipeline if necessary to remove trapped air.
4. Begin pumping the liquid through the meter.
5. Monitor the mechanical register to record the measured volume.
6. Use the stepless adjustment mechanism to fine-tune calibration when required.
7. Inspect and clean the strainer periodically for optimum performance.
8. Perform regular maintenance according to operating conditions.

What is the Purpose of this Flow Meter?

The PIONEER M-100-1 is designed to accurately measure the volume of fuel and other compatible liquids passing through transfer systems. It helps businesses monitor fuel consumption, verify dispensing quantities, manage inventory, improve billing accuracy, and maintain precise flow control in industrial liquid handling operations.

Key Features

• Positive displacement gear meter for precise volume measurement.
• High flow capacity from 130 to 1300 L/min.
• Outstanding accuracy of ±0.2%.
• Excellent repeatability of ≤0.05%.
• Stepless calibration adjustment for fine accuracy tuning.
• Durable aluminum body with long service life.
• Low pressure loss for efficient liquid transfer.
• Reliable performance across wide viscosity ranges.
• Accurate readings despite changes in pressure and temperature.
• No metal-to-metal contact inside the measuring chamber.
• Suitable for gravity flow and pumped systems.
• Compatible with multiple flange standards including ANSI, NPT, and BSPF.
• Easy maintenance with robust industrial construction.

Why Choose the PIONEER M-100-1?

The PIONEER M-100-1 is engineered for industries that require dependable, high-volume liquid measurement without sacrificing accuracy. Its positive displacement technology ensures precise readings even under changing operating conditions, while the low-maintenance design reduces downtime and operating costs. Whether installed in fuel depots, tank farms, or industrial transfer systems, it provides consistent performance for demanding applications.

Who Should Buy This Product?

• Fuel distribution companies
• Oil and gas facilities
• Industrial processing plants
• Petroleum storage terminals
• Bulk liquid transfer operators
• Marine fuel service providers
• Chemical handling facilities
• Fleet fueling stations
• Industrial maintenance contractors
• Equipment manufacturers requiring accurate flow measurement

Where is it Used?

• Fuel transfer systems
• Bulk fuel storage terminals
• Petroleum depots
• Industrial processing plants
• Marine fueling facilities
• Oil refineries
• Tank loading and unloading stations
• Mining operations
• Construction fuel management systems
• Large-scale liquid dispensing installations
