Brand : PIONEER
Model: GD-515
Origin : China
Product Type: Electric Coolant Exchanger
Application: Automotive Coolant Replacement and Cooling System Service
Voltage: AC 220V
Motor Power: 120W
Working Pressure for Coolant Exchange: 5–8 bar
Working Pressure for Leak Checking: <1.2 bar
Maximum Pumping Capacity: Approximately 5 L/min
Waste Coolant Tank Capacity: Approximately 25L
Leak Check Hose Length: Approximately 2.5m
Recharge/Return Hose Length: Approximately 2.5m
Functions: Drain, Flush, Back-Flush and Fill
Coolant Extraction: Vacuum Extraction
Coolant Filling: Pressure Filling
Leak Check: Yes
System Pressure Verification: Yes
Coolant Compatibility: Multiple Coolant Types
Machine Dimensions: 540 × 480 × 1320 mm

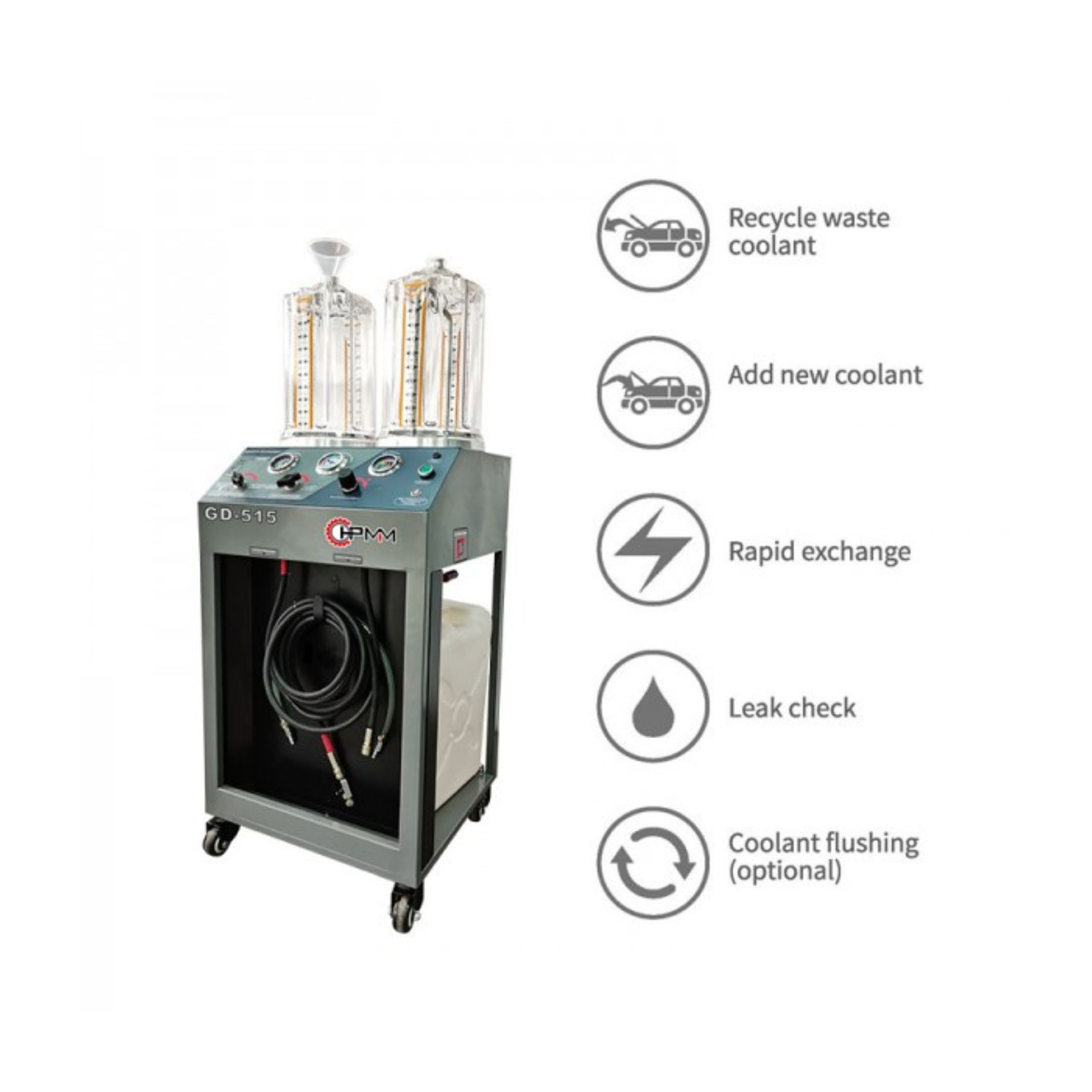

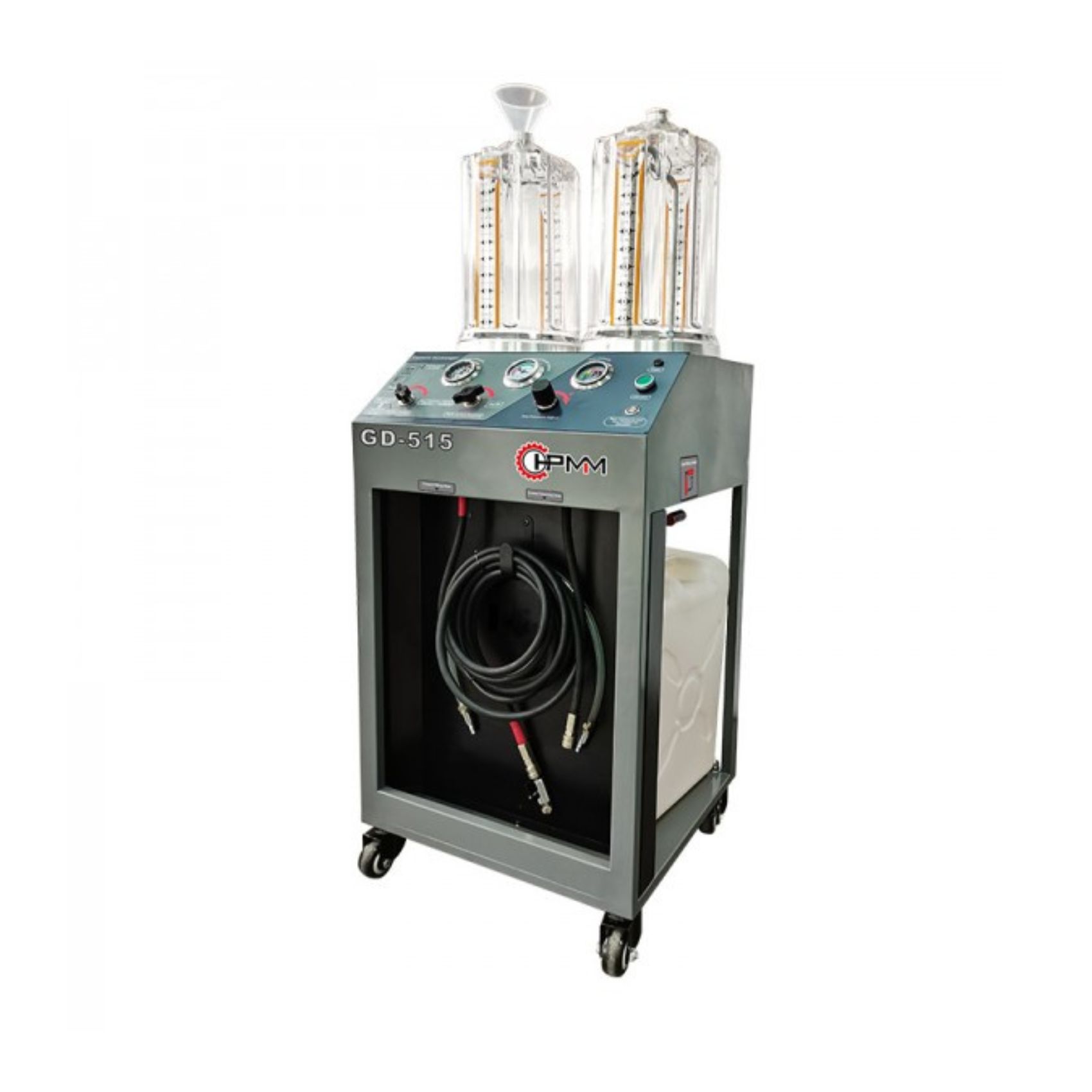

The GD-515 Electric Coolant Exchanger is a professional automotive coolant replacement machine designed for efficient cooling system servicing. It combines coolant draining, flushing, back-flushing and filling functions in one easy-to-use machine.
The GD-515 is designed to handle multiple coolant types and allows convenient switching from one coolant type to another. Clearly marked coolant inlet and outlet hoses make connection and operation simple for automotive technicians.
The machine supports vacuum coolant extraction and pressure filling, helping technicians perform coolant replacement efficiently. It also features a leak-check function to help identify possible cooling system leaks and verify proper system pressure.
With a 120W motor, 5–8 bar working pressure for coolant exchange, approximately 5 L/min maximum pumping capacity and an approximately 25L waste coolant tank, the GD-515 is suitable for professional automotive workshops, service centres, garages and vehicle maintenance facilities.
Key Features:
• Drain, flush, back-flush and fill coolant
• Suitable for multiple coolant types
• Visible progress during fluid change
• Clearly marked coolant inlet and outlet hoses
• Vacuum coolant extraction
• Pressure coolant filling
• Leak-check function
• Cooling system pressure verification
• Approximately 5 L/min maximum pumping capacity
• Approximately 25L waste coolant tank
• Easy-to-use professional design
• Suitable for automotive workshops and service centres
| Item Code | CHIPPLGD-515 |
|---|---|
| Barcode | 6291116315476 |
| Brand | PIONEER |
The GD-515 Electric Coolant Exchanger is a multifunctional coolant replacement machine designed to simplify and speed up automotive cooling system service. This professional coolant exchange system can drain, flush, back-flush and refill coolant, while also providing leak checking and system pressure verification.
The GD-515 is designed to work with multiple coolant types, allowing workshops to switch between different coolant applications quickly and conveniently. Its easy-to-use design combines vacuum coolant extraction and pressure filling to help technicians perform coolant replacement efficiently.
The main purpose of the GD-515 coolant replacement machine is to provide a faster and more controlled method of servicing vehicle cooling systems. Instead of relying entirely on manual draining and filling, the machine assists technicians with coolant extraction, flushing, back-flushing and refilling.
The GD-515 also incorporates a leak-checking function and system pressure verification, helping technicians identify potential cooling-system problems during maintenance.
The GD-515 is designed for straightforward workshop operation using clearly marked coolant inlet and outlet hoses. The general coolant exchange process involves connecting the machine to the vehicle cooling system, removing used coolant, flushing the system and filling it with the required coolant.
Always follow the vehicle manufacturer's coolant specifications and service procedures. Allow the engine and coolant system to cool sufficiently before performing service to reduce the risk of burns or injury.
The GD-515 coolant exchange machine combines several cooling-system service functions in one unit. Its ability to drain, flush, back-flush and refill coolant can help workshops reduce manual service steps and improve the efficiency of routine coolant replacement.
The combination of vacuum extraction and pressure filling provides technicians with greater flexibility during coolant service. The leak-check function and pressure verification capability also allow the cooling system to be checked as part of the service process.
With clearly marked hoses, visible fluid-change operation and a dedicated waste coolant tank, the GD-515 is designed with practical workshop use in mind.
The GD-515 is suitable for businesses and professionals involved in vehicle cooling-system maintenance, including:
The GD-515 Electric Coolant Exchanger is primarily used in automotive workshops and vehicle service centres for cooling-system maintenance. It can be used when draining old coolant, flushing cooling systems, back-flushing when required and refilling systems with fresh coolant.
The machine is particularly useful for workshops that perform regular coolant replacement and cooling-system maintenance on multiple vehicles.
The GD-515 Electric Coolant Exchange System provides a practical solution for professional automotive coolant servicing. Its multifunctional design combines coolant exchange, flushing, back-flushing, vacuum extraction, pressure filling and leak checking in one workshop machine.
With a maximum pumping capacity of approximately 5 L/min, a waste coolant tank of approximately 25 litres and a 220 V electrical supply, the GD-515 is designed for professional workshop environments requiring an efficient coolant replacement solution.
The GD-515 is a professional electric coolant replacement machine designed to drain, flush, back-flush and refill automotive cooling systems.
The GD-515 is used to make automotive coolant replacement and cooling-system servicing faster and more convenient by combining coolant extraction, flushing, back-flushing, filling and leak checking functions.
Yes. The GD-515 is designed to provide convenient switching between different coolant types, subject to proper workshop procedures and coolant compatibility requirements.
Yes. The machine supports coolant flushing and back-flushing functions for cooling-system service.
Yes. The GD-515 includes a leak-check function designed to help technicians identify possible cooling-system leaks.
Yes. The GD-515 supports vacuum extraction of coolant as part of its coolant replacement operation.
Yes. The machine supports pressure filling of coolant to assist with the coolant replacement process.
The working pressure for coolant exchange is approximately 5–8 bar, while the specified working pressure for leak checking is below 1.2 bar.
The maximum pumping capacity is approximately 5 litres per minute.
The GD-515 has an approximately 25 litre waste coolant tank for collecting used coolant.
The GD-515 uses a 120 W motor.
The GD-515 is designed for AC 220 V electrical operation.
The leak-check hose is approximately 2.5 metres long, while the recharge/return hose is also approximately 2.5 metres long.
Yes. The GD-515 is designed for automotive repair workshops, service centres, dealerships and professional technicians performing regular cooling-system maintenance.
