PIONEER 700MM SMALL DIY MINI DESKTOP LATHE MACHINE BENCH LATHE BVB25L | 750W | 250X140 MM | 400-1600RPM | 0.2-3.5 MM METRIC THREADS | 8-56 TPI | WOOD-WORKING CARVING CUTTING

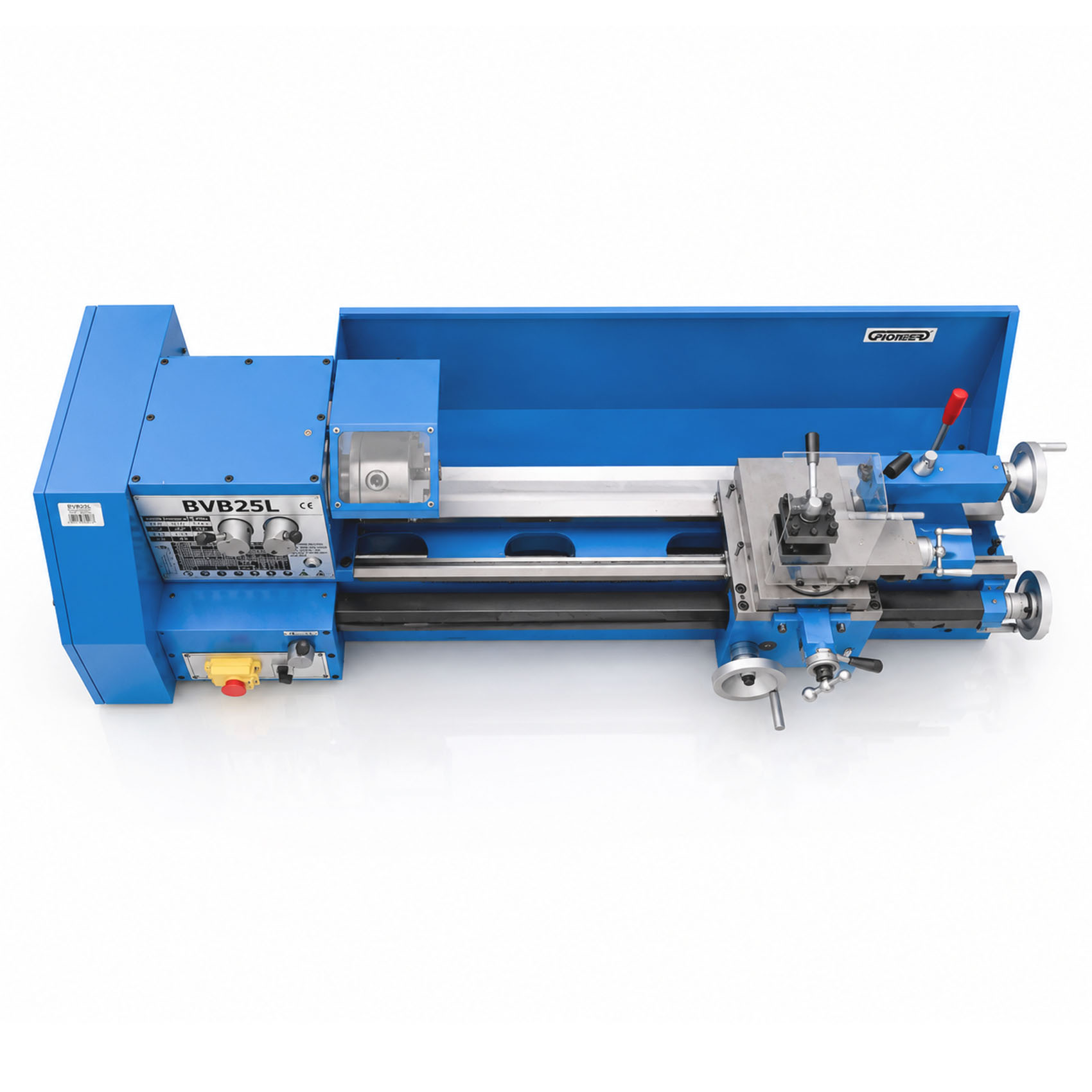

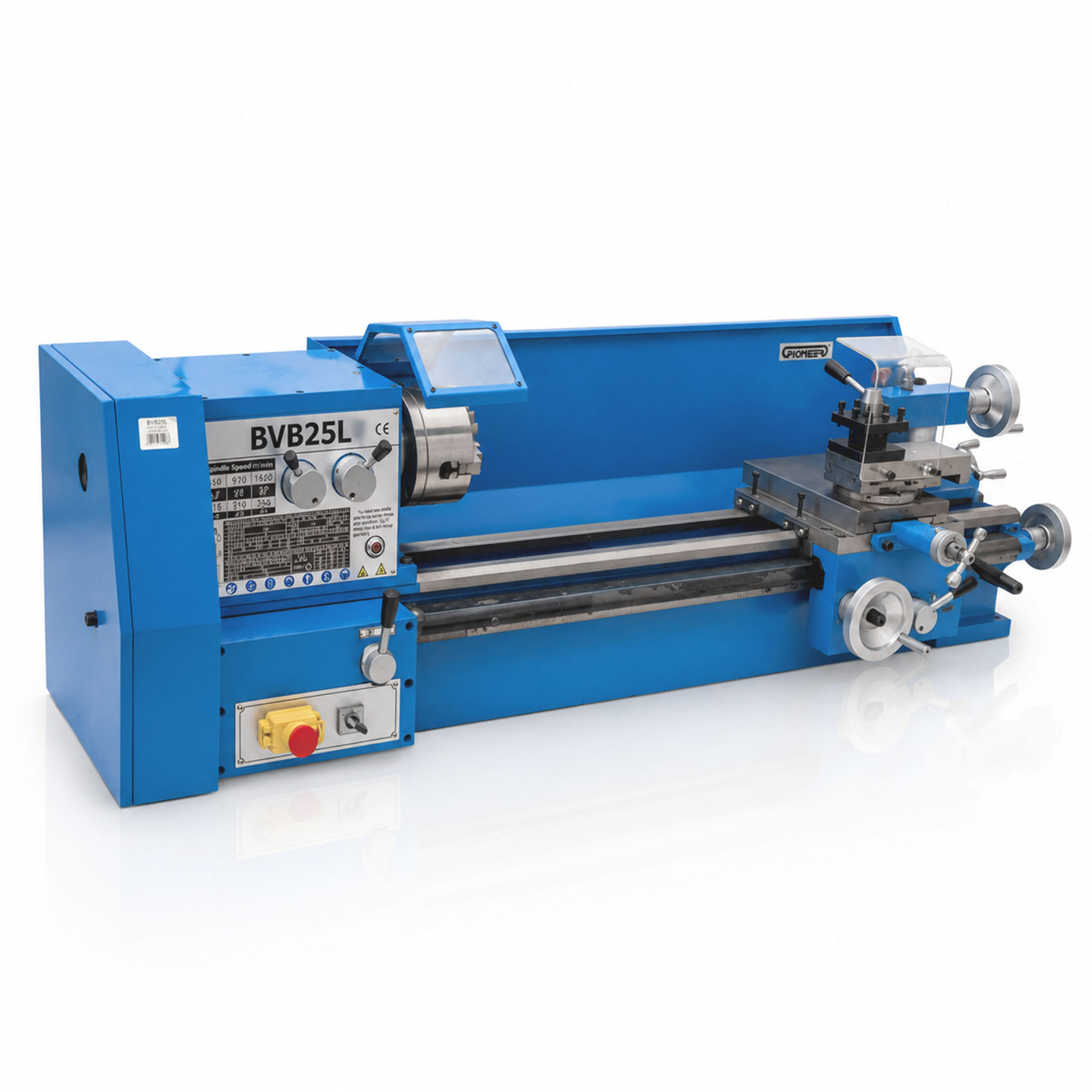

PIONEER 700MM Mini Desktop Lathe Machine BVB25L

The PIONEER BVB25L 302-026 is a compact and versatile bench lathe machine designed for turning, threading, shaping, carving, and other workshop machining applications. With a 750W motor, 700mm distance between centers, 250mm swing over bed, and variable spindle speed from 400 to 1600 RPM, this machine is suitable for DIY users, workshops, maintenance teams, hobbyists, and light machining applications.

How to Use the PIONEER BVB25L Lathe Machine?

Secure the lathe firmly on a suitable workbench and install the required cutting tool in the 4-way tool post. Secure the workpiece in the chuck, check that it is properly centered, and select a suitable spindle speed according to the material and machining operation. Adjust the tool position and longitudinal feed, then start the machine and gradually move the cutting tool into the workpiece.

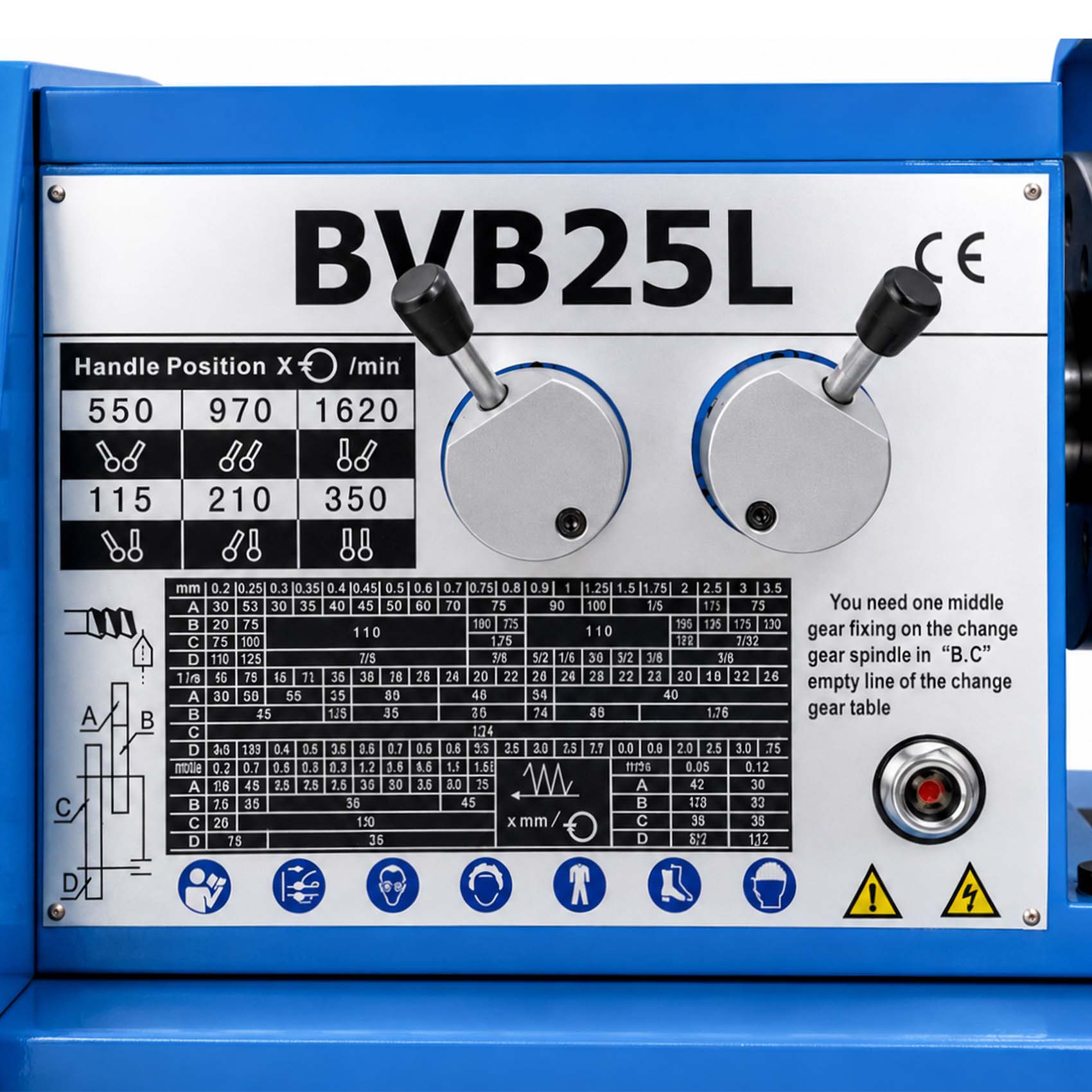

For threading operations, select the appropriate change gear arrangement and configure the required metric or inch thread setting. Always ensure the workpiece, cutting tool, chuck, and machine guards are properly secured before operation.

What Is the Purpose of This Mini Lathe Machine?

The PIONEER BVB25L is designed for turning, threading, facing, drilling, shaping, and precision machining of suitable workpieces. Its compact bench-mounted design makes it useful where workshop space is limited while still providing the functionality required for a wide range of light-duty machining tasks.

What Is the Key Feature?

• 750W motor for reliable workshop performance
• 700mm distance between centers for handling longer workpieces
• 250mm swing over bed
• 140mm swing over cross slide
• 400-1600 RPM spindle speed range
• 0.2-3.5mm metric threading range
• 8-56 TPI inch threading range

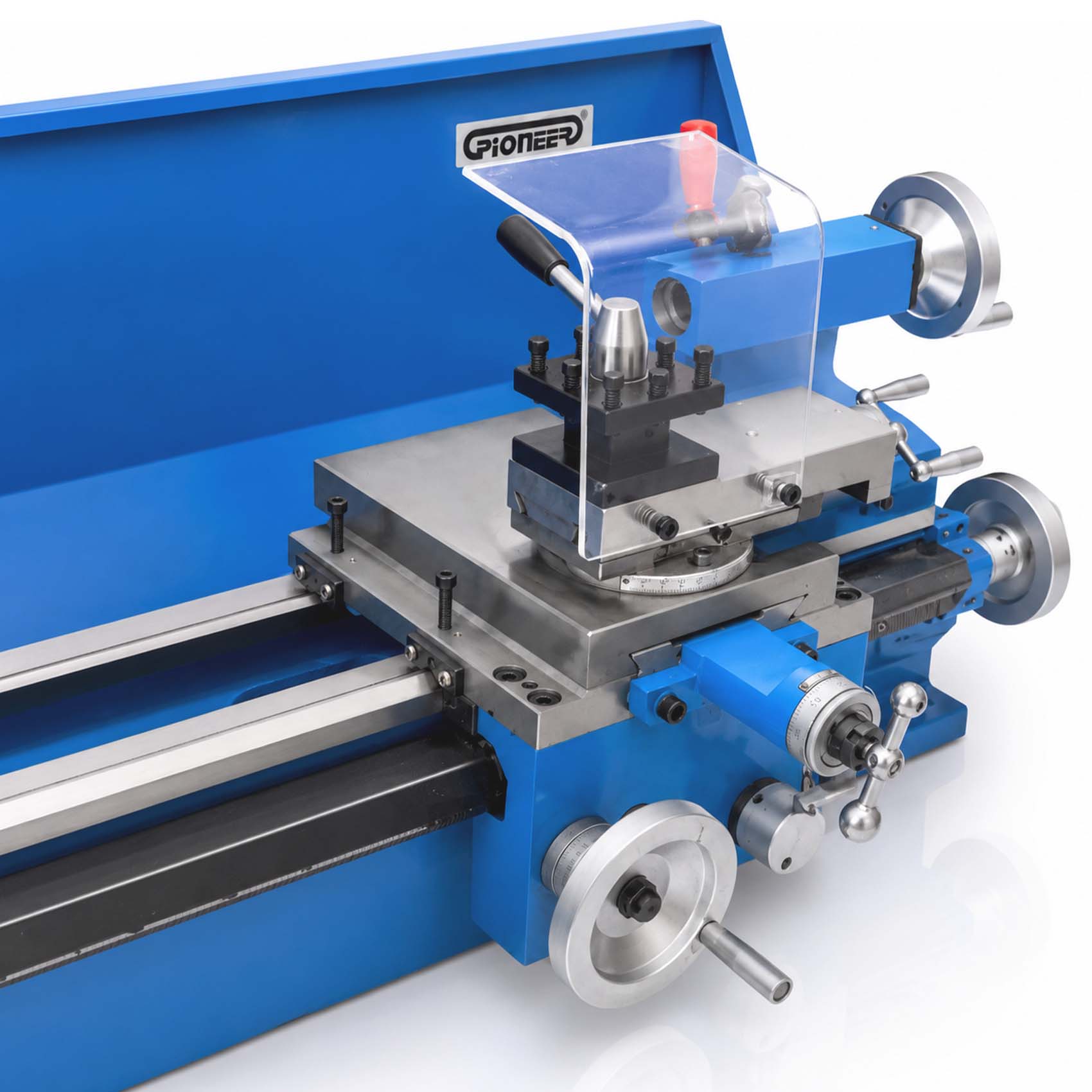

• 4-way tool post for flexible tool positioning
• Precision-ground V-way bed
• Precision tapered bearing-supported spindle
• Adjustable gibs for slideways
• Power longitudinal feed for threading operations
• Tilting mill head with approximately ±90° adjustment
• Tailstock can be offset for taper turning

Why Choose the PIONEER BVB25L?

The PIONEER BVB25L combines lathe and milling functionality in a compact workshop machine, making it a practical choice for users who need multiple machining capabilities without investing in separate machines. Its precision-ground V-way bed, tapered spindle bearings, adjustable slideway gibs, and variable spindle speed provide useful control for different workshop operations.

The machine also supports both metric and inch threading, while the tilting mill head and offset tailstock provide additional flexibility for specialized machining tasks.

Who Should Buy This Mini Desktop Lathe?

The PIONEER BVB25L is suitable for DIY users, hobbyists, educational workshops, maintenance technicians, model makers, repair workshops, small fabrication shops, and light-duty machining applications. It is particularly useful for users looking for a compact machine with both turning and milling capabilities.

Where Is the PIONEER BVB25L Used?

• DIY workshops
• Home workshops
• Small machine shops
• Maintenance and repair workshops
• Educational and technical training workshops
• Model-making applications
• Metalworking workshops
• Light-duty machining applications
• Prototype and fabrication work
• Wood-working and carving applications where suitable tooling is used

Frequently Asked Questions

What is the motor power of the PIONEER BVB25L?

The PIONEER BVB25L is equipped with a 750W motor.

What is the distance between centers?

The machine has a 700mm distance between centers.

What is the swing over bed?

The PIONEER BVB25L has a 250mm swing over bed.

What is the spindle speed range?

The spindle speed can be operated from approximately 400 to 1600 RPM.

Can the PIONEER BVB25L cut metric threads?

Yes. The machine supports a metric thread range of approximately 0.2 to 3.5 mm.

Can this lathe cut inch threads?

Yes. The PIONEER BVB25L supports an inch thread range of approximately 8 to 56 TPI.

Does the machine have a tilting mill head?

Yes. The mill head can be tilted approximately ±90 degrees, providing additional flexibility for milling operations.

Can the tailstock be offset?

Yes. The tailstock can be offset for suitable taper-turning operations.

What type of tool holder does the PIONEER BVB25L use?

The machine is equipped with a 4-way tool post for holding and positioning cutting tools.

Is the PIONEER BVB25L suitable for DIY workshops?

Yes. Its compact bench-lathe design and combination machining capabilities make it suitable for DIY users, hobbyists, small workshops, maintenance applications, and technical training environments.
