BRAND : PIONEER
ITEM NO.: WS90-24
ORIGIN : CHINA
MODEL NUMBER : WS 90
VOLTAGE: 24V
ACCURACY : ±0.5%
HOSE LENGTH : 15MTER 1'' HOSE
FLOW RATE : 100L/MIN
SUCTION : 2M
RATE POWER : 600 W
RANGE OF PRICE : 0.01 TO 9999
PRESET MIN VALUE : 0.01 TO 0.99L
TOTALIZER RANGE : 000 TO 99999999999.99
POWER CABLE : 2.2M
INCLUDES :
PRODUCT LIST :
1 X 15.5 METER 1‘’ HOSE REEL
1 X BIG RATE PUMP 24V
1 X PISTON FLOWMETER
1 X FUEL NOZZLE, 11A, 3/4’’
1 X SUCTION HOSE WITH COUPLINGS
1 X RELAY
1X PULSER
1 X KEYBOARD, METAL MATERIAL

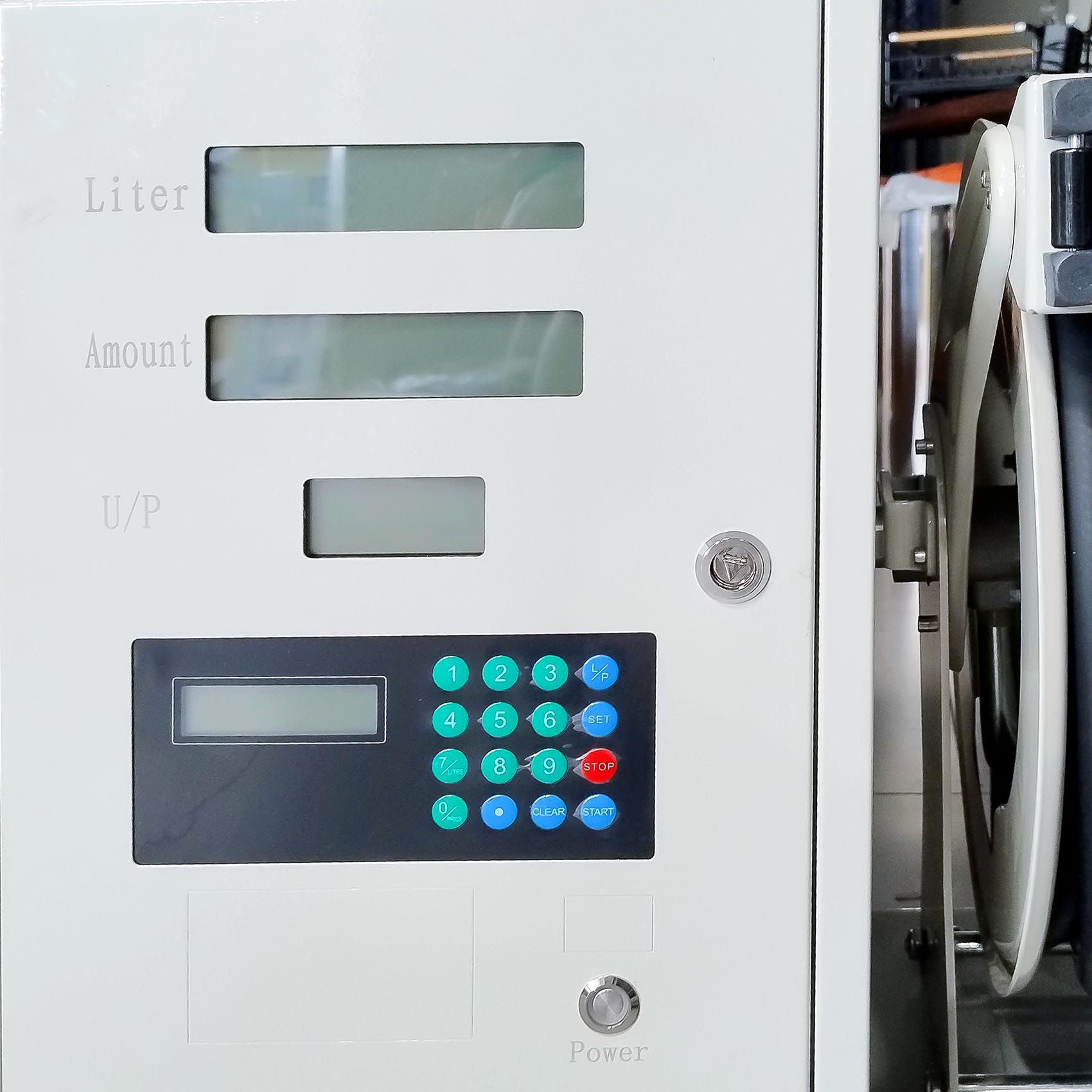

1 X DISPLAY
. ALL PAINTING BODY
. VERSATILE FLUID COMPATIBILITY: SUITABLE FOR DIESEL, KEROSENE, HVO, AND XTL.
. HIGH FLOW RATE: DISPENSES FUEL AT RATES FROM 9 TO 90 LITERS PER MINUTE.
. LONG HOSE REACH: COMES WITH A 15-METER HOSE REEL FOR EXTENDED REACH.
. FLEXIBLE POWER OPTIONS: OPERATES ON 24V POWER SUPPLIES.
. PORTABLE DESIGN: MOBILE AND EASY TO TRANSPORT, IDEAL FOR ON-THE-GO FUELING NEEDS.
WS90 TYPE SMALL FUEL DISPENSER WITH HOSE REEL IS DESIGNED FOR DIESEL AND KEROSENE , CAN BE INSTALLED ON GROUND, ON WALL, BESIDE THE TANK OR ON TRUCK. NOZZLE HOLDER WITH SWITCH, WHICH CONNECT TO THE BOARD.
| Item Code | CHININWS90-24 |
|---|---|
| Barcode | 6295123309602 |
| Brand | PIONEER |

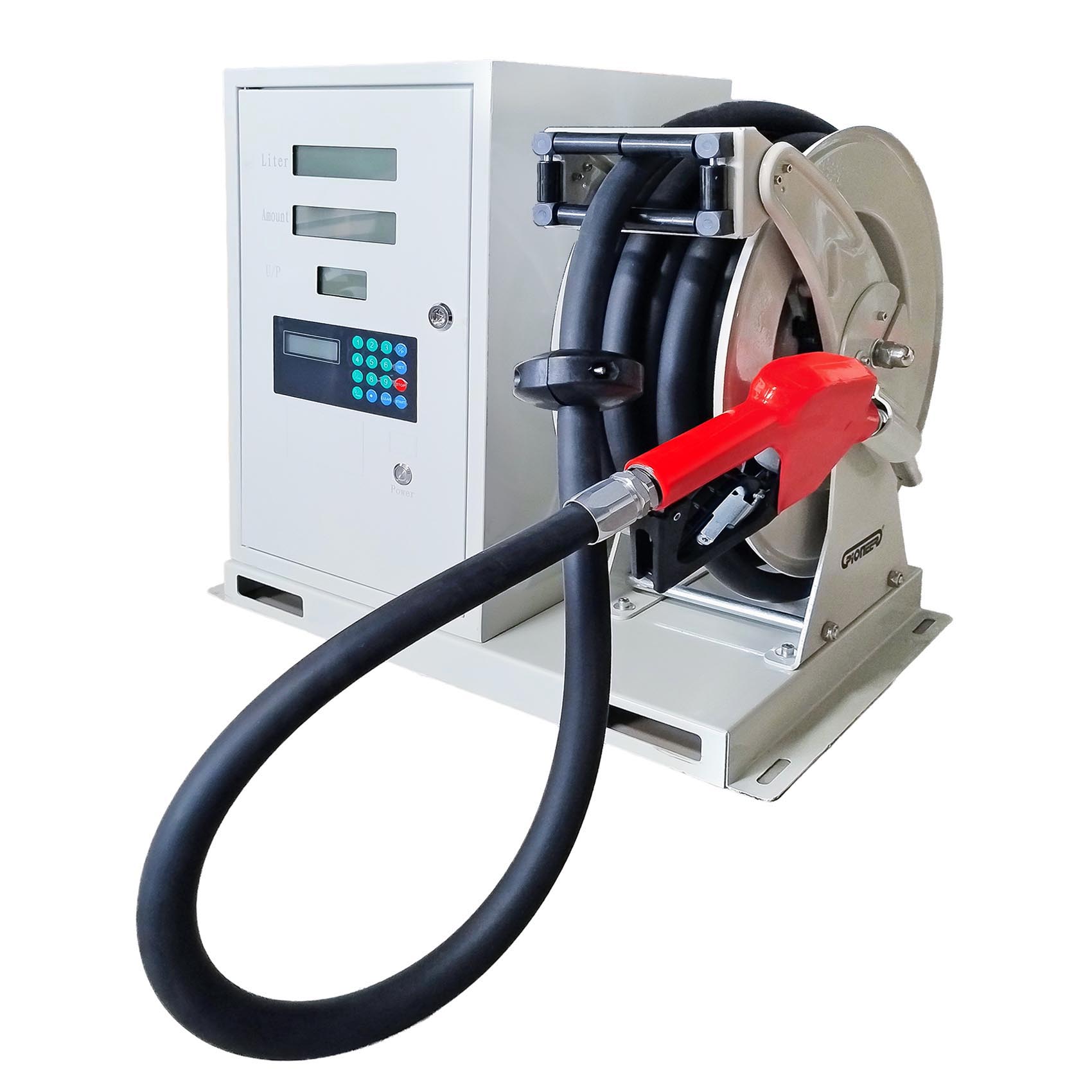

The PIONEER WS90-24 is a heavy-duty 24V DC portable fuel transfer and dispensing system designed for fast, safe, and efficient diesel fuel handling. Equipped with a powerful 600W motor, integrated hose reel, flow meter, fuel nozzle, and 15-meter hose assembly, this mobile fuel dispenser is ideal for refueling equipment, vehicles, generators, agricultural machinery, and fuel storage tanks. Its portable design allows easy installation on trucks, fuel tanks, workshops, construction sites, and remote locations where reliable fuel transfer is essential.
Connect the unit to a 24V DC power source and securely attach the suction hose to the diesel storage tank. Insert the dispensing nozzle into the receiving tank or equipment fuel inlet. Switch on the pump and begin fuel transfer. The integrated flow meter accurately measures the dispensed fuel volume while the nozzle provides controlled dispensing. Once fueling is complete, release the nozzle trigger and switch off the pump. The hose can then be conveniently stored on the integrated hose reel.
The PIONEER WS90-24 is designed to simplify fuel transfer and refueling operations by providing a complete mobile dispensing solution. It enables users to safely transfer diesel, kerosene, HVO, and XTL fuels from storage tanks to vehicles, machinery, generators, and equipment while monitoring fuel usage through its integrated metering system.
Unlike basic transfer pumps, the PIONEER WS90-24 offers a complete fueling station solution in one compact package. The integrated hose reel, fuel meter, dispensing nozzle, display unit, and powerful pump reduce installation complexity while improving fuel management efficiency. Its portable design makes it ideal for users who require dependable fuel dispensing in workshops, farms, construction sites, mining operations, and remote job locations.
The unit is suitable for diesel fuel, kerosene, HVO (Hydrotreated Vegetable Oil), and XTL fuels. It is not designed for gasoline or other highly flammable fuels.
Yes. The dispenser can be installed on walls, fuel tanks, trucks, or ground-mounted locations depending on operational requirements.

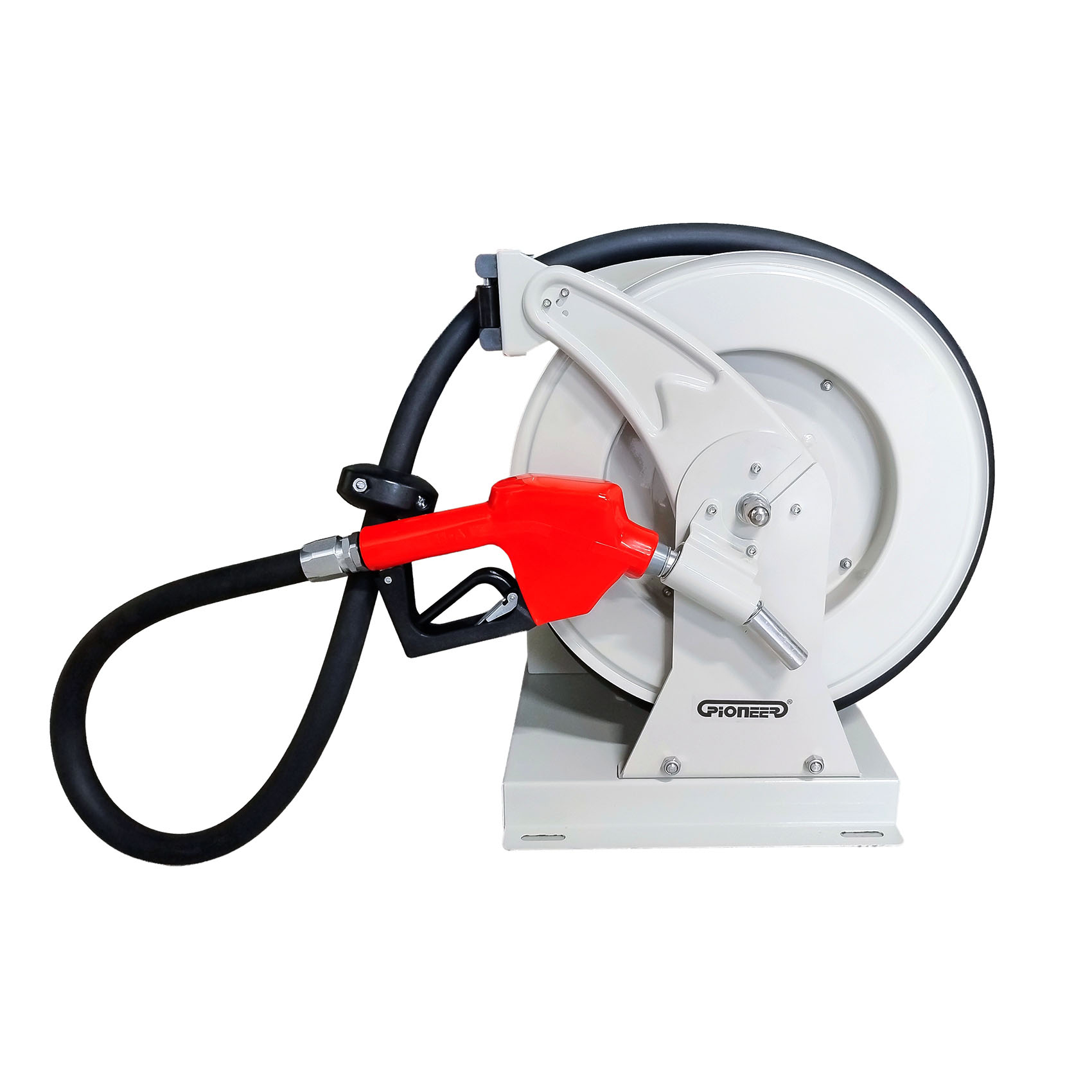

Yes. The package includes a heavy-duty hose reel with a long fuel delivery hose for convenient storage and extended reach.
Yes. Its compact portable design makes it ideal for installation on service vehicles, fuel trailers, and mobile refueling systems.
Yes. The integrated piston flow meter provides accurate measurement of fuel dispensed during operation.
