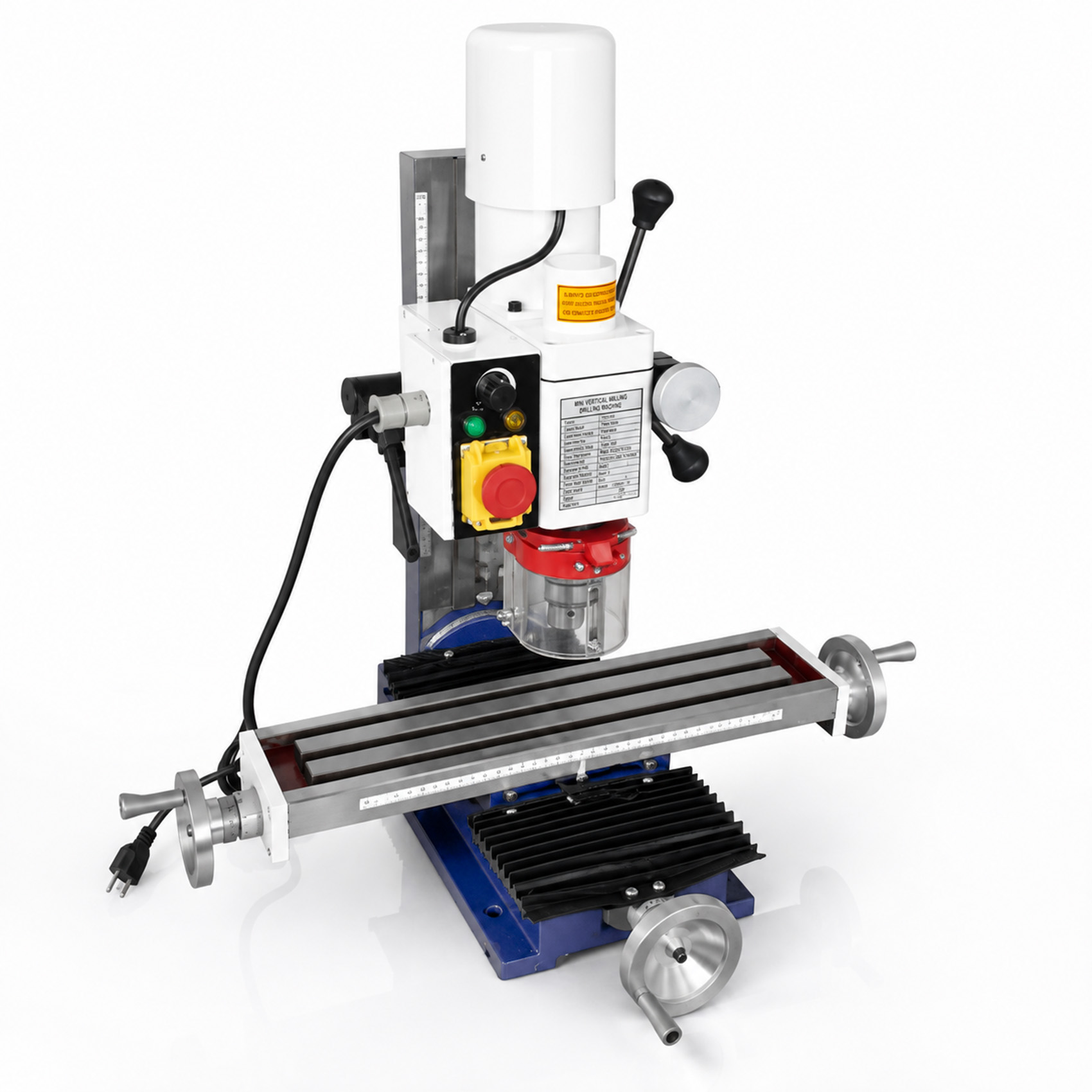

PIONEER 16MM Drill & Milling Machine – XJ9512

The PIONEER XJ9512 16MM Drill & Milling Machine is a versatile metalworking machine designed for drilling, end milling, and face milling operations. With a stepless spindle speed range of 50–2500 RPM and a 550W motor, it is suitable for workshops requiring accurate and flexible machining of metal components.

How to Use the PIONEER XJ9512 Drill & Milling Machine?

Before operation, place the machine securely on a stable work surface and make sure the workpiece is firmly clamped to the working table. Select and install the appropriate drill or milling cutter, then adjust the spindle speed according to the material, cutter type, and machining operation.

For drilling, position the workpiece beneath the spindle, align the drilling point, and gradually lower the spindle using the spindle feed mechanism. For milling, securely clamp the workpiece and move the table gradually along the required X, Y, or Z direction while maintaining a suitable cutting speed and feed rate.

Always wear appropriate eye protection and follow the machine manufacturer's operating and safety instructions. Never hold a workpiece by hand while drilling or milling.

What Is the Purpose of This Drill & Milling Machine?

The PIONEER XJ9512 combines drilling and milling functions in one machine. It is used to create holes, enlarge or modify holes, cut slots, machine surfaces, produce grooves, and perform other general metalworking operations. Its MT3 spindle taper and adjustable spindle speed provide flexibility for different machining applications.

Key Features

• 2-in-1 functionality: Combines drilling and milling operations in a single machine.
• 550W motor: Provides practical power for general workshop machining applications.
• 16mm drilling capacity: Suitable for drilling holes up to 16mm, depending on material and tooling.
• 13mm end milling capacity: Supports end milling applications up to 13mm.
• 30mm face milling capacity: Designed for face milling operations up to 30mm.
• Stepless spindle speed: Adjustable from 50 to 2500 RPM for greater control over machining operations.
• MT3 spindle taper: Provides compatibility with suitable MT3 tooling and accessories.
• ±45° spindle rotation: Allows angled machining operations where required.
• 180mm spindle travel: Provides useful vertical movement for drilling and milling work.

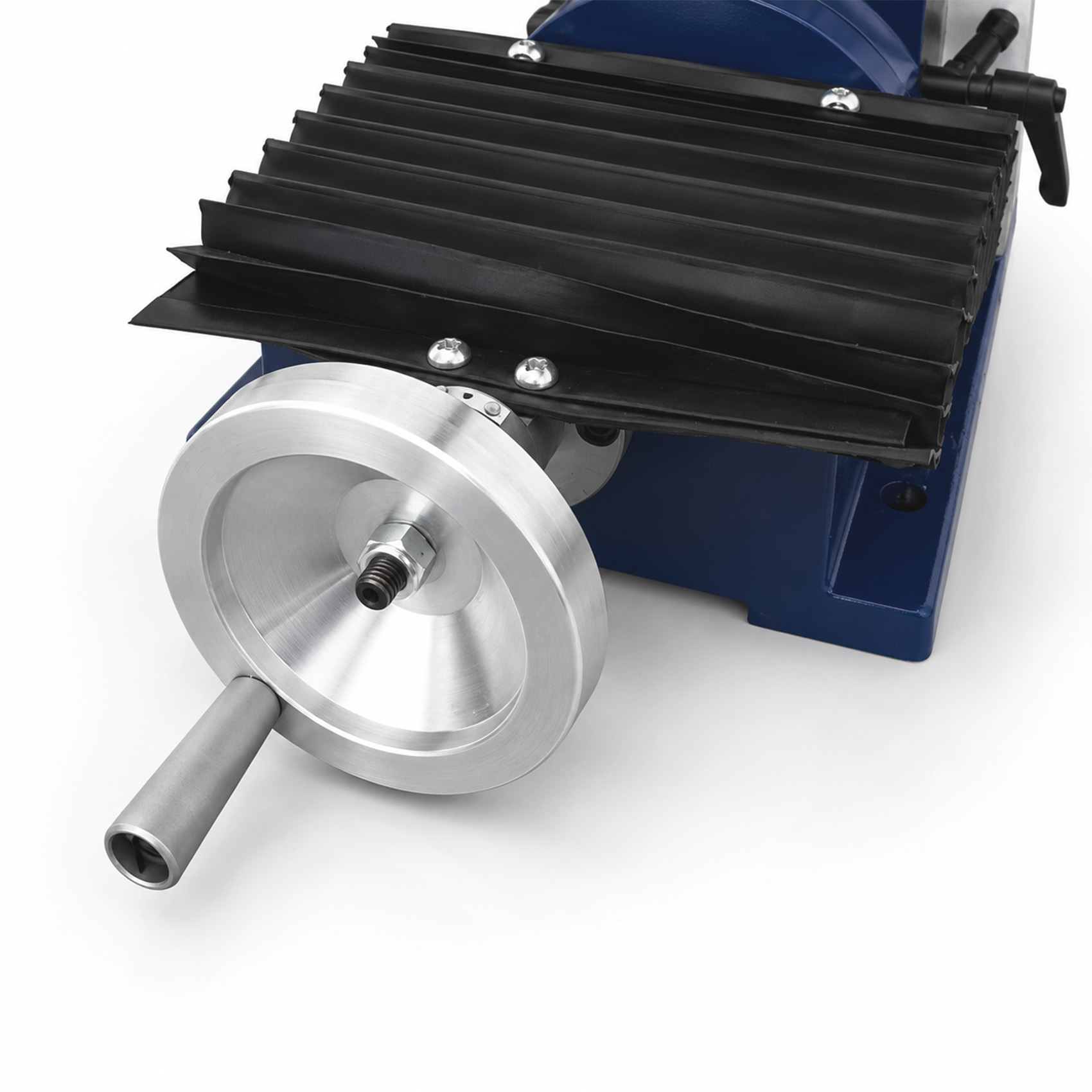

• 250 × 105 × 180mm X/Y/Z stroke: Provides flexibility for positioning the workpiece.

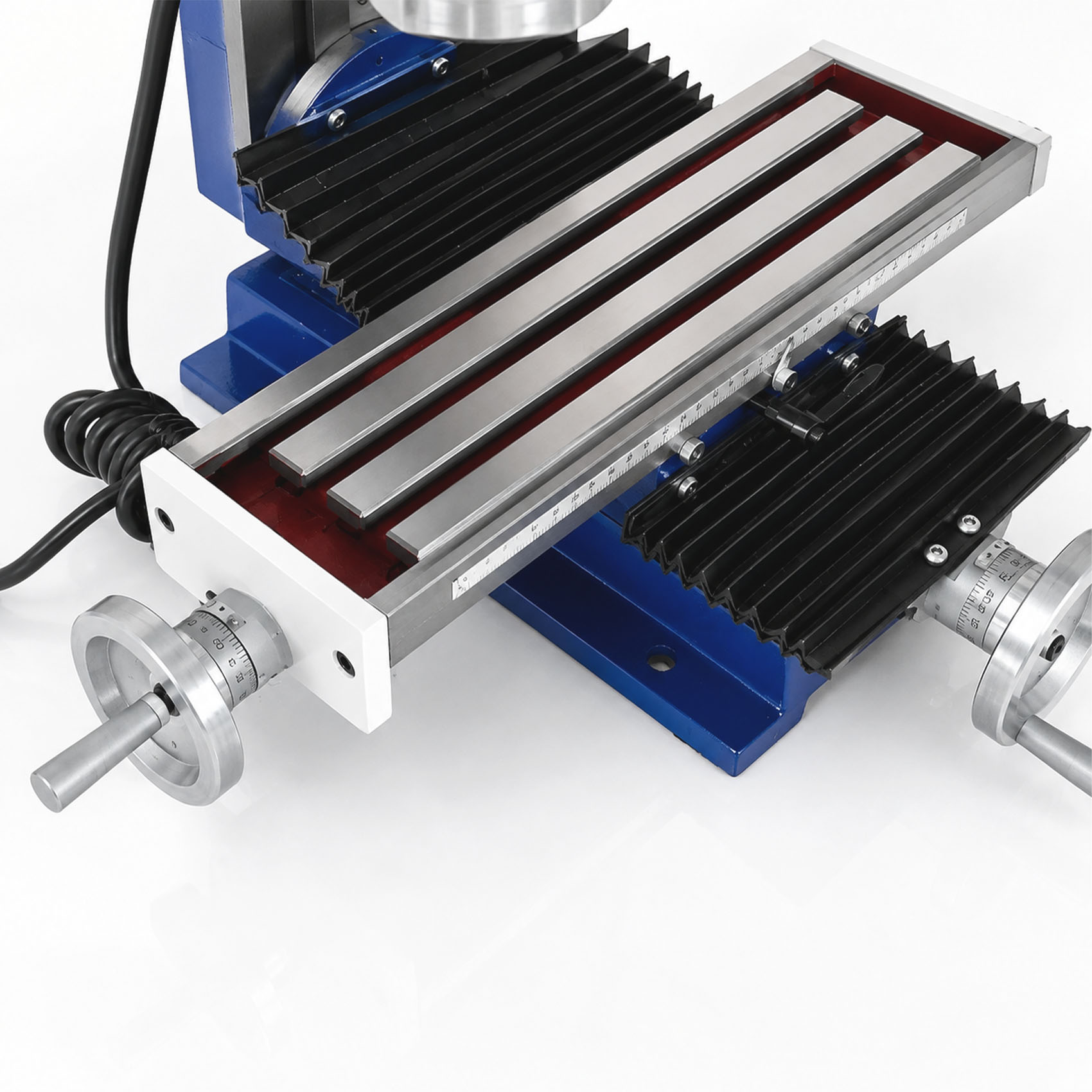

• 410 × 112mm working table: Provides a practical surface for securing and positioning workpieces.

Why Choose the PIONEER XJ9512?

The PIONEER XJ9512 is a practical choice when a workshop needs both drilling and milling capabilities without using two separate machines. Its variable spindle speed, MT3 spindle taper, adjustable spindle travel, and compact working-table design make it suitable for a wide range of general metalworking tasks.

Its combination of 16mm drilling, 13mm end milling, and 30mm face milling capabilities makes it useful for repair work, fabrication, maintenance, and small-scale machining applications.

Who Should Buy This Machine?

The PIONEER XJ9512 is suitable for professionals, technicians, fabricators, maintenance teams, machinists, and workshop owners who require a compact drill and milling machine for general-purpose metalworking.

• Metalworking workshops
• Machine and repair workshops
• Tool and die making applications
• Maintenance departments
• Fabrication workshops
• Engineering workshops
• Educational and technical training workshops
• DIY and advanced hobby machining applications

Where Is the PIONEER XJ9512 Used?

This drill and milling machine can be used in metal workshops, repair shops, fabrication facilities, engineering workshops, maintenance departments, and tool and die making environments. It is particularly useful for machining small and medium-sized metal components where drilling and milling operations are required.
