BRAND : PIONEER
ITEM NO.: WS90-12
ORIGIN : CHINA
MODEL NUMBER : WS 90
VOLTAGE: 12V
ACCURACY : ±0.5%
HOSE LENGTH : 15MTER 1'' HOSE
FLOW RATE : 100L/MIN
SUCTION : 2M
RATE POWER : 600 W
RANGE OF PRICE : 0.01 TO 9999
PRESET MIN VALUE : 0.01 TO 0.99L
TOTALIZER RANGE : 000 TO 99999999999.99
POWER CABLE : 2.2M
INCLUDES :
PRODUCT LIST :
1 X 15 METER 1‘’ HOSE REEL
1 X BIG RATE PUMP 12V
1 X PISTON FLOWMETER
1 X FUEL NOZZLE, 11A, 3/4’’
1 X SUCTION HOSE WITH COUPLINGS
1 X RELAY
1X PULSER
1 X KEYBOARD, METAL MATERIAL
1 X DISPLAY
PACKAGE: STANDARD EXPORT WOODEN BOX
. PAINTED BODY
. VERSATILE FLUID COMPATIBILITY: SUITABLE FOR DIESEL, KEROSENE, HVO, AND XTL.
. HIGH FLOW RATE: DISPENSES FUEL AT RATES FROM 9 TO 90 LITERS PER MINUTE.

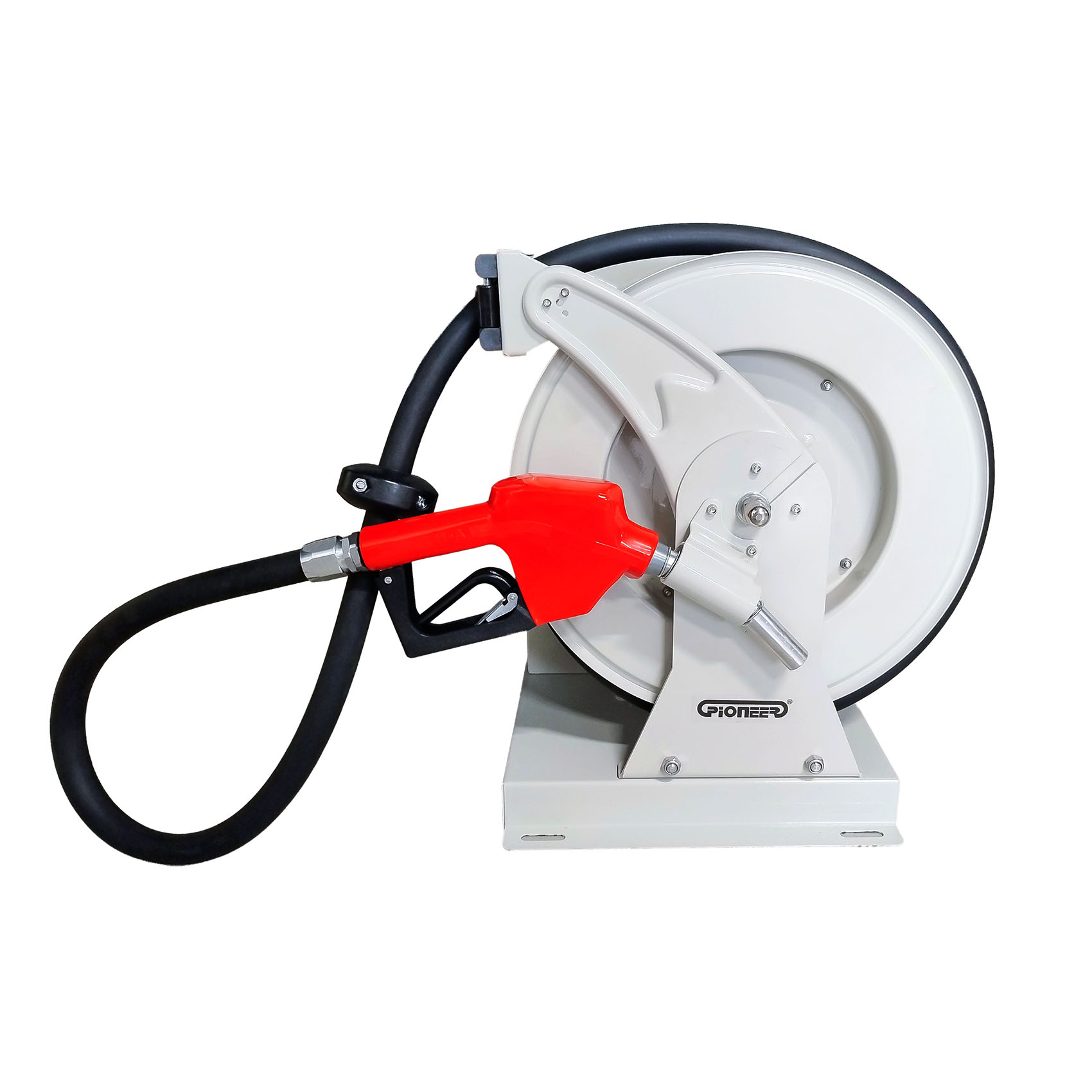

. LONG HOSE REACH: COMES WITH A 15-METER HOSE REEL FOR EXTENDED REACH.
. FLEXIBLE POWER OPTIONS: OPERATES ON 12V POWER SUPPLIES.
. PORTABLE DESIGN: MOBILE AND EASY TO TRANSPORT, IDEAL FOR ON-THE-GO FUELING NEEDS.

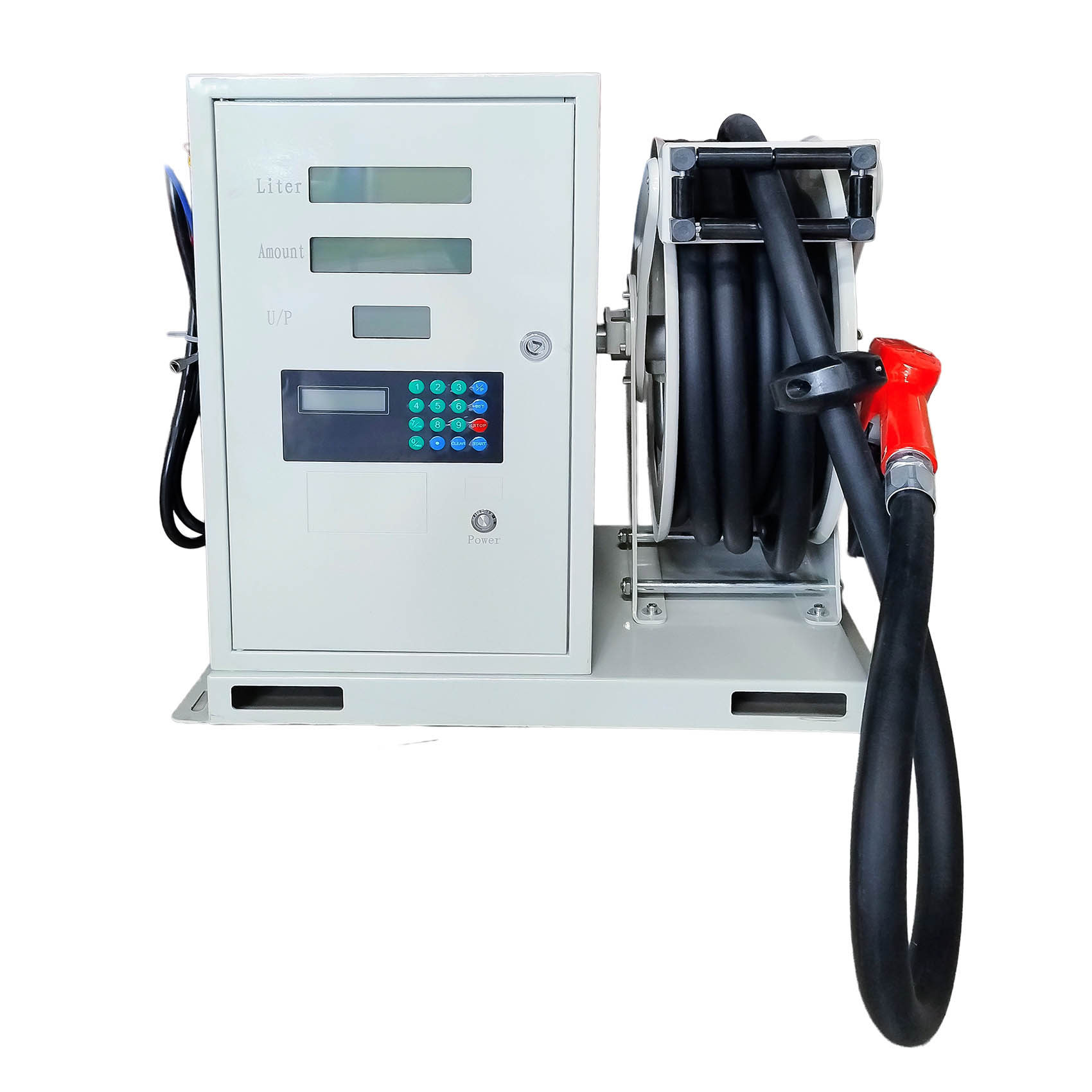

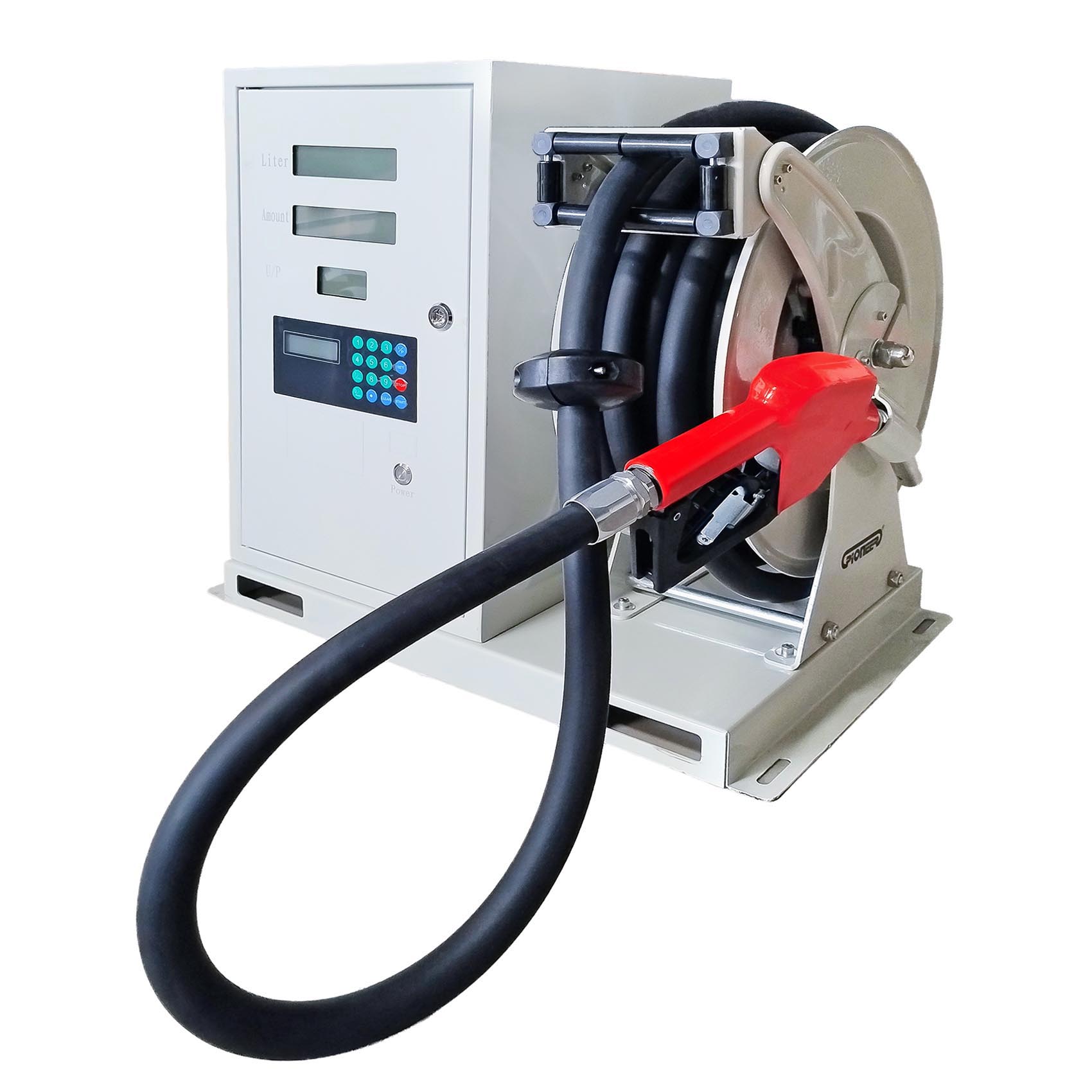

WS90 TYPE SMALL FUEL DISPENSER WITH HOSE REEL IS DESIGNED FOR DIESEL AND KEROSENE , CAN BE INSTALLED ON GROUND, ON WALL, BESIDE THE TANK OR ON TRUCK. NOZZLE HOLDER WITH SWITCH, WHICH CONNECT TO THE BOARD.
| Item Code | CHININWS90-12 |
|---|---|
| Barcode | 6295123309596 |
| Brand | PIONEER |
Install the fuel dispenser securely on a wall, fuel tank, truck, or suitable mounting surface. Connect the suction hose to the fuel source and ensure all fittings are tightened properly. Connect the unit to a 12V power supply and switch on the system. Pull out the required hose length from the reel, set the desired dispensing quantity if needed, and operate the fuel nozzle to transfer fuel efficiently. After use, retract the hose neatly onto the reel and switch off the unit.
The PIONEER WS90-12 Fuel Dispenser is designed for accurate and efficient transfer of diesel, kerosene, HVO, and XTL fuels. It provides a portable fueling solution for vehicles, machinery, generators, and equipment in locations where mobility and convenience are essential.
The PIONEER WS90-12 combines portability, precision, and high-performance fuel transfer in one compact system. Its long hose reach, accurate metering, and versatile fuel compatibility make it an ideal choice for businesses and operators who require reliable fueling solutions in demanding environments.
The dispenser is suitable for diesel, kerosene, HVO, and XTL fuel applications.
The integrated flow meter provides measurement accuracy of approximately ±0.5%, ensuring reliable fuel tracking.
Yes. The WS90-12 is designed for installation on trucks, fuel tanks, walls, or ground-mounted applications.
The long hose provides extended reach, allowing operators to refuel equipment and vehicles without moving the dispenser frequently.
Yes. Its 12V operation and portable design make it ideal for mobile fueling, field service vehicles, and remote job sites.
