BRAND : MEGA
ITEM NO.: GT1.5H
ORIGIN : SPAIN
COLOR : RED
LIFTING CAPACITY : 1.5 TON

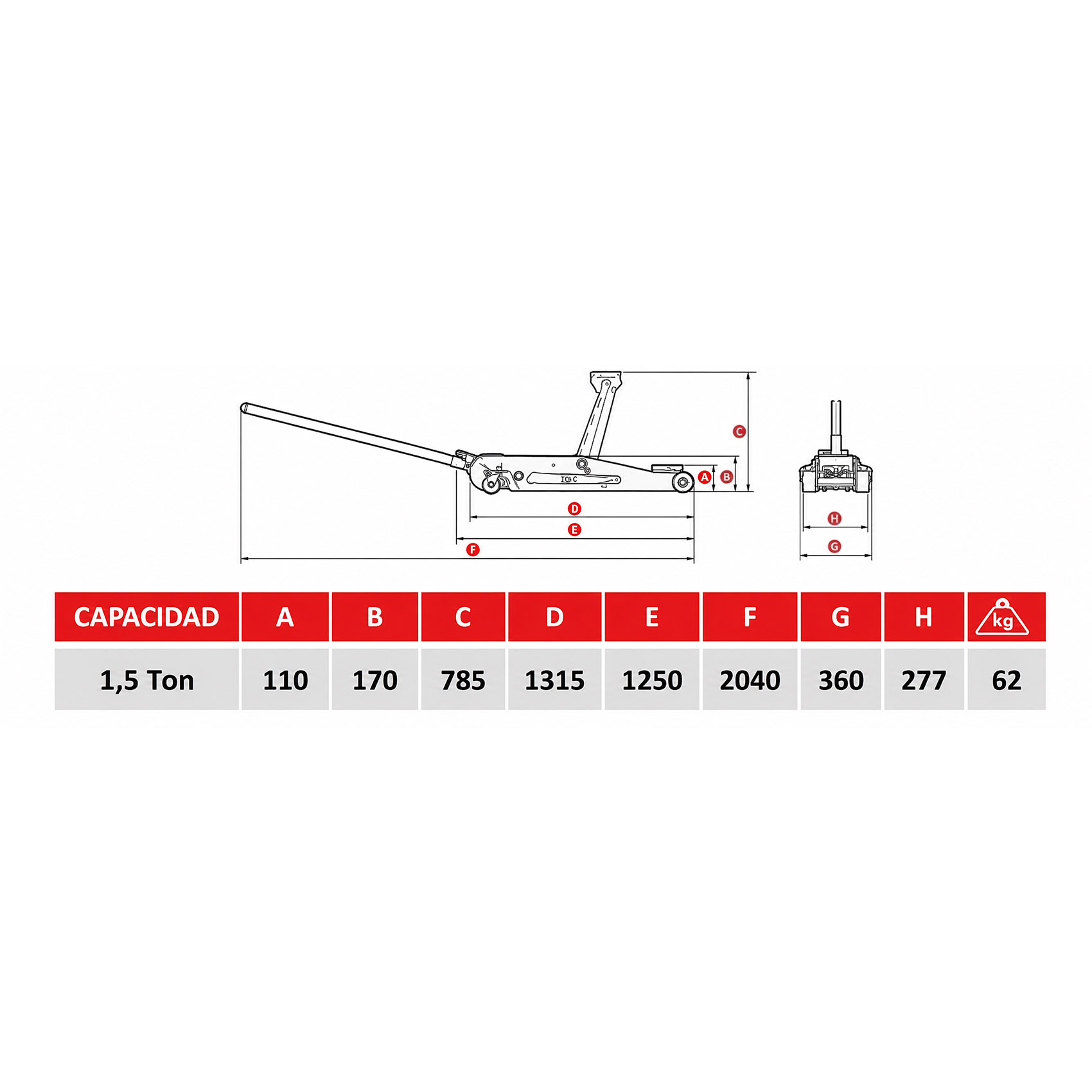

DIMENSIONS :
A - MINIMUM HEIGHT : 110 MM
B - JACK STRUCTURE HEIGHT : 170 MM
C - MAXIMUM LIFTING CAPACITY : 785 MM
D - JACK BODY LENGTH : 1315 MM
E - TOTAL JACK LENGTH : 1250 MM
F - TOTAL LENGTH WITH LEVER : 2040 MM
G - OVERALL WIDTH : 360 MM
H - CAT BODY WIDTH : 277 MM
WEIGHT : 62 KG
. REINFORCED STRUCTURE FOR HEAVY-DUTY USE.
. WIDER TRACK FOR GREATER STABILITY.
. ERGONOMIC HANDLE ALLOWS OPERATION FROM ANY POSITION.
. LARGER WHEELS FOR IMPROVED MOBILITY AND SUPPORT.
. MADE OF POLYAMIDE, THEY ARE FLOOR-FRIENDLY, RUST-RESISTANT, AND QUIET
. OVERLOAD SAFETY VALVE. LCS
. HYDRAULIC TRAVEL LIMITER
. DESCENT CONTROL DEVICE.
. "DEAD MAN'S" OPERATION (STOPS OPERATION IF THE USER UNINTENTIONALLY LOSES CONTROL).
. HIGH LIFTING
. HEIGHT. WIDER TRACK.
. ERGONOMIC HANDLE.
. LARGE WHEELS FOR GREATER MOBILITY.
. REINFORCED STRUCTURE.
| Item Code | MEGAGT1.5H |
|---|---|
| Barcode | 6298040000348 |
| Brand | MEGA-JACK |

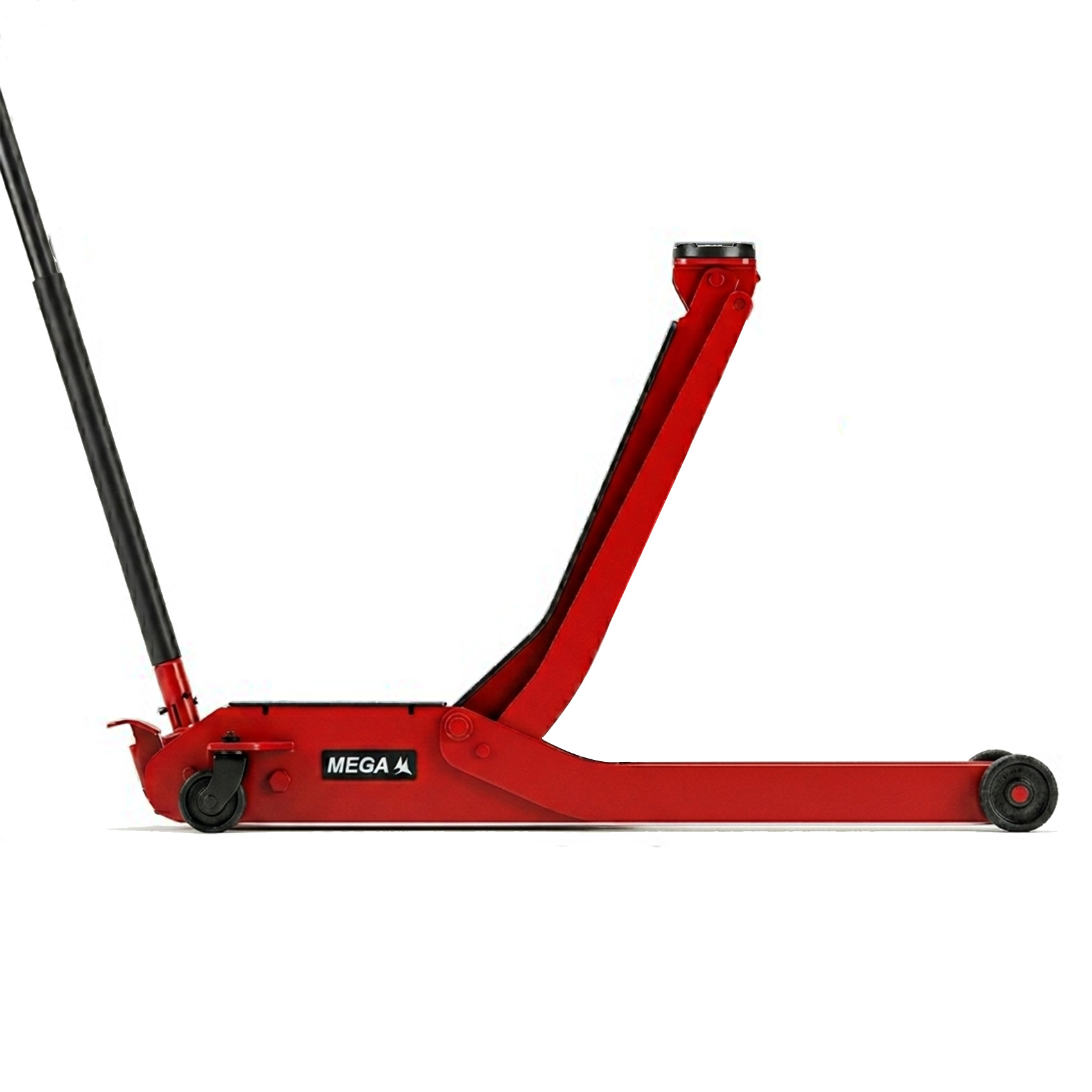

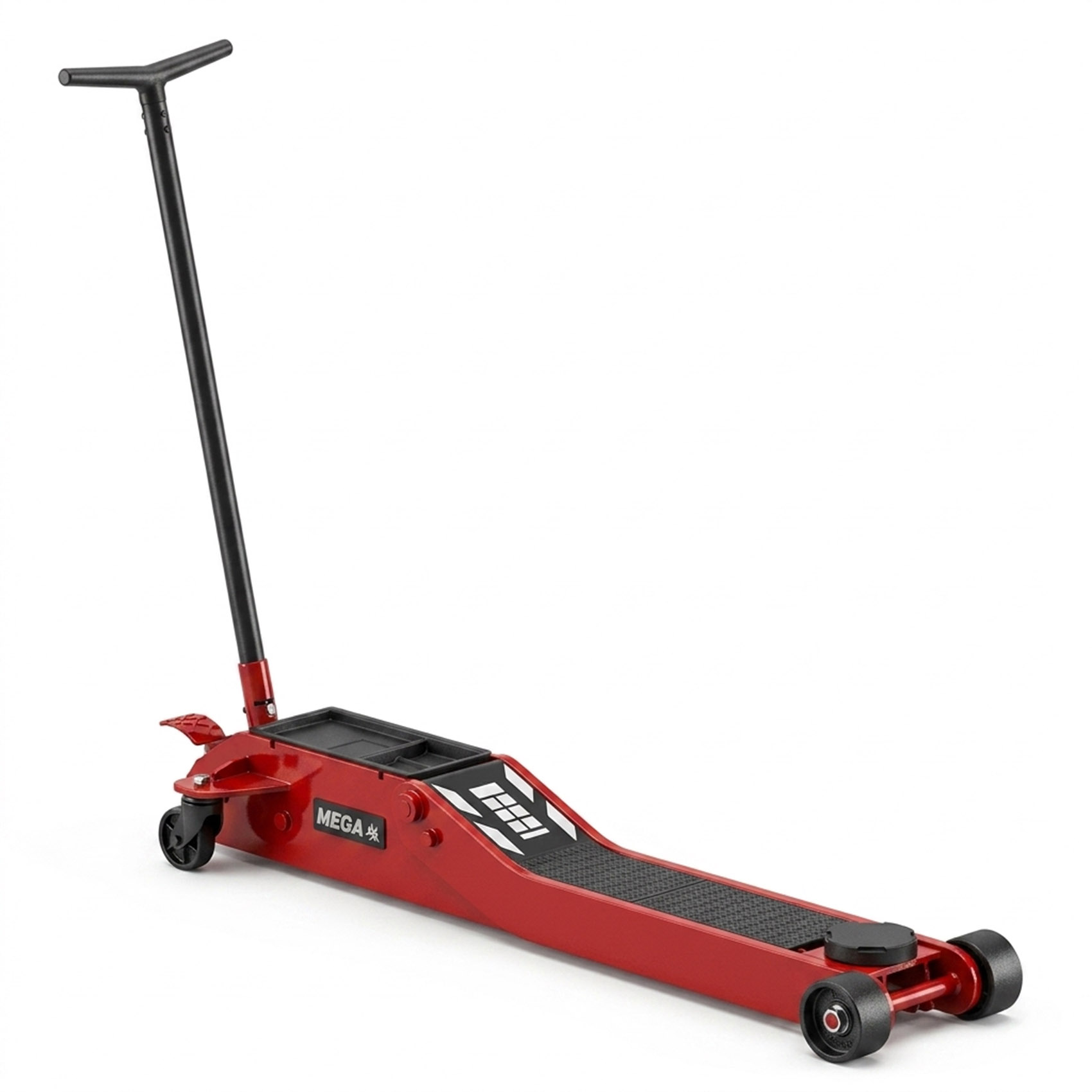

The MEGA GT1.5H Hydraulic Trolley Jack is a premium heavy-duty lifting solution manufactured in Spain for professional automotive and industrial applications. Designed with a reinforced structure, high lifting height, wider track, and advanced safety features, this 1.5-ton hydraulic floor jack delivers exceptional stability, durability, and operator control. Equipped with large polyamide wheels, a descent control device, hydraulic travel limiter, overload safety valve, and Dead Man's operation system, the GT1.5H is engineered to provide safe and efficient lifting performance in demanding workshop environments.
Position the trolley jack on a level and stable surface beneath the recommended lifting point of the vehicle or equipment. Pump the ergonomic handle to raise the lifting saddle until it contacts the load. Continue pumping until the required lifting height is achieved. Always secure the load using approved jack stands before beginning maintenance work. When lowering the load, operate the descent control mechanism carefully to ensure a smooth and controlled descent.
The MEGA GT1.5H is designed to safely lift vehicles, machinery, and heavy equipment for maintenance, repair, inspection, tire service, and workshop operations. Its high-lift design allows easier access to elevated work areas while providing excellent stability and operator safety.
The MEGA GT1.5H combines Spanish engineering excellence, advanced hydraulic technology, and comprehensive safety features. Its reinforced frame and wider wheel track provide exceptional stability under load, while the ergonomic handle allows comfortable operation from multiple positions. The large polyamide wheels improve mobility and floor protection, making this jack an ideal choice for professional workshops and maintenance facilities.
The MEGA GT1.5H is designed to safely lift loads up to 1.5 tons, making it suitable for many professional vehicle maintenance applications.
The polyamide wheels provide smoother movement, greater mobility, floor protection, rust resistance, and quieter operation compared to traditional steel wheels.
The hydraulic travel limiter helps protect the jack by controlling lifting movement and preventing excessive hydraulic extension.
The descent control system ensures smooth and controlled lowering of the load, reducing the risk of sudden drops during operation.
The Dead Man's principle automatically stops operation if the user unintentionally loses control, providing additional operator safety during lifting and lowering procedures.
