Brand: MECLUBE
Product Type: Air-Operated Double Diaphragm Pump
Model: A110
Article No.: 028-A110-AB2
Origin: Italy
Casing Material: Aluminium
Diaphragm: HYTREL + PTFE
Balls: PTFE
Gasket: VITON
Fluid Connections: 3/4" BSP
Air Connection: 3/8" BSP
Compression Ratio: 1:1
Fluids : water-anti-freeze-windscreen
Maximum Flow Rate :110 L/min
Maximum Air Pressure :8 bar
Maximum Delivery Head :80 m
Maximum Suction Lift – Dry :5.0 m
Maximum Suction Lift – Wet :9.8 m
Maximum Solid Passing :4 mm
Noise Level :72 dB
Displacement per Cycle :200 cm³
Maximum Viscosity :25,000 cps
Fluid Connection :3/4" BSP
Air Connection :3/8" BSP
Maximum Temperature :-20°C to +95°C
Gross Weight : 6.0 kg

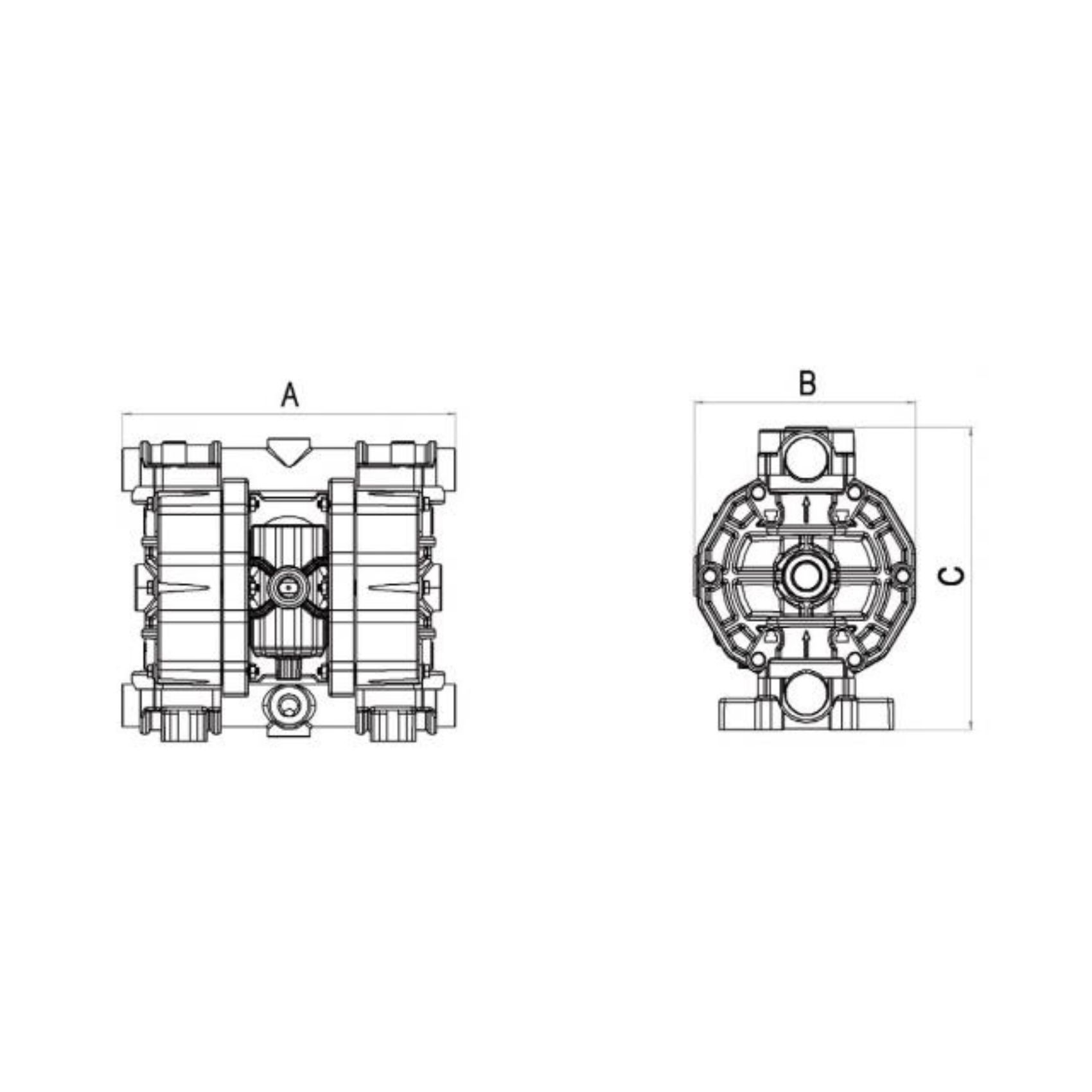

Dimensions A × B × C : 265 × 178 × 245 mm

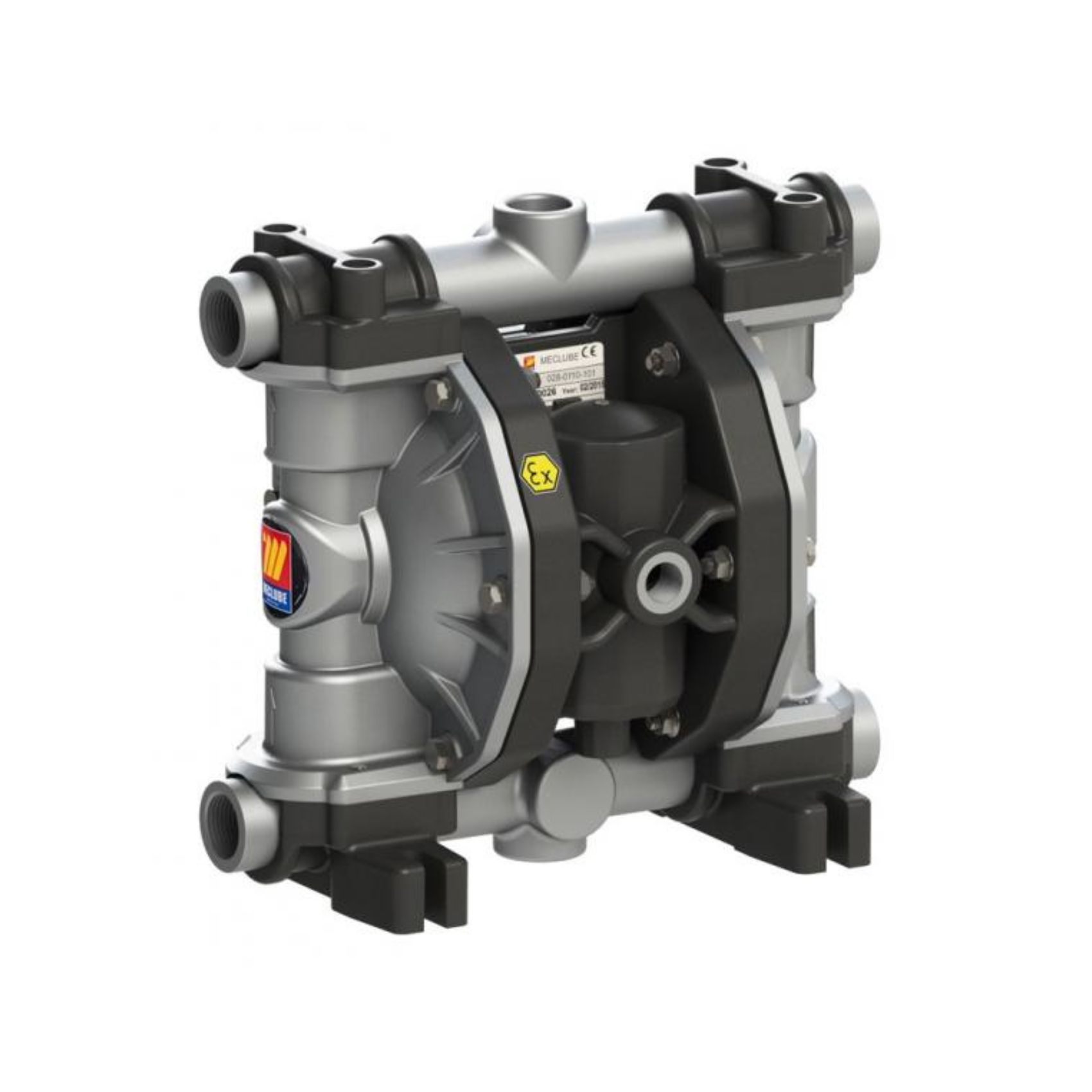

The MECLUBE A110 Aluminium Air-Operated Double Diaphragm Pump, Article 028-A110-AB2, is a pneumatic double diaphragm pump designed for transferring liquids using compressed air. The pump features an aluminium casing, HYTREL+PTFE diaphragm, PTFE balls, and VITON gaskets.
With a maximum flow rate of 110 L/min, maximum air pressure of 8 bar, and maximum delivery head of 80 m, the A110 provides a versatile solution for liquid transfer applications.
The 028-A110-AB2 configuration is specifically listed for water, antifreeze, and windscreen fluids.
| Item Code | MEC028-A110-AB2 |
|---|---|
| Barcode | 6295123308223 |
| Brand | MECLUBE |
The MECLUBE A110 Aluminium Air-Operated Double Diaphragm Pump 028-A110-AB2 is a professional pneumatic pump designed for efficient transfer of liquids using compressed air. Made in Italy, this 3/4-inch air-operated double diaphragm pump features an aluminium casing, HYTREL + PTFE diaphragm, PTFE balls, and VITON gaskets for reliable fluid handling.
With a maximum flow rate of 110 L/min, the MECLUBE A110 provides a practical solution for transferring water, antifreeze, and windscreen fluids. Its air-operated design makes it suitable for workshops, automotive service centers, industrial maintenance environments, and fluid handling applications where reliable pneumatic pumping is required.
The main purpose of the MECLUBE A110 pneumatic diaphragm pump is to transfer liquids from one container or system to another using compressed air. Unlike an electrically driven pump, the A110 operates through a pneumatic air supply, making it useful in professional environments where controlled and flexible liquid transfer is required.
The pump is specifically suitable for handling fluids such as water, antifreeze, and windscreen washer fluid, making it particularly useful for automotive and vehicle maintenance applications.
Always use suitable hoses, fittings, and compressed-air pressure for the application and follow the manufacturer's safety and operating instructions.
The MECLUBE A110 is a practical choice for businesses that need dependable pneumatic liquid transfer equipment. Its compressed-air operation eliminates the need for an electric motor at the pump, while the double diaphragm design provides a flexible solution for transferring compatible fluids.
The combination of an aluminium casing, HYTREL + PTFE diaphragm, PTFE balls, and VITON gaskets makes the A110 suitable for professional fluid handling applications. Its 110 L/min maximum flow rate also helps support efficient transfer operations in workshops and service environments.
The MECLUBE A110 is suitable for professionals and businesses that regularly need to transfer compatible liquids using compressed air, including:
The MECLUBE A110 diaphragm pump can be used in automotive, workshop, and industrial environments where compatible liquids need to be transferred efficiently. It is particularly suited to applications involving water, antifreeze, and windscreen fluids.
Typical applications include transferring fluids from drums, tanks, containers, or storage systems to vehicle service equipment, dispensing systems, or other suitable fluid-handling equipment.
The MECLUBE A110 is well suited to professional automotive fluid handling. Its pneumatic double diaphragm operation allows workshops to transfer commonly used automotive fluids without relying on an electrically powered pump motor. This makes it a useful solution for service operations involving coolant, antifreeze, and windscreen washer fluids.
The MECLUBE A110 028-A110-AB2 combines pneumatic operation, double diaphragm technology, and a robust aluminium casing in a compact professional pump. With its high flow capability and compatibility with specified automotive fluids, it provides a versatile solution for workshops and industrial fluid transfer applications.
The MECLUBE A110 028-A110-AB2 is an aluminium air-operated double diaphragm pump designed for transferring compatible liquids using compressed air.
The 028-A110-AB2 configuration is specifically listed for water, antifreeze, and windscreen fluids.
The A110 is an air-operated pneumatic pump and uses compressed air to operate the diaphragm pumping mechanism rather than an electric motor.
The MECLUBE A110 has a maximum flow rate of up to 110 litres per minute under the specified operating conditions.
It can be used in automotive workshops, vehicle service centers, fleet maintenance facilities, industrial maintenance environments, and other suitable fluid transfer applications.
An air-operated double diaphragm pump provides a pneumatic method of transferring compatible liquids and can be useful for professional fluid handling applications where compressed air is available.
Yes. The 028-A110-AB2 configuration is specifically listed for water, antifreeze, and windscreen fluids, making it suitable for relevant automotive fluid transfer applications.
The MECLUBE A110 028-A110-AB2 is made in Italy.
