Brand: MASTERCOOL
Model: COMMANDER 2100-EP-UK
Standard Series Model: COMMANDER2100-E (220V)
Product Type: Fully Automatic Automotive A/C Refrigerant Recovery, Recycling and Recharging Machine
Refrigerant Type: R134a
Application: Automotive Air Conditioning Service
Service Procedure: Fully Automatic or Manual
Voltage: 220V for COMMANDER2100-E; carton states 220V
Frequency: 50/60 Hz for 220V standard model
Scale Resolution: 0.02 lb (10 g)
Oil Scale Resolution: 0.01 lb (5 g)
Working Temperature Range: 10–49°C (50–120°F)
Filter System: 2 filters for cleaning and water removal
Vacuum Pump Capacity: 6 CFM (142 L/min)
Compressor: Hermetically sealed, 12 cc, high pressure
Recovery Rate: 98.5% at 21–24°C (70–75°F)
Recovery Cylinder Capacity: 30 lb (12.5 L), refillable
Charging Accuracy: ±0.5 oz (±15 g) at 21–24°C
Hose Length: 96 in (250 cm)
Couplers: Manual R134a
Pressure Gauges: Class 1
Cylinder Temperature Sensor: Integrated
Cylinder Heater: Standard equipment

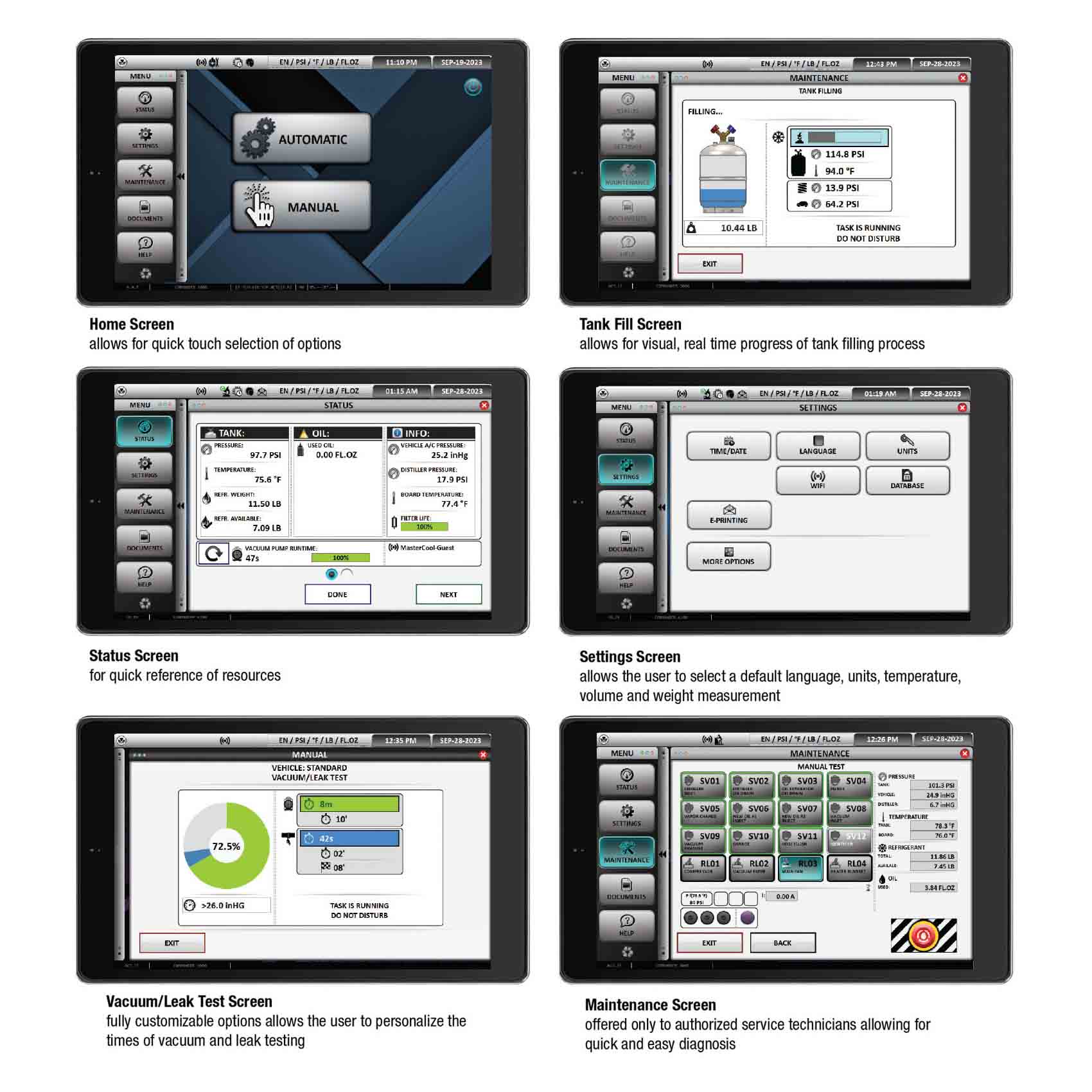

Display: 10-inch colour touchscreen
Vacuum Leak Test: Programmable automatic function
Oil Discharge: Automatic
Oil Injection: Automatic
Air Purge: Automatic and manual
Refrigerant Database: Included
Wi-Fi: Capable
Unit Conversion Calculator: On-board
Status Indicator: Multicolour LED status bar
Self-Diagnostic Check: Automatic
Shipping Dimensions: 38 × 32 × 53 in (L × W × H)
Metric Shipping Dimensions: 1346 × 813 × 965 mm, as published by manufacturer
Shipping Weight: 238 lb
Country of Origin: USA

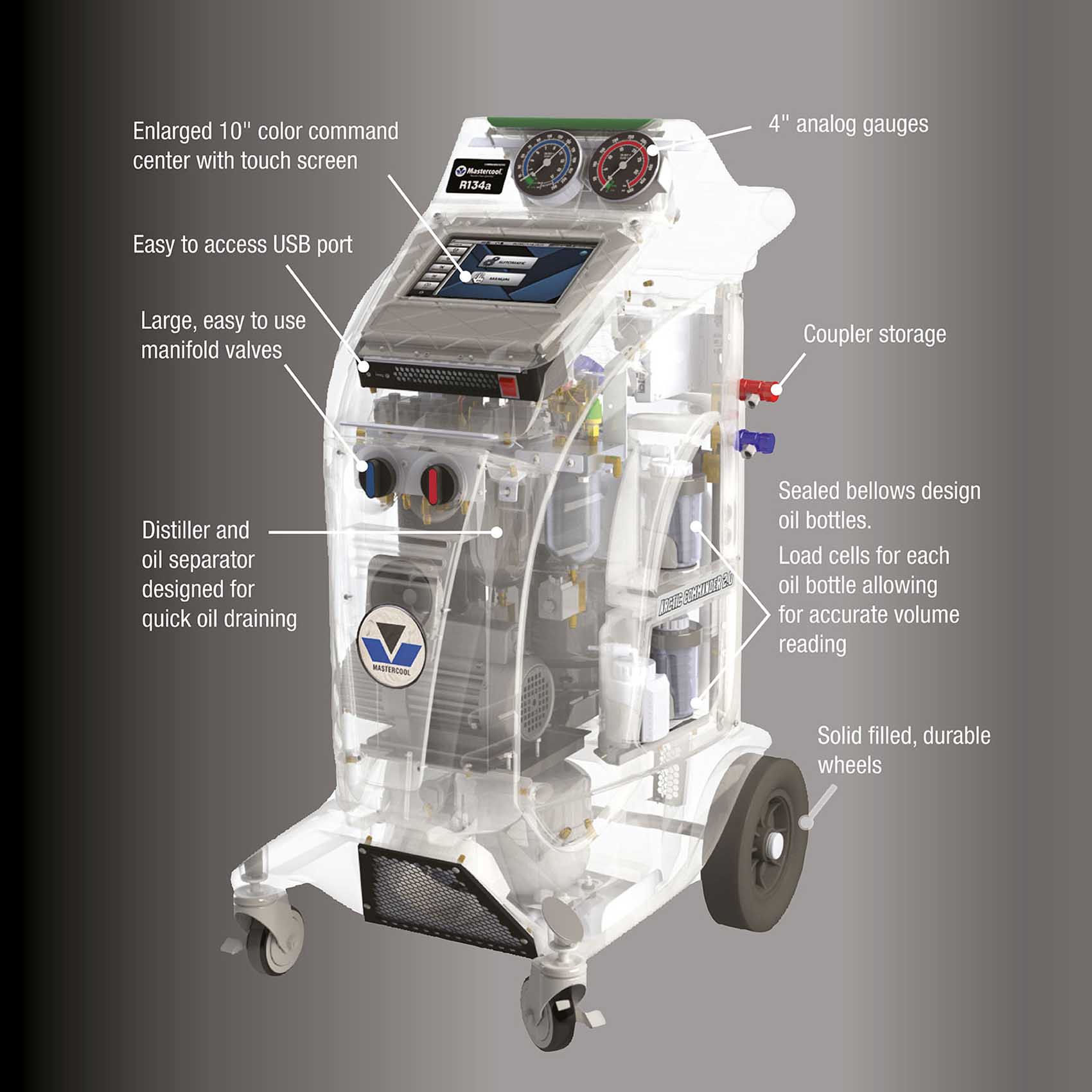

The COMMANDER2100 series features a 10-inch colour touchscreen command centre, automatic and manual service procedures, a refrigerant database and programmable automatic vacuum leak testing. Additional functions include automatic oil discharge and injection, automatic and manual air purge, filter and full-tank alarms, a low-refrigerant alarm and automatic self-diagnostics.
Its 6 CFM vacuum pump supports A/C circuit evacuation, while the integrated cylinder temperature sensor and cylinder heater support refrigerant handling. Wi-Fi capability, a unit-conversion calculator, large analogue gauges and a multicolour LED status bar provide additional convenience for professional workshop operations.
The manufacturer specifies a refillable 30 lb (12.5 L) recovery cylinder, a two-filter cleaning and water-removal system, and R134a manual couplers for the standard COMMANDER2100 configuration. The manufacturer also states that the series is designed for compliance with SAE J2788.
| Item Code | USAMCC2100-EP |
|---|---|
| Barcode | 111100015146 |
| Brand | MASTERCOOL |
The MASTERCOOL COMMANDER 2100-EP-UK is a fully automatic automotive air conditioning refrigerant recovery, recycling and recharging machine designed for professional workshops. Intended for compatible R134a vehicle A/C systems, it supports essential refrigerant servicing procedures with a touchscreen interface, automatic and manual operating modes, vacuum evacuation capabilities and integrated service functions. The COMMANDER2100 series is designed to help automotive technicians perform routine A/C maintenance in an organised and efficient workflow.
This R134a RRR machine is used to recover refrigerant from compatible automotive A/C systems, recycle recovered refrigerant, evacuate the air conditioning circuit and recharge the system with the specified quantity of refrigerant. It is intended for vehicle air conditioning servicing, maintenance and repair in professional automotive workshops.
Operate the machine according to its official manual, applicable refrigerant-handling regulations and the vehicle manufacturer's service instructions. The general service workflow is outlined below.
Verify that the vehicle uses R134a refrigerant and that the machine is configured for the correct service. Check the equipment condition, electrical supply and workshop safety requirements before beginning.
Connect the compatible R134a service couplers to the vehicle's designated A/C service ports, following the machine manual and the prescribed connection procedure.
Select the appropriate recovery procedure on the touchscreen. The machine extracts refrigerant from the vehicle's A/C system into its designated recovery cylinder.
Use the vacuum pump to evacuate the A/C circuit and perform the programmed vacuum leak-test procedure where appropriate. Investigate and repair suspected leaks before recharging.
Select the correct charging procedure and enter or confirm the refrigerant quantity specified by the vehicle manufacturer. Follow the machine's instructions to complete the charging cycle.
Disconnect the service couplers according to the manual, check the A/C system's operation and maintain the machine as recommended by the manufacturer.
Use only with compatible R134a systems. Never mix refrigerants. Wear suitable personal protective equipment and work in a properly ventilated area. Hybrid and electric vehicles may require special compressor-oil handling procedures. Follow the manufacturer's instructions for refrigerant identification, contamination prevention and safe operation.
Provides a convenient interface for navigating available service procedures and machine functions.
Supports automated service cycles and manual operation for different workshop requirements.
Supports evacuation of compatible automotive air conditioning circuits during servicing.
Helps technicians assess system tightness as part of the prescribed A/C service procedure.
Supports oil discharge and injection functions as provided by the machine configuration.
Offers Wi-Fi capability, a refrigerant database and automatic self-diagnostic functions in the COMMANDER2100 series.
This machine is intended for trained automotive professionals and businesses that regularly service compatible R134a vehicle air conditioning systems.
The MASTERCOOL COMMANDER2100 series is designed for use in professional automotive workshops, vehicle air conditioning repair centres, dealership service departments and fleet maintenance facilities. It supports routine servicing of compatible R134a automotive A/C systems, subject to the machine's approved operating requirements and the vehicle manufacturer's procedures.
It is identified on the supplied carton as a fully automatic R134a automotive refrigerant recovery, recycling and recharging machine designed for vehicle A/C servicing.
The machine is labelled for R134a refrigerant. Do not use it with R1234yf or another refrigerant unless the manufacturer explicitly approves the application.
RRR stands for refrigerant recovery, recycling and recharging. The equipment removes refrigerant from an A/C system, processes it through its recycling system and charges the system with the specified quantity of refrigerant.
The COMMANDER2100 series supports automatic and manual operating modes. Follow the specific operating instructions for your machine configuration.
The vacuum pump evacuates air and moisture from the A/C circuit during the prescribed service process before refrigerant charging.
It offers a programmable vacuum leak-test function. This test can help assess system tightness, but it does not necessarily identify the exact location of every leak.
The carton specifies 220V operation. Verify the electrical requirements on the machine's rating plate before connecting it to the workshop power supply.
No. This product configuration is intended for R134a refrigerant. R1234yf systems require suitable equipment specifically designed for that refrigerant.
Trained automotive technicians who understand refrigerant handling, A/C service procedures and the machine manufacturer's safety instructions should operate the equipment.
The EP designation is associated with the electronic printer option in the COMMANDER2100 range. Confirm the supplied printer and accessories for the exact EP-UK unit before purchase.
The MASTERCOOL COMMANDER 2100-EP-UK is intended to support refrigerant recovery, recycling and recharging operations for compatible R134a automotive A/C systems. Its COMMANDER2100 series features provide a practical combination of automated servicing functions, vacuum evacuation and touchscreen control for professional workshops.

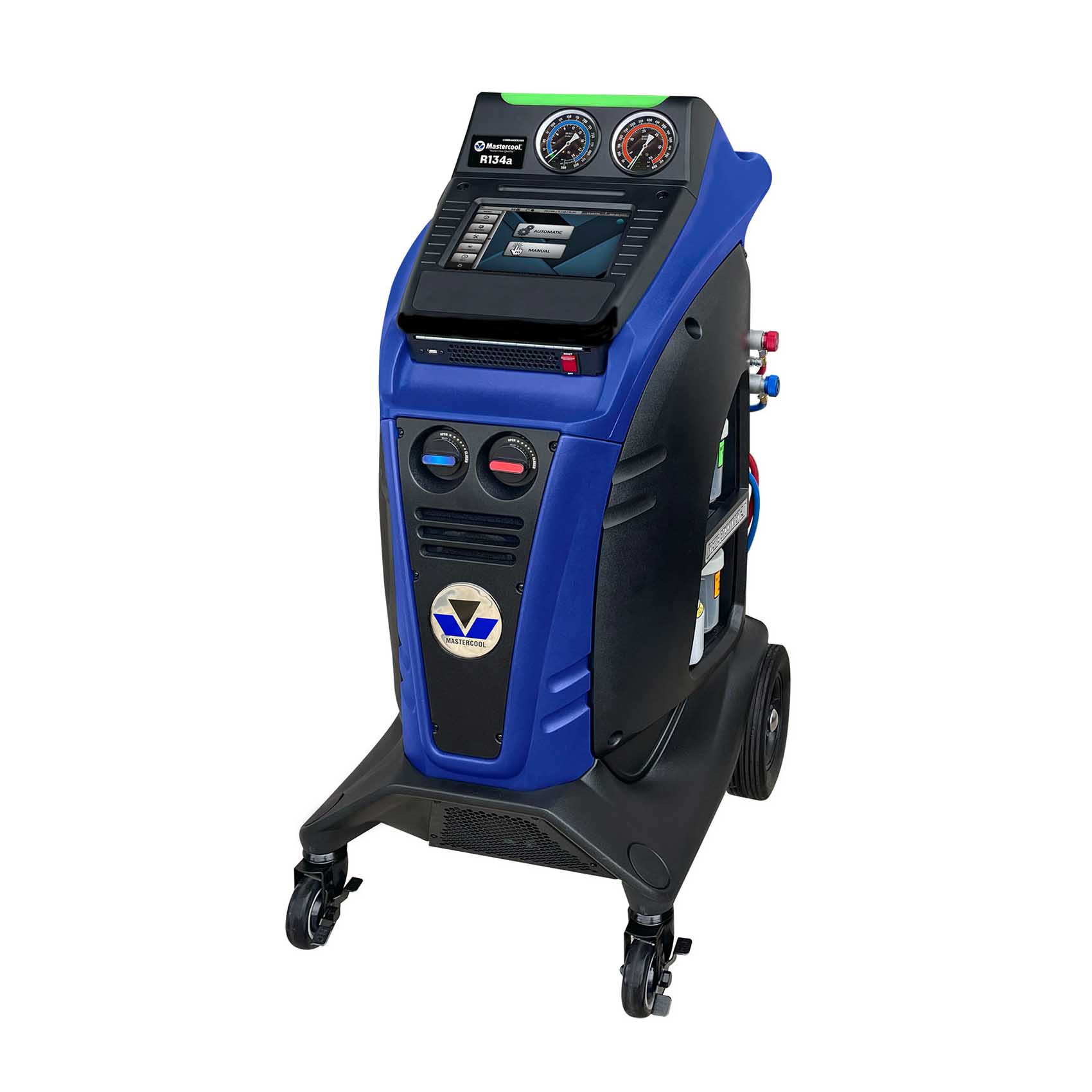

MASTERCOOL COMMANDER 2100-EP-UK
Fully Automatic R134a Refrigerant Recovery, Recycling and Recharging Machine for Professional Automotive A/C Servicing.
