BRAND : FIAC
ITEM NO.: 1129740370
ORIGIN : ITALY
SUPPLY VOLTAGE : 230 V
FREQUENCY : 50 HZ
NUMBER OF PHASES : 1
MAX PRESSURE (BAR) : 8 BAR
MAX PRESSURE (PSI) : 116 PSI
PUMP SPEED : 2450 RPM
VESSEL SIZE (LT) : 0 LITER
VESSEL SIZE (GAL) : 0 GAL
CONFIGURATION : PORTABLE
AIR DISPLACEMENT (L/MIN) : 160 L/MIN
AIR DISPLACEMENT (CFM) : 5.6 CFM
LUBRICATION : OIL-FREE
OIL CAPACITY : N.A. LITER
PUMP ELEMENT : F3002
MOTOR (HP) : 1.5 HP
MOTOR (KW) : 1.1 KW
MIN-1 : 2450
NOISE LEVEL (LPA) : 68 DB(A)
NOISE LEVEL (LWA) : 88 DB(A)
WEIGHT : 8.5 KG
. IP 20
. S3
| Item Code | ITLAC1129740370 |
|---|---|
| Barcode | 8020119153369 |
| Brand | FIAC |

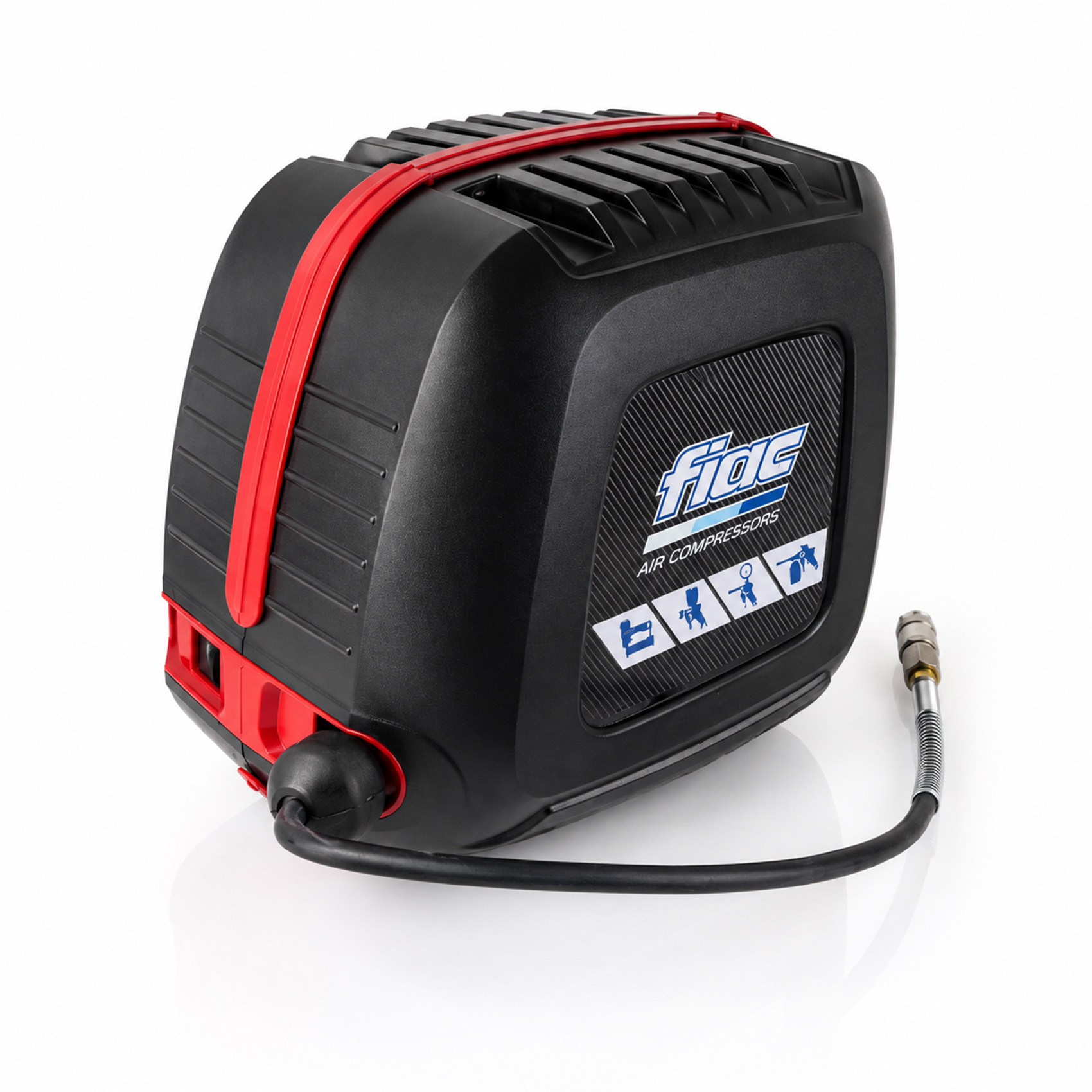

The FIAC PALPACK HR 1129740370 is a compact, portable and oil-free piston air compressor designed for applications that require a reliable supply of compressed air without the need for a large receiver tank. With its compact construction and convenient portability, it is suitable for workshops, maintenance areas, service operations and light-duty pneumatic applications.
Place the compressor on a stable and suitable surface and connect it to a compatible electrical supply. Attach the supplied air hose to the compressor outlet and connect the other end to the required pneumatic tool or air equipment. Switch on the compressor and allow it to produce compressed air before operating the connected equipment.
Always use pneumatic accessories that are suitable for the compressor's maximum working pressure. Check the hose and connections before operation, keep the ventilation areas clear and follow the manufacturer's operating and safety instructions.
The FIAC PALPACK HR is designed to provide compressed air for light-duty pneumatic and maintenance applications. Its oil-free piston technology makes it a practical choice where clean and convenient compressed air is required.
It can be used for tasks such as air blowing, cleaning, inflation, small pneumatic tools, workshop maintenance and other applications requiring a compact compressed-air source.
Choose the FIAC PALPACK HR when you need a compact and portable compressor for everyday workshop and maintenance work. Its oil-free construction reduces the need for oil-related maintenance, while the compact design makes it convenient where working space is limited.
The combination of an 8 bar pressure capability, 160 L/min air displacement and a 1.5 HP motor makes it a practical solution for users who need portable compressed air without the size and weight of a conventional workshop compressor with a large air receiver.
The FIAC PALPACK HR 1129740370 is suitable for:
This compact FIAC air compressor can be used in automotive workshops, maintenance departments, service centers, garages, small workshops, installation environments and general repair areas. Its portable design also makes it useful for technicians who need to move the compressor between different work locations.
The FIAC PALPACK HR 1129740370 is designed for a maximum pressure of 8 bar, making it suitable for a variety of general compressed-air and workshop applications.
Yes. The FIAC PALPACK HR 1129740370 uses an oil-free piston compressor design, providing convenient operation without conventional compressor oil maintenance.
The compressor has an air displacement of 160 litres per minute, equivalent to approximately 5.6 CFM.
It uses a 1.5 HP motor with a power rating of approximately 1.1 kW.
Yes. Its compact portable configuration and relatively low weight make it convenient for moving between workshop and service areas.
It can be used for general workshop compressed-air tasks such as air blowing, cleaning, inflation, maintenance work and compatible light-duty pneumatic applications.
The FIAC PALPACK HR 1129740370 is designed for a 230 V, 50 Hz, single-phase electrical supply.
The FIAC PALPACK HR 1129740370 is manufactured by FIAC in Italy.
