BRAND : FIAC
ITEM NO.: 4116028901
ORIGIN : ITALY
VESSEL SIZE : 100 LITER (20 GAL)
PUMP ELEMENT : AB348
SUPPLY VOLTAGE : 230 V
FREQUENCY : 50 HZ
NUMBER OF PHASES : 1
MOTOR (HP) : 3 HP
BAR MAX.: 11
MOTOR (KW) : 2.2 KW
NOISE LEVEL (LPA) : 74 DB(A)
NOISE LEVEL (LWA) : 94 DB(A)
MAX PRESSURE : 10 BAR (145 PSI)
PUMP SPEED : 1500 RPM
AIR DISPLACEMENT : 300 L/MIN (10.5 CFM)
LUBRICATION : OIL LUBRICATED
OIL CAPACITY : 0.45 LITER
CONFIGURATION : STATIONARY
DIMENSIONS : W 600 X H 1540 X L 700 MM
WEIGHT : 120 KG

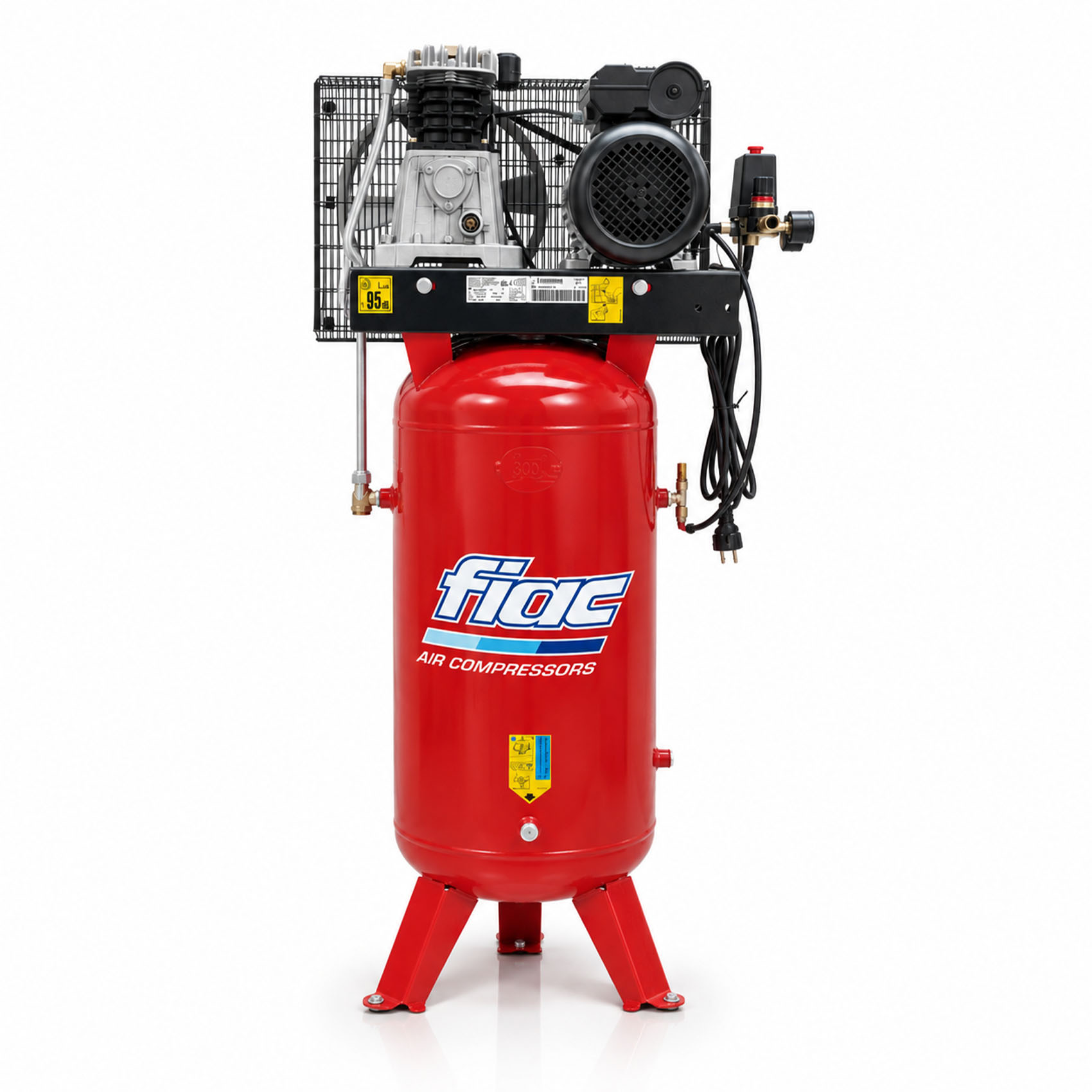

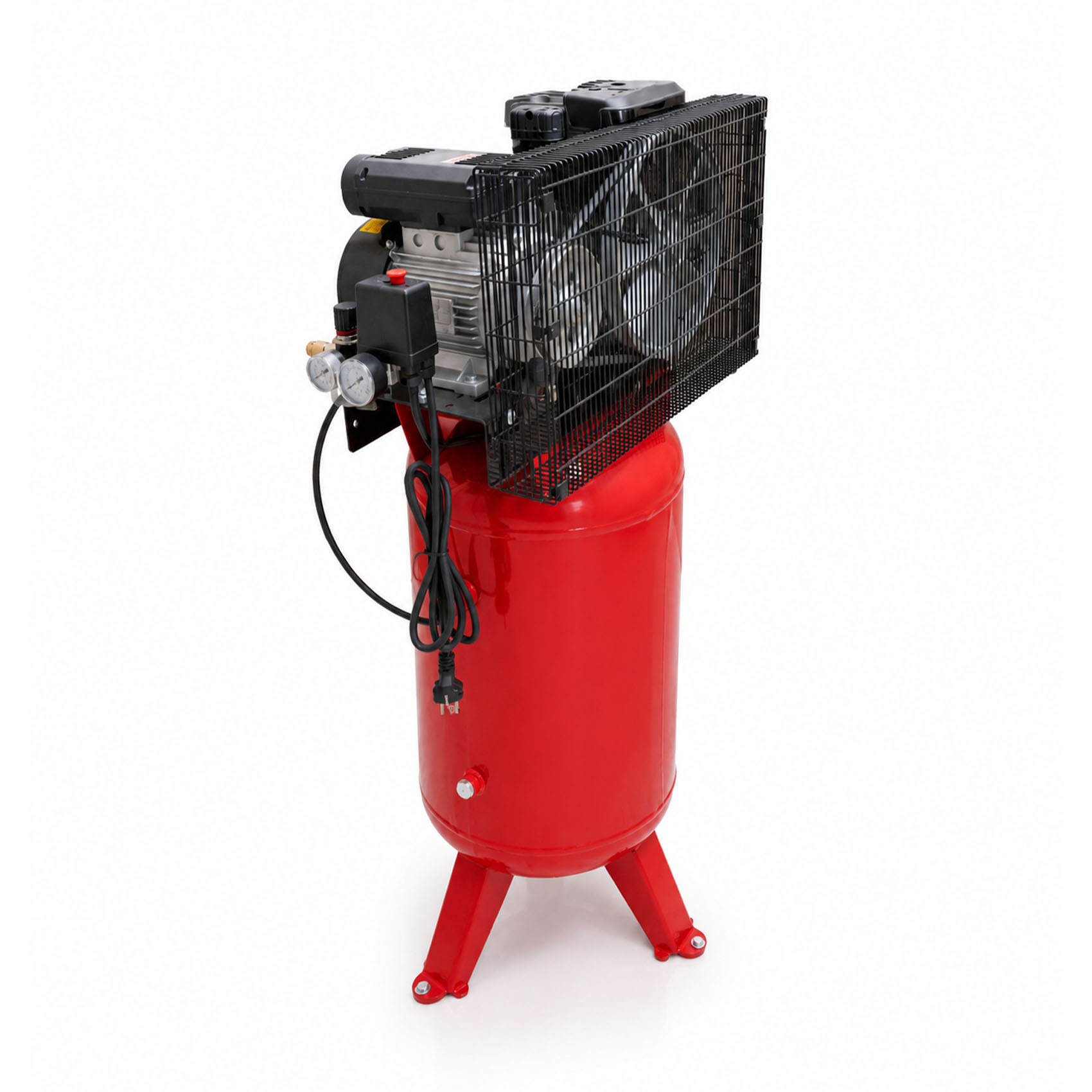

THE FIAC ABV 100/348 - 3HP - STATIONARY - 11BAR - 1PH IS A PROFESSIONAL LUBRICATED BELT DRIVEN COMPRESSOR SINGLE STAGE, EQUIPPED WITH PUMP MODEL AB348 WITH TWO-CYLINDERS MADE OF CAST IRON, WITH A VESSEL SIZE OF 100 LITERS. IT ENSURES HIGH PERFORMANCE AT A LOW ROTATION SPEED, WHICH HELPS PREVENT ENGINE OVERHEATING AND SIGNIFICANTLY EXTENDS THE COMPRESSOR’S LIFESPAN. THE VERTICAL ORIENTATION OF THE VESSEL ALLOWS TO ACHIEVE A MUCH LOWER FOOTPRINT, KEEPING THE SAME CAPACITY.
FIAC’S NEW SINGLE STAGE RANGE REPRESENTS A NOTEWORTHY IMPROVEMENT IN TECHNOLOGY, KEEPING THE FOCUS ON PERFORMANCE AND VALUE.

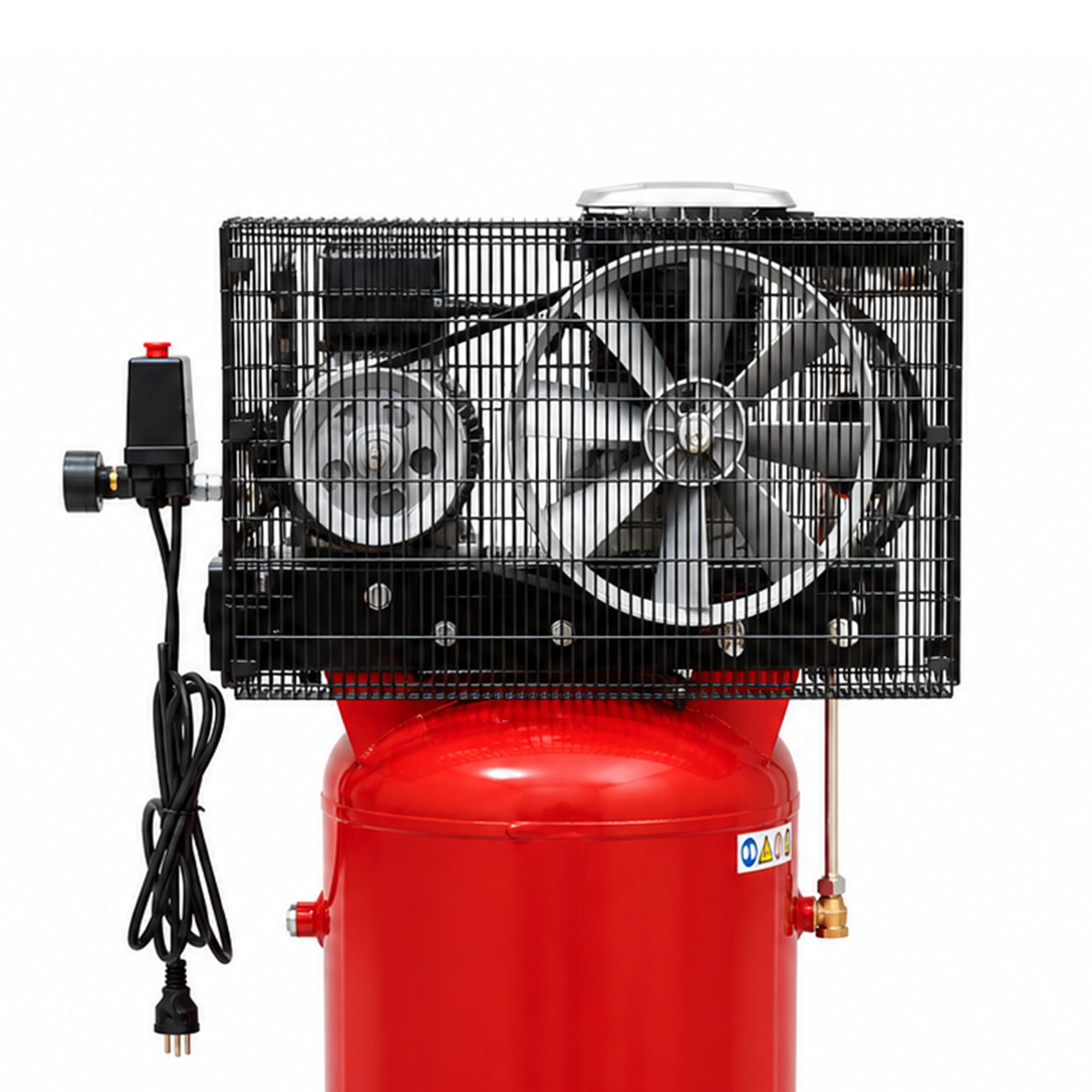

ALL FIAC PUMPS ARE EQUIPPED WITH LARGE OIL LEVEL INDICATOR, OIL DIPSTICK AND LARGE FLYWHEEL FOR BETTER COOLING.
STEEL BELT GUARD FOR A BETTER PROTECTION ALSO DURING TRANSPORTATION.
| Item Code | ITLAC4116028901 |
|---|---|
| Barcode | 111100015293 |
| Brand | FIAC |
The FIAC ABV 100/348 3HP Air Compressor is a professional-grade, stationary, oil-lubricated and belt-driven air compressor designed for reliable compressed air supply in workshops, garages, maintenance facilities and professional applications. Manufactured in Italy, this FIAC 100L air compressor combines dependable performance, efficient cooling and a space-saving vertical tank design.
Using the FIAC ABV 100/348 air compressor is straightforward. Position the compressor on a stable, level surface with sufficient ventilation around the unit. Connect the compressor to a suitable electrical supply and attach the required pneumatic hose and air tool to the outlet. Allow the compressor to build up the required air pressure before operating connected pneumatic equipment.
The compressor can be used with compatible air impact wrenches, pneumatic tools, blow guns, air cleaning equipment and workshop air tools. Always use air accessories suitable for the compressor's operating pressure and follow the manufacturer's safety and maintenance instructions.
The main purpose of the FIAC 100L 3HP compressor is to provide a dependable source of compressed air for professional workshop and industrial applications. Its 100-liter vertical receiver provides stored compressed air, helping support intermittent pneumatic tool operation while the compressor automatically replenishes the air supply when required.

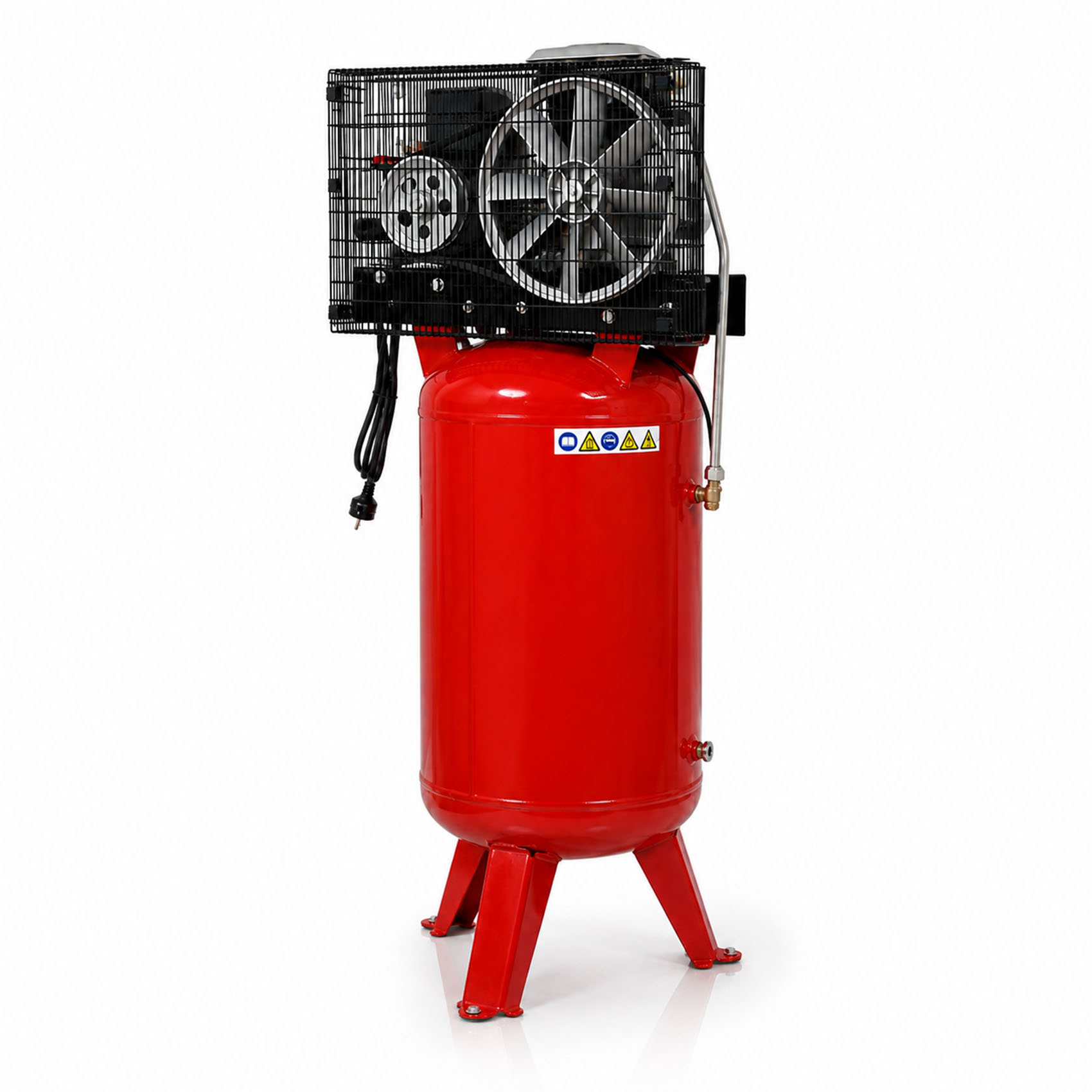

The vertical configuration is particularly useful where floor space is limited. It provides a large air receiver capacity while maintaining a relatively compact footprint, making this vertical air compressor suitable for garages, workshops and maintenance areas.
The FIAC ABV 100/348 is a strong choice for users looking for a reliable 100L professional air compressor with a space-saving vertical design. Its belt-driven, oil-lubricated pump and two-cylinder cast-iron construction are designed for dependable operation in demanding workshop environments.
The combination of a large vertical air receiver, powerful 3HP motor, low pump rotation speed and effective cooling makes this compressor suitable for users who require consistent compressed air while prioritizing durability and long-term performance.
The FIAC 100L 3HP vertical air compressor is suitable for professional users, workshops and businesses that regularly use pneumatic equipment. It is especially suitable for:
This FIAC stationary air compressor can be used in a variety of professional environments where compressed air is required. Typical applications include automotive repair, pneumatic tool operation, workshop cleaning, maintenance work, general mechanical tasks and other compressed-air applications.
Its vertical receiver makes it particularly practical for workshops where floor space is limited but a larger air storage capacity is required.
The FIAC ABV 100/348 is used to provide compressed air for professional workshops, garages, automotive maintenance, pneumatic tools and general compressed-air applications.
Yes. The FIAC ABV 100/348 is designed as a professional stationary compressor with a belt-driven, oil-lubricated pump and durable two-cylinder cast-iron construction.
Yes. The compressor features a vertical 100-liter air receiver. This design helps reduce the floor space required compared with a conventional horizontal receiver of similar capacity.

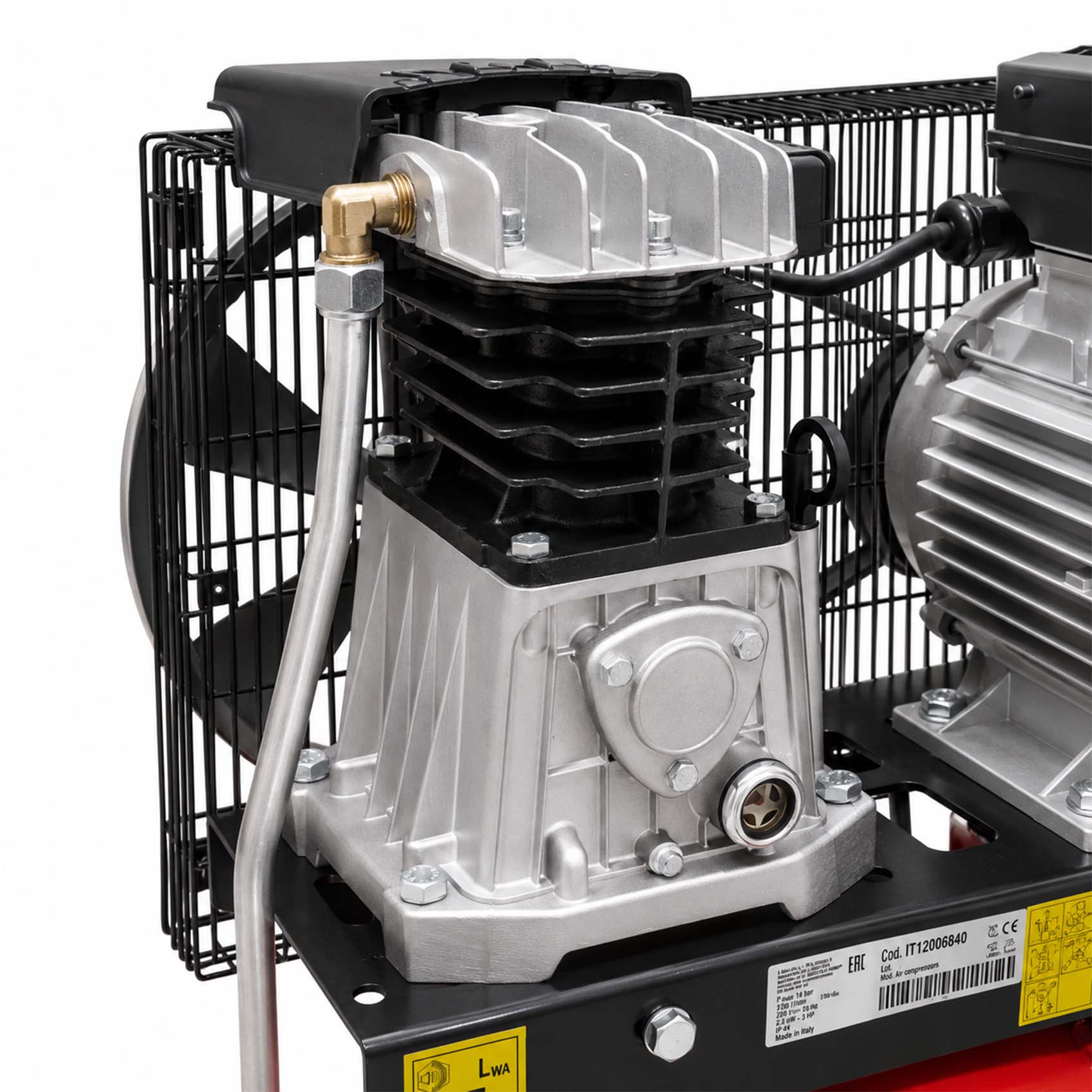

The FIAC ABV 100/348 uses the AB348 pump with two cast-iron cylinders. The pump is designed for reliable performance and efficient operation at a relatively low rotation speed.
Yes. The compressor uses an oil-lubricated pump. Regular oil-level inspection and maintenance should be carried out according to the manufacturer's recommendations.
Yes. The FIAC ABV 100/348 uses a belt-driven compressor system. A steel belt guard provides additional protection around the belt drive.
The large flywheel helps improve cooling and airflow around the pump during operation, supporting reliable performance and helping manage operating heat.
Yes. Its vertical receiver design helps save valuable floor space while providing a large compressed-air storage capacity, making it a practical choice for many professional workshops and garages.
The FIAC ABV 100/348 is manufactured in Italy and is designed for professional compressed-air applications.
The combination of a vertical air receiver, two-cylinder cast-iron pump, belt-driven system, low-speed operation, oil lubrication and dedicated cooling features makes the FIAC ABV 100/348 a practical professional compressor for demanding workshop environments.
