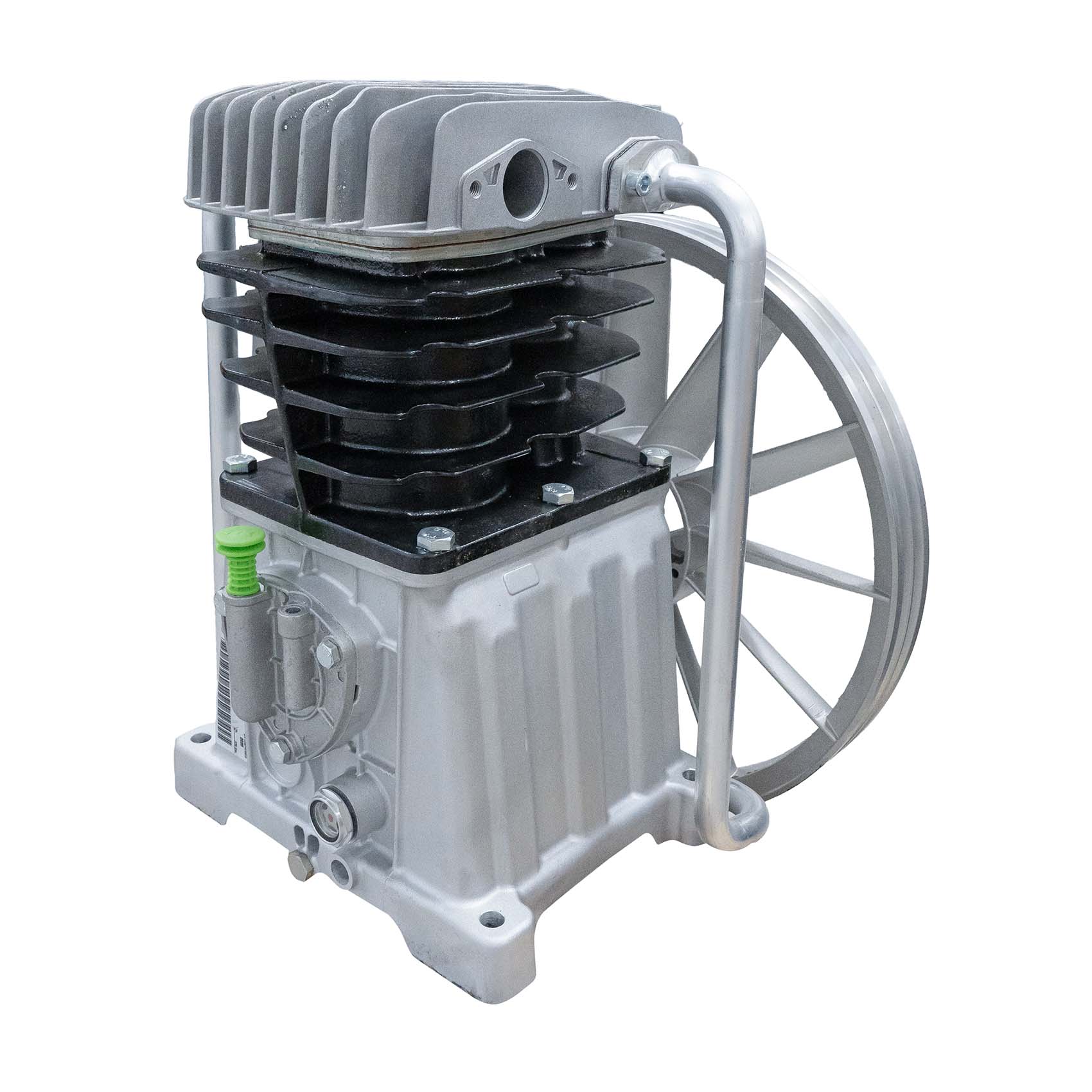

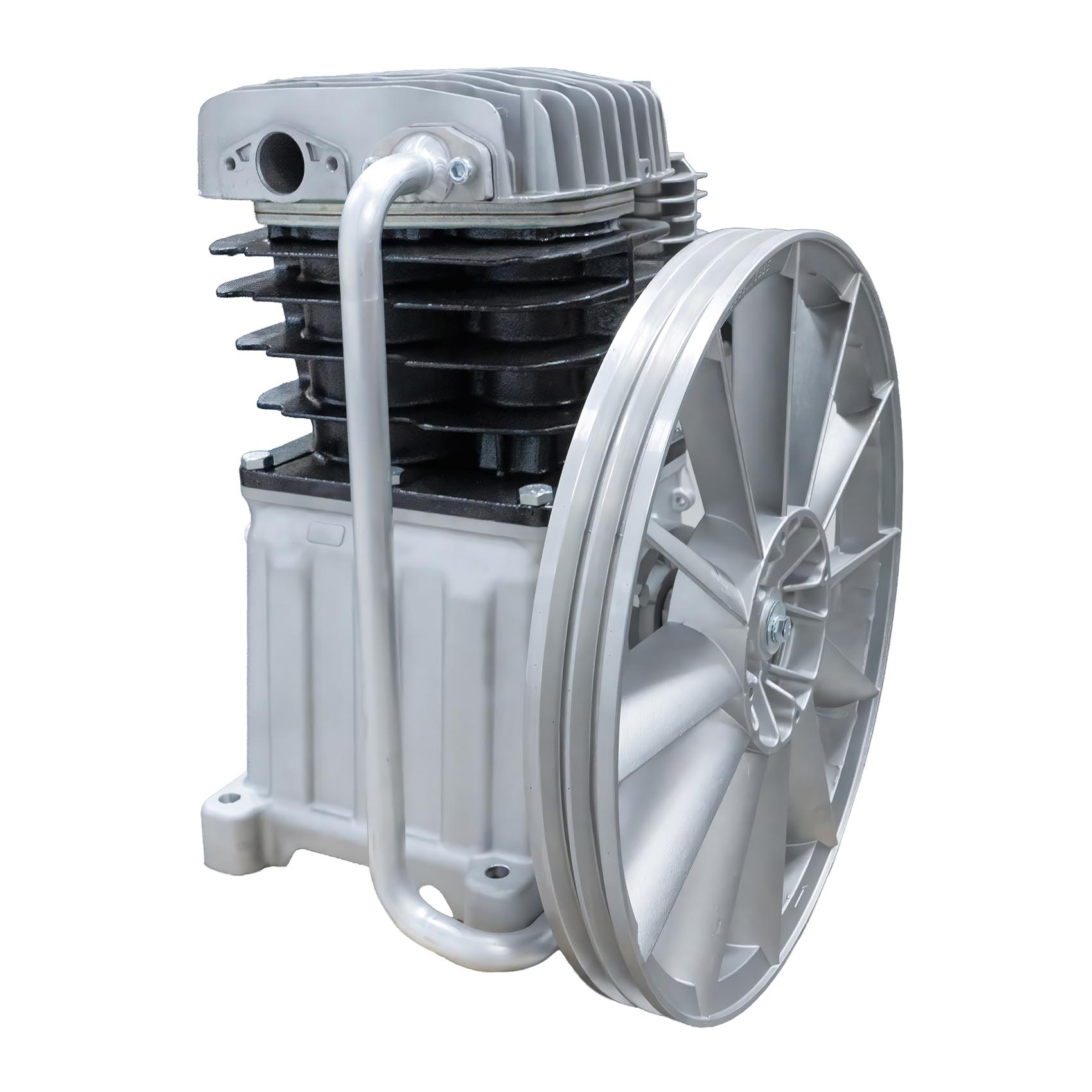

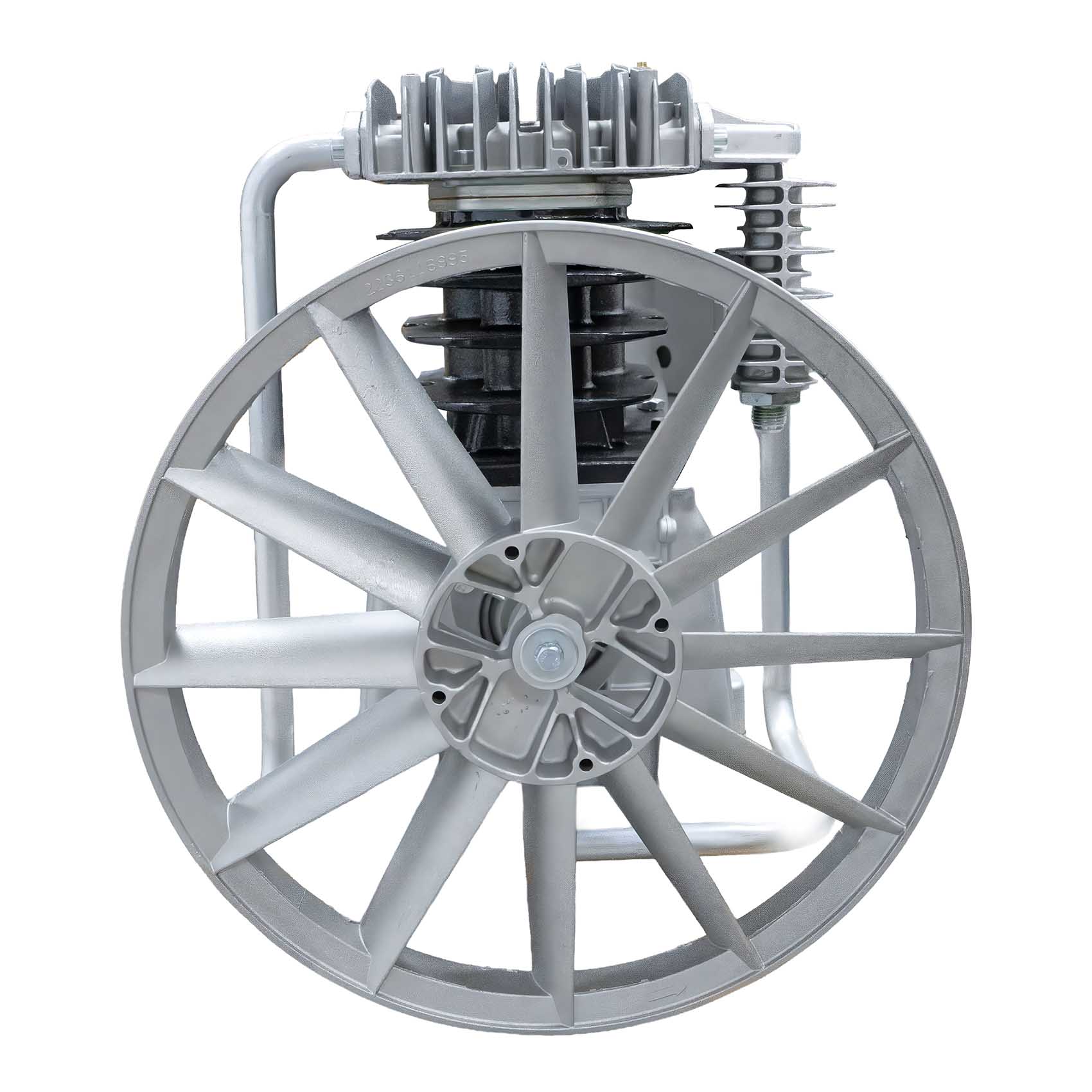

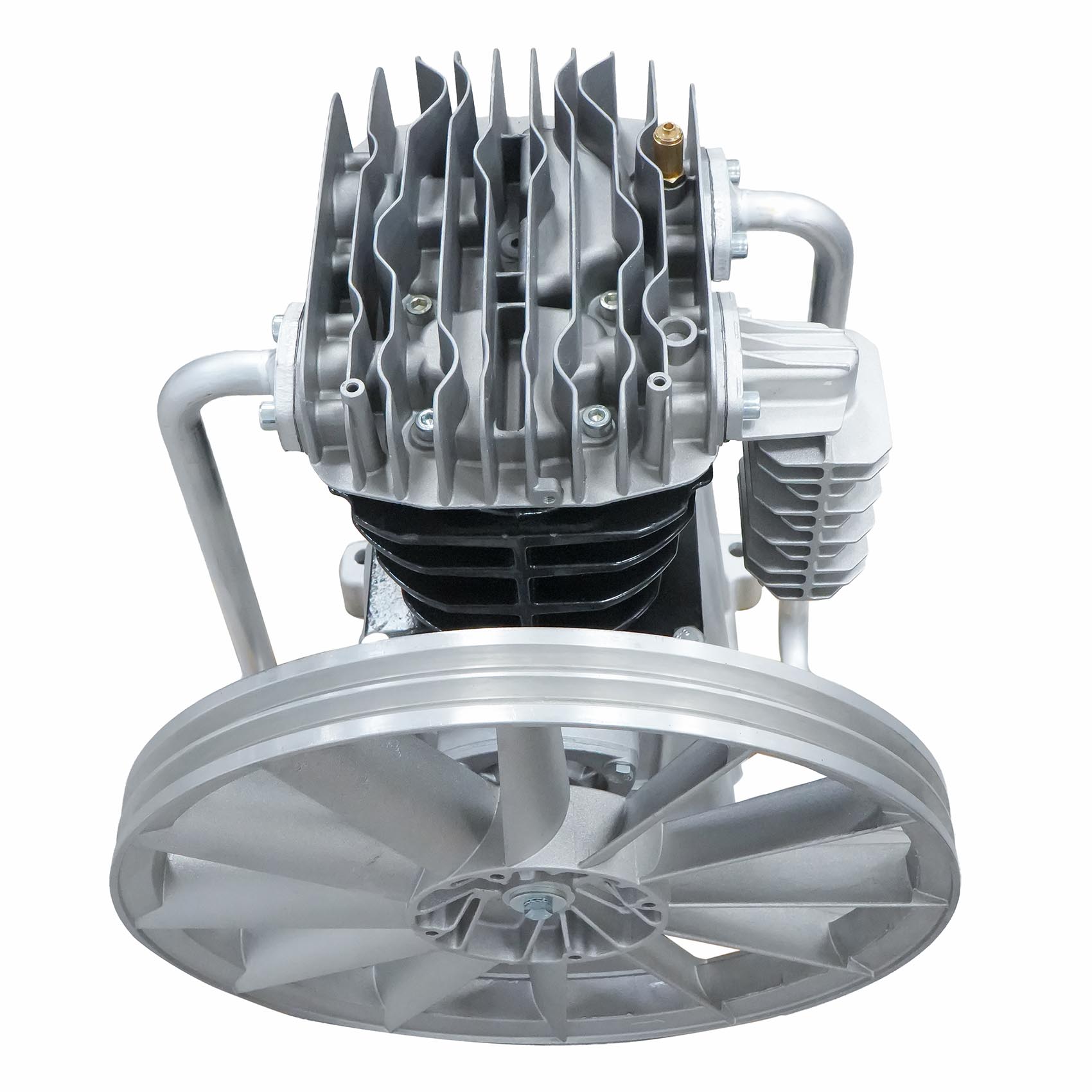

FIAC 10 BAR 7.5 HP PUMPING UNIT FOR AIR COMPRESSOR AB858 BELT DRIVEN PUMPS 1123020555 | COMPRESSOR HEAD | COMPRESSOR PUMP | MADE IN ITALY

BRAND : FIAC

ITEM NO.: AB858

ORIGIN : ITALY

MAX PRESSURE: 10 BAR

MAX PRESSURE: 145 PSI

POWER : RECOMMENDED MOTOR POWER 7.5 HP - 5.5 KW

CYLINDERS / STAGES : 2 / 2 (TWO-CYLINDER, TWO-STAGE PUMP)

PUMP SPEED : 1280 MIN⁻¹ (RPM)

AIR DISPLACEMENT (SUCTION - THEORETICAL INTAKE): 830 L/MIN - 29.3 CFM - 50 M³/H

AIR DELIVERY (EFFECTIVE AIR OUTPUT) : 640 L/MIN - 22.5 CFM - 38.5M³/H

FLYWHEEL (PULLEY) : 430 × 2 A (16.9" × 2 V-BELTS)

DIMENSIONS (L × P × H) : 430 × 350 × 510 MM (16.9 × 13.8 × 20 IN)

LXPXH : 45X41X66

WEIGHT : 34 KG (75 LB)

1. THE AB SERIES DISTINGUISHES THE OIL-LUBRICATED SINGLE-STAGE AND TWO-STAGE BELT-DRIVEN TWO-CYLINDER COMPRESSOR UNITS.
2. THE FIAC COMPRESSOR UNITS HAVE BEEN DESIGNED AND TESTED IN COMPLIANCE WITH THE STRICTEST INTERNATIONAL STANDARDS.
3. PARTICULAR RESEARCH HAS BEEN DEDICATED TO CONTROLLING NOISE LEVELS AND DISSIPATING HEAT GENERATED DURING OPERATION.
4. THE COMPRESSOR UNIT IS SUPPLIED BY THE MANUFACTURER WITHOUT OIL
