BRAND : F.G
ITEM NO.: FR11/4
ORIGIN : ITALY
DIMENSIONS : H 26 X W 4.5 X L 4.5 CM
WEIGHT : 560 G
MODES :
MOD. AT-FR :
REGULATION FIELD : 0/12 BAR (1.2 MPA - 174 PSI)
FILTER ELEMENT : 20 µ
THERAD : 1/8" . 1/4" - 3/8" . 1/2"
FLOW : 850 NL/M - 2600 NL/M
FLOW MEASURED WITH PRIMARY PRESSURE 7 BAR (0.7 MPA - 700 KPA - 101 PSI) REGULATED PRESSURE 6 BAR (0.6 MPA - 600 KPA - 87 PSI) △P= 10% OF PRESET PRESSURE
MOD. AT-R :
REGULATION FIELD : 0/12 BAR (1.2 MPA - 174 PSI)
THERAD : 3/8" . 1/2" - 3/4" . 1"
FLOW : 2600 NL/M - 4600 NL/M
FLOW MEASURED WITH PRIMARY PRESSURE 7 BAR (0.7 MPA - 700 KPA - 101 PSI) REGULATED PRESSURE 6 BAR (0.6 MPA - 600 KPA - 87 PSI) △P= 10% OF PRESET PRESSURE
MOD. AT-F :
FILTER ELEMENT : 20 µ
THERAD : 1/8" . 1/4" - 3/8" . 1/2" - 3/4" . 1"
FLOW : 1750 NL/M - 4300 NL/M - 11000 NL/M
FLOW AT 6 BAR (0.6 MPA - 600 KPA - 87 PSI) MEASURED WITH P=0.036 MPA - 36 KPA - 6 PSI)
MOD. AT-L :
REGULATION FIELD : MIN AIR FLOW OF LUBRIF.
FILTER ELEMENT : 5 NL/M - 5 NL/M - 15 NL/M
THERAD : 1/8" . 1/4" - 3/8" . 1/2" - 3/4" . 1"
FLOW : 1700 NL/M - 4500 NL/M - 16000 NL/M
| Item Code | FGFR11/4 |
|---|---|
| Barcode | 6295123305437 |
| Brand | FG |

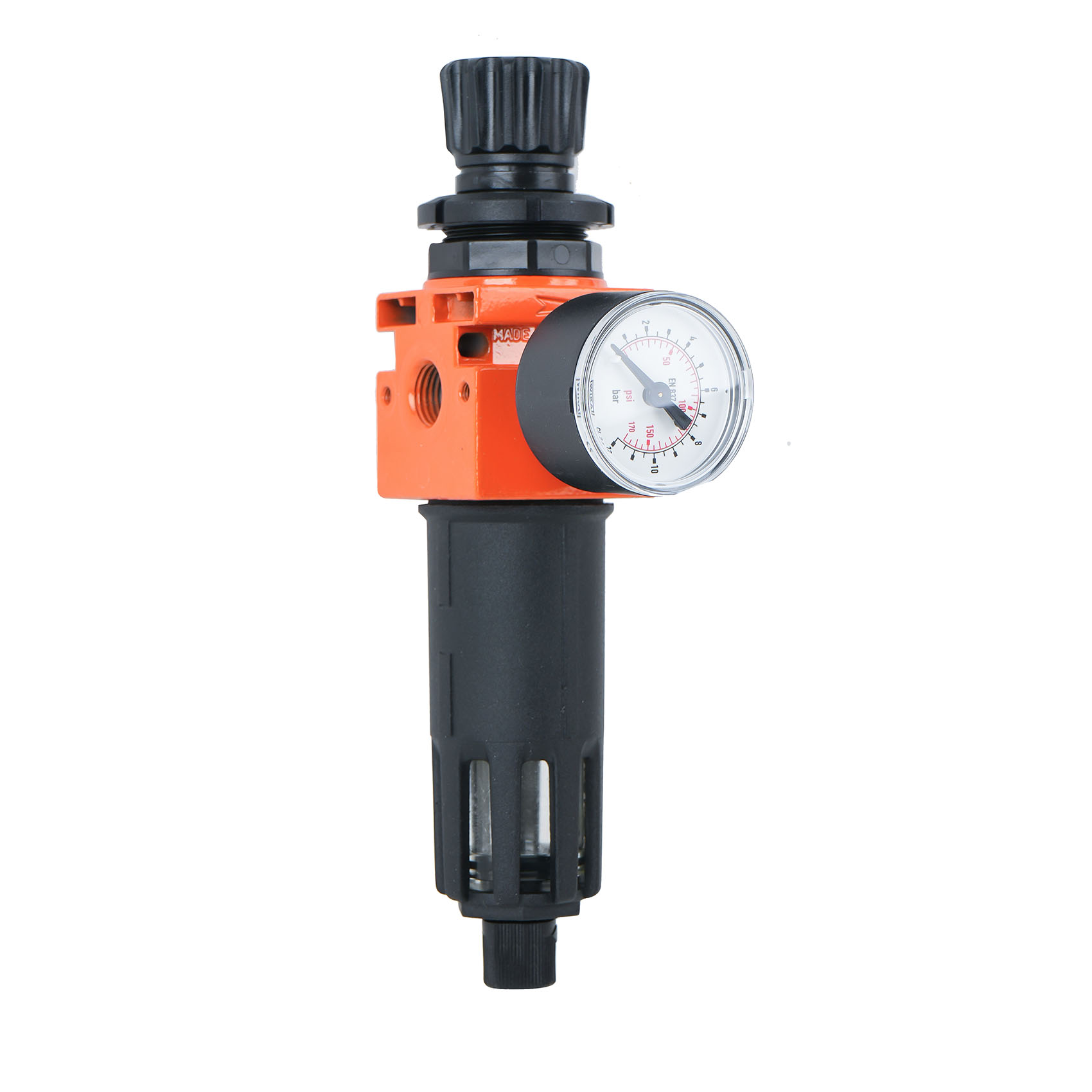

The F.G FR11/4 Filter Regulator Lubricator (FRL) Unit is a premium Italian-engineered air preparation system designed to improve the performance, efficiency, and lifespan of pneumatic equipment. Combining air filtration, pressure regulation, and automatic lubrication into one compact unit, it removes contaminants from compressed air, maintains stable operating pressure, and supplies clean lubrication to pneumatic tools. Suitable for industrial automation, workshops, manufacturing facilities, and compressed air systems, this modular FRL unit can also be reconfigured to meet specific application requirements.
1. Install the FRL unit in the compressed air line before the pneumatic equipment.
2. Ensure the airflow direction matches the arrow marked on the unit.
3. Connect the inlet and outlet using compatible threaded fittings.
4. Adjust the pressure regulator to the required operating pressure for your equipment.
5. Fill the lubricator reservoir with the recommended pneumatic tool oil if lubrication is required.
6. Drain accumulated water and contaminants from the filter bowl periodically.
7. Inspect and replace the filter element when necessary to maintain optimum airflow and equipment protection.
The F.G FR11/4 is designed to prepare compressed air before it reaches pneumatic equipment. It filters solid and liquid contaminants, regulates air pressure for stable operation, and delivers controlled lubrication to pneumatic tools, helping improve efficiency, reduce wear, and extend equipment service life.
The F.G FR11/4 offers complete compressed air preparation in one reliable unit. Its Italian engineering, modular construction, efficient filtration, precise pressure control, and automatic lubrication help maximize the performance and lifespan of pneumatic equipment while reducing maintenance costs and minimizing downtime in demanding industrial environments.
An FRL unit prepares compressed air by filtering contaminants, regulating air pressure, and providing controlled lubrication to pneumatic equipment for improved performance and longer service life.
The filter removes solid particles, dust, rust, and moisture from compressed air to help protect pneumatic tools and equipment.
Yes. The integrated regulator allows accurate adjustment of compressed air pressure to match the requirements of different pneumatic applications.
Lubrication depends on the pneumatic equipment being used. Many air tools benefit from controlled lubrication, while some modern pneumatic components are designed for oil-free operation.
The FR11/4 is widely used in manufacturing plants, automotive workshops, industrial automation systems, woodworking factories, metal fabrication facilities, and any compressed air installation requiring clean, regulated, and lubricated air.
