BRAND : DECA
ITEM NO.: 272500
ORIGIN : ITALY
ALIMENTATION VOLTAGE (50/60 HZ): 1 PH X 400
OPEN CIRCUIT VOLTAGE (VOLT) : 70 AC - 95 DC
INSTALLATION POWER (KW) : 15 @ 60%
FUSE (AMP) : 32
SOCKET : 50 MM 2
WELDING CURRENT RANGE (AMP) : 20-200 AC - 15 - 180 DC
USABLE ELECTRODES (Ø MM) : TIG 1.6 - 3.2 - MMA 1.6- 4
DUTY CYCLE (AMP) (%) : AC= (200 @ 35%) - (150 @ 60%) - (120 @ 100%) DC= (180 @ 35%) - (135 @ 60%) - (110 @ 100%)
AC: ALTERNATING CURRENT TO WELD ALUMINIUM MAGNESIUM, ALUMINIUM SILICIUM AND RUTILE ELECTRODES
DC: DIRECT CURRENT TO WELD STEEL, STAINLESS STEEL, TITANIUM, COPPER, BRONZE, NICKEL
HF: HIGH FREQUENCY GENERATOR FOR ARC STRIKING WITHOUT CONTACT
INCLUDS : WITH CABLES, TORCH AND EARTH CLAMP
INCLUDED ACCESSORIES : CABLE 3,0M 35MM2 - TORCH TIG 180A
PACKAGE DIMENSION : W 790 X D 395 X H 720 MM
DIMENSIONS : 890 X 460 X 800 MM
PACKAGE WEIGHT : 102.5 KG
WEIGHT ≈ 100 KG
. PRESET GAS FLOW - ADJUSTABLE POST GAS
. CONTINUOUS REGULATION OF WELDING CURRENT
. OVERLOAD PROTECTION
. EQUIPMENT FOR TIG AND COATED ELECTRODE WELDING
| Item Code | DECAWMDT200E |
|---|---|
| Barcode | 8011399011432 |
| Brand | DECA |

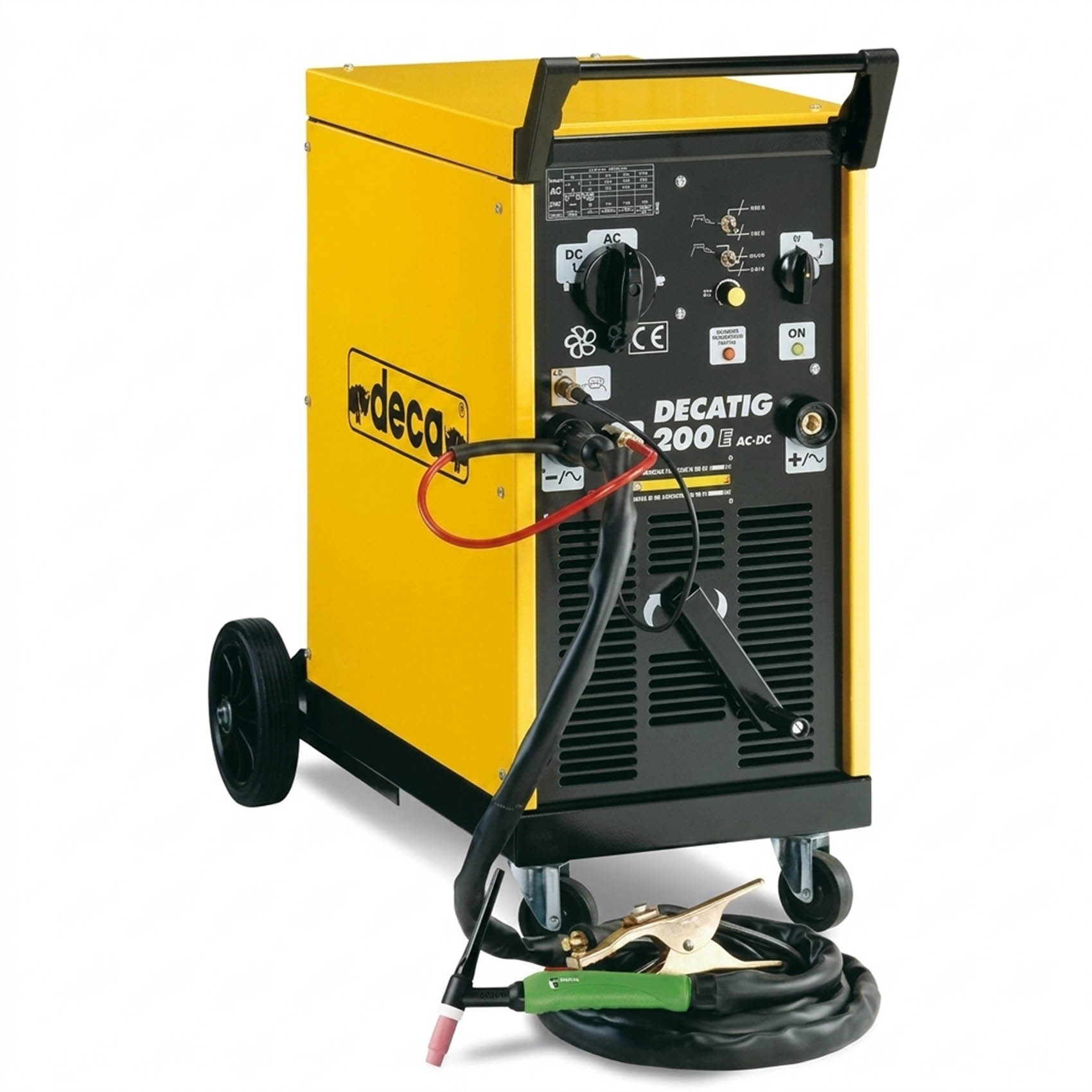

The DECA DECATIG 200E AC/DC Welding Machine is a professional-grade welding solution engineered in Italy for precision TIG and MMA welding applications. Designed for workshops, fabrication facilities, construction sites, maintenance departments, and industrial environments, this versatile welder supports both AC and DC welding processes, allowing users to work with a wide range of metals including aluminium, stainless steel, titanium, copper, bronze, nickel, and carbon steel. Equipped with high-frequency arc ignition, overload protection, adjustable gas control, and continuous current regulation, the DECATIG 200E delivers reliable and high-quality welding performance for demanding professional applications.
Connect the welding machine to a compatible 400V single-phase power supply and ensure all electrical connections comply with safety regulations. Attach the supplied TIG torch, earth clamp, and welding cables. Select either AC mode for aluminium welding or DC mode for steel and stainless steel applications. Adjust the welding current according to the material thickness and welding process. Set the gas flow parameters and begin welding using the high-frequency ignition system for non-contact arc starting. Always wear approved welding safety equipment during operation.
The DECATIG 200E is designed to perform high-quality TIG and MMA welding across a wide variety of metals. It provides precise heat control, excellent weld quality, and flexibility for fabrication, repair, maintenance, and production applications where professional welding performance is required.
The DECA DECATIG 200E combines professional welding performance with exceptional versatility. Its AC/DC capability allows users to weld both aluminium and ferrous metals using a single machine, while the HF ignition system ensures smooth arc starts without contaminating the workpiece. Built with durability, safety, and precision in mind, this machine is ideal for professionals who require reliable results across multiple welding applications.
The machine can weld aluminium, magnesium, aluminium alloys, steel, stainless steel, titanium, copper, bronze, nickel, and other compatible metals using AC and DC welding modes.
AC mode is ideal for welding aluminium and related alloys, while DC mode is used for steel, stainless steel, copper, titanium, and other conductive metals, providing maximum versatility in one machine.
The high-frequency ignition system starts the welding arc without touching the workpiece, reducing contamination and improving weld quality.
Yes. The machine is supplied with welding cables, a TIG torch, and an earth clamp for immediate setup and operation.
Yes. The DECATIG 200E is designed for professional fabrication, maintenance, repair, and production environments requiring precise and reliable welding performance.
