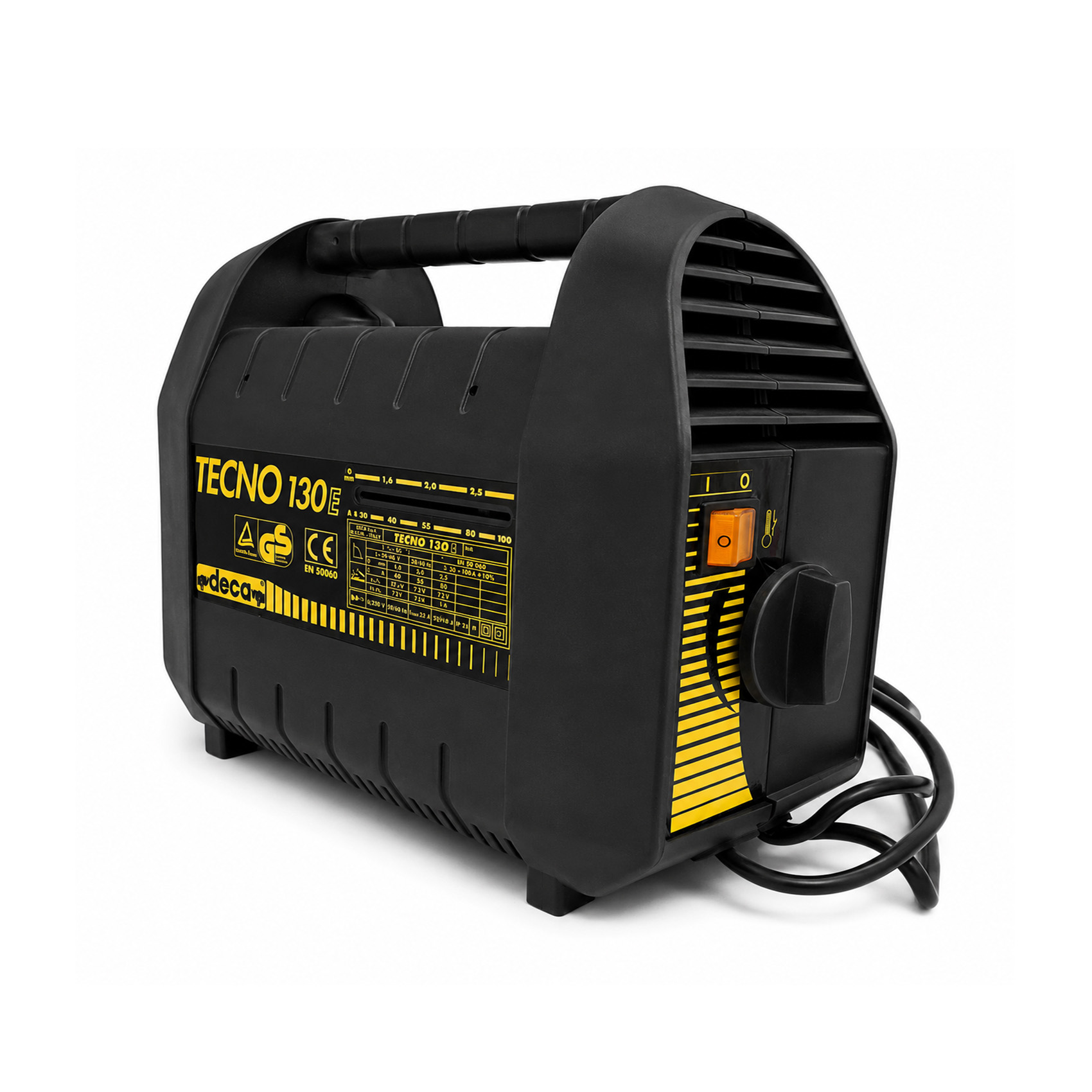

DECA 230V AC WELDING MACHINE TECNO 130E 201800 | 1PH -50/60HZ | 30-100 AMP | MAINTENANCE, LIGHT AND HEAVY METAL WORKING, CONSTRUCTION SITE | MADE IN ITALY

BRAND : DECA

ITEM NO.: 201800

ORIGIN : ITALY

MODEL : TECNO 130E

STANDARD : EN 50060

POWER SUPPLY : SINGLE PHASE (1~)

INPUT VOLTAGE (U1) : 230V AC

FREQUENCY : 50/60 HZ

OPEN CIRCUIT VOLTAGE (U0) : 43–48 V

WELDING CURRENT RANGE (I2) : 30–100 A ±10%

SUITABLE ELECTRODE SIZES : 1.6 MM, 2.0 MM, 2.5 MM

RECOMMENDED WELDING CURRENT : 40 A (1.6 MM), 55 A (2.0 MM), 80 A (2.5 MM)

NO-LOAD / LOAD VOLTAGE (N.C./N.C.L) : 27/41 (1.6 MM), 9/20 (2.0 MM), 4/10 (2.5 MM)

NO-LOAD / LOAD SPEED (N₀/N₁) : 7/27 (1.6 MM), 2/14 (2.0 MM), 1/7 (2.5 MM)

MAXIMUM INPUT CURRENT (I1 MAX) : 22 A

EFFECTIVE INPUT CURRENT (I1EFF) : 16 A

PROTECTION CLASS : IP21

INSULATION CLASS : H

DUTY TYPE : S

PAKAGING DIMENSIONS : L 40 X W 23 X H 30 CM

PAKAGING WEIGHT : 11.40 KG

. ADJUSTABLE WELDING CURRENT FROM 30–100 A (±10%)

. SUITABLE FOR 1.6 MM, 2.0 MM, AND 2.5 MM ELECTRODES
