BRAND : DECA
ITEM NO.: 250600
ORIGIN : ITALY
MODEL : JOB TRIO 220 LAB

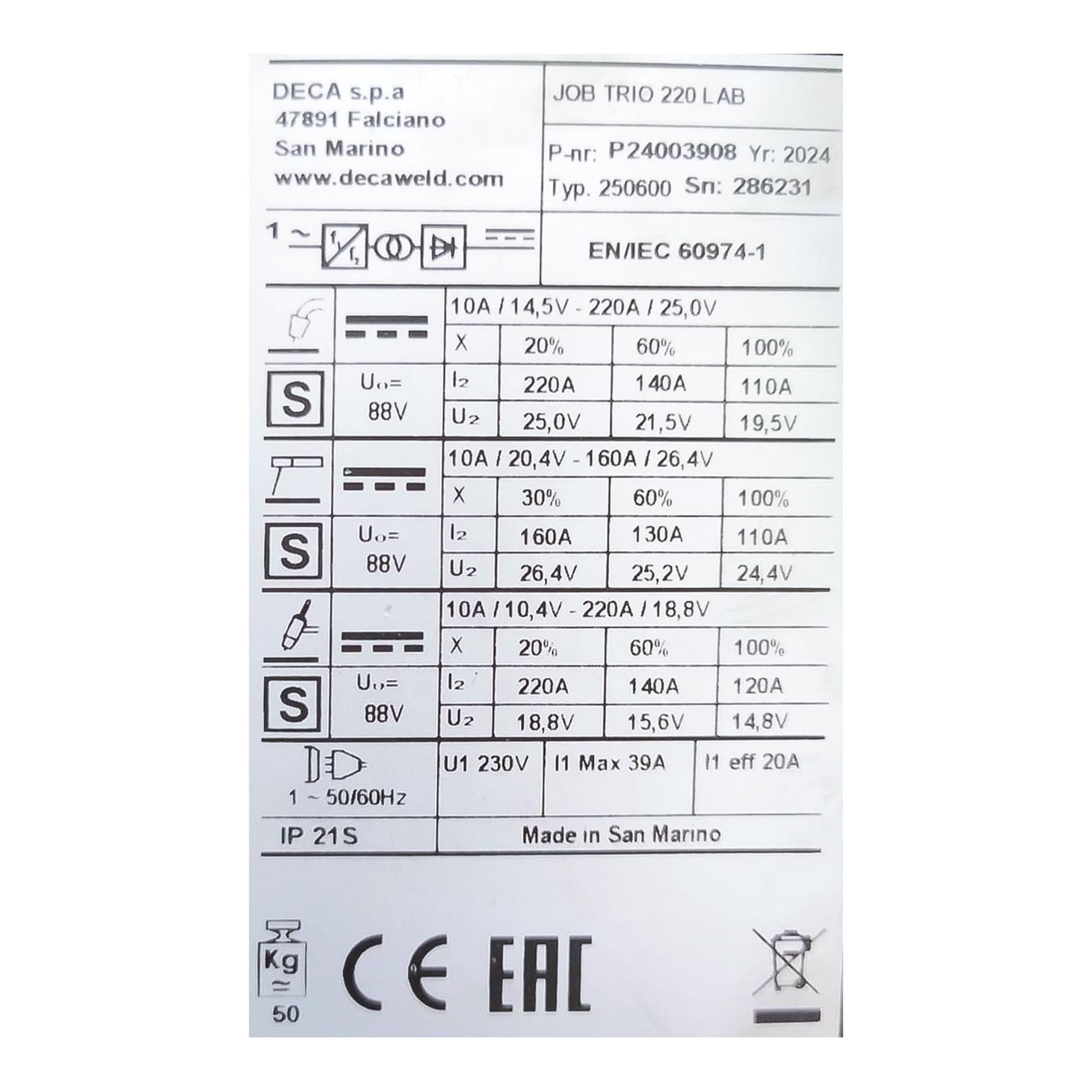

STANDARD : EN/IEC 60974-1
POWER SUPPLY : SINGLE PHASE (1~)
INPUT VOLTAGE (U1) : 230V AC
FREQUENCY : 50/60 HZ
MAXIMUM WELDING CURRENT: 220 A (MIG/TIG) AND 160 A (MMA)
MAXIMUM INPUT CURRENT (I1 MAX) : 39 A
EFFECTIVE INPUT CURRENT (I1EFF) : 20 A
OPEN CIRCUIT VOLTAGE (U0) : 88 V
PROTECTION CLASS : IP21S
MIG/MAG WELDING OUTPUT :
PARAMETER : VALUE
OUTPUT RANGE : 10 A / 14.5 V – 220 A / 25.0 V
DUTY CYCLE : 20% @ 220 A / 25.0 V - 60% @ 140 A / 21.5 V - 100% @ 110 A / 19.5 V
MMA (STICK) WELDING OUTPUT :
PARAMETER : VALUE
OUTPUT RANGE : 10 A / 20.4 V – 160 A / 26.4 V
DUTY CYCLE : 30% @ 160 A / 26.4 V - 60% @ 130 A / 25.2 V - 100% @ 110 A / 24.4 V
TIG LIFT WELDING OUTPUT :
PARAMETER : VALUE
OUTPUT RANGE : 10 A / 10.4 V – 220 A / 18.8 V
DUTY CYCLE : 20% @ 220 A / 18.8 V - 60% @ 140 A / 15.6 V - 100% @ 120 A / 14.8 V
. THE DECA JOB TRIO 220 LAB 230V MIG/MAG INVERTER WELDING MACHINE WITH ACCESSORIES IS A MIG/MAG WELDING EQUIPMENT WITH INVERTER TECHNOLOGY.
. SUPPORTS MIG/MAG, MMA (STICK), AND LIFT TIG WELDING
. 88V OPEN CIRCUIT VOLTAGE
. IP21S PROTECTION RATING
. COMPLIES WITH EN/IEC 60974-1
| Item Code | DECA250600 |
|---|---|
| Barcode | 8011399035476 |
| Brand | DECA |

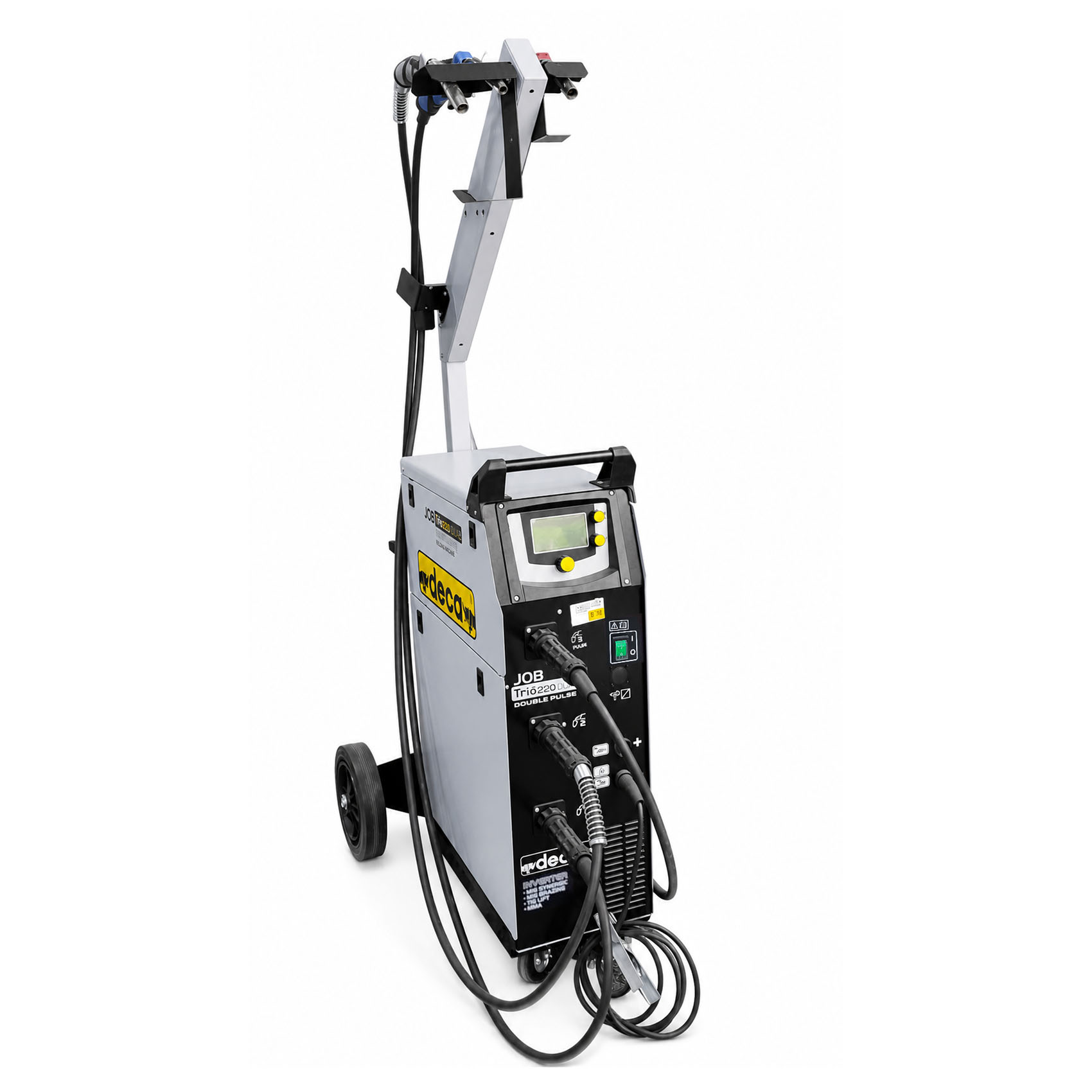

The DECA JOB TRIO 220 LAB is a premium professional multiprocess inverter welding machine engineered in Italy for advanced industrial welding applications. Designed to support MIG/MAG, Pulse MIG, Double Pulse MIG, MMA (Stick), and Lift TIG welding, this all-in-one solution provides exceptional welding quality, productivity, and flexibility for workshops, manufacturing industries, automotive fabrication, stainless steel fabrication, and precision metalworking.

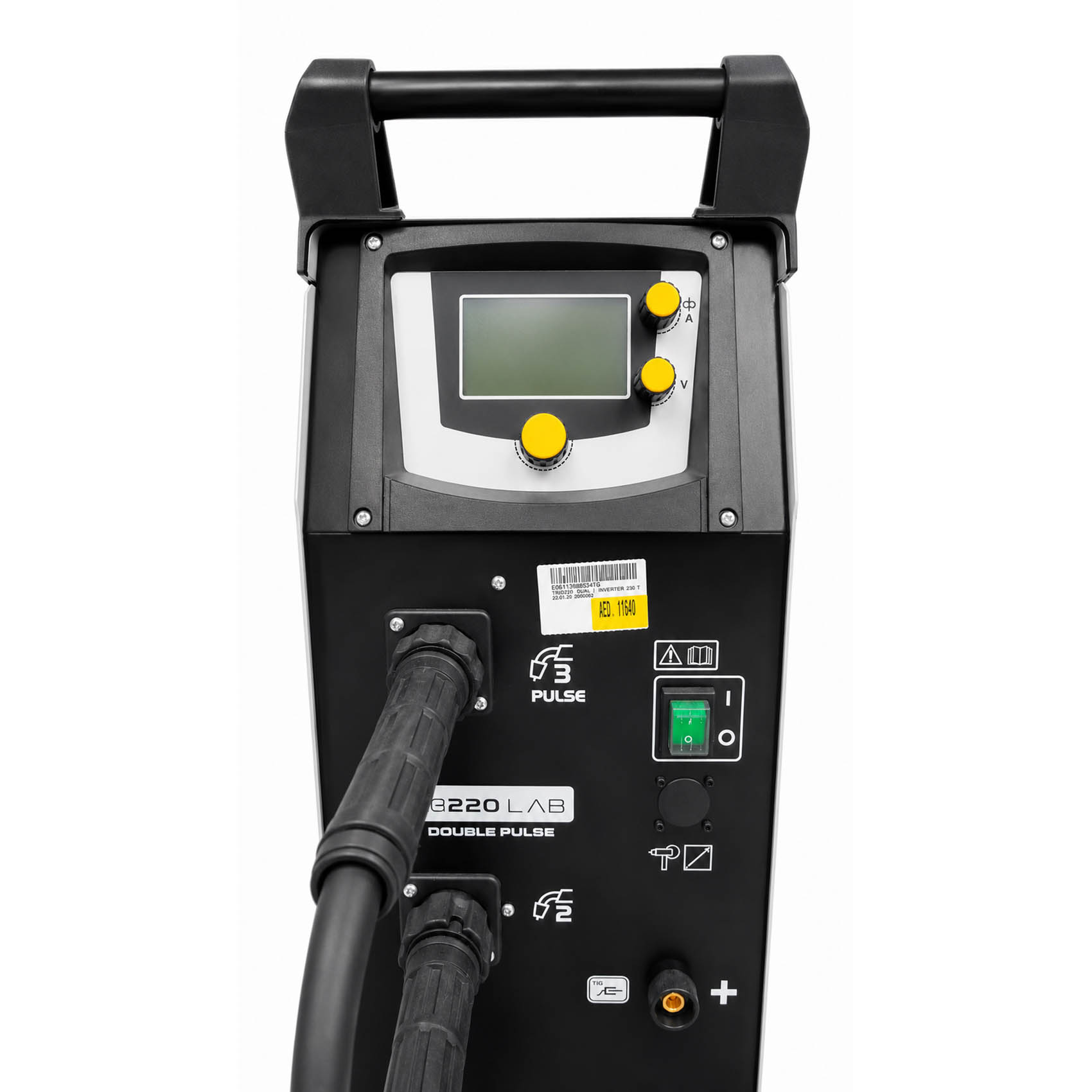

Equipped with an intuitive digital display and an integrated SD card reader, the JOB TRIO 220 LAB allows users to manage welding parameters efficiently while benefiting from advanced inverter technology. Whether welding carbon steel, stainless steel, or aluminum, this professional welding machine delivers stable arc performance, excellent penetration, and clean weld finishes with minimal spatter.
The DECA JOB TRIO 220 LAB is designed to perform multiple professional welding processes using a single machine. It enables users to weld carbon steel, stainless steel, aluminum, and other compatible metals for industrial fabrication, automotive body repair, structural steel construction, stainless steel fabrication, manufacturing, maintenance, pipeline fabrication, and precision engineering applications.
The DECA JOB TRIO 220 LAB is recommended for:
The DECA JOB TRIO 220 LAB supports MIG/MAG, Pulse MIG, Double Pulse MIG, MMA (Stick), and Lift TIG welding, making it a complete multiprocess welding solution for professional applications.
Pulse and Double Pulse technology provide superior arc control, reduced heat input, less spatter, improved weld appearance, and excellent results when welding stainless steel and aluminum.
Yes. The DECA JOB TRIO 220 LAB is designed to weld aluminum, stainless steel, carbon steel, and other compatible metals using the appropriate welding process and consumables.
The integrated SD card reader allows users to manage welding programs, software updates, and machine settings, helping maintain consistent welding performance and workflow efficiency.
The DECA JOB TRIO 220 LAB combines advanced inverter technology, five welding processes, Pulse and Double Pulse capabilities, digital controls, Italian engineering, and exceptional welding performance, making it an ideal solution for demanding professional fabrication and industrial applications.
