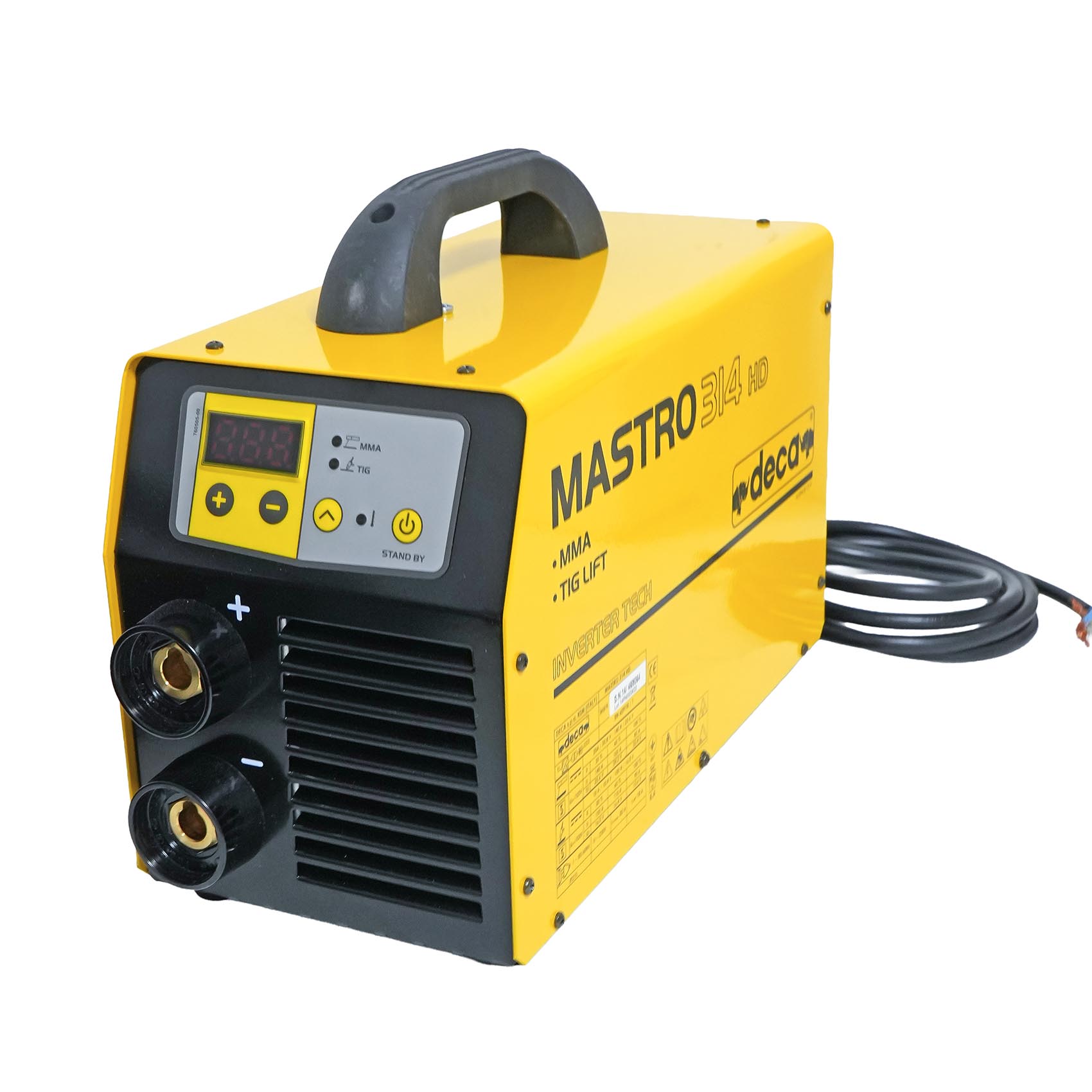

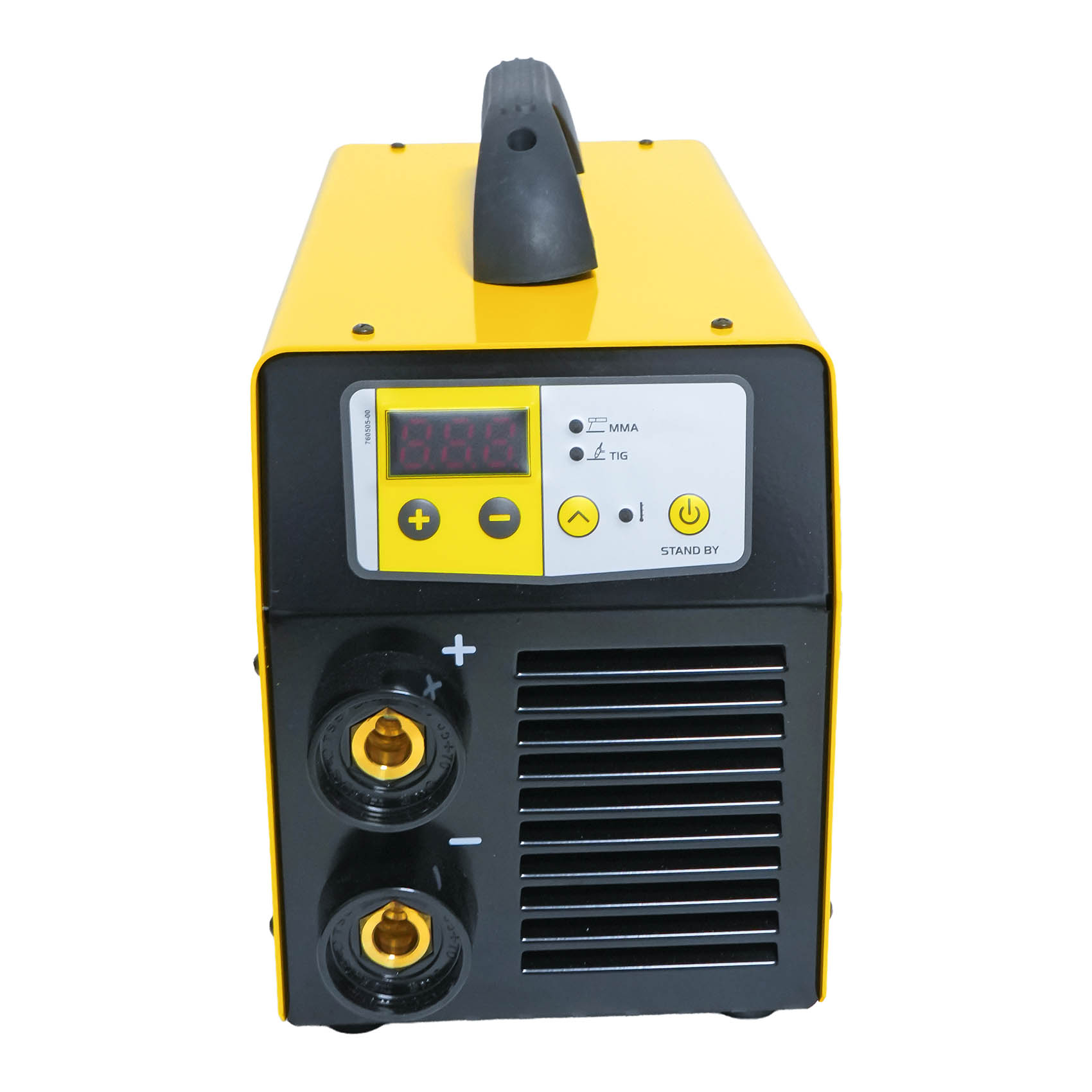

DECA 230V AC DECA INVERTER WELDING MACHINE MASTRO 314HD 285200 | 1PHX50/60HZ | 20-140A, 10-150A | MMA AND LIFT WELDING | DISPLAY WITH SD CARD READER | MADE IN ITALY

BRAND : DECA

ITEM NO.: 285200

ORIGIN : ITALY

MODEL : MASTRO 314 HD

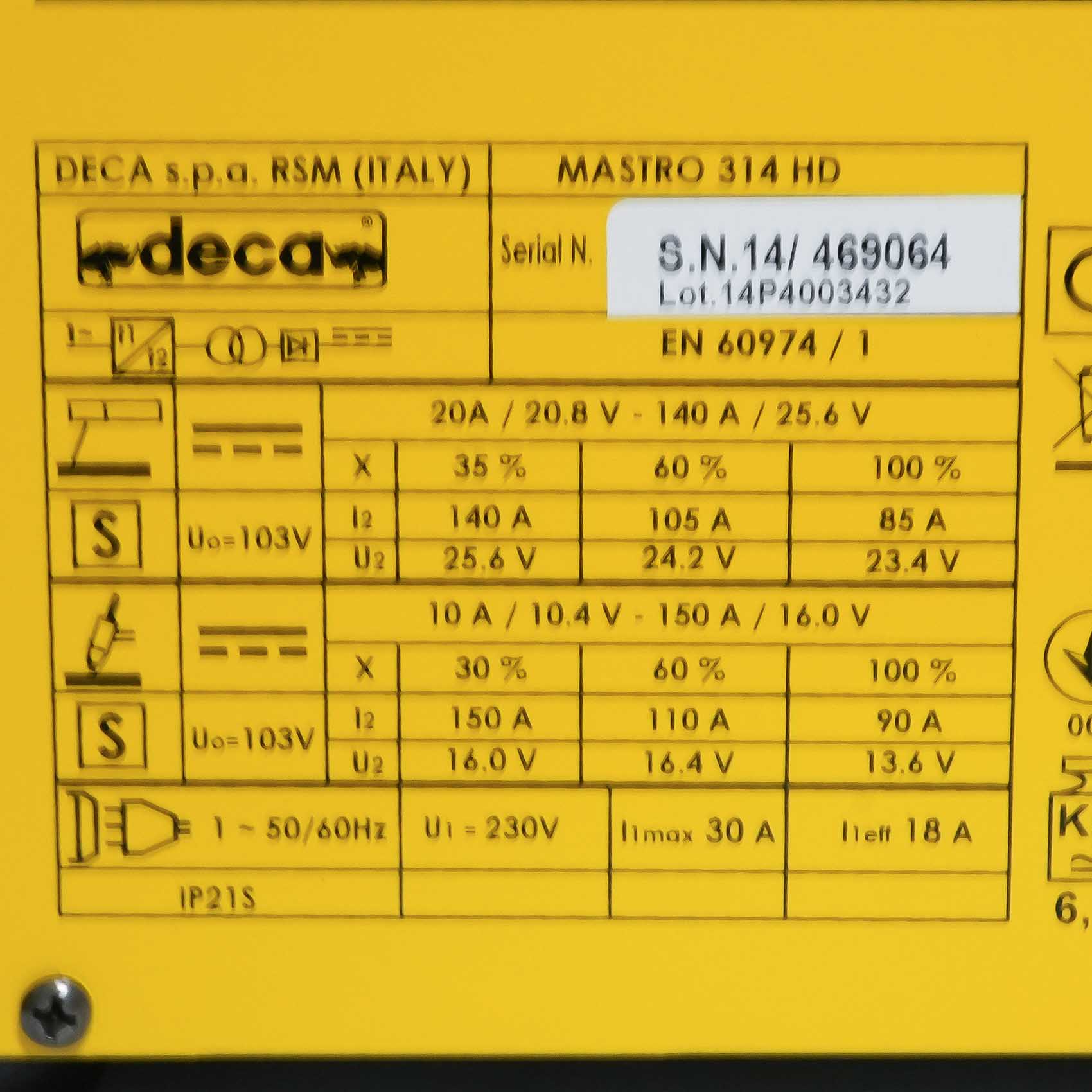

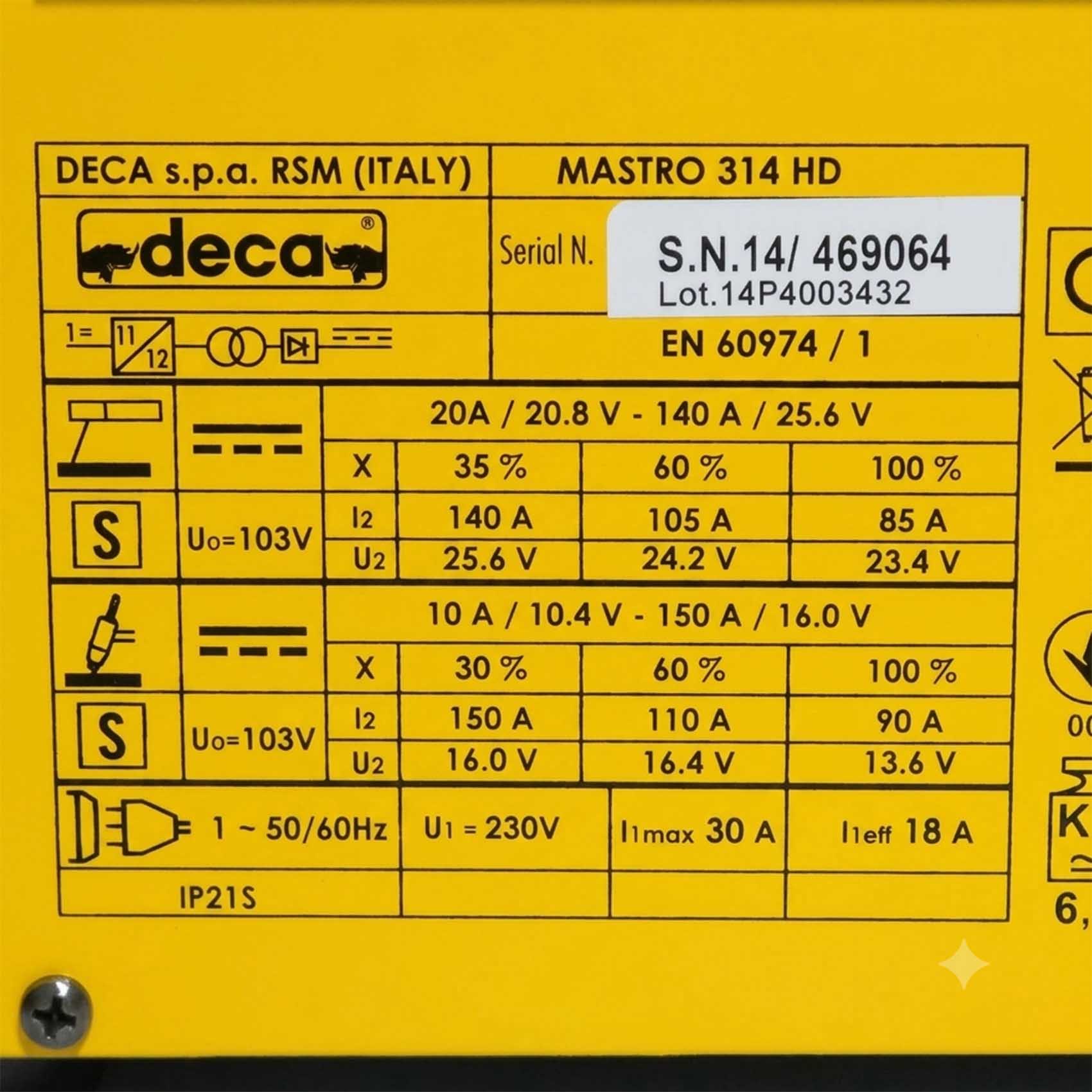

STANDARD : EN 60974-1

POWER SUPPLY : SINGLE PHASE (1~)

INPUT VOLTAGE (U1) : 230V AC

FREQUENCY : 50/60 HZ

OPEN CIRCUIT VOLTAGE (U0) : 103 V

MMA WELDING OUTPUT: 20–140 A

LIFT TIG WELDING OUTPUT: 10–150 A

PROTECTION CLASS : IP21S

MAXIMUM INPUT CURRENT (I1 MAX) : 30 A

EFFECTIVE INPUT CURRENT (I1EFF) : 18 A

SERIAL NUMBER : S.N. 14/469064

LOT NUMBER : 14P4003432

PAKAGING DIMENSIONS : L 41 X W 17 X H 29 CM

PAKAGING WEIGHT : 6.20 KG

MMA (STICK) WELDING OUTPUT :

PARAMETER : VALUE

OUTPUT RANGE : 20 A / 20.8 V – 140 A / 25.6 V

DUTY CYCLE : 35% @ 140 A / 25.6 V - 60% @ 105 A / 24.2 V - 100% @ 85 A / 23.4 V

TIG LIFT WELDING OUTPUT :

PARAMETER : VALUE

OUTPUT RANGE : 10 A / 10.4 V – 150 A / 16.0 V

DUTY CYCLE : 30% @ 150 A / 16.0 V - 60% @ 110 A / 14.4 V - 100% @ 90 A / 13.6 V

. SUPPORTS MMA (STICK) AND LIFT TIG WELDING

. IP21S PROTECTION RATING

. COMPLIES WITH EN 60974-1
