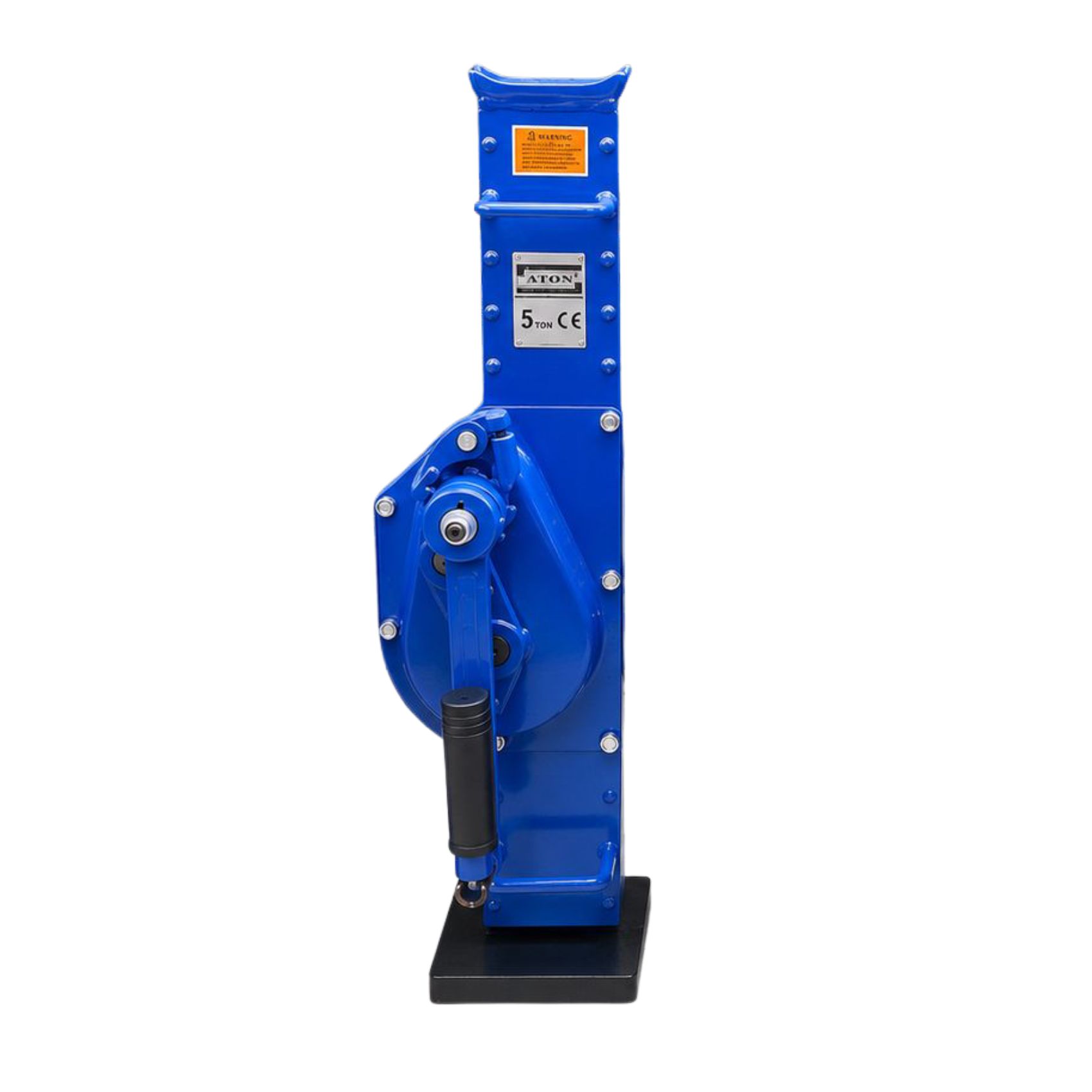

ATON RACK JACK 5 TON – HEAVY-DUTY MECHANICAL JACK | HEAVY MACHINERY LIFTING | VEHICLE AND TRAILER LIFTING | WORKSHOP APPLICATIONS

BRAND: ATON
ITEM NO.: 5T
PRODUCT TYPE: Mechanical Jack
RATED CAPACITY: 5 Ton / 5,000 KG
TEST CAPACITY: 61.3 Ton / 61,300 KG
FULL LOAD OPERATING FORCE: 280 N
COLOR: Blue

According to the supplied ATON product sheet, the mechanical jack is presented with the following features:

• High-strength construction
• Smooth operation
• Durability
• Reliable safety performance
• Quality assured
• Heavy-duty application
• Manual mechanical operation
• 5 Ton rated lifting capacity
• Robust metal construction
• Designed for heavy-duty lifting applications

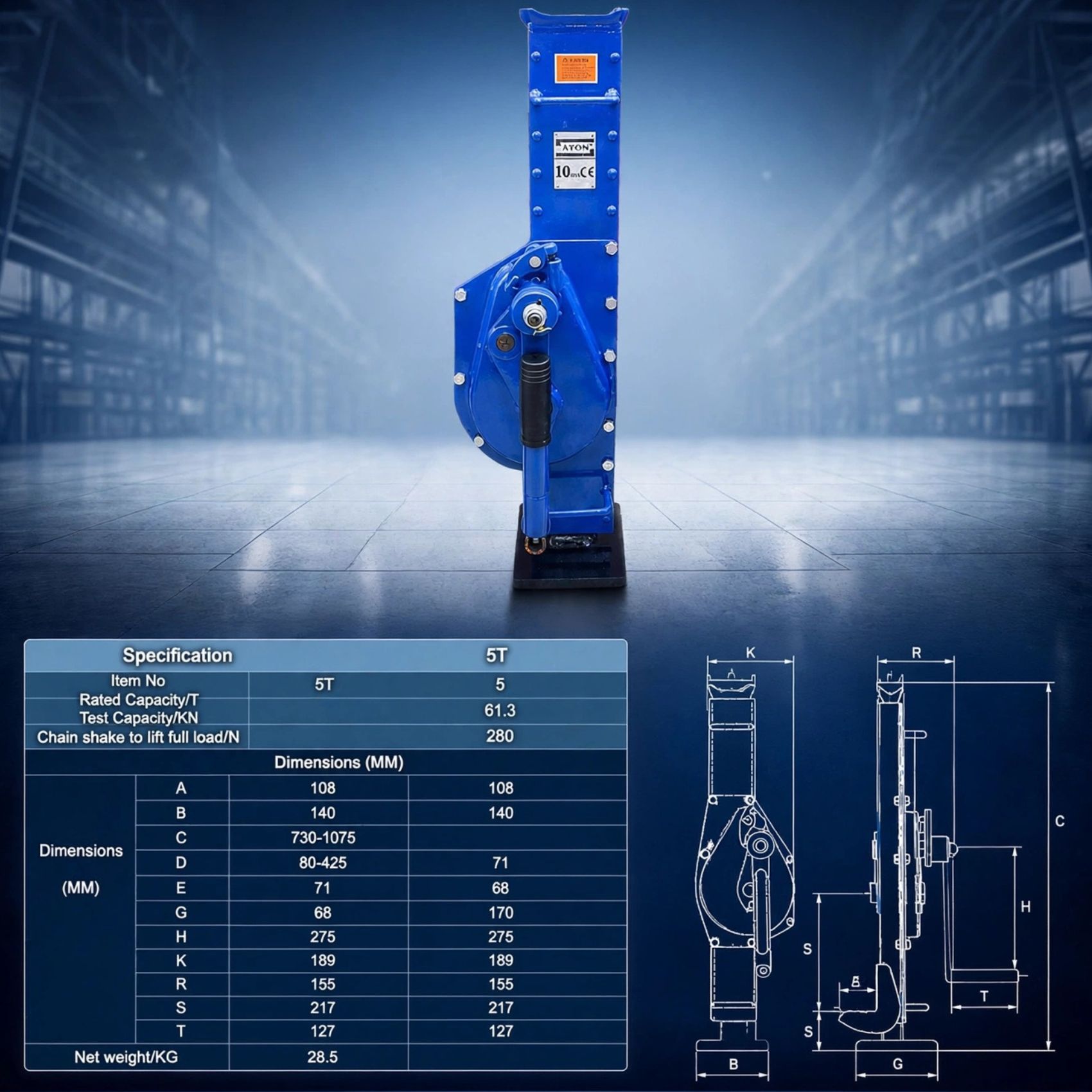

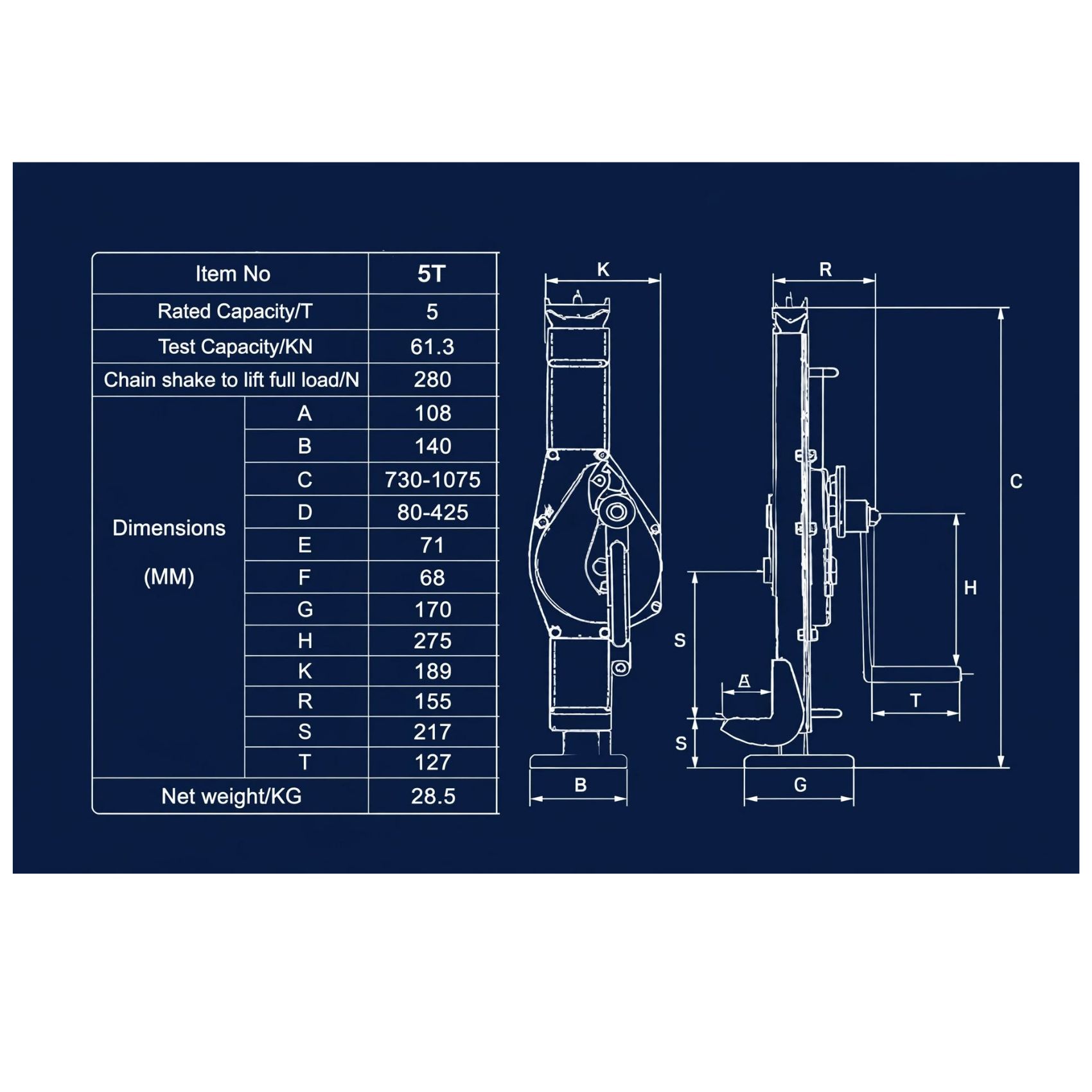

NET WEIGHT: 28.5 KG
DIMENSION A: 108 MM
DIMENSION B: 140 MM
DIMENSION C: 730–1075 MM
DIMENSION D: 70–425 MM
DIMENSION E: 71 MM
DIMENSION F: 68 MM
DIMENSION G: 170 MM
DIMENSION H: 275 MM
DIMENSION K: 189 MM
DIMENSION R: 155 MM
DIMENSION S: 217 MM
DIMENSION T: 127 MM
