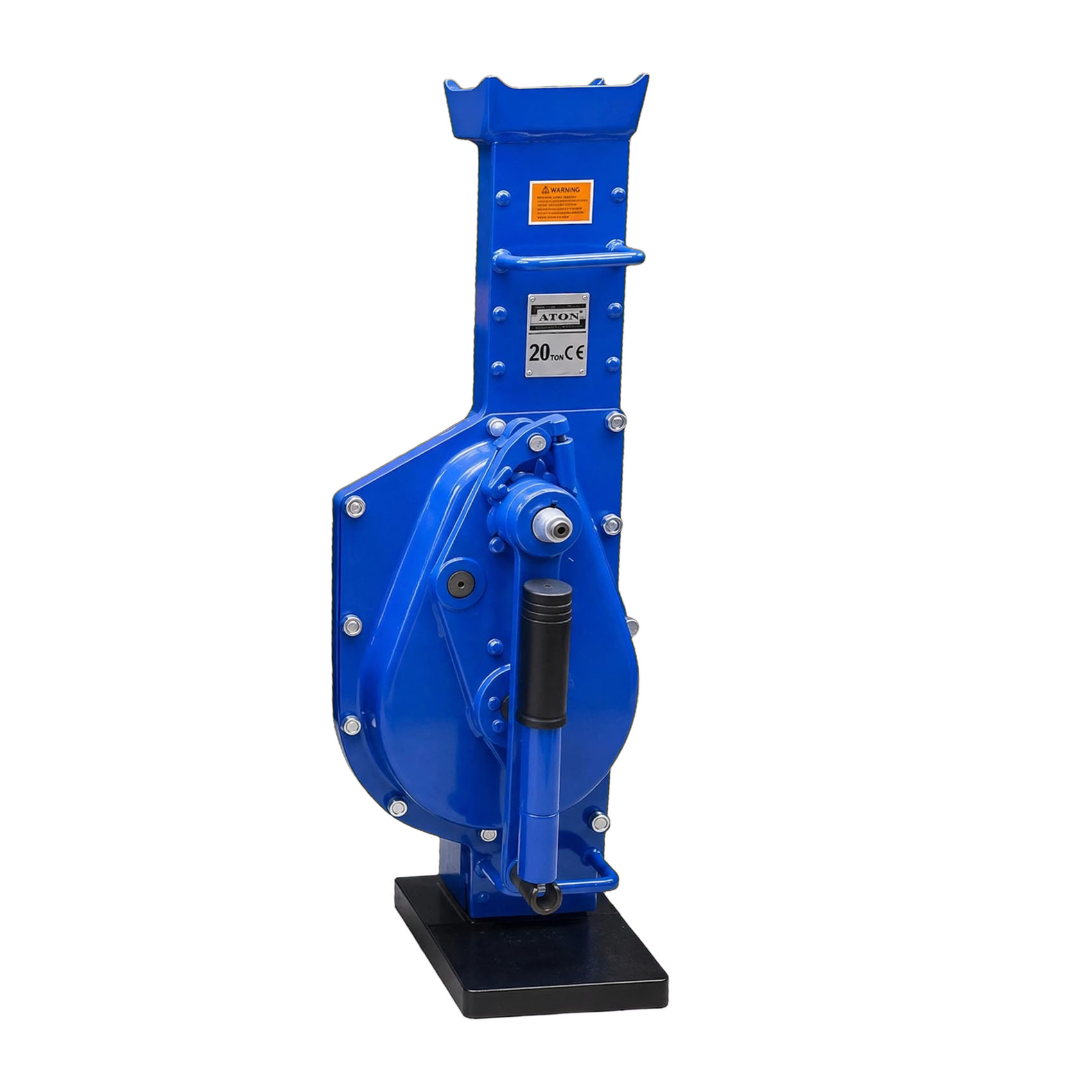

The ATON 20 Ton Rack Jack is a heavy-duty mechanical jack designed for lifting and positioning heavy machinery, industrial equipment, vehicles, and other demanding loads. Built with a high-strength steel construction, it provides reliable lifting performance, smooth mechanical operation, and excellent durability for professional and industrial applications.
With a rated lifting capacity of 20 tons (20T) and a test capacity of 245 kN, the ATON Rack Jack is engineered for heavy-duty lifting tasks where strength, stability, and dependable performance are essential. Its robust rack-and-pinion mechanical design allows controlled lifting and lowering, while the large base provides improved stability during operation.
Upper body width / head width of the jack: 135 mm
Width of the bottom supporting base: 150 mm
Overall height range of the jack : 860–1180 mm
Lifting/supporting height range : 100–420 mm
Dimension of the lower lifting/supporting section : 78 mm
Width/dimension
of the lifting toe area : 85
mm
Front-to-back dimension of the base: 180 mm
Height
of the main lifting mechanism/side section: 380mm
Width
of the upper/main body : 275 mm
Side/handle operating dimension : 220 mm
Lower
lifting/support dimension: 210
mm
Side projection / operating mechanism dimension : 250 mm
| Item Code | CHIRJ20T |
|---|---|
| Barcode | 111000011814 |
| Brand | ATON |
