BRAND : PIUSI
ITEM NO.: F00385P0A
ORIGIN : ITALY
PUMPS : PANTHER 56/72
NOZZLE : SELF 3000 MANUAL NOZZLE
METERS : K33
OUTLET : 3/4" BSP
POWER : 230V/50HZ
POWER WATT : 350
FLUID : DIESEL/HVO/XTL
FLOW RATE : 56 L/MIN
GPM : 15
AMP. MAX : 3
ACCURACY : +- 1%
HOSE SIZE : L 4 X Ø20 MM
APPLICATION : AGRICOLTURE, INDUSTRIAL, MINING & CONSTRUCTION
PACKAGING SIZE : 357X357X275 MM
WEIGHT : 16 KG

INCLUDES :
1 - ST WITH METER UNIT
METER
1 - DELIVERY HOSE
1 - NOZZLE
1 - NOZZLE HOLDER
1 - INSTRUCTION MANUAL

. READY TO USE
. EASY TO INSTALL
. STURDY STRUCTURE
. HIGH PRECISION METER
. AVAILABLE WITH DIFFERENT
PUMPS

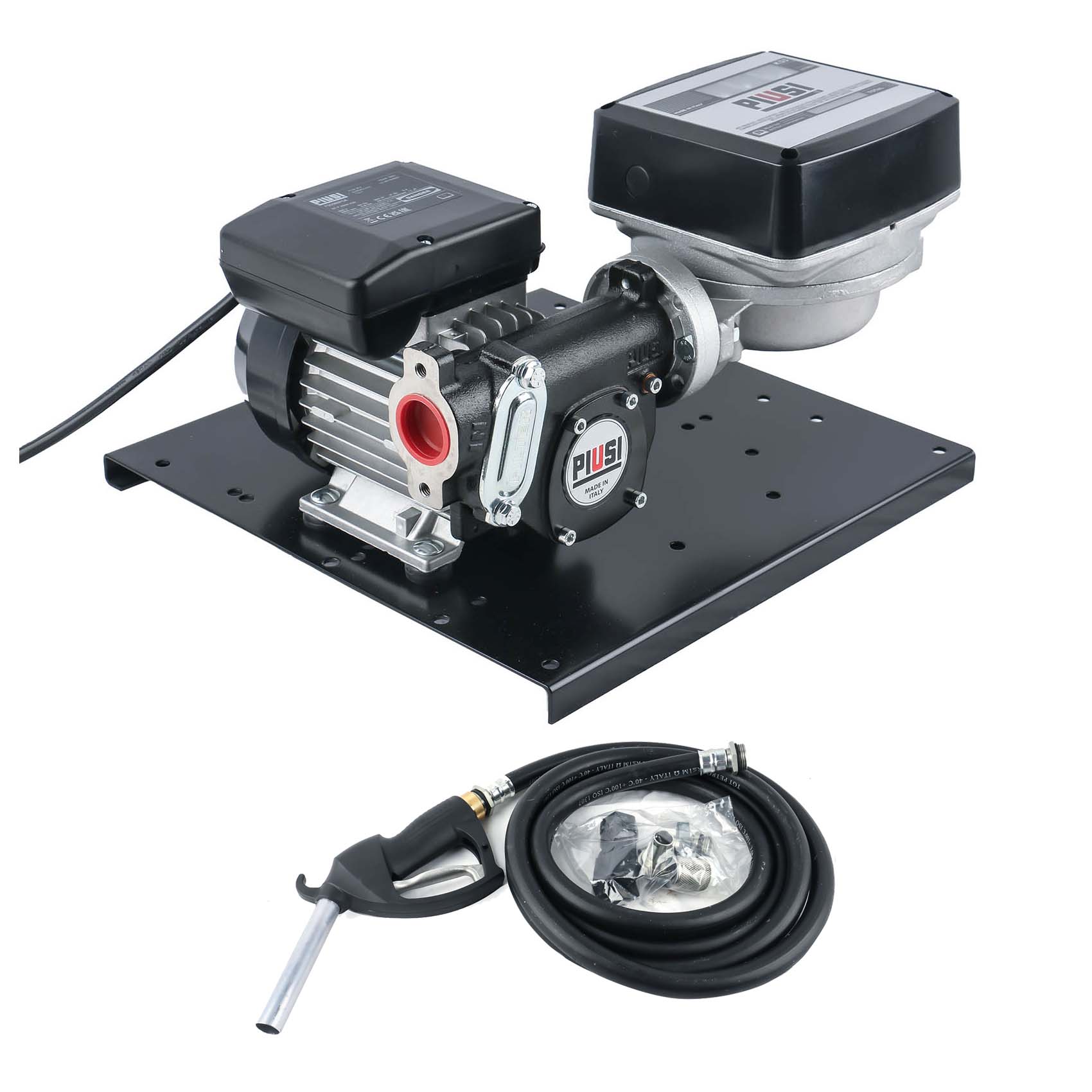

ST WITH METER

ST WITH METER IS THE MODULAR DIESEL TRANSFER STATION. SUITABLE FOR NON-COMMERCIAL USE, IT CAN INCLUDE DETAILS THAT BEST REFLECT THE WORKING CONDITION OF THE USER.

SIMPLE INSTALLATION

A SPECIAL FEATURE OF THE ST WITH METER DIESEL DISPENSER IS ITS SIMPLE INSTALLATION. ITS VERSATILITY MAKES IT A PRODUCT ADAPTABLE TO ANY CONDITION. INDEED, IT FINDS ITS APPLICATION WHERE IT IS NECESSARY TO COMPLETE MOBILE OR BURIED TANKS WITH THE DISPENSING UNIT.

THE DIESEL TRANSFER STATION IS SUITABLE FOR DIFFERENT SECTORS INCLUDING AGRICULTURE AND AUTOMOTIVE FOR THE REFUELLING OF AGRICULTURAL MACHINERY, TRACTORS, VEHICLES AND MACHINERY IN GENERAL.

MODULAR SYSTEM

THE DIESEL TRANSFER SYSTEM IS EQUIPPED WITH A BOTTOM VALVE WITH FILTER AND NOZZLE SUPPORT. THE 4-M LENGTH (6-M ON REQUEST) OF THE DISPENSING HOSE ALLOWS THE SYSTEM TO BE USED IN A PRACTICAL AND CONVENIENT MANNER. THE METAL BOX, ON REQUEST, PROTECTS THE COMPONENTS OF THE DIESEL TRANSFER STATION FROM WEATHER AGENTS AND OTHER POSSIBLE CAUSES OF DAMAGE. ALWAYS ON REQUEST, THE WATER SEPARATOR FILTER ENSURES THE QUALITY OF THE FLUID DISPENSED, SO THAT NO IMPURITY CAN ENTER.

THE BASIC MECHANICAL FLOW METER ALLOWS, WITH A SIMPLE VIEW, TO KEEP THE FUEL CONSUMPTION MONITORED WHILE DISPENSING AND THE REDUCED NOISE LEVEL (LESS THAN 75 DB) MAKES ST WITH METER A SAFE AND PLEASANT FLUID TRANSFER SYSTEM. ST WITH METER CAN ALWAYS BE INTEGRATED WITH THE ACCESSORIES NEEDED TO COMPLETE THE INSTALLATION. THESE INCLUDE THE ELECTRONIC FLOW METER K600, THE AUTOMATIC NOZZLE, THE PUMP AC 56-72 L/MIN, OR THE PUMP DC BIPUMP.

ST WITH METER IS THE DIESEL TRANSFER STATION TAILORED TO YOUR NEEDS.
