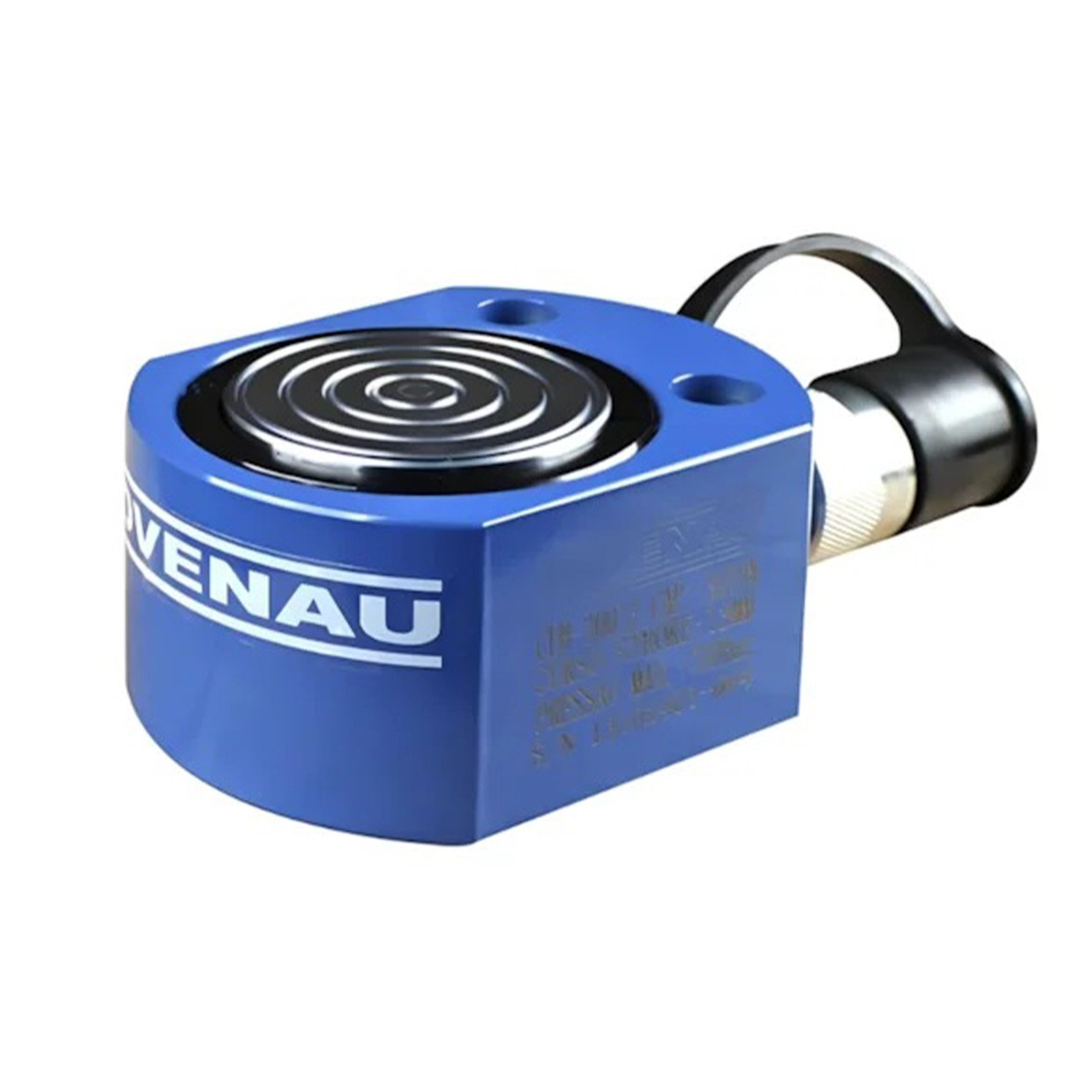

BOVENAU 100 TON HYDRAULIC CYLINDER JACK ULTRA LOW AND COMPACT CUB100016 | 16MM - 178X153MM | COMPACT DESIGN ALLOWS IT TO FIT TIGHT SPACES WHERE NORMAL BOTTLE JACKS CANNOT FIT | PROFESSIONAL QUALITY | GARGE, WORKSHOP, REPAIR SHOP | MADE IN BRAZIL

BRAND : BOVENAU

ITEM NO.: CUB100016

ORIGIN : BRAZIL

CAPACITY : 100 TON

STANDARD QUICK-CONNECT FITTING : AF-400

STROKE : 16 MM

EFFECTIVE CYLINDER AREA : 126.8 CM²

OIL CAPACITY : 203 CM³

PRODUCT SIZE : L 245 X W 153 X MIN. 86 X MAX.H 102 MM

CUPPLER SIZE : 67 CM

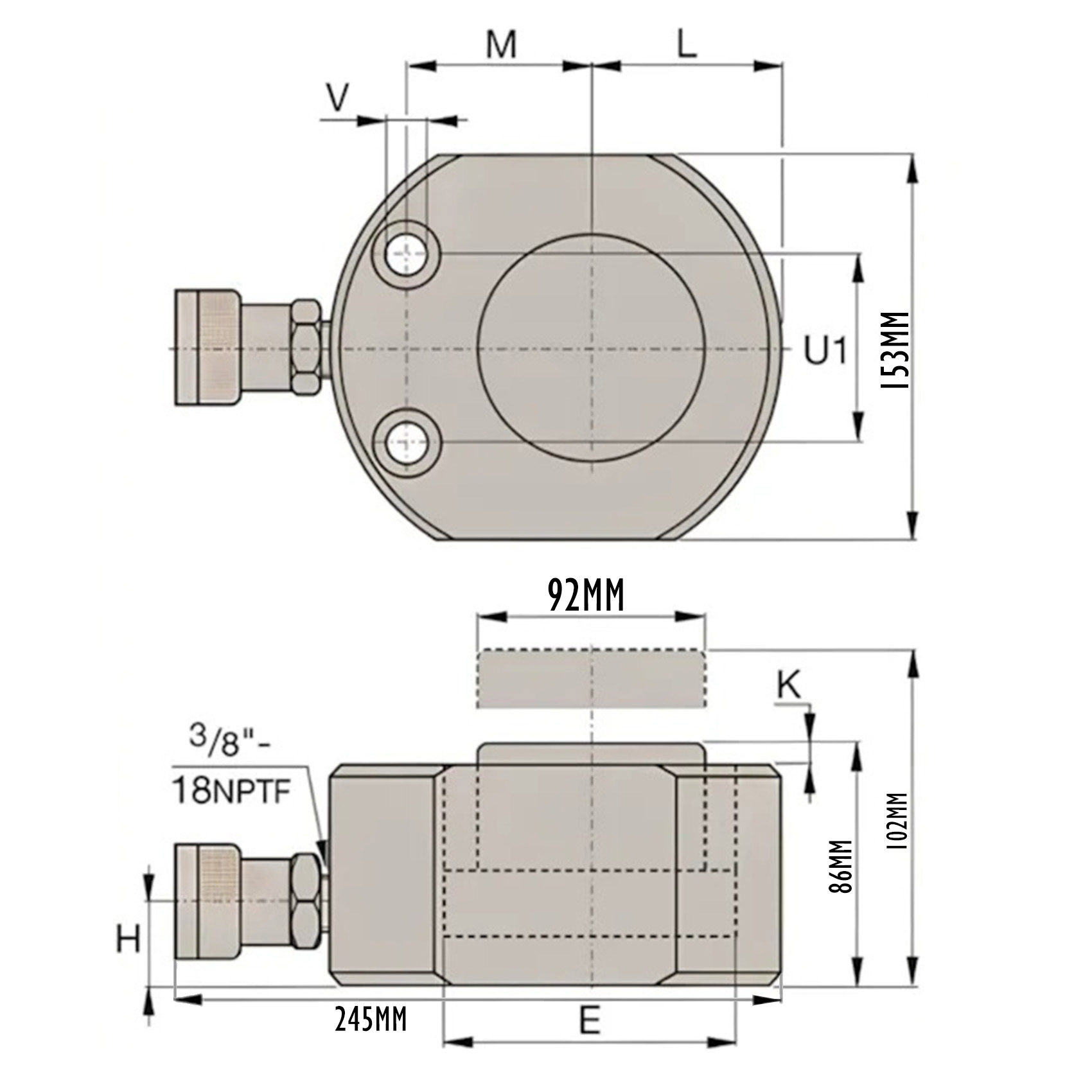

(REFER TO THE PICTURE) :

A. COLLAPSED HEIGHT : 86 MM

B. EXTENDED HEIGHT : 102 MM

D. CYLINDER OUTER DIAMETER .: 178X153 MM

E. CYLINDER INNER DIAMETER : 130 MM

F. ROD DIAMETER : 92 MM

H. BASE TO INLET CONNECTION : 19 MM

K. ROD SEAT PROTRUSION : 2 MM

L. ROD TO BASE : 76 MM

M. ROD TO MOUNTING HOLE : 74 MM

U1. CENTER DISTANCE : 76 MM

V. BORE DIAMETER : 13.5 MM

NET WEIGHT : 14.5 KG

GROSS WEIGHT : 15 KG

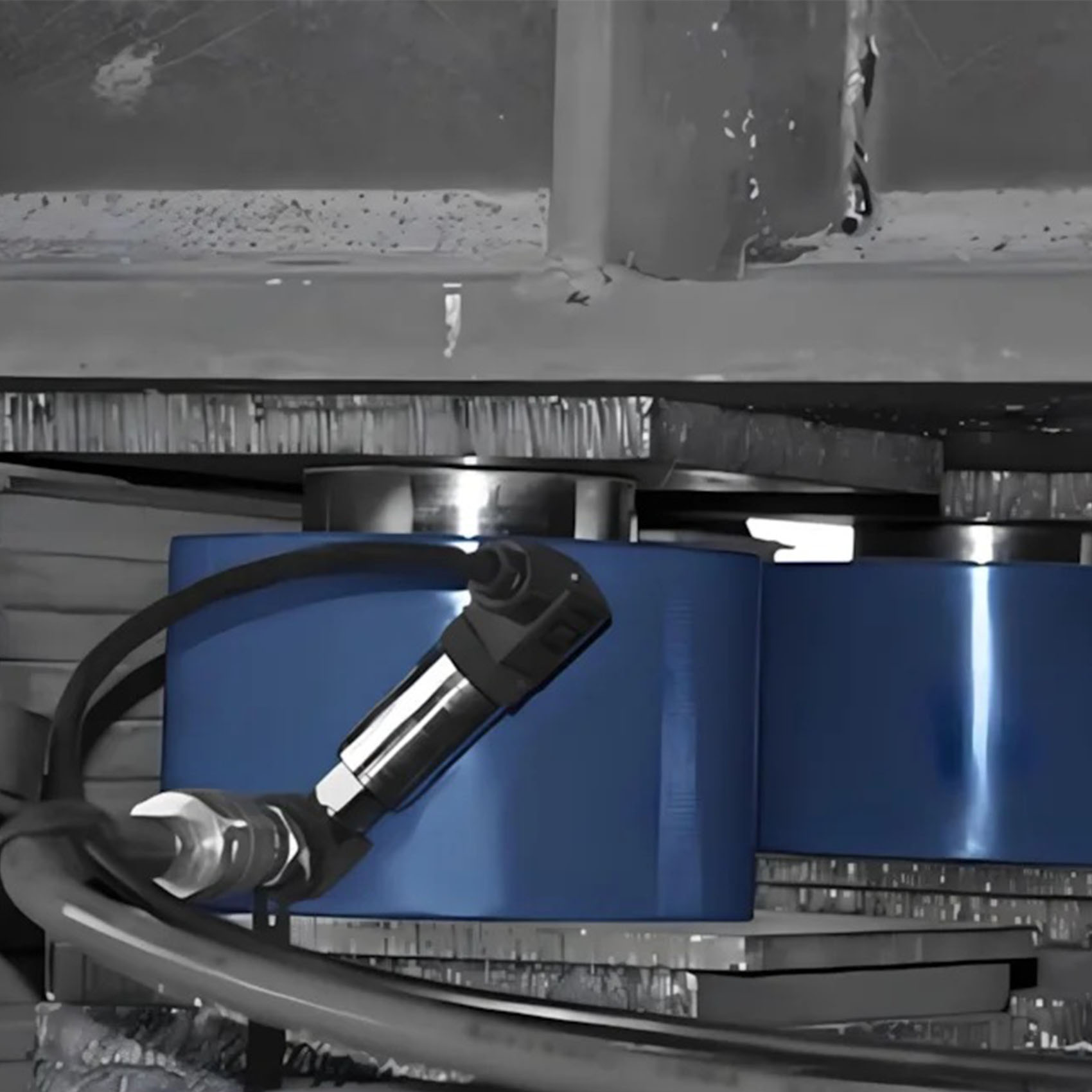

. WHEN HEIGHT IS NEEDED, BOVENAU ULTRA LOW CYLINDERS OFFER THE PERFECT SOLUTION FOR LIFTING THOSE FIRST FEW CENTIMETERS

. COMPACT, LOW-PROFILE DESIGN FOR USE IN LOCATIONS WHERE OTHER CYLINDERS WON'T FIT

. FEATURES MOUNTING HOLES FOR EASY ATTACHMENT

. QUICK COUPLING WITH DUST COVER

. SPRING RETURN
