BRAND : BOVENAU
ITEM NO.: BS900
ORIGIN : BRAZIL
USABLE OIL VOLUME : 900 CM³ ( 0.9 L )
VALVE TYPE WAYS : TWO SPEEDS - 2V
VALVE TYPE : 2V2P
PRESSURE RATING : 1ST STAGE 14 BAR - 2ND STAGE 700 BAR
OIL DISPLACEMENT PER STROKE : 1ST STAGE 9.82 CM³ - 2ND STAGE 2.26 CM³
MAX. HANDLE EFFORT : 50 KGF
OUTPUT OIL THREAD : 3/8" - 18 NPT
DIMENSIONS : A 585 X B 516 X C 38 X D 120 X E 120 X F 82 X G 82 X H 160 MM
NET WEIGHT : 7.6 KG
GROSS WEIGHT : 7.8 KG
No reviews yet. Be the first to review this product!
| Item Code | BOVBS900 |
|---|---|
| Barcode | 7898142338425 |
| Brand | BOVENAU |
| Category | TROLLEY JACKS |
| Made In | MADE IN BRAZIL |
Connect the hydraulic pump to the compatible cylinder or jack using the proper fittings. Fill the reservoir with the recommended hydraulic oil if required. Operate the handle manually to generate pressure and activate the connected equipment. Use controlled pumping for precise operation and release pressure safely after completing the task.

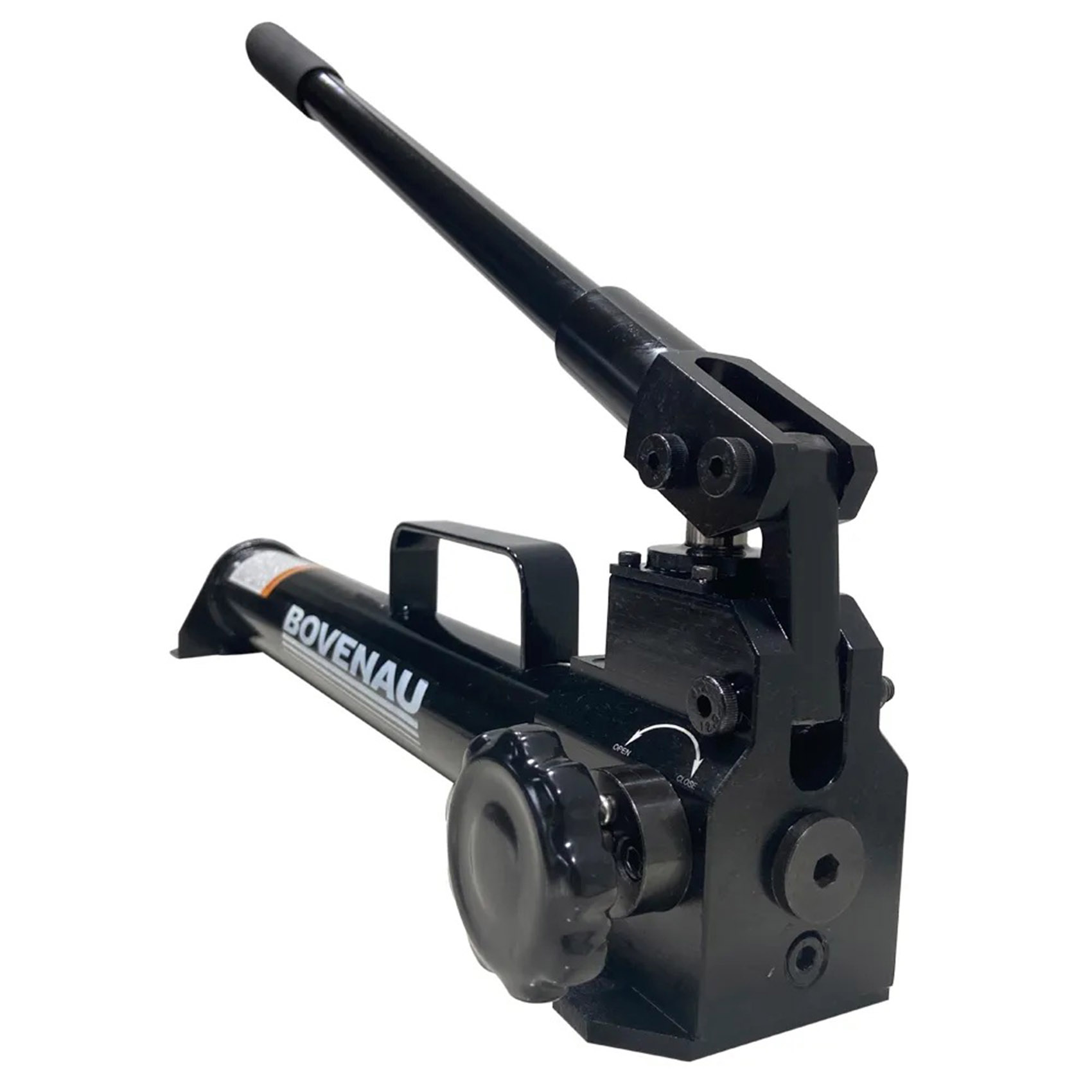

The hydraulic pump is designed to generate high-pressure hydraulic force to operate cylinders, jacks, and other hydraulic equipment. It enables efficient lifting, pushing, and pressing operations in various industrial applications.
This hydraulic pump offers strong performance, reliability, and ease of use. Its two-speed system improves efficiency by allowing quick initial movement and precise high-pressure operation, making it ideal for professional applications.
Ideal for technicians, mechanics, construction professionals, and industrial users who require dependable hydraulic power for lifting and pressing tasks.
