BRAND : BOVENAU
ITEM NO.: CUB50016
ORIGIN : BRAZIL
CAPACITY : 50 TON
STROKE : 16 MM
CYLINDER EFFECTIVE AREA : 62.1 CM²
OIL CAP : 99 CM³
QUICK COUPLER MODEL : AF-604
PRODUCT SIZE : L 201 X W 114 X MIN. 67 X MAX.H 83 MM
CUPPLER SIZE : 67 CM

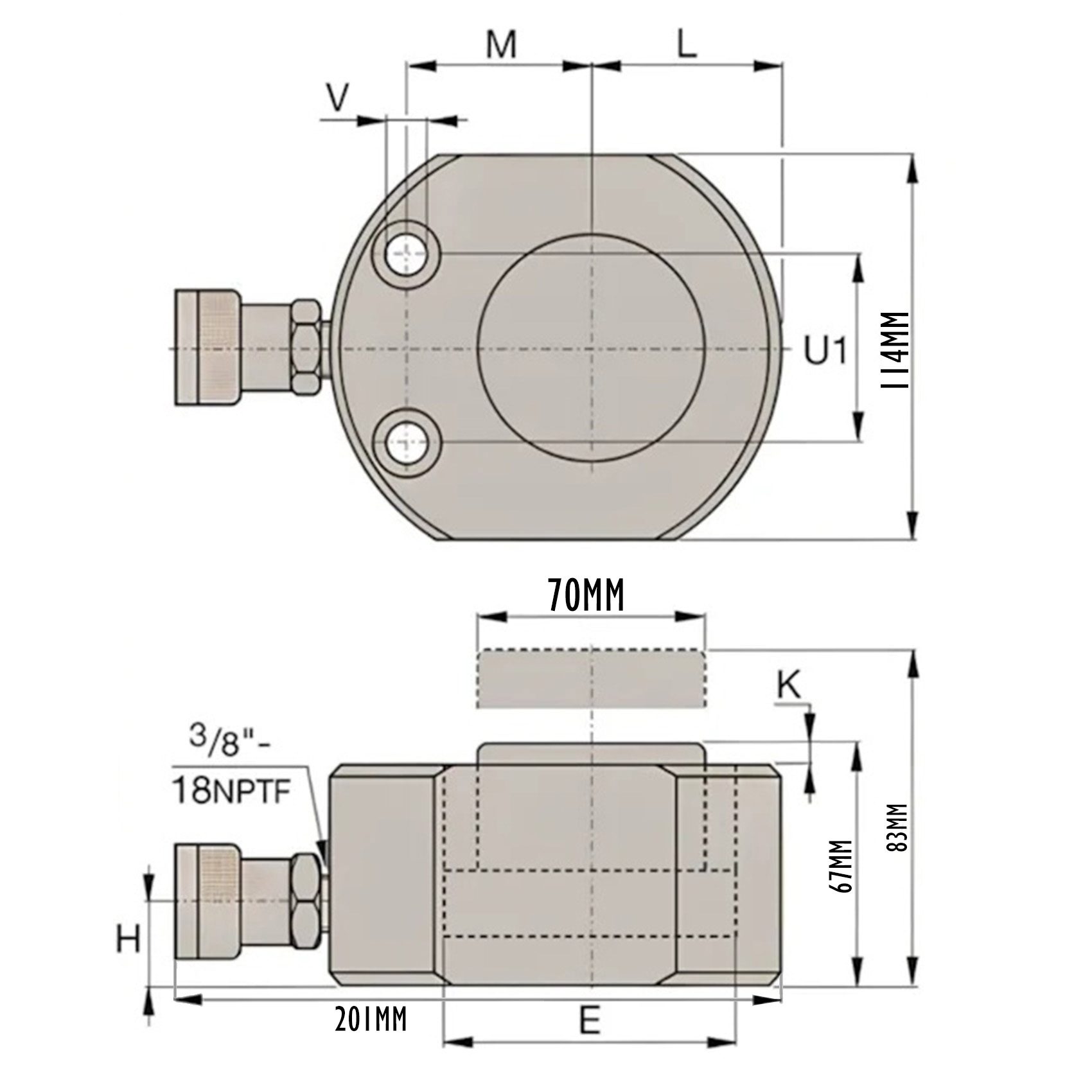

(REFER TO THE PICTURE) :
A. COLLAPSED HEIGHT : 67 MM
B. EXTENDED HEIGHT : 83 MM
D. OUTSIDE DIA.: 140x114 MM
E. INSIDE DIA.: 90 MM
F. PLUNGER DIA.: 70 MM
H. BASE TO AVV. PORT : 19 MM
K. SADDLE PROTR. : 2 MM
L. PLUNGER TO BASE : 57 MM
M. PLUNGER TO MTG HOLE : 54 MM
U1. BOLT C. DISTANCE : 66.5 MM
V. HOLE DIA.: 11 MM
NET WEIGHT : 6.8 KG
GROSS WEIGHT : 7.2 KG
. WHEN HEIGHT IS NEEDED, BOVENAU ULTRA LOW CYLINDERS OFFER THE PERFECT SOLUTION FOR LIFTING THOSE FIRST FEW CENTIMETERS
. COMPACT, LOW-PROFILE DESIGN FOR USE IN LOCATIONS WHERE OTHER CYLINDERS WON'T FIT
. FEATURES MOUNTING HOLES FOR EASY ATTACHMENT
. QUICK COUPLING WITH DUST COVER
. SPRING RETURN
No reviews yet. Be the first to review this product!
| Item Code | BOVCUB50016 |
|---|---|
| Barcode | 7898142338357 |
| Brand | BOVENAU |
| Category | HYDRAULIC JACKS & LIFTS |
| Made In | MADE IN BRAZIL |
Connect the cylinder to a compatible hydraulic pump using the proper coupling. Position the cylinder under the load and ensure it is aligned correctly. Operate the pump to extend the plunger and lift the load gradually. After completing the task, release the pressure to retract the cylinder safely.

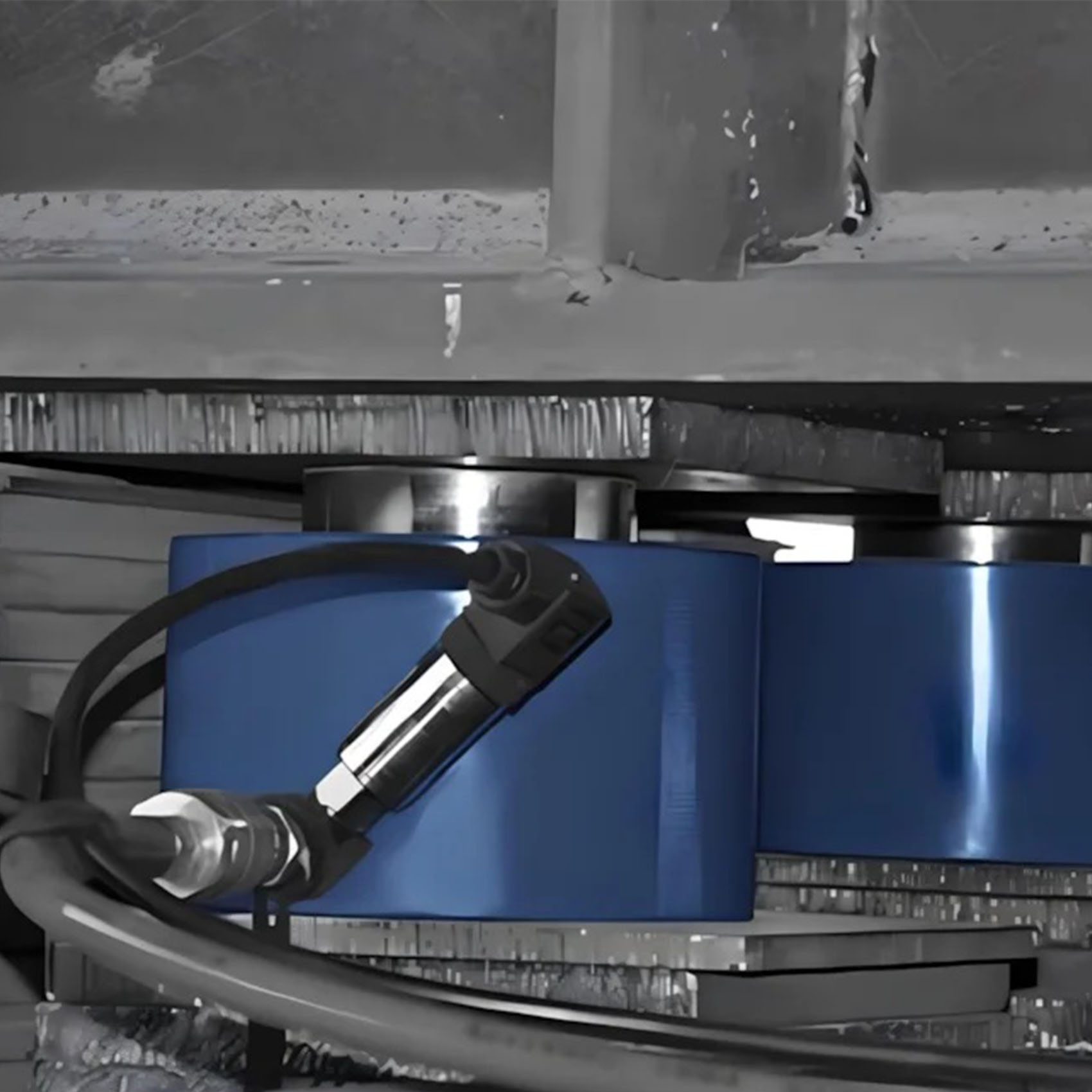

The hydraulic cylinder jack is designed for lifting, pushing, and holding heavy loads in tight or low-clearance spaces. It is especially useful where standard jacks cannot fit due to height limitations.
This hydraulic cylinder offers powerful performance in a compact size, making it ideal for applications requiring precision and space efficiency. It ensures reliability, safety, and ease of use in demanding environments.
Ideal for industrial technicians, mechanics, maintenance teams, and workshop professionals who need high-capacity lifting solutions in tight spaces.
