BRAND : UNI-T
ITEM NO.: UT373
ORIGIN : CHINA
POWER : 1.5V BATTERY (R03) X 3
DISPLAY : 5-DIGIT SEGMENT CODE; 99999 MAX DISPLAY
PRODUCT COLOR : RED AND GREY
RPM MEASUREMENT : RANGE 10.0~9999.9RPM - RESOLUTION 0.1 - ACCURACY ±(0.04%+2)
RANGE 10000~99999RPM - RESOLUTION 1 - ACCURACY ±(0.04%+2)
COUNTING MEASUREMENT : RANGE 0~99999 COUNTS - RESOLUTION 1 - ACCURACY ±1
REFRESH RATE : 1S TO 7S (>120RPM FOR 1S)
SENSOR TYPE : PHOTODIODE AND LASER TUBE
TARGET DISTANCE : 50MM~200MM
MEASURING ANGLE : ±30° FROM PERPENDICULAR
DROP TEST : 1M
AUTO RANGE : √
AUTO POWER OFF : √
LOW BATTERY INDICATION : √
LASER-ON INDICATION : √
DATA HOLD : √
MAX/MIN : √
ROTATING SPEED/COUNT FUNCTION SWITCHING : √
OVERLOAD INDICATION : √
LCD BACKLIGHT : √
STANDARD ACCESSORIES : BATTERIES, REFLECTIVE TAPE
STANDARD INDIVIDUAL PACKING : BUBBLE BAG, GIFT BOX, ENGLISH MANUA
PRODUCT SIZE : 183.8MM X 56MM X 34MM
PRODUCT NET WEIGHT : 85G (EXCLUDING BATTERY)

. AUTO RANGE
. UP TO 99999 DISPLAY; OVERLOAD DIAPLAY, “OL”
. RPM MEASUREMENT AND REVOLUTION COUNT
. MAX/MIN, DATA HOLD
. SINGAL TRIGGER/LASER-ON INDICATION
. LOW BATTERY/AUTO POWER OFF INDICATION
. LCD BACKLIGHT

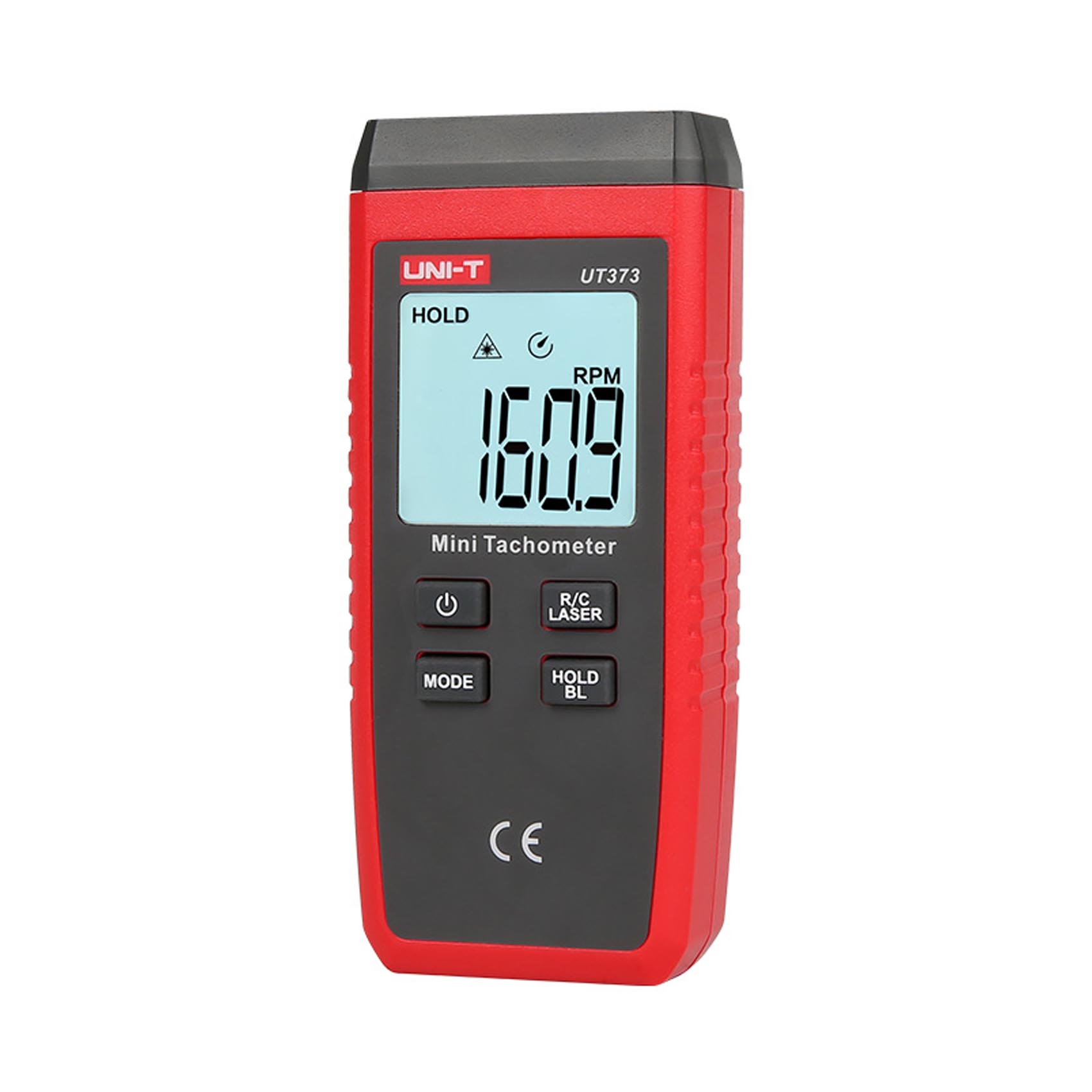

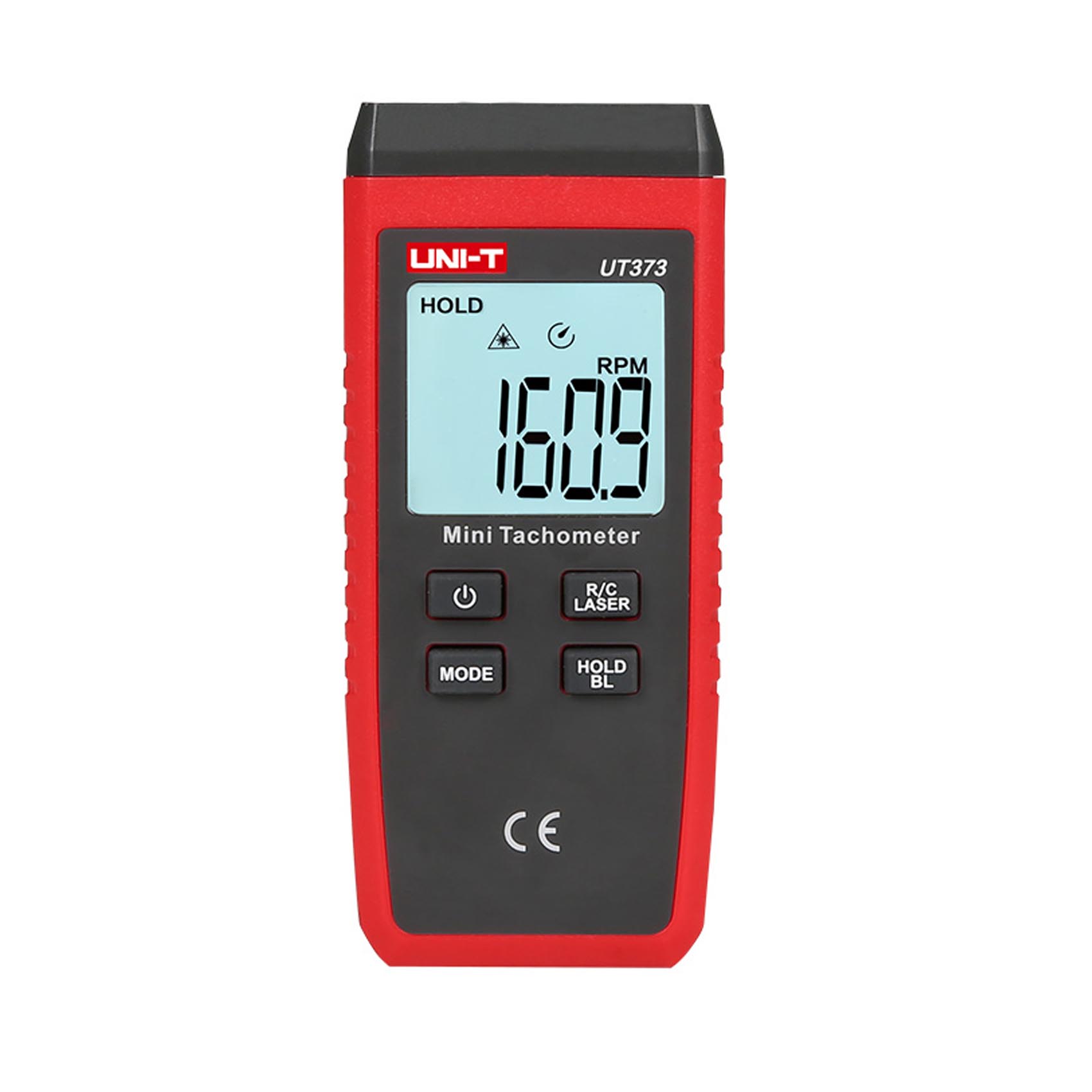

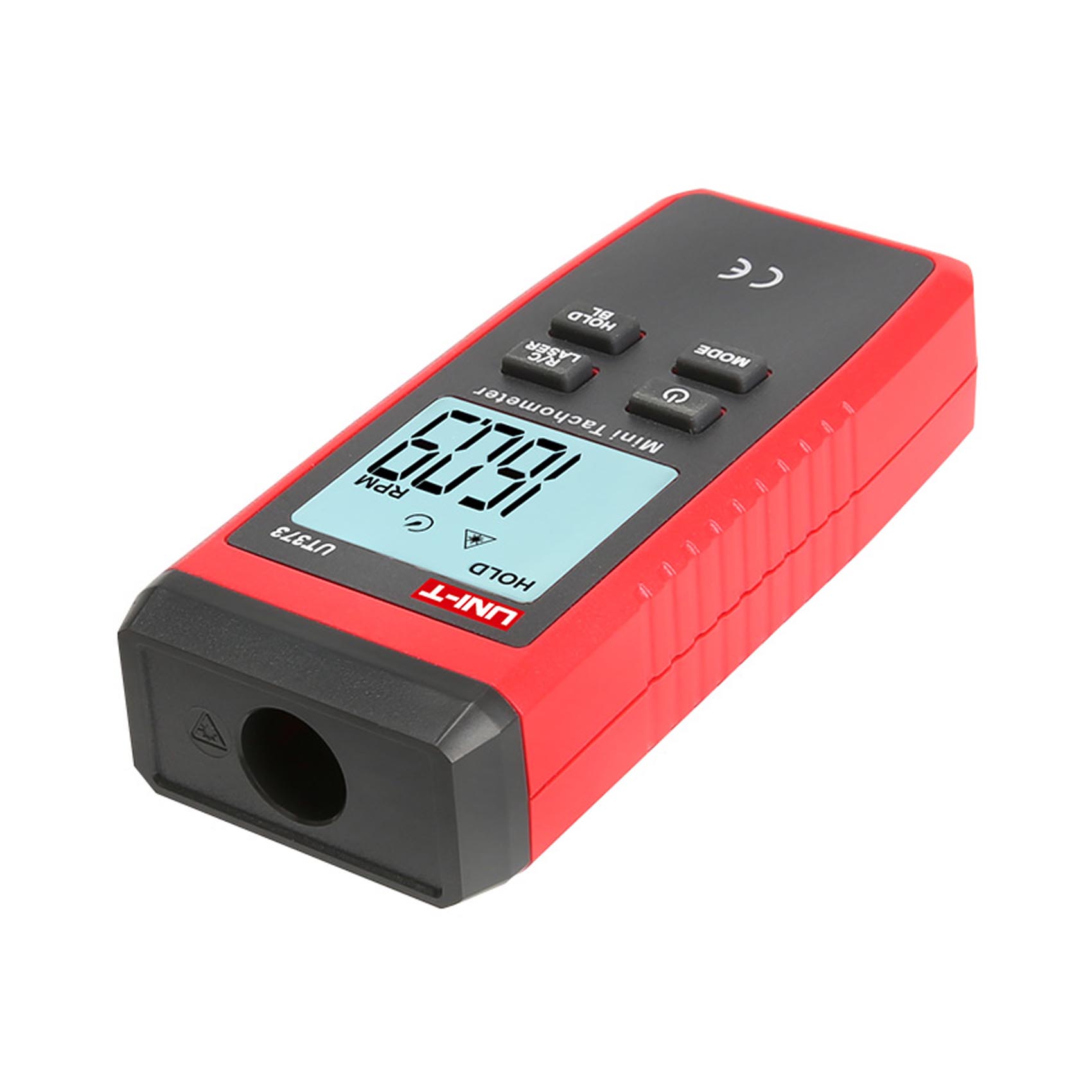

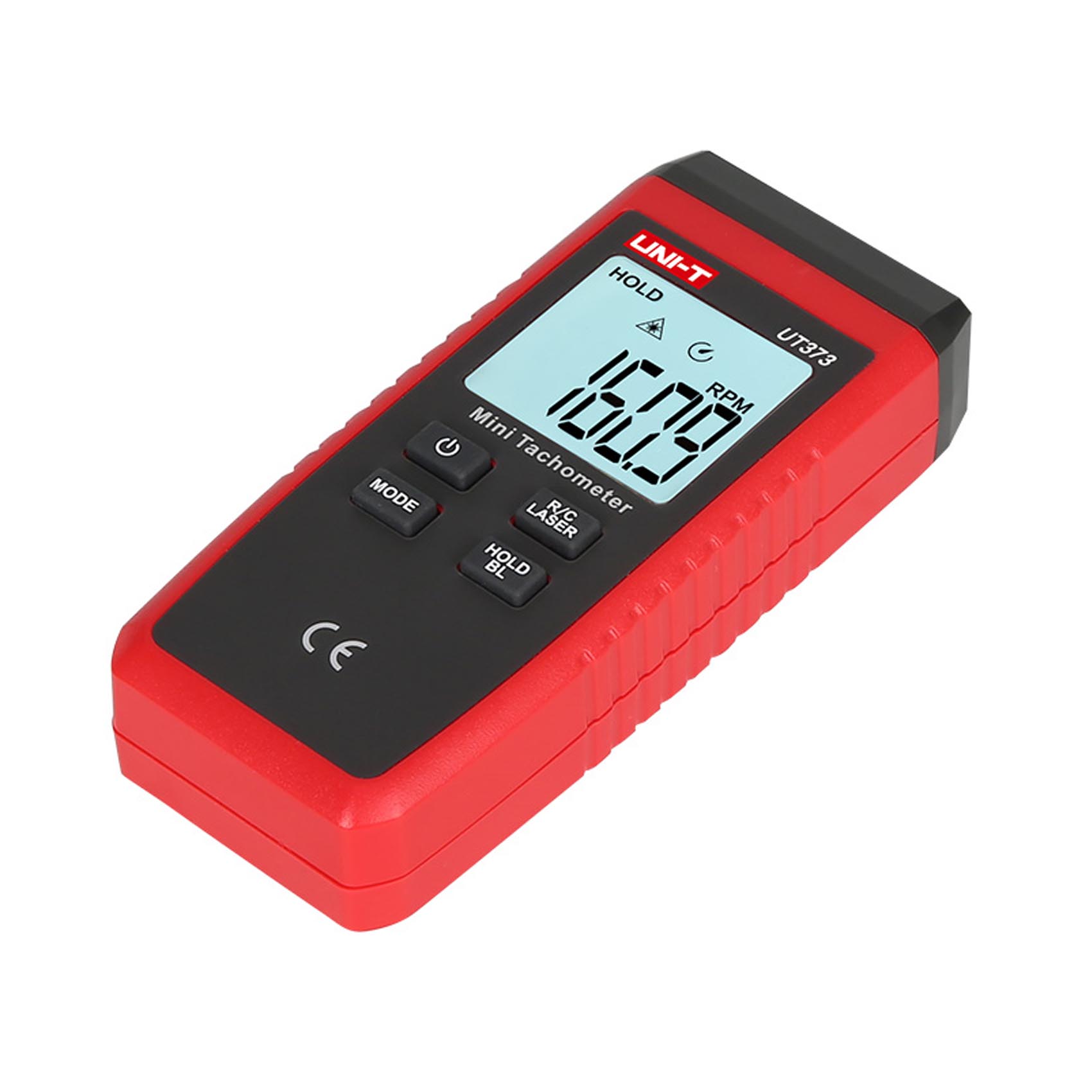

UT373 IS A RELIABLE DIGITAL NON-CONTACT TACHOMETER USED TO MEASURE ROTATION SPEED OF MOTORS AND OTHER MACHINES. THIS DEVICE IS ABLE TO DISPLAY RESULTS IN RPM OR REVOLUTION COUNT. UT373 IS ABLE TO SAFELY MEASURE ROTATIONAL OBJECTS THROUGH A NON-INTRUSIVE METHOD.LS.
