BRAND : UNI-T
ITEM NO.: UT336P
ORIGIN : CHINA
PRESSURE MEASUREMENT RANGE/RESOLUTION : -1 TO 60BAR - 0.01BAR - -1.01 TO 61.18KG/CM² - 0.01KG/CM² - -75.0 TO 4,500.3CMHG - 0.1CMHG - -14.5 TO 870.2PSI - 0.1PSI - -29.52 TO 1,771.8INHG - 0.1IN/HG - -100 TO 6,000KPA - 1KPA - -0.100 TO 6.000MPA - 0.001MPA
PRESSURE MEASUREMENT ACCURACY : ±0.5%FS
TEMPERATURE MEASUREMENT RANGE/RESOLUTION : -50℃~＋150℃ - 0.1℃
TEMPERATURE MEASUREMENT ACCURACY : ±0.5℃(-50℃~80℃), ±1℃(OTHERS)
WIRE LENGTH : 2M
UNITS : PRESSURE: BAR; KG/CM²; CMHG; PSI; INHG; KPA; MPA - TEMPERATURE: ℃; ℉
REFRIGERANT TYPES : 10 TYPES ARE PRESET (SET VIA APPS, TOTAL 94)
EVAPORATING/CONDENSING TEMPERATURE : AS PER THE REFRIGERANT TYPE
HIGH/LOW PRESSURE SWITCH : YES
DATA RECORD : 8000
DATA RECORD INTERVAL : 1S~1H (APP SETTING)
LED INDICATORS : RED (HP); BLUE (LP)
PRESSURE ZEROING : YES
SCREEN BACKLIGHT : YES
PHONE APPS : YES (IENV)
AUTO POWER OFF : YES
FIRMWARE UPGRADE : YES
TEMPERATURE CLAMP PORT : 3.5MM PORT
BATTERY LIFE : 100H (ALKALINE BATTERY; BACKLIGHT OFF; LED ON; 1-MIN RECORD INTERVAL)
IP RATING : IP54

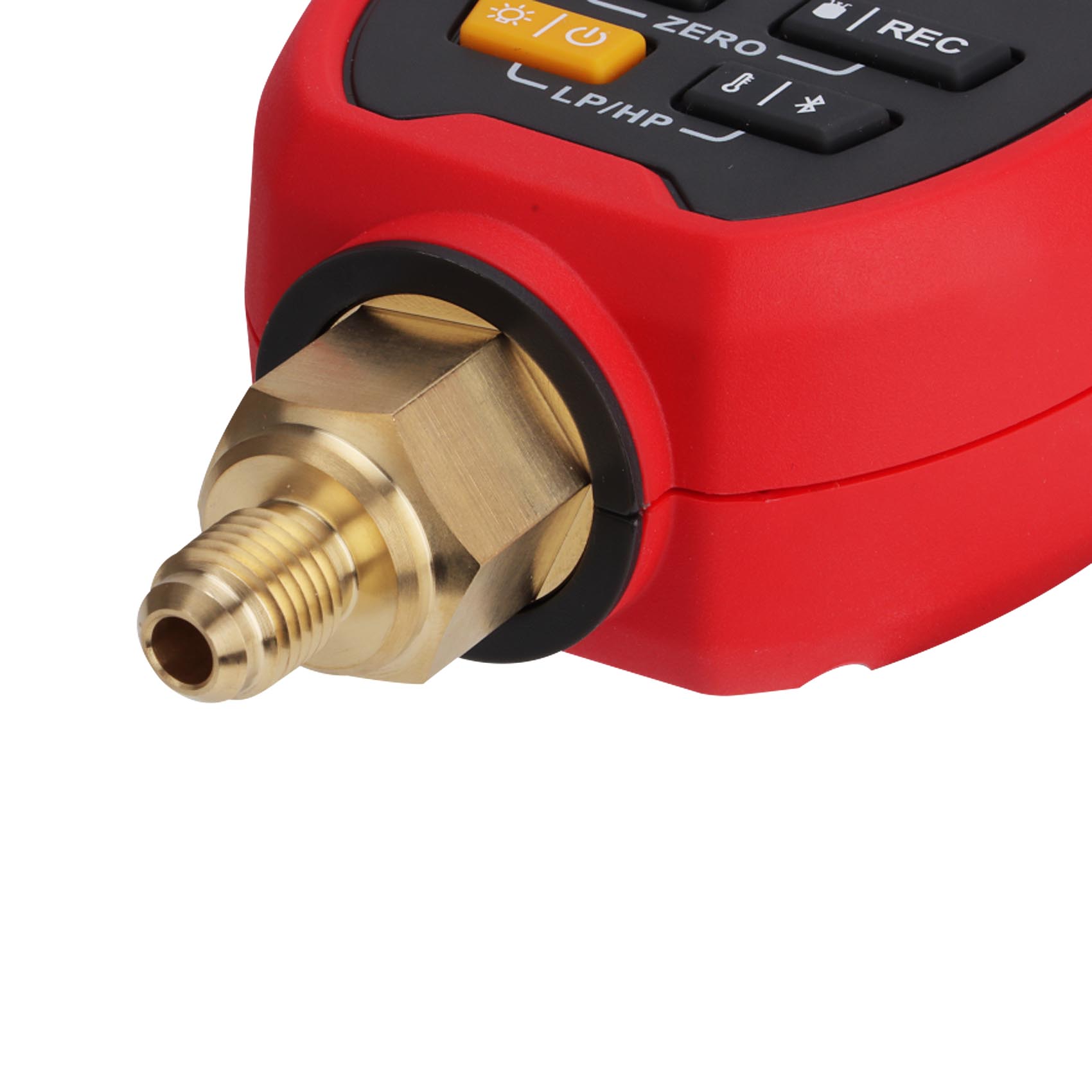

PRESSURE CONNECTOR : 1/4″ SAE CONNECTOR
OVER RANGE : OL (＞65BAR)
WORKING TEMPERATURE & HUMIDITY : -10~+50℃,＜90%RH
STORAGE TEMPERATURE & HUMIDITY : -20~+60℃,＜80%RH
POWER SUPPLY : 3X ALKALINE AA BATTERY

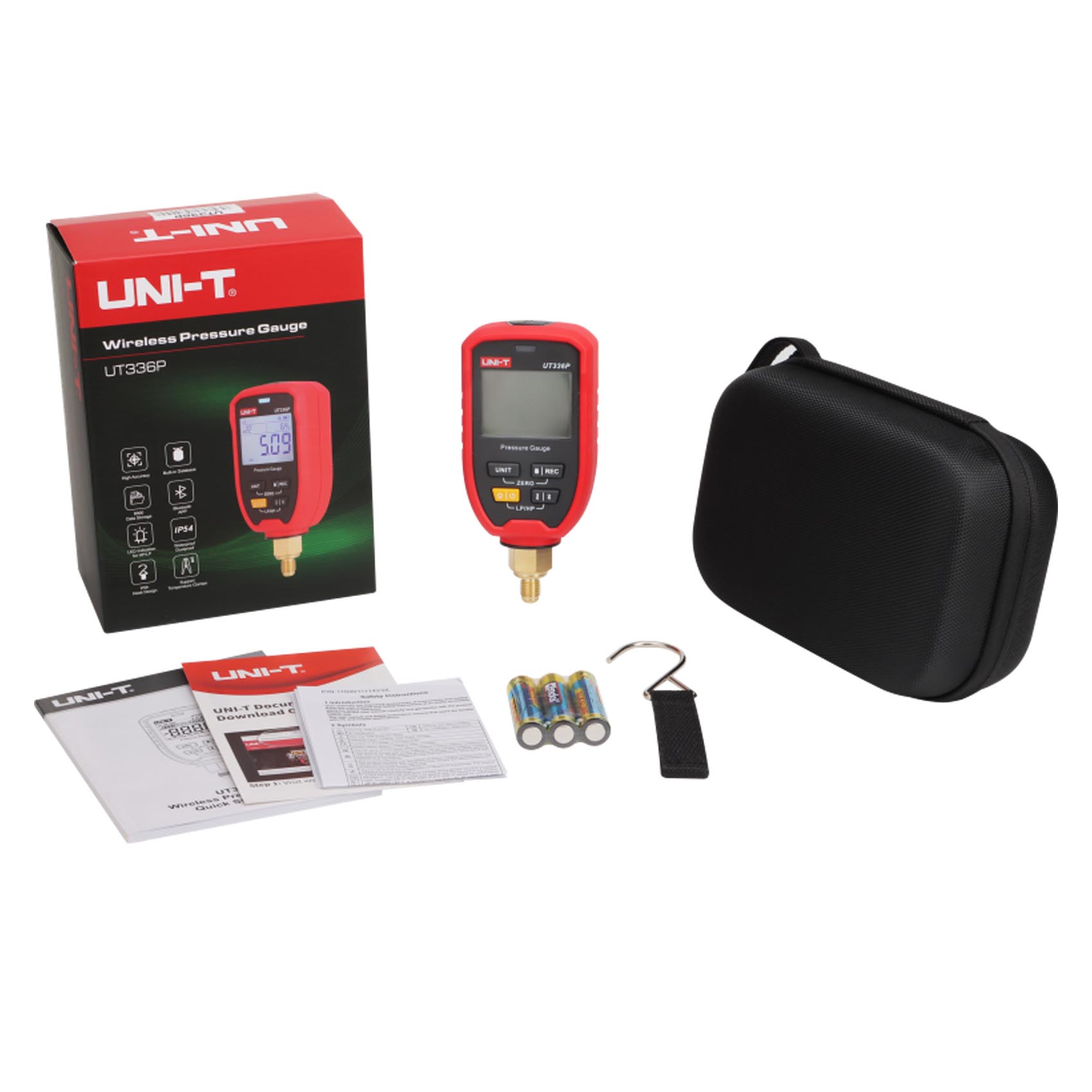

STANDRAD ACCESSORIES : WIRELESS PRESSURE GAUGE, TEMPERATURE CLAMP, QUICK START GUIDE, SAFETY GUIDE, DOWNLOAD GUIDE OF COMMON FILES, AA BATTERY*3, HAND STRAP, TOOLBOX, TEE CONNECTION 1/4″ SAE, BENT ADAPTER 1/4″ SAE
PRODUCT SIZE : UT336P: 145X68X39 MM
PRODUCT NET WEIGHT : 250G (NOT BATTERY INCLUDED)

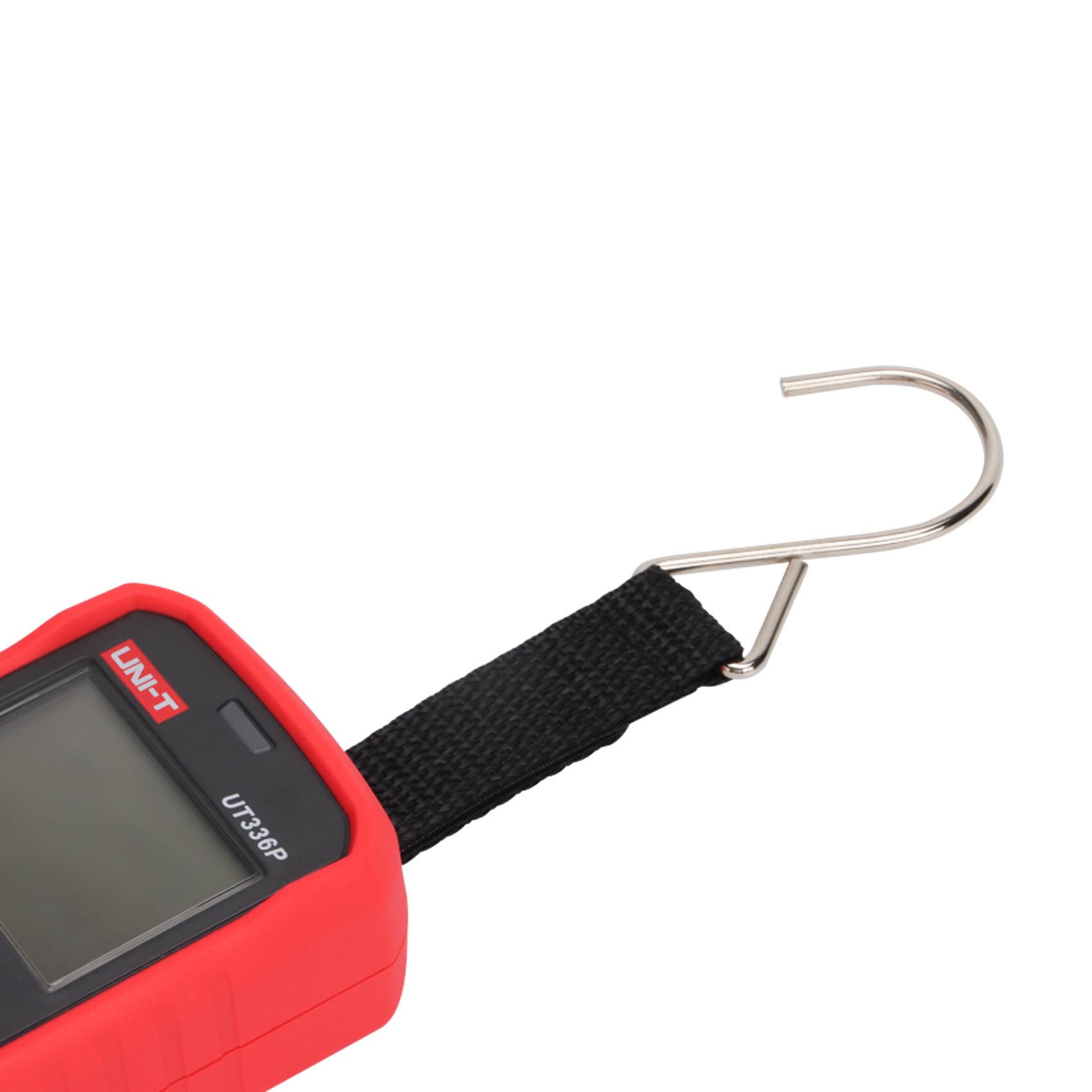

. HOOK DESIGN FOR EASY FIXING
. SETTABLE HIGH/LOW PRESSURE ALARMS
. HIGH/LOW PRESSURE INDICATION
. SWITCH BETWEEN MULTIPLE UNITS
. FREE BLUETOOTH APP CONNECTION
. UP TO 8000 DATA STORAGE WITH EXPORTABLE DATA REPORTS, SUPPORTS OFF-LINE RECORDING
. COMPATIBLE WITH TEMPERATURE CLAMP UT-T19
. 10 REFRIGERANTS BUILT IN THE DEVICE, 90+ AVAILABLE FOR EASY SWITCH THROUGH THE APP
. COMPATIBLE WITH A1 / A2L / A2 / A3 AND PART OF B1 REFRIGERANTS.
. THE DEVICE CANNOT BE USED WITH AMMONIA REFRIGERANTS (NH3 / R717).

UT336P KIT ALLOWS USERS TO PURCHASE A PRESSURE GAUGE, TEMPERATURE CLAMP, AND SMALL CONNECTION ACCESSORIES IN ONE GO. IT IS SPECIFICALLY DESIGNED FOR THE INSTALLATION, DEBUGGING, AND MAINTENANCE OF REFRIGERATION AND HEAT PUMP SYSTEMS. IT ACCURATELY MEASURES SYSTEM PRESSURE AND FEATURES OFFLINE DATA LOGGING, SUPPORTING LONG-TERM REAL-TIME MONITORING. UT336P IS EQUIPPED WITH A 3.5MM TEMPERATURE CLAMP INTERFACE, AND WHEN USED WITH THE UT-T19 TEMPERATURE CLAMP, USERS CAN VIEW KEY DATA SUCH AS HIGH/LOW PRESSURE REFRIGERANT PIPE TEMPERATURE AND SUPERHEAT/SUBCOOLING ON THE APP, ENSURING EFFICIENT AND STABLE SYSTEM OPERATION. IT IS SUITABLE FOR A WIDE RANGE OF REFRIGERATION AND AIR CONDITIONING APPLICATIONS.
