BRAND : UNI-T
ITEM NO.: UT123
ORIGIN : CHINA
POWER : 1.5V BATTERY (R03) X 2
DISPLAY : 44MM × 26MM
PRODUCT COLOR : RED AND GREY
DC VOLTAGE : RANGE 4V/40V/400V/600V - ± (0.5%＋2)
AC VOLTAGE : RANGE 4V/40V/400V/600V - ±(1.0%+3)
RESISTANCE : 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/20MΩ - ±(0.8%+2)
TEMPERATUE : RANGE –40℃～ 300℃/–40℉～ 572℉ - ±4℃
DISPLAY COUNT : 4000
AUTOL RANGE : √
NCV : √
CONTINUITY TEST : √
ACOUSTO-OPTIC INDICATION(NCV/CONTINUITY/BATTERY POWER) : √
LOW BATTERY INDICATION : RANGE ≤2.7V - √
DATA HOLD : √
AUTO POWER OFF : RANGE 15MIN - √
OPERATION TEMPERATURE : 0℃～40℃
SAFETY : CAT III 600V
STANDARD ACCESSORIES : BATTERIES, THERMOCOUPLE
STANDARD INDIVIDUAL PACKING : GIFT BOX, MANUAL
PRODUCT SIZE : 130MM X 65M X 28MM
PRODUCT NET WEIGHT : 130G

. AUTO RANGE
. CONTINUITY
. DATA HOLD
. LED/BUZZER INDICATION: NCV/CONTINUITY/BATTERY POWER
. NCV
. LOW BATTERY INDICATION
. AUTO POWER OFF
. OVER VOLTAGE ALARM: >600V

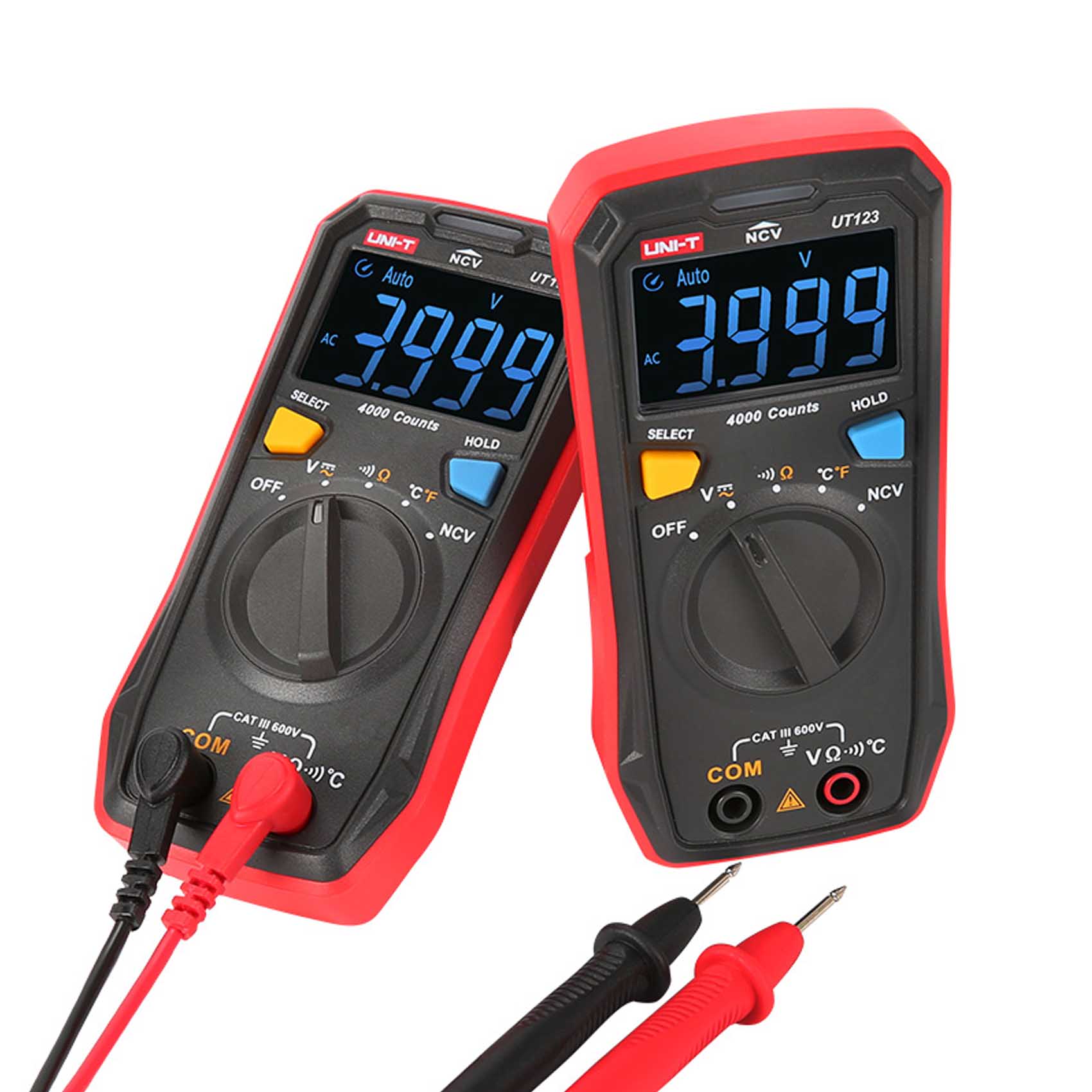

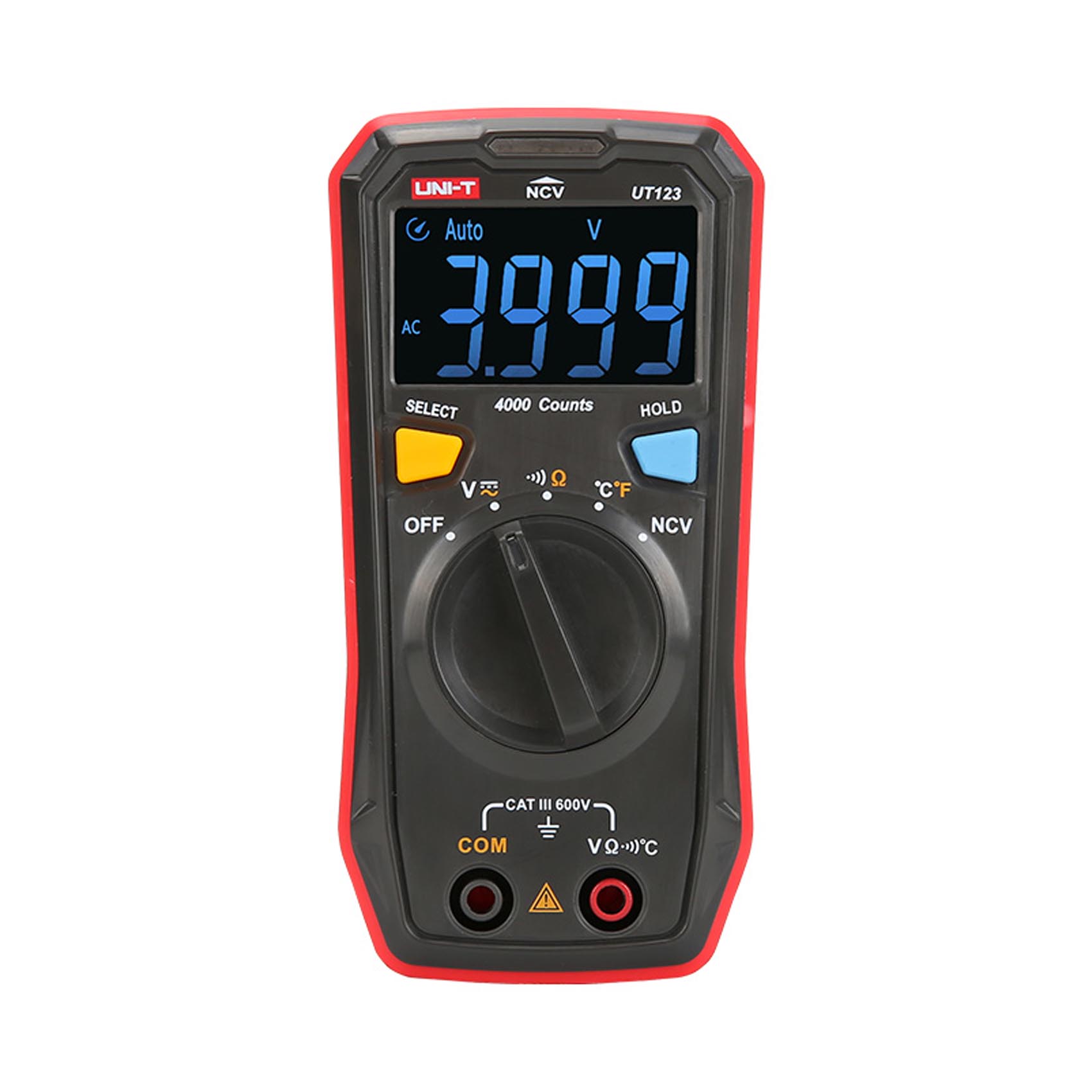

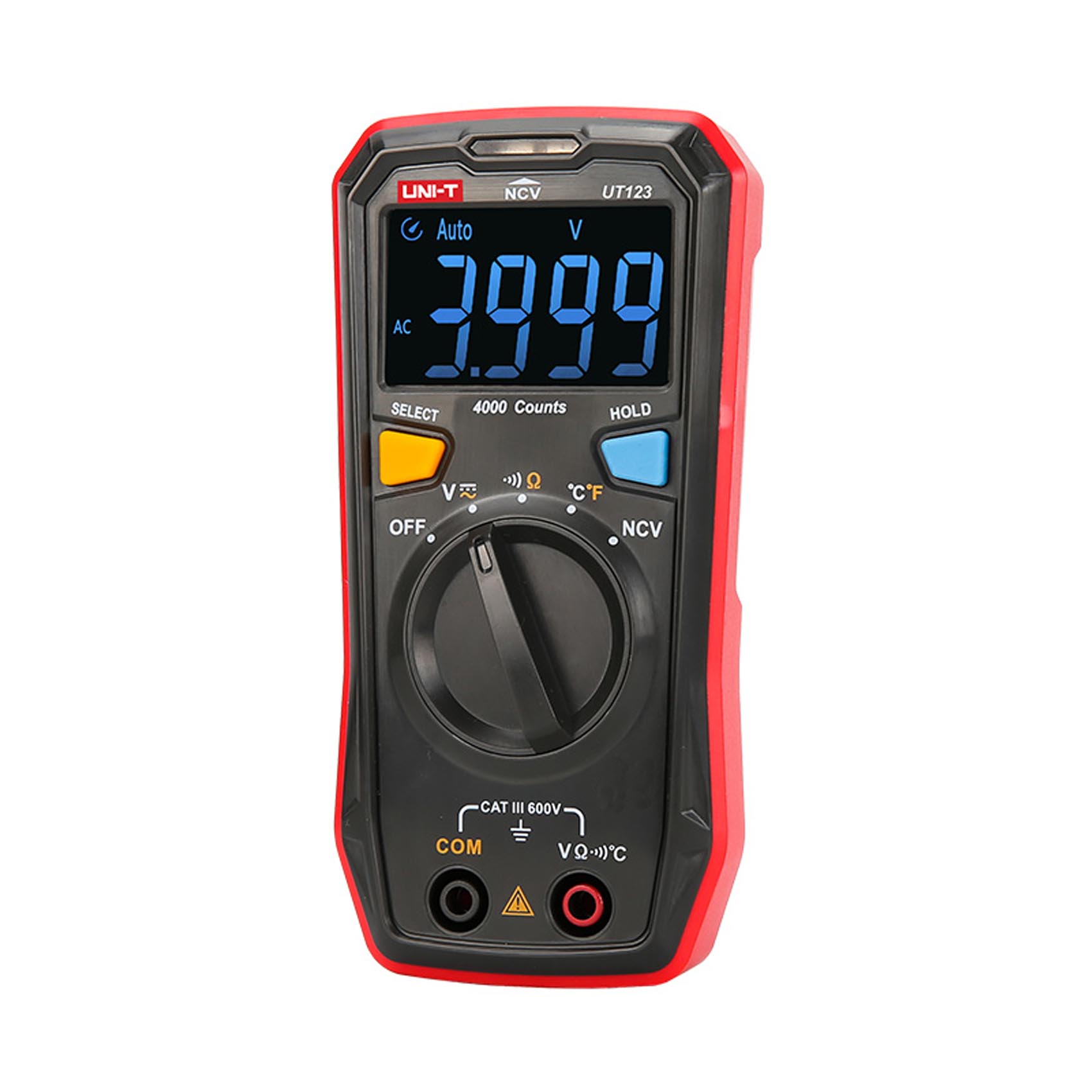

THE UT123 IS A POCKET-SIZED RESIDENTIAL MULTIMETER DESIGNED FOR HOME USE. THE COMPACT STRUCTURE MAKES IT EASY TO HOLD IN ONE HAND, AND THE EBTN SCREEN ALLOWS USERS TO OBTAIN CLEAR READINGS AT MAXIMUM ANGLE, IT IS ALSO GREAT FOR WORKING IN DARK ENVIRONMENTS
