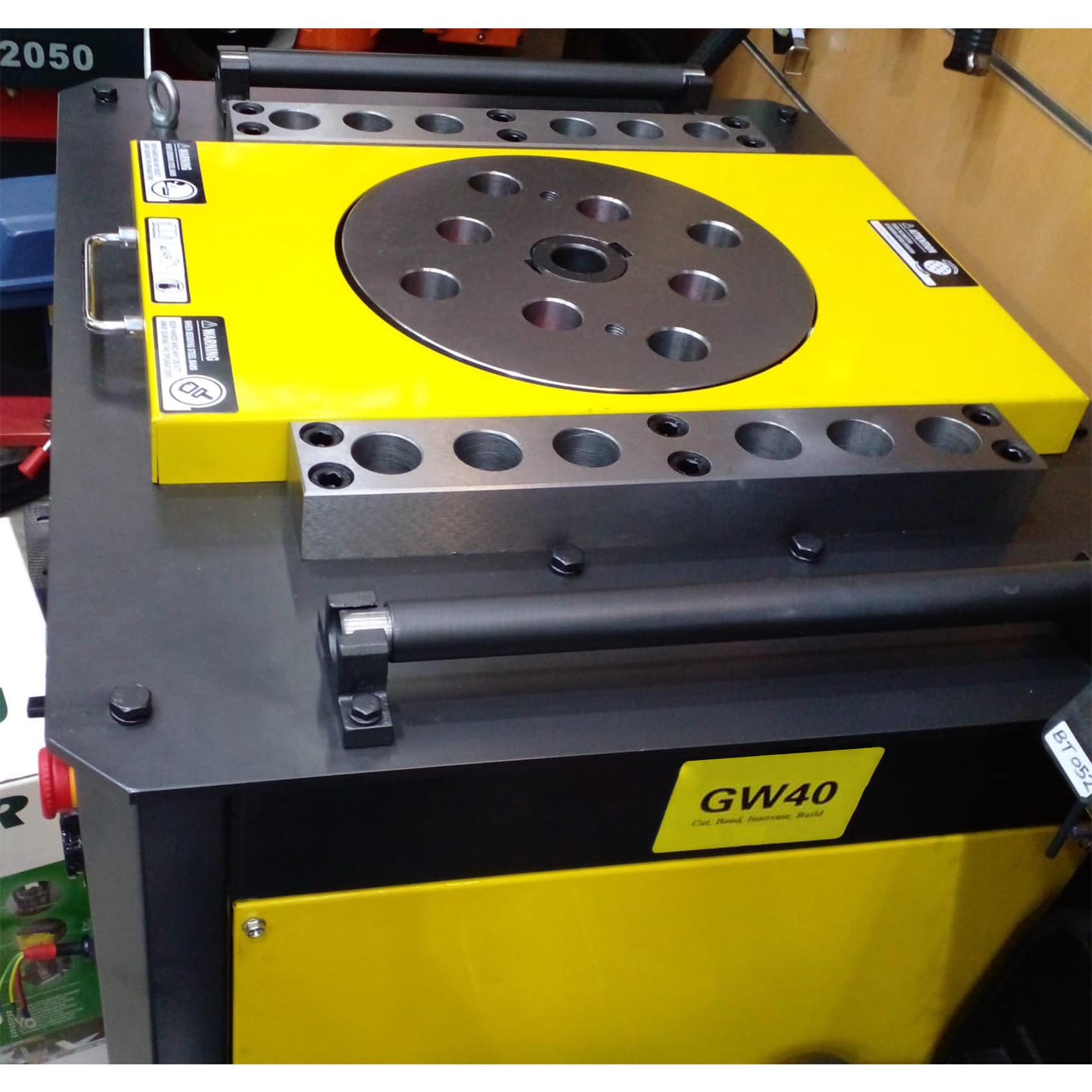

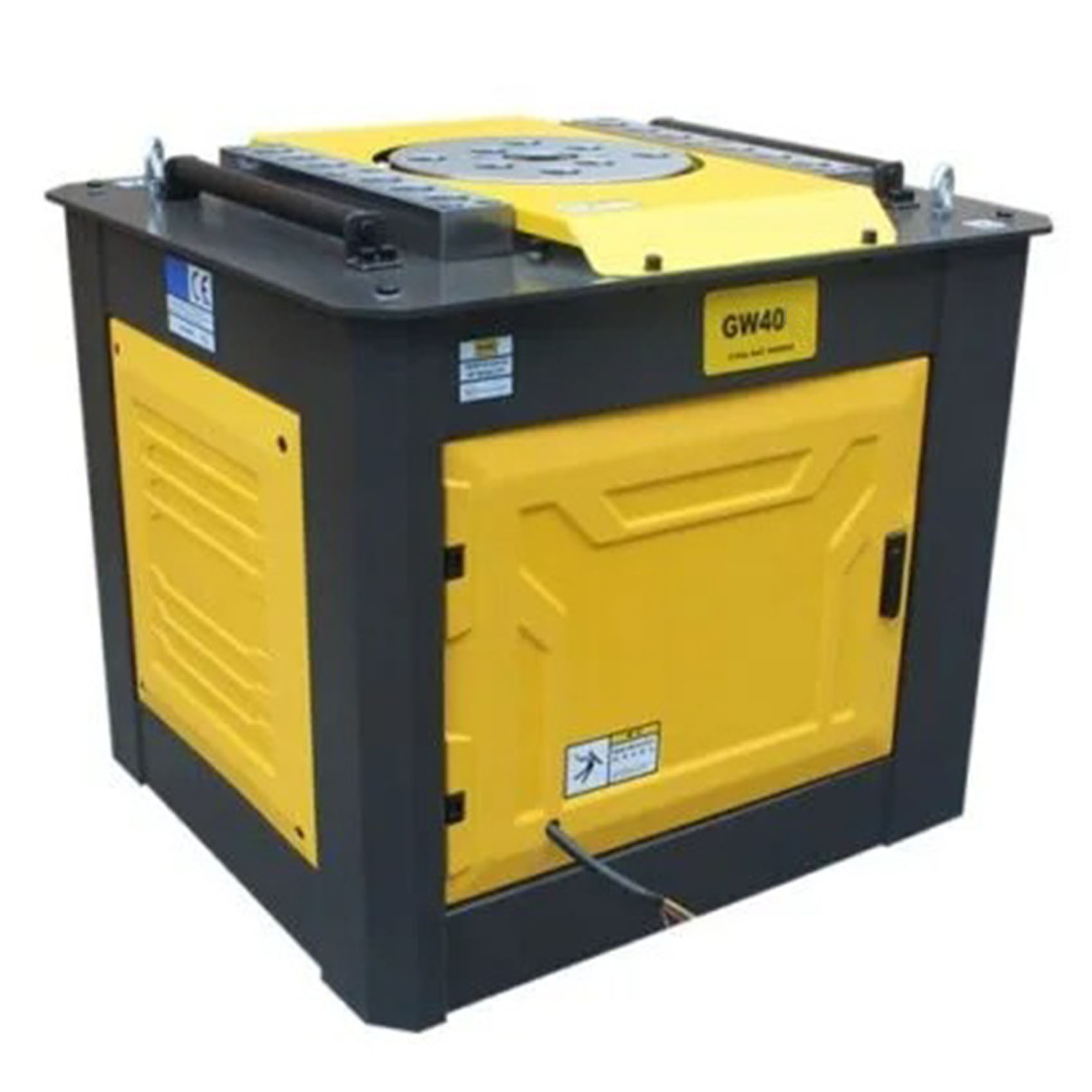

GUTE 6-36MM AUTOMATIC STEEL BAR BENDER MACHINE 3KW-4P GW40 | 5-10 R/MIN WORKING DISC SPEED | 1430 R/MIN MOTOR SPEED | 3KW-4P MOTOR POWER

BRAND : GUTE

ITEM NO.: GW40

ORIGIN : CHINA

MACHINE TYPE : PIPE AND TUBE BENDING MACHINE

OPERATION : AUTOMATIC

MOTOR SPEED : 1430 R/MIN

MOTOR POWER : 3KW-4P

BENDING DIAMETER : 6-36MM (OB≤450N/MM2)

TYPE OF MOTOR : Y100L2-4 (BRAKE MOTOR)

MOTOR ROTATION SPEED : 1440 R/MIN

WORKING DISC SPEED : 5-10 R/MIN

NOISE : ≤80DB(A)

MACHINE SIZE : 870X760X820 MM

NET WEIGHT : 310 KG

. CERTIFICATION 2006/42/EC – 2006/95/EC

. FULLY ENCLOSED NOISE TRANSMISSION BOX, HIGH AND LOW SPEED ADJUSTABLE.

. HELICAL GEAR, STRONG BENDING FORCE, ULTRA LOW NOISE.

. ADD ECCENTRIC, EXTRA HIGH HARDNESS AUXILIARIES, ADJUSTABLE BOARD, LONGER SERVICE LIFE.

. WORKING DISH, INSERT SEAT AND PLUG WHEEL IS MADE OF 45, WHICH IS EXTRA THICK AND TREATED WITH HIGH FREQUENCY.

. HEAVIER TYPE OF TURBINE MADE BY 500 DUCTILE, MEDIUM SPEED STANDARD MOTOR.

. TURBINE TYPE BENDING MACHINE.

MACHINE STRUCTURE AND TECHNICAL PARAMETERS SHEET

GW40 SERIES REBAR BENDING MACHINE MAINLY CONSISTS OF TRANSMISSION PART, RACK, BENDING FIXTURE (ACCESSORY), AND ELECTRIC APPLIANCE. THE PRINCIPLE OF THE MAIN TRANSMISSION IS THAT THE MOTOR TRANSMITS POWER TO LEVEL II STRAIGHT GEAR TRANSMISSION THROUGH THE BELT, THEN LEVEL II GEAR PAIR TRANSMITS POWER TO WORM THROUGH DRIVING WHEEL. THE WORM TRANSMITS POWER TO WORM WHEEL THROUGH THE SPIRAL SO THAT THE WORKING DISK INSTALLED ON THE MAIN SHAFT GETS POWER, WHICH FORMS TORQUE DURING THE BENDING PROCESS.
