BRAND : MECLUBE
ITEM NO.: 022-1915-000
ORIGIN : ITALY
FOR DRUMS WITH CAPACITY : 1000L
COMPRESSION RATIO : 5:1
FLOW RATE : 28 L/MIN
DIMENSIONS : H 227 X W 90 X L 170 CM
GROSS WEIGHT : 22.2 KG
NET WEIGHT : 19.2 KG
COMPOSED BY:

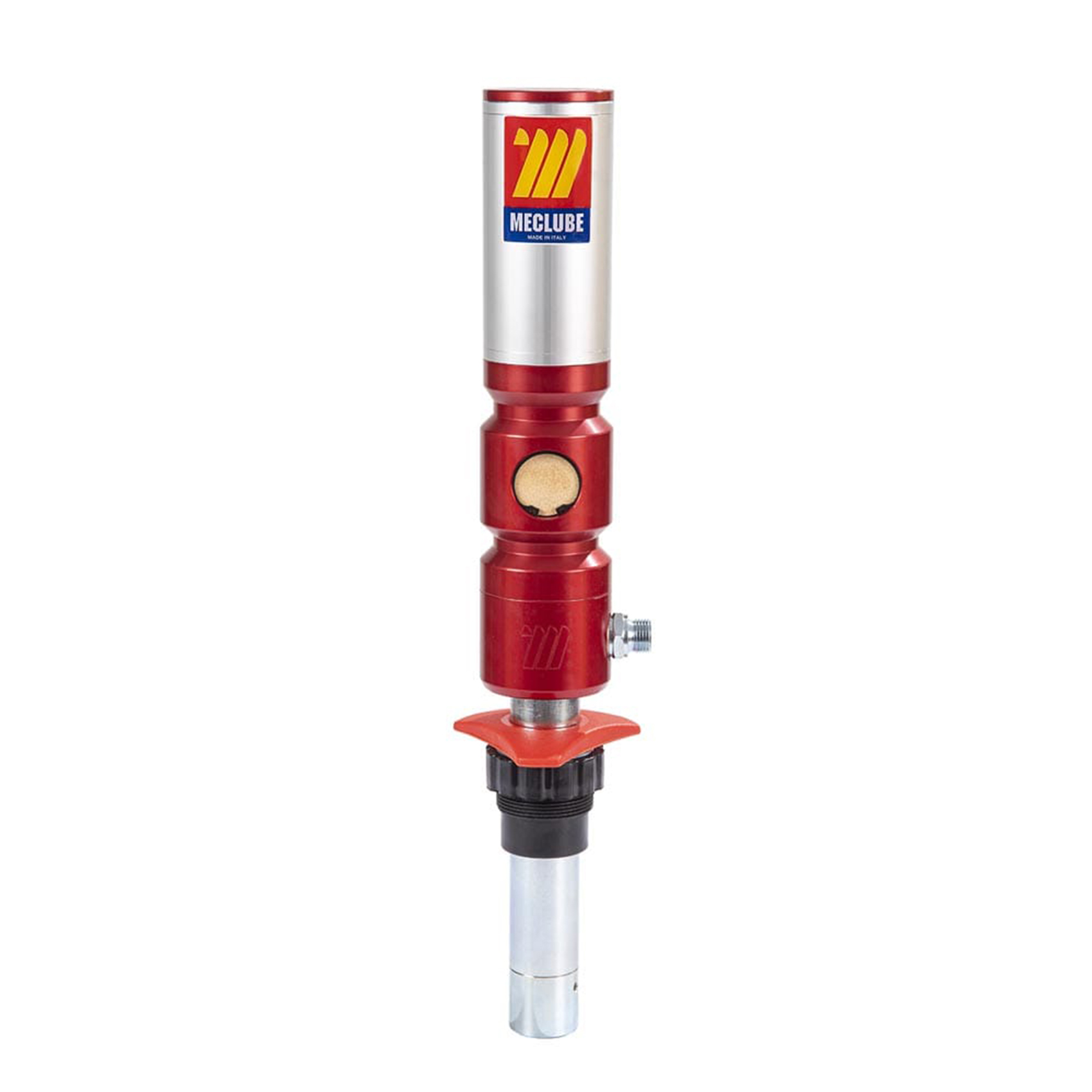

020-1198-000 DOUBLE-ACTING AIR-OPERATED OIL PUMP MOD. 605 R=5:1 DELIVERY CAPACITY 28 L/MIN :
COMPRESSION RATIO : 5:1
AIR CONSUMPTION : 250 L/MIN
NOISE LEVEL : 80 DB
SHANK DIAMETER : 42 MM
SHANK LENGTH : 215 MM
WORKING PRESSURE : 6-8 BAR
AIR INLET CONNECTION : F 1/4” G
OIL OUTLET CONNECTION : M 1/2” G
OIL DELIVERY CAPACITY : 8 BAR 28 L/MIN
ART.014-1048-000 REGULATOR WITH FILTER AND AIR LUBRICATOR 1/4” :
THREAD : F-F 1/4”
REGULATION : 0÷8 BAR
FLOW RATE : 1100 NL/MIN
FILTRATION : 20 Μ

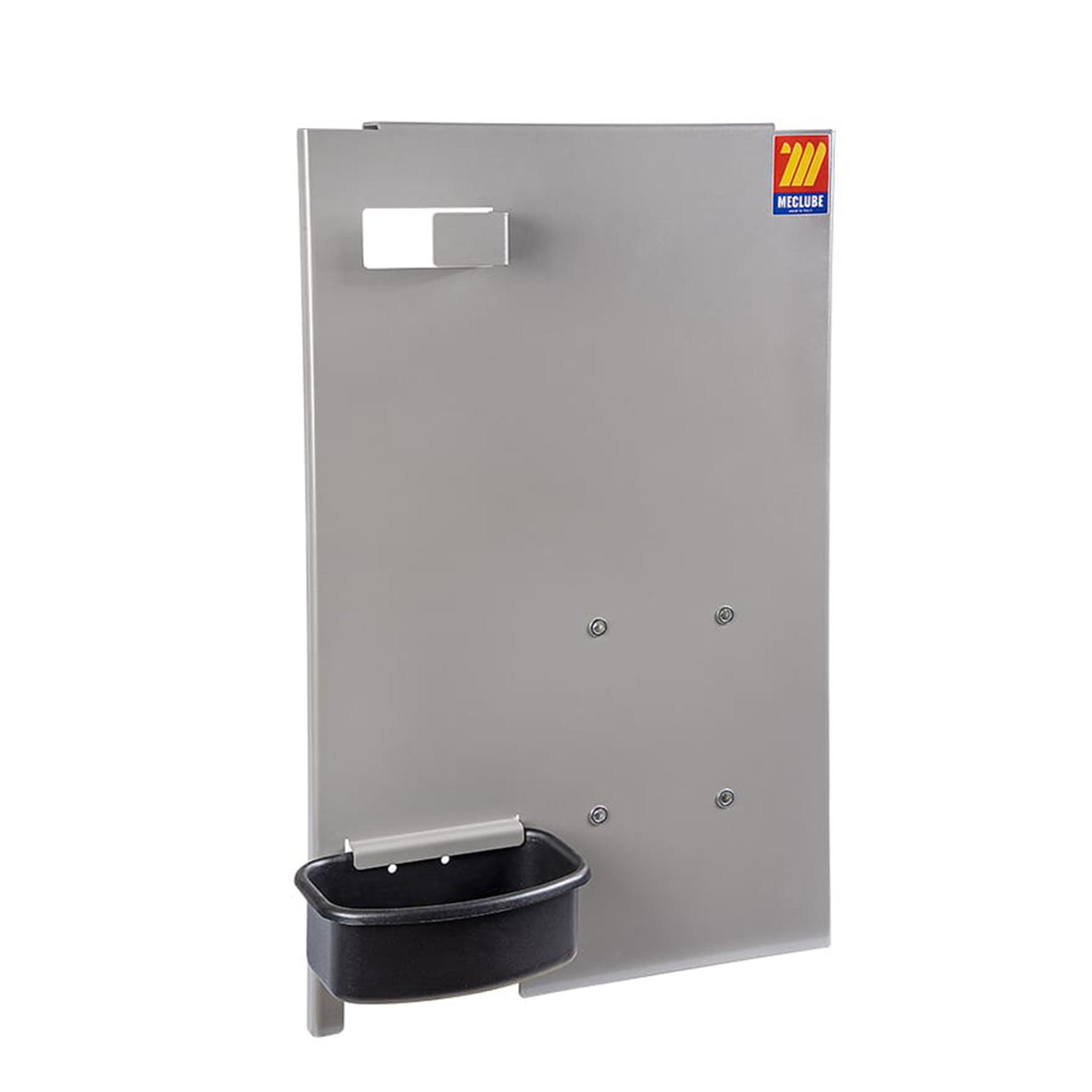

ART.025-5810-000 FRONTAL BRACKET FOR IBC TANK

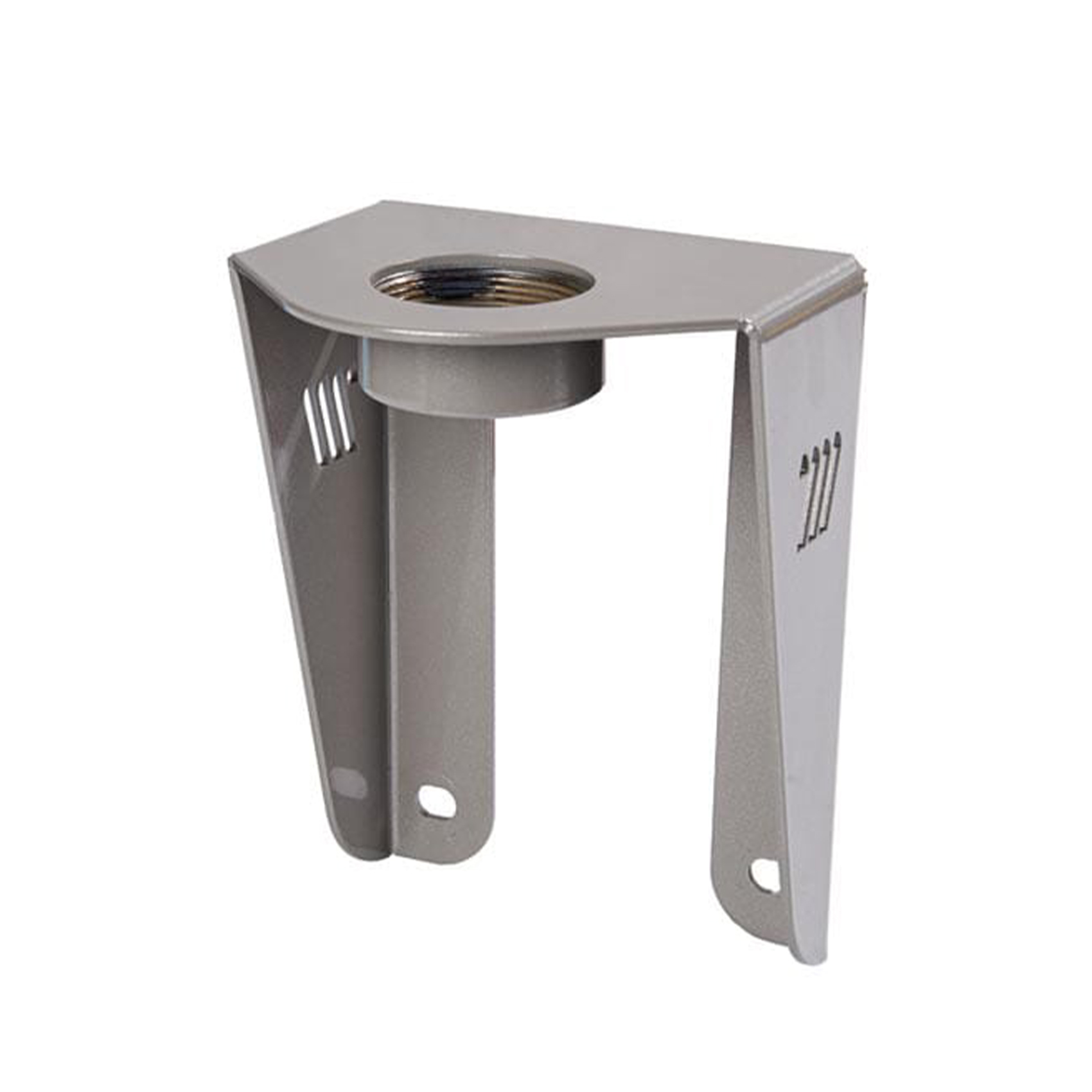

ART.025-1265-000 PAINTED STEEL WALL FIXING BRACKET :
CENTRAL RING NUT F 2 ”G FOR WALL FIXING PUMP MOD.500-600-800
ART.099-6010-000 EXTERNAL SUCTION CONNECTIONS S60X6
ART.902-0202-020 R6 5/16” HOSE 1/4” M-F 2,0 M LENGTH

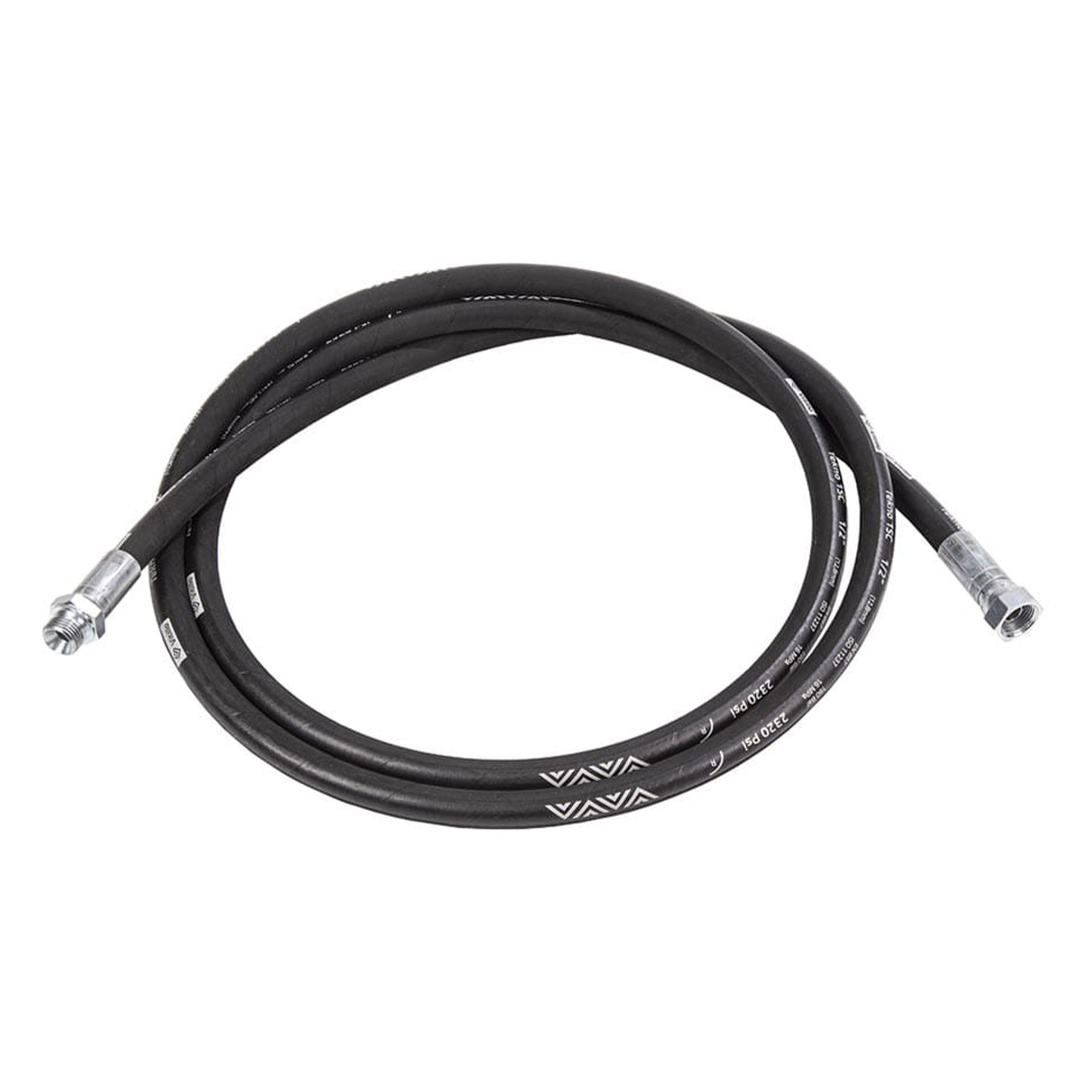

ART.906-0404-030 OIL HOSE 1SC 1/2" M-F 1/2" 3,0M : CONNTECTION HOSES FOR OIL PUMPS
FEATURES : 1 SC 1/2" M - F
PRESSURE W.P.: 160 BAR
BURST : 640 BAR
LENGHT : 3,0 M
ART.916-0600-007 SUCTION PVC SPIRAL HOSE Ø 25 MM 0,7 M L

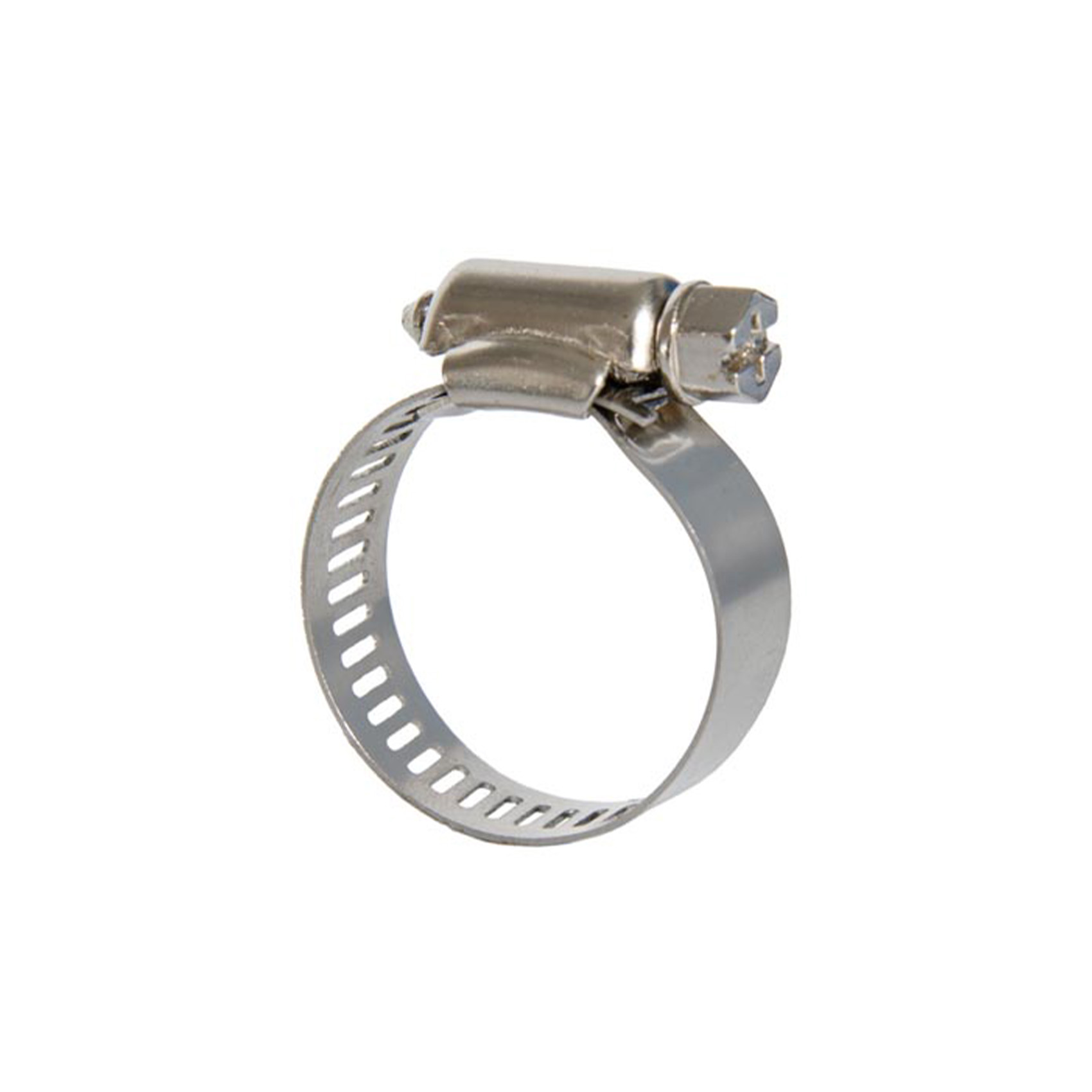

ART.B27-1125-040 N. 2 STAINLESS STEEL SCREW CLAMPS 20-32 MM

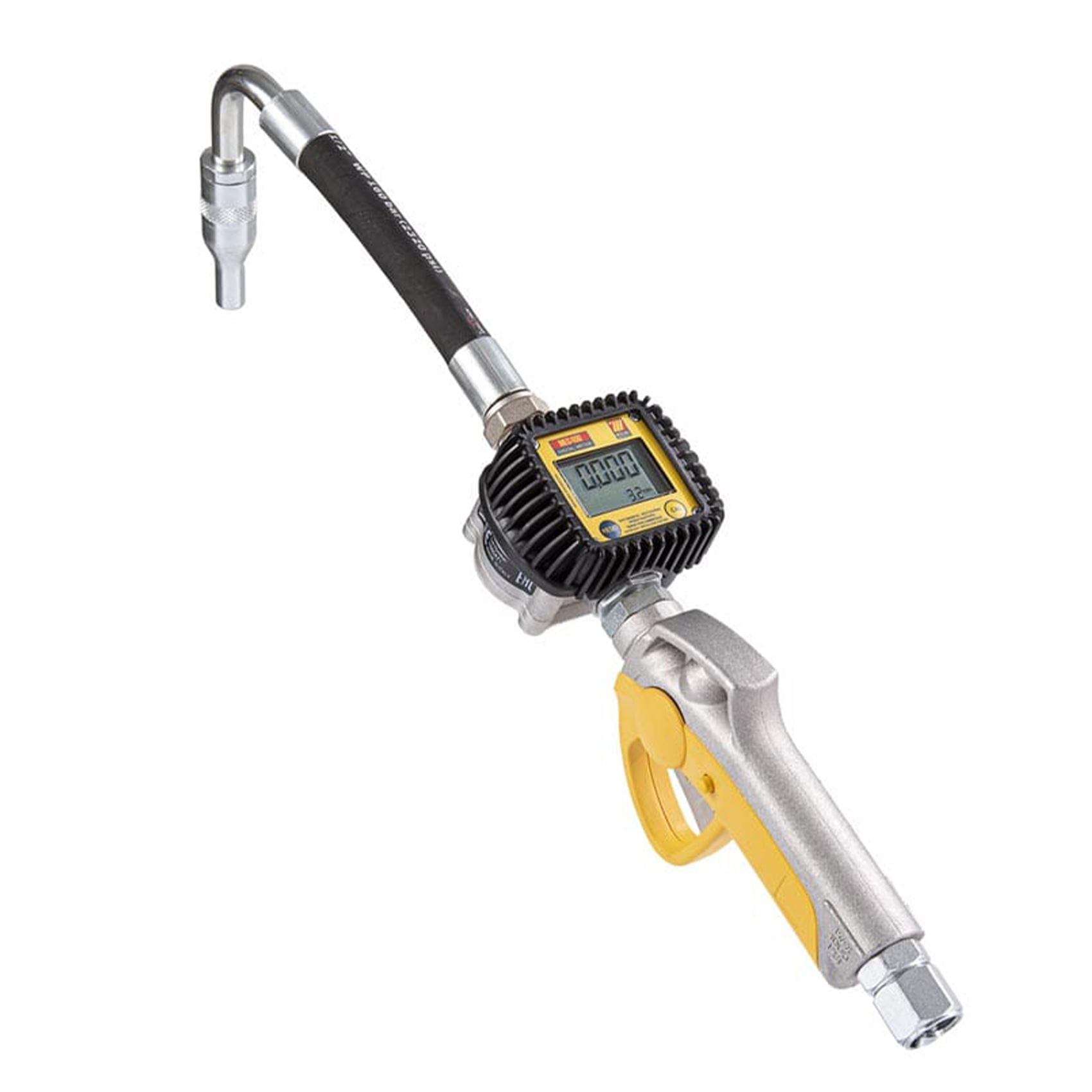

ART.024-1233-C00 OIL DIGITAL DISPENSING NOZZLE WITH FLEXIBLE END 105° AUTOMATIC ANTI-DROP VALVE Ø 14 MM :
COMPOSED BY:
OIL DIGITAL FLOW METER (ART.024-1234-000)
RUBBER PROTECTION
HANDLE WITH F 1/2” SWIVEL JOINT
FLEXIBLE END 105°
AUTOMATIC DROP VALVE Ø 14 MM
FEATURES •EASY CALIBRATION •DOUBLE TOTALIZER •ELECTRONIC RESET •HIGH PRECISION •ERGONOMIC GRIP •BUTTON TO BLOCK THE LEVER •LOW BATTERY CONSUMPTION •DIFFERENT UNITS OF MEASUREMENTS CAN BE SELECTED: LITRES, PINTS, QUARTS OR GALLONS. •NOT APPROVED FOR PUBLIC USAGE

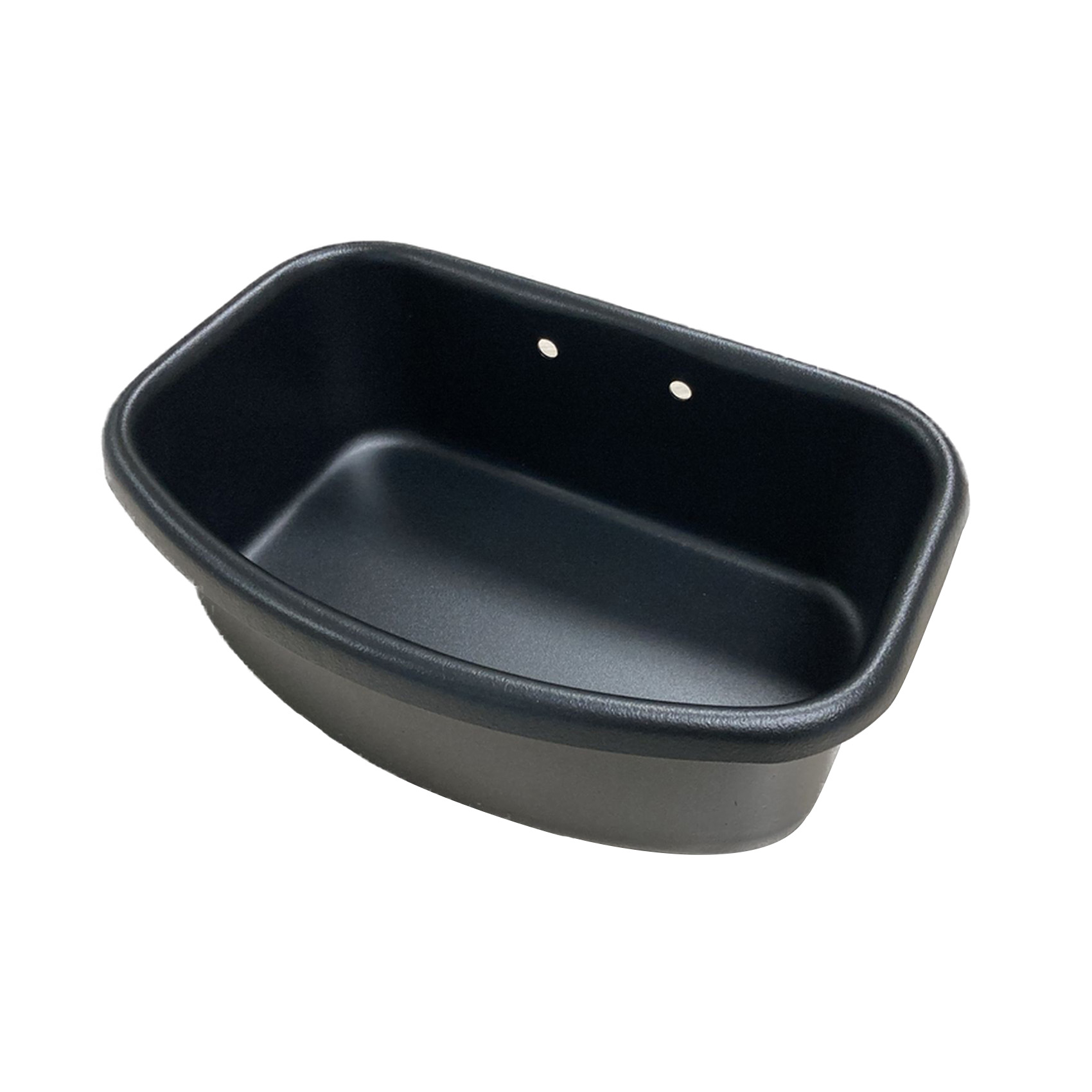

ART.F24-9106-001 REMOVABLE BASIN FOR DROPS COLLECTION
No reviews yet. Be the first to review this product!
| Item Code | MEC022-1915-000 |
|---|---|
| Barcode | 6295123309688 |
| Brand | MECLUBE |
| Category | OIL PUMPS & ACCESSORIES |
| Made In | MADE IN ITALY |
| Warranty | 6 MONTH |
The MECLUBE 022-1915-000 Oil Kit is used for transferring, dispensing, and measuring lubricating oil directly from 1000L IBC tanks in a safe and controlled manner. It allows workshops and industrial facilities to deliver oil efficiently to engines, machinery, hydraulic systems, and vehicles.
The main purpose of this oil kit is to provide a complete and professional oil management solution for large-capacity IBC tanks. It ensures fast oil flow, accurate dispensing, reduced oil wastage, and cleaner working conditions. The pneumatic air-operated pump system makes oil transfer smooth, reliable, and suitable for continuous heavy-duty use.
Choosing the MECLUBE 022-1915-000 Oil Kit means investing in a reliable, high-performance, and complete oil dispensing system. Unlike basic pump setups, this kit includes all necessary components for direct IBC installation, ensuring easy setup and professional operation.
With its powerful 28 L/min output, durable construction, and precision digital dispensing nozzle, it improves efficiency, reduces oil waste, and maintains a clean and safe workshop environment. It is ideal for automotive garages, fleet service centers, industrial maintenance departments, and heavy equipment workshops that require high-volume lubrication management.
