BRAND : PIONEER
ITEM NO.: QBY1-1/2
ORIGIN : CHINA

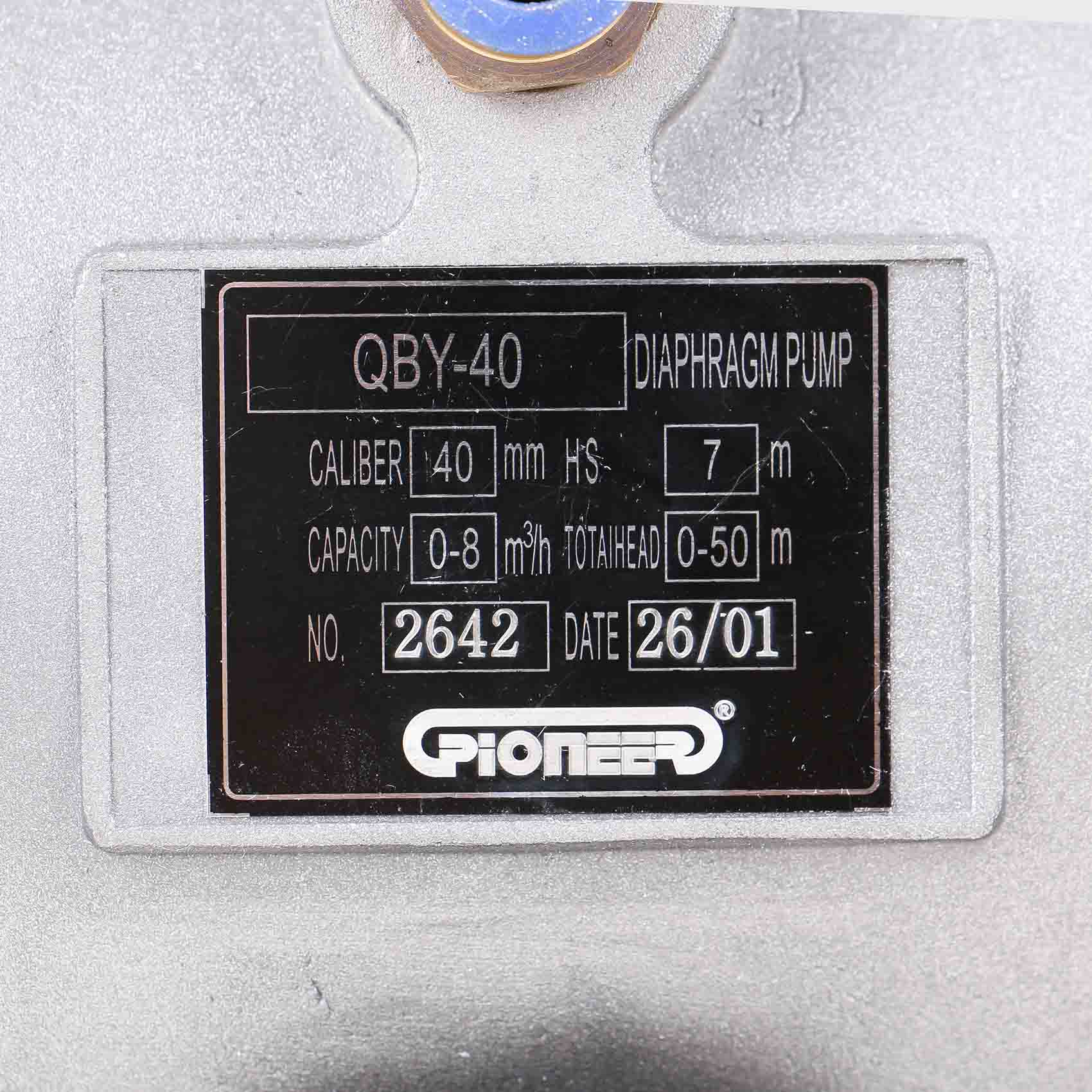

MODEL : QBY-40
FLUID: DIESEL/HVO/XTL | LUBRICANTS | OIL | WATER
MATERIALS : ALUMINUM
MAX. WORKING FLOW : 8 M³/H
AIR INLET SIZE : 10 MM
DISCHARGE : 0-8 M³/H
HEAD : 0-50 M
PRESSURE : 6 BAR
DISCHARGE SIZE : 40 MM
EXIT PRESSURE : 6 KGF/CM²
SUCKED CAPACITY : 7 M
MAX GRAIN DIA.: 4.5 MM
MAX PRESSURE : 0.6 M³/MIN
DIAPHRAGM DIAMETER : 230 M³/MIN
INLET : THREAD BUTTON
OUTLET : 1.1/2"
WEIGHT : 24 KG
. IN/OUT INTERCHANGEABLE
. LONG LIFE DIAPHRAGM
. BUILT-IN DIFFUSER
. SUITABLE FOR IMMERSED INSTALLATIONS

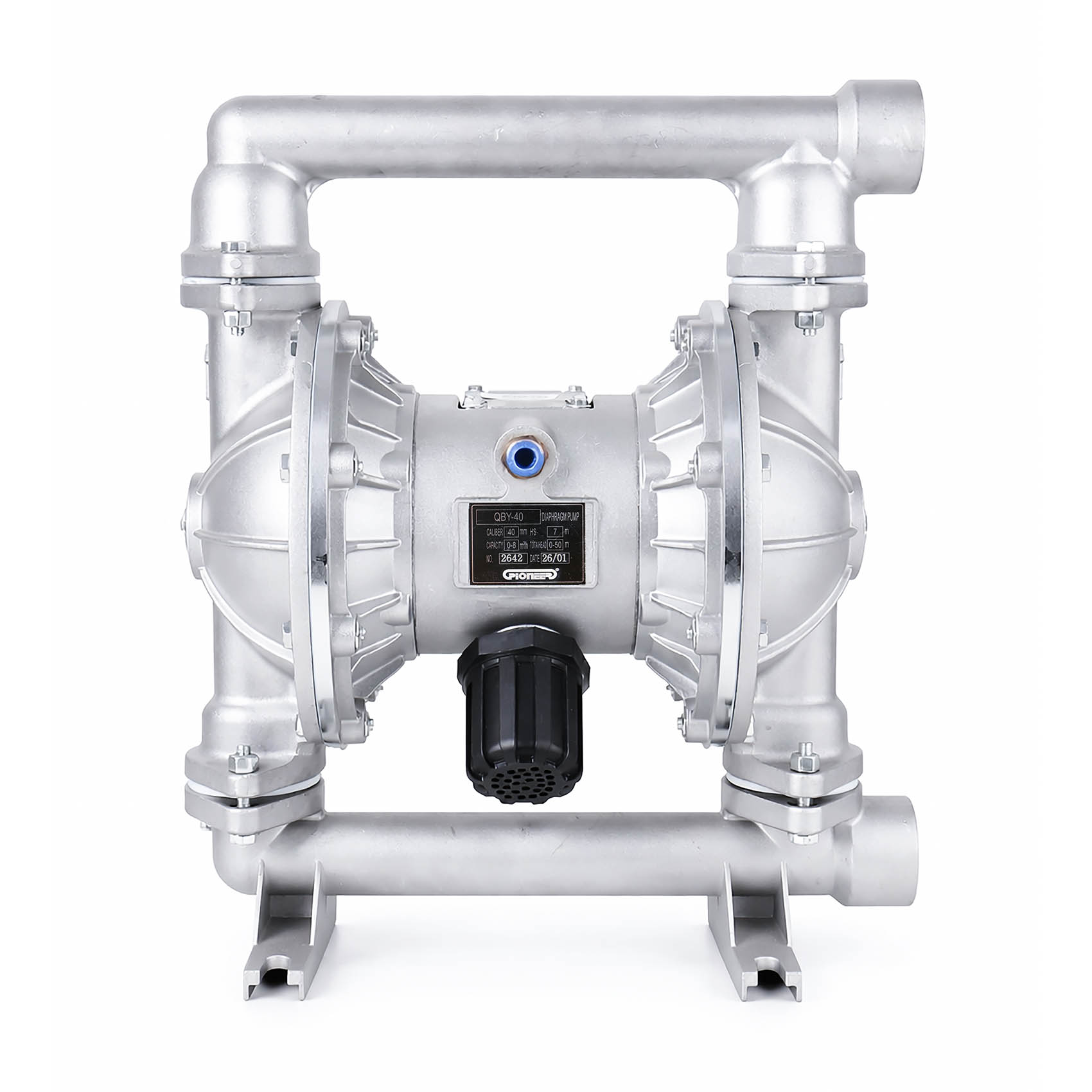

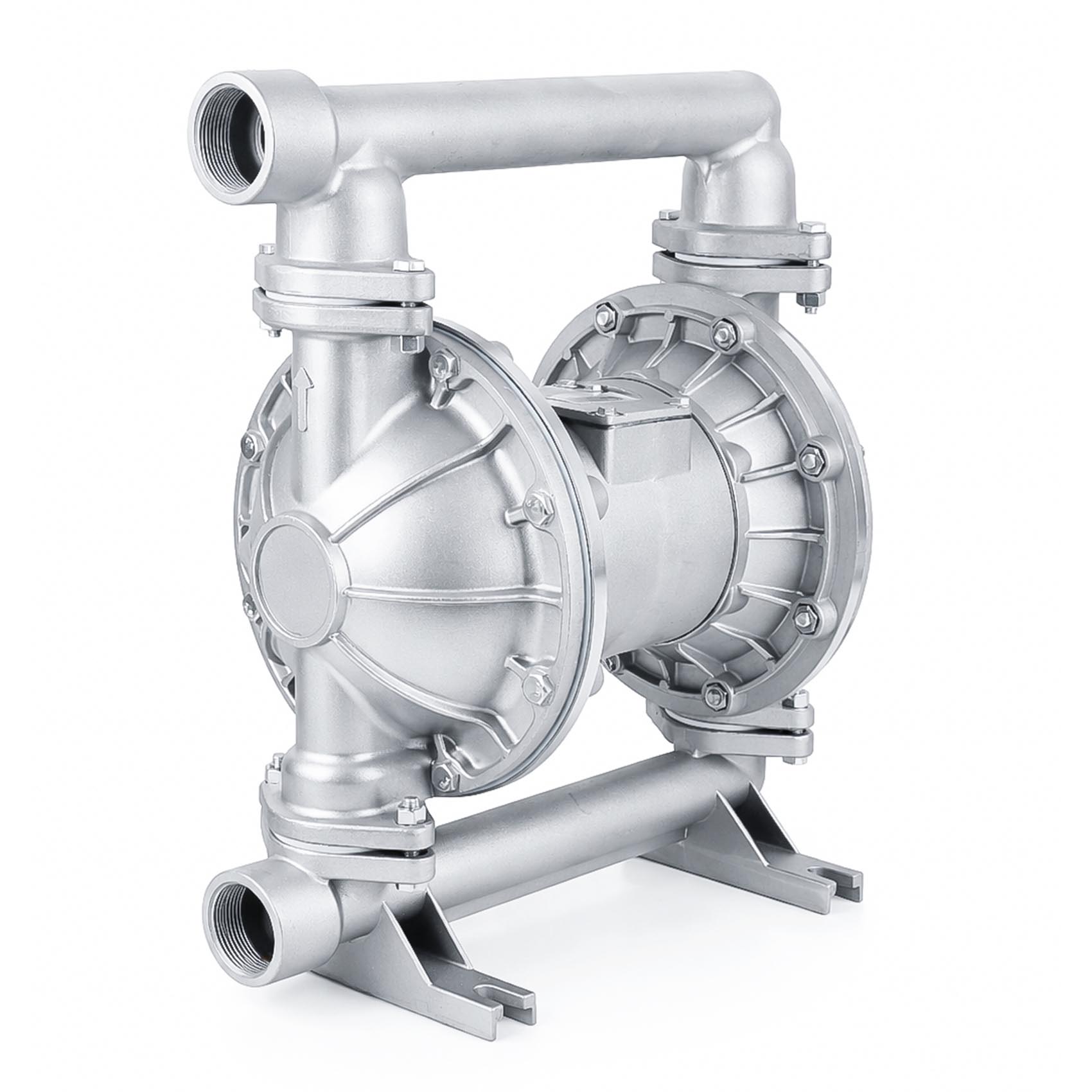

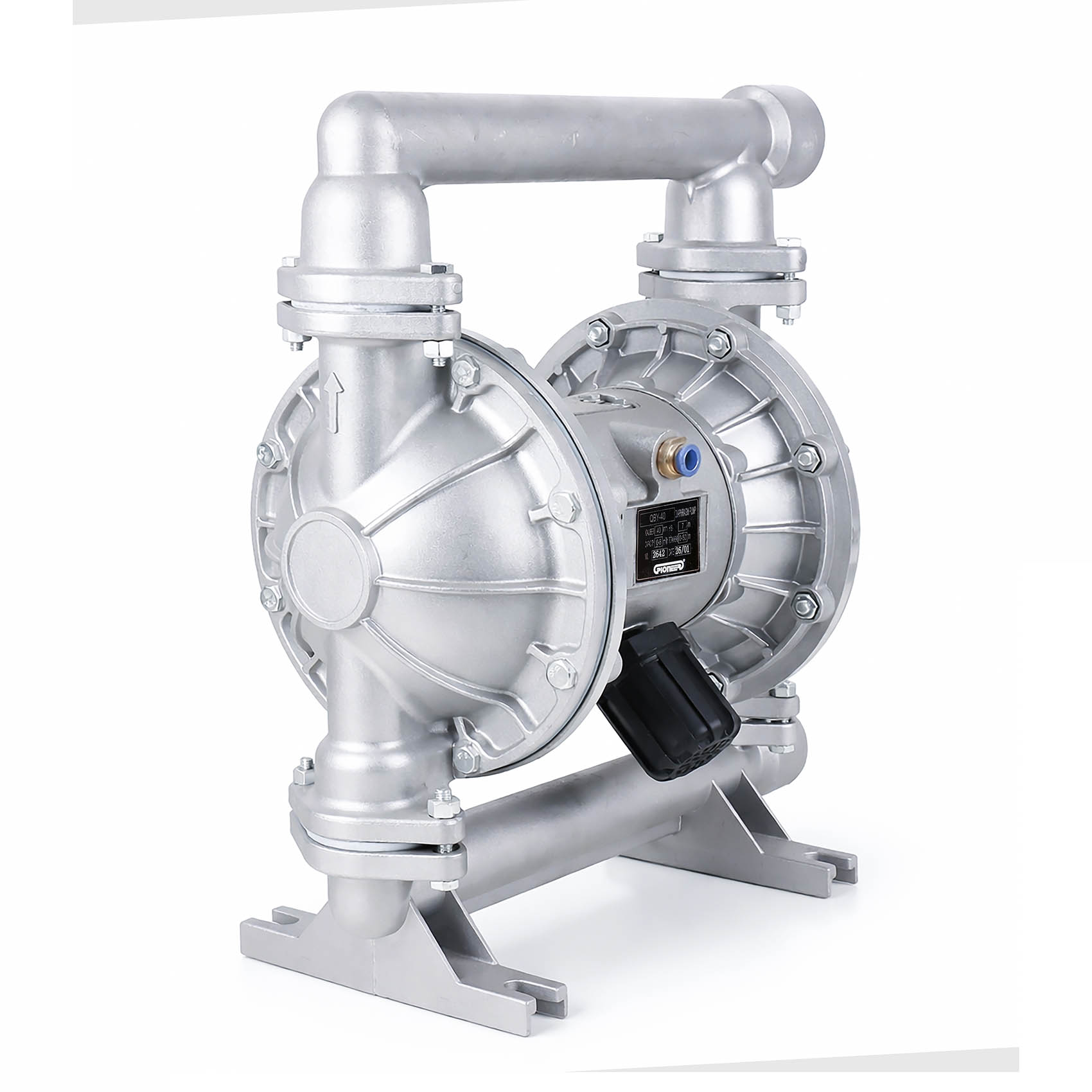

THE DOUBLE DIAPHRAGM PNEUMATIC PUMP HAS BEEN DESIGNED AND DEVELOPED FOR FLUID TRANSFER ACCORDING TO YOUR SPECIFICATIONS, BEING THE IDEAL PRODUCT FOR ENVIRONMENTS WHERE THERE IS A NEED TO DISPOSE AND TRANSFER LUBRICATING OIL, DIESEL OIL AND WATER. THE EQUIPMENT HAS AN ALUMINIUM BODY, PROVIDING BETTER FLUID FLOW TRANSITION AND INTERNAL BALL MOVEMENT, BESIDES ALSO HAVING A DOUBLE DIAPHRAGM SYSTEM, PROVIDING GREATER EFFECTIVENESS AND BETTER USABILITY OF THE PRODUCT, AND SEALS IN NBR, PROVIDING TOTAL RESISTANCE TO PRESSURE EXERTED BY THE PUMP AND AT HIGH TEMPERATURE LEVELS.
PNEUMATIC DIAPHRAGM PUMP NOT ONLY CAN EXHAUST THE FLOW LIQUID, BUT ALSO CAN CONVEY SOME UNEASY FLOW MEDIA, WITH THE MERITS OF SELF-PUMPING PUMP, DIVING PUMP, SHIELD PUMP, SLURRY PUMP AND IMPURITY PUMP ETC.
THERE ARE FOUR KINDS OF MATERIAL: CAST IRON, ALUMINUM, ENGINEERING PLASTIC, AND STAINLESS STEEL. THE DIAPHRAGM PUMPS ACCORDING TO DIFFERENT LIQUID MEDIUM, BUTYL RUBBER WERE USED RESPECTIVELY TO EITHER A BUNA-N RUBBER, NEOPRENE RUBBER, F4 FLUORINE RUBBER, F46 FLUORINE RUBBER AND SO ON, TO MEET THE NEEDS OF DIFFERENT USERS.
No reviews yet. Be the first to review this product!
| Item Code | CHININQBY1-1/2 |
|---|---|
| Barcode | 6295123309329 |
| Brand | PIONEER |
| Category | FUEL PUMPS, HOSES & ACCESSORIES |
| Made In | MADE IN CHINA |
The PIONEER air operated double diaphragm pump is a reliable and efficient pneumatic solution designed for fluid transfer applications across the UAE. Built with a durable aluminum body and advanced diaphragm technology, this pump ensures smooth handling of diesel, lubricants, oil, water, and other industrial fluids in demanding environments.
This pneumatic diaphragm pump is designed for transferring, circulating, and discharging fluids safely and efficiently. It is ideal for applications where electric pumps are not suitable, offering a safe and reliable alternative for industrial and workshop use.
The PIONEER diaphragm pump is widely trusted in Dubai and across the UAE due to its versatility, durability, and safety. Its pneumatic operation eliminates electrical risks, making it ideal for industrial environments, while its robust design ensures long-term performance.
Q: What is this diaphragm pump used for?
A: It is used for transferring fluids such as diesel, oil, water, and lubricants efficiently.
Q: Does it require electricity?
A: No, it operates using compressed air, making it safe for hazardous environments.
Q: Can it handle dirty or thick liquids?
A: Yes, it is designed to handle viscous and impurity-containing fluids.
Q: Is it suitable for industrial use?
A: Yes, it is ideal for industrial, workshop, and construction applications.
Q: Is maintenance required?
A: Minimal maintenance is required, but regular inspection is recommended for long-term use.
