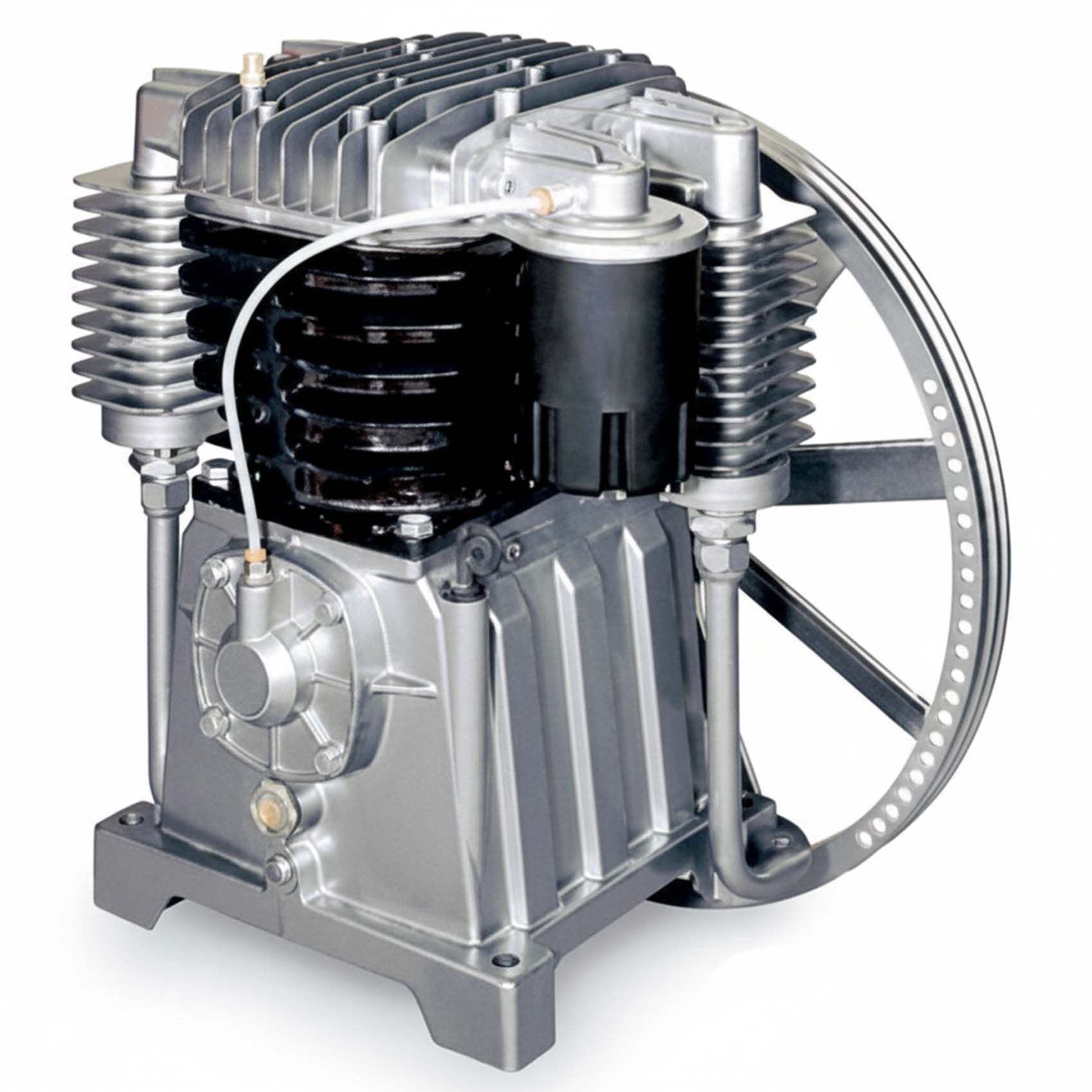

FIAC 10 BAR 10 HP PUMPING UNIT FOR AIR COMPRESSOR AB998 BELT DRIVEN PUMPS 1123020557 | COMPRESSOR HEAD | COMPRESSOR PUMP | MADE IN ITALY

BRAND : FIAC

ITEM NO.: AB998

ORIGIN : ITALY

MAX PRESSURE: 10 BAR

MAX PRESSURE: 145 PSI

RECOMMENDED MOTOR POWER : 10 HP - 7.5 KW

CYLINDERS / STAGES : 2 / 2 (TWO-CYLINDER, TWO-STAGE COMPRESSION)

PUMP SPEED : 1270 MIN⁻¹ (RPM)

AIR DISPLACEMENT (SUCTION) : 1070 L/MIN - 37.8 CFM - 64.2 M³/H

AIR DELIVERY (AT PRESSURE) : 785 L/MIN - 27.7 CFM - 47.1 M³/H

FLYWHEEL (PULLEY) : 430 × 2 A (16.9" × 2 V-BELTS)

DIMENSIONS (L × P × H) : 430 × 350 × 510 MM (16.9 × 13.8 × 20 IN)

LXPXH : 45X41X66

WEIGHT : 37 KG (82 LB)

. THE AB SERIES DISTINGUISHES THE OIL-LUBRICATED SINGLE-STAGE AND TWO-STAGE BELT-DRIVEN TWO-CYLINDER COMPRESSOR UNITS.

. THE FIAC COMPRESSOR UNITS HAVE BEEN DESIGNED AND TESTED IN COMPLIANCE WITH THE STRICTEST INTERNATIONAL STANDARDS.

. PARTICULAR RESEARCH HAS BEEN DEDICATED TO CONTROLLING NOISE LEVELS AND DISSIPATING HEAT GENERATED DURING OPERATION.

. THE COMPRESSOR UNIT IS SUPPLIED BY THE MANUFACTURER WITHOUT OIL
