BRAND : PIONEER

ITEM NO.: G-66

ORIGIN : CHINA

BALANCING SPEED : 200 R.P.M

RIM WIDTH : 40-510 MM 1.5"-20"

BALANCING ACCURACY : ±1G(±0.04 OZ)

V : 220

HZ : 50

PH : 1

BALANCING TYPE OF WHEEL : OFF-CAR TYPE

BALANCING RANGE : BIG SIZE WHEEL

BALANCING MODES : 9

RIM DIAMETER : 252-610 MM 10"-24"

MEASURING TIME : 8S

DESIGN TYPE : HORIZONTAL TYPE

WORKING NOISE : <70DB(A)

FUNCTION : DYNAMIC BALANCE, STATIC BALANCE, WHEEL BALANCE, MOTORCYCLE BALANCE, WELL BALANCED, AUXILIARY IMPLICIT PROCEDURE, CALIBRATION PROCEDURE

OPTION MOTOR POWER : 0.20/0.37KW

MAX. WHEEL WEIGHT : 65 KG (143 LBS)

NET WEIGHT : 116 KG

GROSS WEIGHT : 136 KG

.17" LED SEGMENT DISPLAY: DISPLAYING AND VISUALIZE THE OPERATION INTERFACE FOR CHOOSING BALANCING MODES.

.TOOL HANDLE: HANDING CONES; LIFTING THE MACHINE AS HANDLERS.

.TOOL BOX: PLACING TOOLS WHEN OPERATING THE MACHINE.

. AUTOMATIC WIDTH MEASURING SCALE WITH AUTOMATIC DISTANCE, DIAMETER AND WIDTH MEASURE SCALE, IT CAN BE INPUT DATA FOR RIM AUTOMATICALLY.

STANDARD CONFIGURATION :

AUTOMATIC DISC BRAKE & LASER POINTER

A : AUTOMATIC DISC BRAKE

STOP&LOCK SHAFT TO LOCK THE TIRE AND FIND THE IMBALANCE PLACE WITH LASER AUTOMATICALLY, FAST, EFFICIENCY AND ACCURACY.

B : LASER POINTER

POINT OUT THE IMBALANCE PLACE WITH LASER AUTOMATICALLY.

C : LED LIGHTING

EQUIPPED LED TO ELIMINATE THE WEIGHT POSITION INDICATOR.

3D ANIMATION INTERFACE :

.NEW PATENTED SOFTWARE SYSTEM.

.MORE USER-FRIENDLY DESIGN INTERFACE.

.EASY-TO-USE BUTTON DESIGN WITH QUICK AND UNDERSTANDABLE SYMBOLS TO INCREASE OPERATION SPEED.

.INCREASING PRECISION IN SOFTWARE UTILIZATION.

MULTI-LANGUAGE SUPPORT :

20 LANGUAGES AVAILABLE AND ACCPET MORE LANGUAGES CUSTOMIZED.

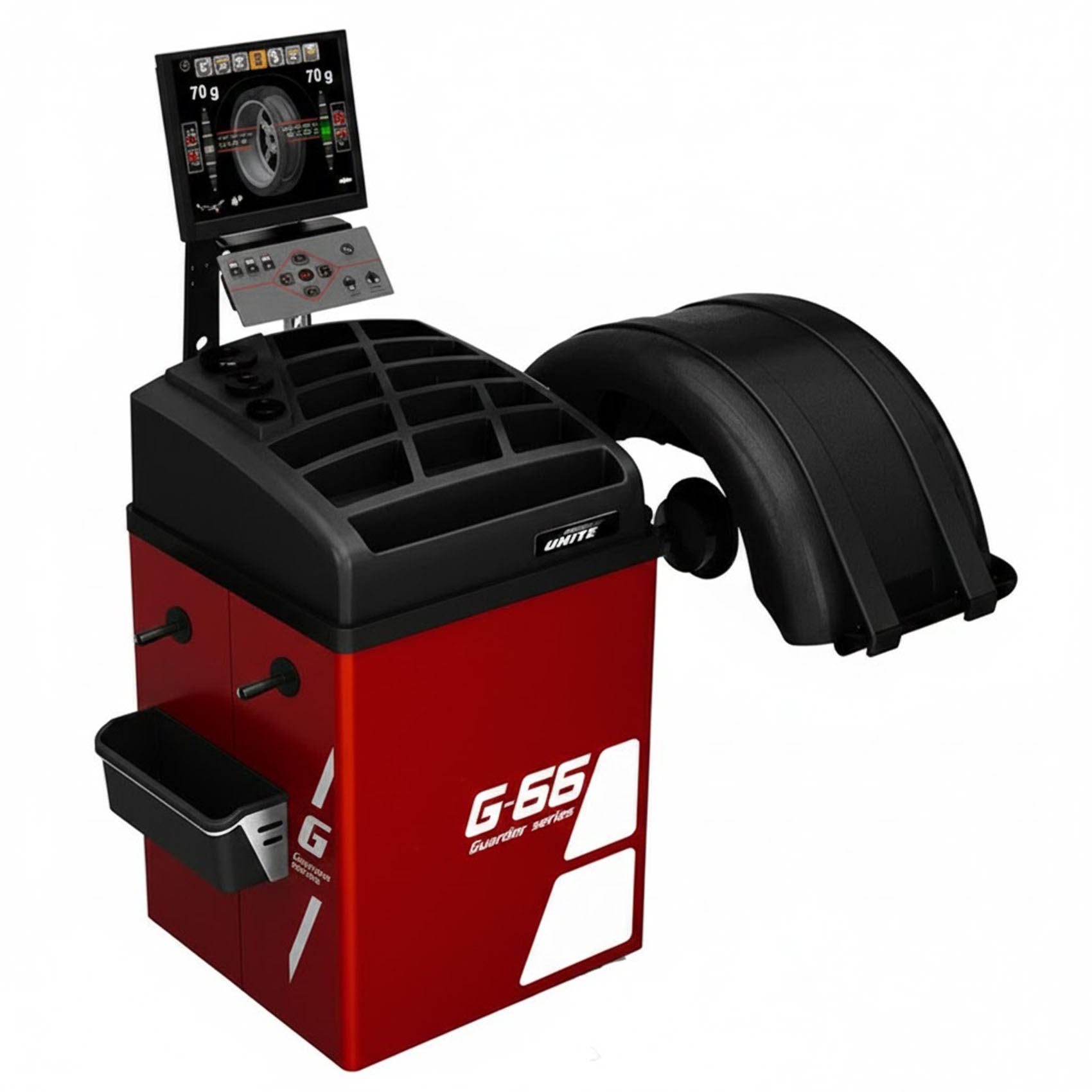

DIGITAL ELECTRONIC 3D WHEEL-BALANCER WITH ADJUSTABLE LED DISPLAY. EQUIPPED WITH WHEEL DIAMETER AND DISTANCE AUTOMATIC MEASURING GAUGE, BALANCING PROGRAMS FOR WHEELS WITH ALU-RIMS, STATIC AND DYNAMIC BALANCING PROGRAM AND BALANCE OPTIMIZATION.
