BRAND : PIONEER
ITEM NO.: PPL-6.0-2DEB
ORIGIN :
TYPE : HYDRAULIC LIFT
POWER SUPPLY : 380V 3PH
STANDARD : 3-STAGE ARM
CAPACITY : 6T
PHASES : 3
LIFTING HEIGHT : 1945MM
MIN HEIGHT : 100MM
MAX CAR WIDTH : 3022MM
PACKING SIZE : 2940X712X1110MM
WEIGHT : 1431 KG
DISCLAIMER: ACTUAL PRODUCT COLOR AND SHAPE MAY BE DIFFERENT FROM THE PICTURE.

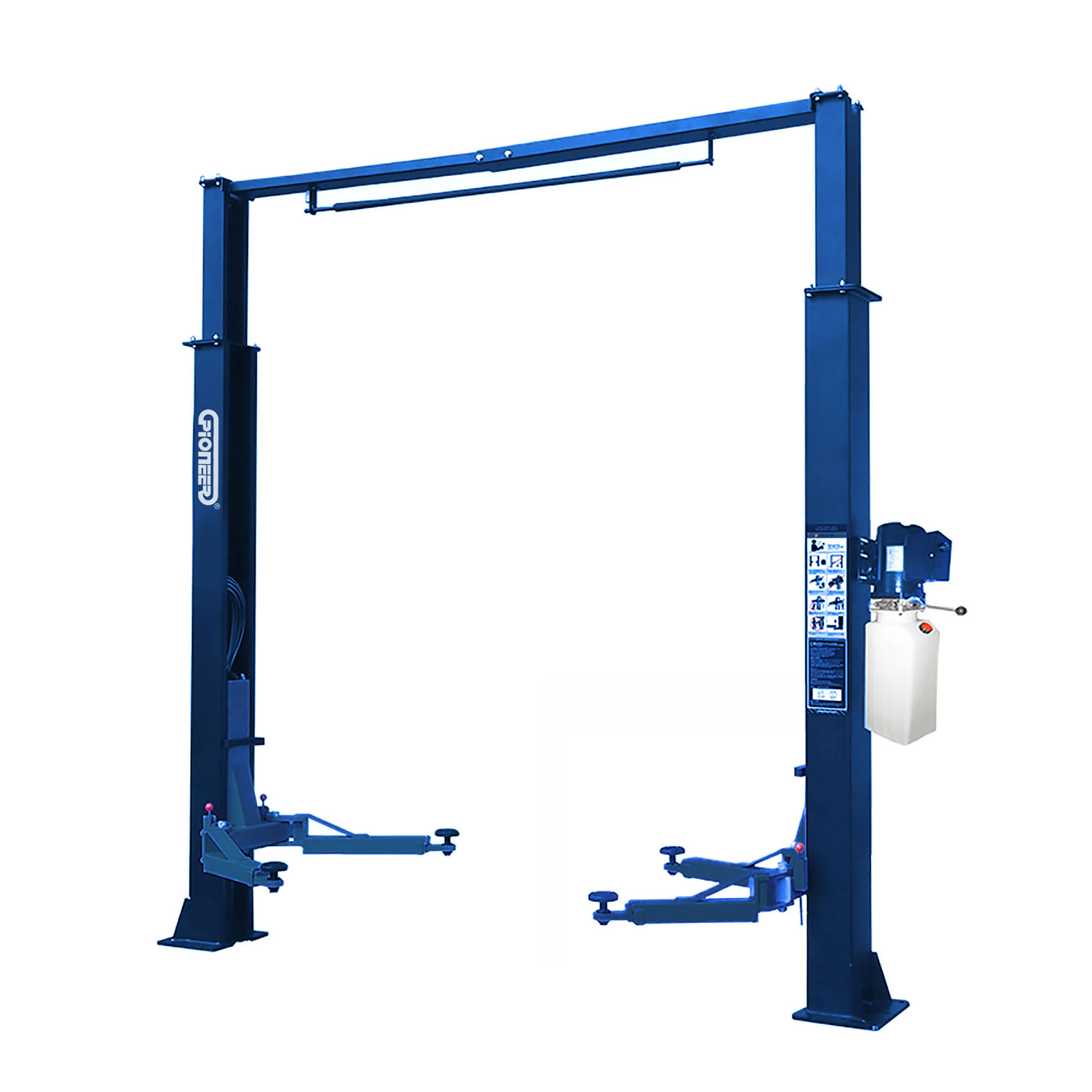

THE PPL-6.0-2DEB 2 POST LIFT IS AN ASYMMETRIC CLEAR FLOOR TWO-POST LIFT THAT FEATURES A 6000KG LIFTING CAPACITY AND ACCOMMODATES FULL-SIZE TRUCKS, VANS, AND STANDARD PASSENGER CARS. SINGLE-PIECE COLUMN CONSTRUCTION, TUBULAR STEEL LIFTING CARRIAGE, AND DIRECT-DRIVE HYDRAULIC CYLINDERS ENSURE THE BEST POSSIBLE PERFORMANCE AND RELIABILITY. ROTATED ASYMMETRIC COLUMNS ALLOW VEHICLES TO BE LOADED WITH DOORS CLEAR OF THE COLUMNS FOR CONVENIENT ENTRY AND EXIT OF VEHICLES.
FEATURES:
. MANUAL RELEASE FROM ONE SIDE JUST OPERATES THE HANDLE ON THE MAIN COLUMN SIDE TO RELEASE THE SAFETY LOCK.
. EQUIP HEIGHT LIMIT SWITCH TO ENSURE THE LIFTING HEIGHT SAFELY, AND PREVENT THE VEHICLE ROOF FROM DAMAGING.
. THE EQUALIZATION OF TWO STEEL CABLES FORCES BOTH SLIDING BLOCKS TO MOVE SYNCHRONOUSLY, EFFECTIVELY PREVENTING THE VEHICLE FROM TILTING.
. THE MINIMUM HEIGHT OF THE LIFTING PAD IS 100 MM, EASILY LIFT, AND SUITABLE FOR LOW-PROFILE CARS AND SUVS.
. EQUIP ALUMINUM MOTOR AND CAR DOOR-OPENING PROTECTION AS STANDARD CONFIGURATION
. RELIABLE OIL CYLINDER ADOPTS CHROME-PLATING HONED .CYLINDER AND PISTON ROD, WITH ITALIAN SEALS ON HYDRAULIC RAMS, ENSURE THE LONG SERVICE LIFE
. PASSED 115% DYNAMIC TEST AND 150% STATIC TEST
| Item Code | CHIPPL-6.0-2DEB |
|---|---|
| Barcode | 6291116314998 |
| Brand | PIONEER |
The PIONEER PPL-6.0-2DEB 2 Post Hydraulic Lift is a heavy-duty vehicle lifting solution designed for garages, workshops, and service centers in the UAE. Built with advanced hydraulic technology and a clear floor design, it allows efficient vehicle lifting for maintenance, repair, and inspection tasks.
1. Position the vehicle centrally between the two posts.
2. Adjust the 3-stage arms to align with the vehicle lifting points.
3. Ensure proper balance before lifting.
4. Operate the hydraulic system to lift the vehicle to the desired height.
5. Engage the safety lock system.
6. Perform maintenance or inspection safely.
7. Use manual release to lower the vehicle after work is complete.
This hydraulic car lift is used to raise vehicles for easy access to the underside, making it ideal for servicing, repairs, oil changes, tire work, and inspections. It improves efficiency and safety in automotive work environments.
The PIONEER 2 post lift offers a perfect combination of strength, safety, and reliability. Its advanced hydraulic system, strong construction, and user-friendly operation make it an excellent choice for professional automotive environments. The clear floor design enhances workspace efficiency and accessibility.
This product is ideal for:
The hydraulic lift is commonly used in:
This lift is suitable for cars, SUVs, vans, and full-size trucks within its lifting capacity.
Yes, it includes safety locks, height limit switches, and synchronization cables to ensure safe and stable lifting.
Yes, the low minimum pad height allows lifting of low-profile cars and SUVs easily.
It can be installed in garages, workshops, car service centers, and industrial maintenance facilities.
