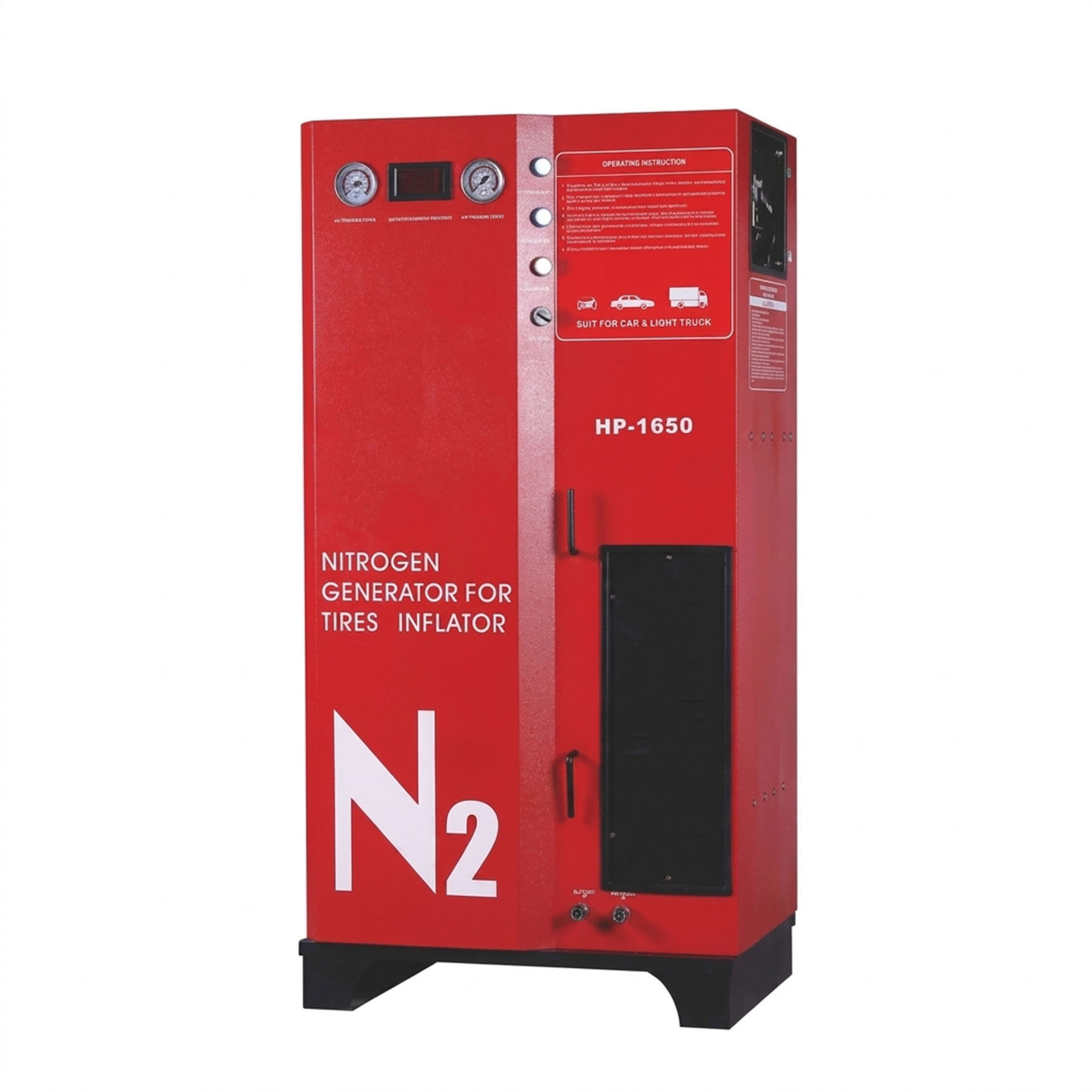

BRAND : PIONEER
ITEM NO.: PHP-1650
ORIGIN : CHINA
SUIT FOR : CAR AND LIGHT TRUCK
POWER : 220V±10%,50/60HZ
NITROGEN GENERATED : THROUGH HIGH QUALITY FILTRATION
NITROGEN PURITY : 95-99%
AIR INLET PRESSURE : 9~10KG/CM',130~145PSI
AIR COMPRESSOR REQUIRED : 5.5~7.5KW,10KG/CM2, 1~1.5M3/MIN
NITROGEN OUTLET PRESSURE : 6~8KG/CM2, 85~115PSI
OUTPUT CAPACITY : 40~50L/MIN, 10-12.5 GALLON/MIN
N2 TANK CAPACITY : 50L/13.2 GALLON INSIDE
STANDARD : 2 HOSES+VACCUM GENERATOR & N2 INFLATOR
DIMENSION : 710X520X1390MM
NET WEIGHT : 77 KGS
GROSS WEIGHT : 85 KGS
. SLOWER PRESSURE LOSS: BECAUSE NITROGEN MOLECULES ARE LARGER AND LESS PERMEABLE, TIRES LOSE PRESSURE SLOWER (ROUGHLY 1–2 PSI LESS OVER A YEAR COMPARED TO AIR).
. STABLE PRESSURE: NITROGEN IS DRY, WHICH ELIMINATES WATER VAPOR, REDUCING UNPREDICTABLE PRESSURE SPIKES DURING HIGH-SPEED DRIVING OR IN HOT WEATHER.
. REDUCED INTERNAL CORROSION: BY REMOVING OXYGEN AND MOISTURE, THE RISK OF RUST ON STEEL RIMS AND CORROSION OF INTERNAL TIRE COMPONENTS IS MINIMIZED.
. EXTENDED TIRE LIFE : IMPROVED PRESSURE STABILITY AND LACK OF INTERNAL OXIDATION CAN LEAD TO MORE EVEN TREAD WEAR AND LESS DEGRADATION, POTENTIALLY INCREASING TIRE LIFE.
| Item Code | CHIPNGPHP-1650 |
|---|---|
| Barcode | 6291116313588 |
| Brand | PIONEER |
Connect the machine to a 220V power supply and ensure the air compressor (5.5–7.5KW) is properly connected with the required inlet pressure (9–10 kg/cm²). Turn on the generator and allow it to produce nitrogen. Use the vacuum function to remove existing air from the tire for better nitrogen purity. Attach the hose to the tire valve, set the desired pressure, and begin inflation. Once complete, disconnect the hose and verify tire pressure.
This nitrogen generator is designed to produce high-purity nitrogen (95–99%) for inflating tires. It replaces regular compressed air to provide better pressure stability, reduce moisture, and enhance tire lifespan and safety.
This model offers reliable nitrogen generation with consistent performance, helping reduce tire pressure loss, prevent internal corrosion, and extend tire life. It is an ideal solution for workshops looking to improve service quality and efficiency.
Nitrogen maintains stable tire pressure, reduces moisture, prevents internal corrosion, and improves tire life compared to compressed air.
It is designed for cars and light trucks, making it suitable for most passenger and light commercial vehicles.
Yes, it requires an external air compressor with 5.5–7.5KW capacity and proper pressure input to function efficiently.
The machine produces nitrogen with a purity level of 95–99%, ensuring optimal tire performance.
Regular filter inspection, moisture drainage, and maintaining proper compressor pressure are essential for long-term performance.
